Element diggs:Test
Namespace http://diggsml.org/schemas/3
Annotations

A test: estimates of the value of a property of the investigation target, measured
at a time instant or within a time interval and within a spatial domain, typically
derived from a test procedure.

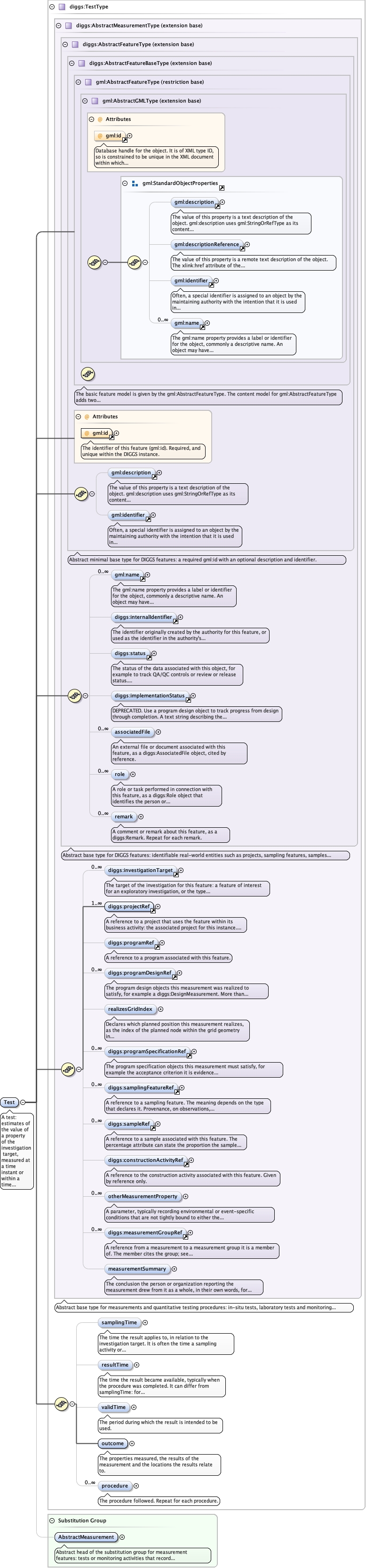

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeCommon_xsd_Element_diggs_investigationTarget.tmp#investigationTargetCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_programRef.tmp#programRefCommon_xsd_Element_diggs_programDesignRef.tmp#programDesignRefAbstractTypes_xsd_Complex_Type_diggs_AbstractMeasurementType.tmp#AbstractMeasurementType_realizesGridIndexCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefCommon_xsd_Element_diggs_samplingFeatureRef.tmp#samplingFeatureRefCommon_xsd_Element_diggs_sampleRef.tmp#sampleRefCommon_xsd_Element_diggs_constructionActivityRef.tmp#constructionActivityRefAbstractTypes_xsd_Complex_Type_diggs_AbstractMeasurementType.tmp#AbstractMeasurementType_otherMeasurementPropertyCommon_xsd_Element_diggs_measurementGroupRef.tmp#measurementGroupRefAbstractTypes_xsd_Complex_Type_diggs_AbstractMeasurementType.tmp#AbstractMeasurementType_measurementSummaryAbstractTypes_xsd_Complex_Type_diggs_AbstractMeasurementType.tmp#AbstractMeasurementTypeCore_xsd_Complex_Type_diggs_TestType.tmp#TestType_samplingTimeCore_xsd_Complex_Type_diggs_TestType.tmp#TestType_resultTimeCore_xsd_Complex_Type_diggs_TestType.tmp#TestType_validTimeCore_xsd_Complex_Type_diggs_TestType.tmp#TestType_outcomeCore_xsd_Complex_Type_diggs_TestType.tmp#TestType_procedureCore_xsd_Complex_Type_diggs_TestType.tmp#TestTypeAbstractTypes_xsd_Element_diggs_AbstractMeasurement.tmp#AbstractMeasurement
Type diggs:TestType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:constructionActivityRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:investigationTarget, diggs:measurementGroupRef, diggs:measurementSummary, diggs:otherMeasurementProperty, diggs:outcome, diggs:procedure, diggs:programDesignRef, diggs:programRef, diggs:programSpecificationRef, diggs:projectRef, diggs:realizesGridIndex, diggs:remark, diggs:resultTime, diggs:role, diggs:sampleRef, diggs:samplingFeatureRef, diggs:samplingTime, diggs:status, diggs:validTime, gml:description, gml:identifier, gml:name
Instance

<diggs:Test gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:investigationTarget>{0,unbounded}</diggs:investigationTarget>
  <diggs:projectRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:projectRef>
  <diggs:programRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:programRef>
  <diggs:programDesignRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programDesignRef>
  <diggs:realizesGridIndex dimension="2">{0,1}</diggs:realizesGridIndex>
  <diggs:programSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programSpecificationRef>
  <diggs:samplingFeatureRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:samplingFeatureRef>
  <diggs:sampleRef xlink:href="" identifierRef="" nilReason="" owns="false" percentage="">{0,unbounded}</diggs:sampleRef>
  <diggs:constructionActivityRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:constructionActivityRef>
  <diggs:otherMeasurementProperty>{0,unbounded}</diggs:otherMeasurementProperty>
  <diggs:measurementGroupRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:measurementGroupRef>
  <diggs:measurementSummary>{0,1}</diggs:measurementSummary>
  <diggs:samplingTime>{0,1}</diggs:samplingTime>
  <diggs:resultTime>{0,1}</diggs:resultTime>
  <diggs:validTime>{0,1}</diggs:validTime>
  <diggs:outcome>{1,1}</diggs:outcome>
  <diggs:procedure xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:procedure>
</diggs:Test>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="Test" type="diggs:TestType" substitutionGroup="diggs:AbstractMeasurement">
  <annotation>
    <documentation>A test: estimates of the value of a property of the investigation target, measured at a time instant or within a time interval and within a spatial domain, typically derived from a test procedure.</documentation>
  </annotation>
</element>
