Element diggs:PlannedTest
Namespace http://diggsml.org/schemas/3
Annotations

A test planned under a testing schedule: the samples to test, the measurement
specification to follow, and the progress of the test.

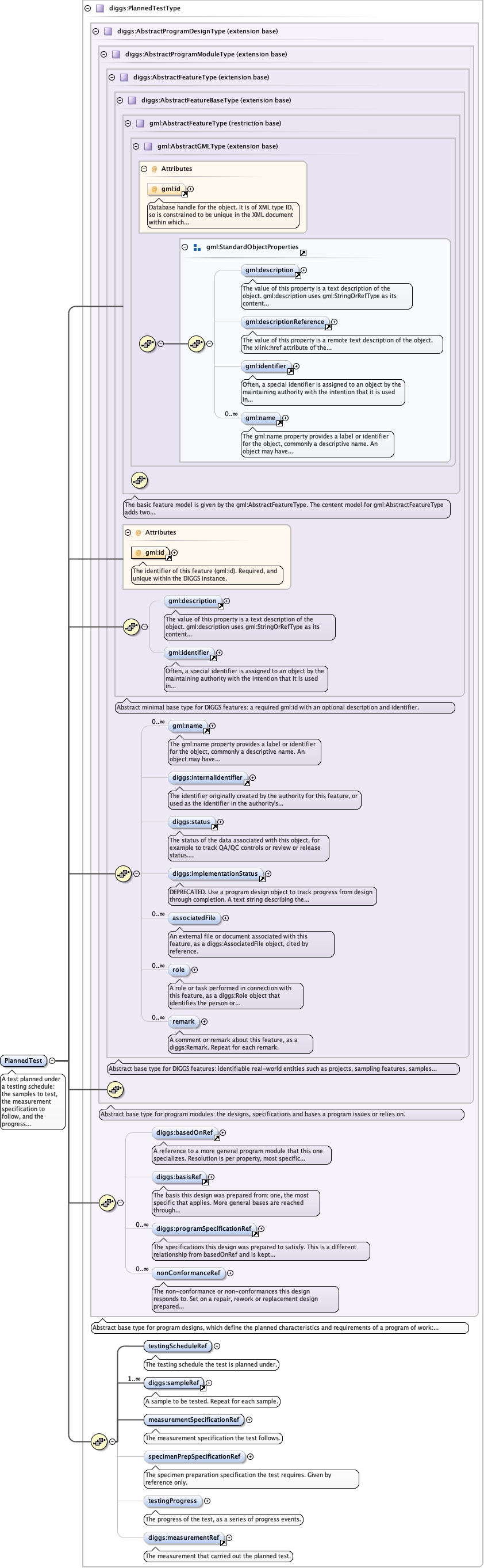

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramModuleType.tmp#AbstractProgramModuleTypeCommon_xsd_Element_diggs_basedOnRef.tmp#basedOnRefCommon_xsd_Element_diggs_basisRef.tmp#basisRefCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramDesignType.tmp#AbstractProgramDesignType_nonConformanceRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramDesignType.tmp#AbstractProgramDesignTypeCore_xsd_Complex_Type_diggs_PlannedTestType.tmp#PlannedTestType_testingScheduleRefCommon_xsd_Element_diggs_sampleRef.tmp#sampleRefCore_xsd_Complex_Type_diggs_PlannedTestType.tmp#PlannedTestType_measurementSpecificationRefCore_xsd_Complex_Type_diggs_PlannedTestType.tmp#PlannedTestType_specimenPrepSpecificationRefCore_xsd_Complex_Type_diggs_PlannedTestType.tmp#PlannedTestType_testingProgressCommon_xsd_Element_diggs_measurementRef.tmp#measurementRefCore_xsd_Complex_Type_diggs_PlannedTestType.tmp#PlannedTestType
Type diggs:PlannedTestType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:associatedFile, diggs:basedOnRef, diggs:basisRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:measurementRef, diggs:measurementSpecificationRef, diggs:nonConformanceRef, diggs:programSpecificationRef, diggs:remark, diggs:role, diggs:sampleRef, diggs:specimenPrepSpecificationRef, diggs:status, diggs:testingProgress, diggs:testingScheduleRef, gml:description, gml:identifier, gml:name
Instance

<diggs:PlannedTest gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:basedOnRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basedOnRef>
  <diggs:basisRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basisRef>
  <diggs:programSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programSpecificationRef>
  <diggs:nonConformanceRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:nonConformanceRef>
  <diggs:testingScheduleRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,1}</diggs:testingScheduleRef>
  <diggs:sampleRef xlink:href="" identifierRef="" nilReason="" owns="false" percentage="">{1,unbounded}</diggs:sampleRef>
  <diggs:measurementSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,1}</diggs:measurementSpecificationRef>
  <diggs:specimenPrepSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:specimenPrepSpecificationRef>
  <diggs:testingProgress>{0,1}</diggs:testingProgress>
  <diggs:measurementRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:measurementRef>
</diggs:PlannedTest>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="PlannedTest" type="diggs:PlannedTestType">
  <annotation>
    <documentation>A test planned under a testing schedule: the samples to test, the measurement specification to follow, and the progress of the test.</documentation>
  </annotation>
</element>
