Namespace http://diggsml.org/schemas/3
Annotations
A monitoring activity: estimates of the value of a property of the investigation
target, measured at a time instant or within a time interval, at a location or
series of locations, and derived from a test procedure.

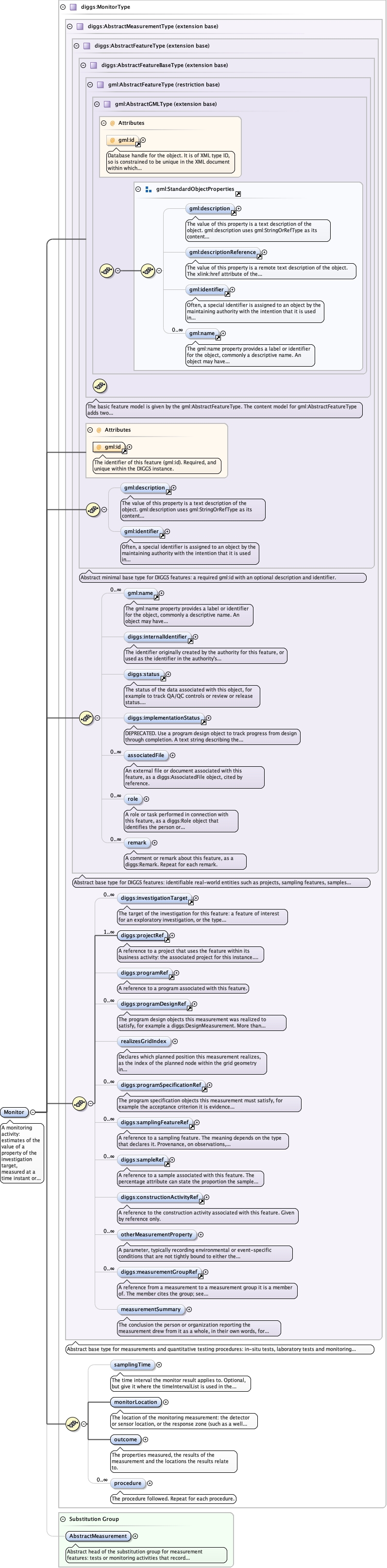

Diagram
Type diggs:MonitorType
Type hierarchy
Properties
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:investigationTarget* ,
diggs:projectRef+ ,
diggs:programRef{0,1} ,
diggs:programDesignRef* ,
diggs:realizesGridIndex{0,1} ,
diggs:programSpecificationRef* ,
diggs:samplingFeatureRef* ,
diggs:sampleRef* ,
diggs:constructionActivityRef{0,1} ,
diggs:otherMeasurementProperty* ,
diggs:measurementGroupRef* ,
diggs:measurementSummary{0,1} ,
diggs:samplingTime{0,1} ,
diggs:monitorLocation ,
diggs:outcome ,
diggs:procedure*
Children diggs:associatedFile diggs:constructionActivityRef diggs:implementationStatus diggs:internalIdentifier diggs:investigationTarget diggs:measurementGroupRef diggs:measurementSummary diggs:monitorLocation diggs:otherMeasurementProperty diggs:outcome diggs:procedure diggs:programDesignRef diggs:programRef diggs:programSpecificationRef diggs:projectRef diggs:realizesGridIndex diggs:remark diggs:role diggs:sampleRef diggs:samplingFeatureRef diggs:samplingTime diggs:status gml:description gml:identifier gml:name
Instance
<diggs:Monitor gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:href= "" nilReason= "" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:investigationTarget > {0,unbounded} </diggs:investigationTarget>
<diggs:projectRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {1,unbounded} </diggs:projectRef>
<diggs:programRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,1} </diggs:programRef>
<diggs:programDesignRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:programDesignRef>
<diggs:realizesGridIndex dimension= "2" > {0,1} </diggs:realizesGridIndex>
<diggs:programSpecificationRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:programSpecificationRef>
<diggs:samplingFeatureRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:samplingFeatureRef>
<diggs:sampleRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" percentage= "" > {0,unbounded} </diggs:sampleRef>
<diggs:constructionActivityRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,1} </diggs:constructionActivityRef>
<diggs:otherMeasurementProperty > {0,unbounded} </diggs:otherMeasurementProperty>
<diggs:measurementGroupRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:measurementGroupRef>
<diggs:measurementSummary > {0,1} </diggs:measurementSummary>
<diggs:samplingTime > {0,1} </diggs:samplingTime>
<diggs:monitorLocation owns= "false" xlink:href= "" nilReason= "" > {1,1} </diggs:monitorLocation>
<diggs:outcome > {1,1} </diggs:outcome>
<diggs:procedure xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:procedure>
</diggs:Monitor>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "Monitor" type= "diggs:MonitorType" substitutionGroup= "diggs:AbstractMeasurement" >
<annotation >
<documentation > A monitoring activity: estimates of the value of a property of the investigation target, measured at a time instant or within a time interval, at a location or series of locations, and derived from a test procedure. </documentation>
</annotation>
</element>
