Element diggs:DesignConstructionActivity
Namespace http://diggsml.org/schemas/3
Annotations

A design for a construction activity with no specialization of its own: the planned
counterpart of a realized diggs:AbstractConstructionActivity. Where a sampling
feature design plans "a column here", this plans how it is to be built: the method
to follow, the equipment to use and the planned features the work acts on.
Requirements the work must meet, such as a termination or refusal criterion, are
cited through the inherited programSpecificationRef.

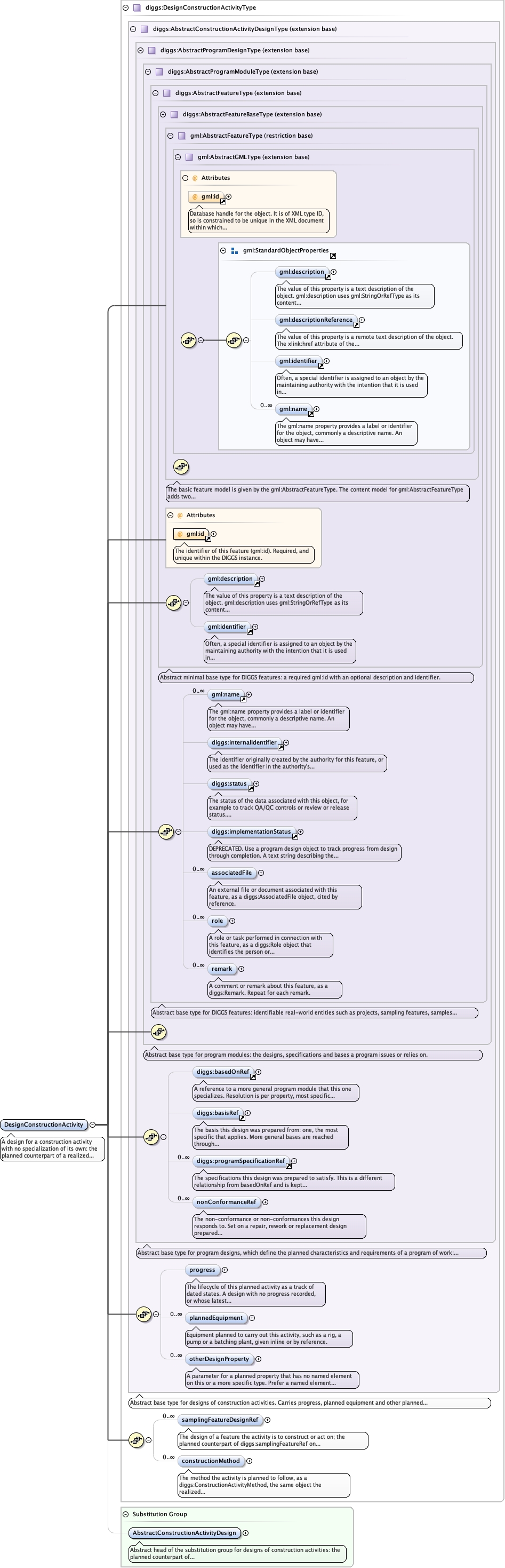

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramModuleType.tmp#AbstractProgramModuleTypeCommon_xsd_Element_diggs_basedOnRef.tmp#basedOnRefCommon_xsd_Element_diggs_basisRef.tmp#basisRefCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramDesignType.tmp#AbstractProgramDesignType_nonConformanceRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramDesignType.tmp#AbstractProgramDesignTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractConstructionActivityDesignType.tmp#AbstractConstructionActivityDesignType_progressAbstractTypes_xsd_Complex_Type_diggs_AbstractConstructionActivityDesignType.tmp#AbstractConstructionActivityDesignType_plannedEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractConstructionActivityDesignType.tmp#AbstractConstructionActivityDesignType_otherDesignPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractConstructionActivityDesignType.tmp#AbstractConstructionActivityDesignTypeCore_xsd_Complex_Type_diggs_DesignConstructionActivityType.tmp#DesignConstructionActivityType_samplingFeatureDesignRefCore_xsd_Complex_Type_diggs_DesignConstructionActivityType.tmp#DesignConstructionActivityType_constructionMethodCore_xsd_Complex_Type_diggs_DesignConstructionActivityType.tmp#DesignConstructionActivityTypeAbstractTypes_xsd_Element_diggs_AbstractConstructionActivityDesign.tmp#AbstractConstructionActivityDesign
Type diggs:DesignConstructionActivityType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:basedOnRef, diggs:basisRef, diggs:constructionMethod, diggs:implementationStatus, diggs:internalIdentifier, diggs:nonConformanceRef, diggs:otherDesignProperty, diggs:plannedEquipment, diggs:programSpecificationRef, diggs:progress, diggs:remark, diggs:role, diggs:samplingFeatureDesignRef, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:DesignConstructionActivity gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:basedOnRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basedOnRef>
  <diggs:basisRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basisRef>
  <diggs:programSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programSpecificationRef>
  <diggs:nonConformanceRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:nonConformanceRef>
  <diggs:progress>{0,1}</diggs:progress>
  <diggs:plannedEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:plannedEquipment>
  <diggs:otherDesignProperty>{0,unbounded}</diggs:otherDesignProperty>
  <diggs:samplingFeatureDesignRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:samplingFeatureDesignRef>
  <diggs:constructionMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:constructionMethod>
</diggs:DesignConstructionActivity>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="DesignConstructionActivity" type="diggs:DesignConstructionActivityType" substitutionGroup="diggs:AbstractConstructionActivityDesign">
  <annotation>
    <documentation>A design for a construction activity with no specialization of its own: the planned counterpart of a realized diggs:AbstractConstructionActivity. Where a sampling feature design plans "a column here", this plans how it is to be built: the method to follow, the equipment to use and the planned features the work acts on. Requirements the work must meet, such as a termination or refusal criterion, are cited through the inherited programSpecificationRef.</documentation>
  </annotation>
</element>
