Element diggs:ObjectNoDescriptionType / diggs:remark
Namespace http://diggsml.org/schemas/3
Annotations

A comment or remark about this object, as a diggs:Remark. Repeat
for each remark.

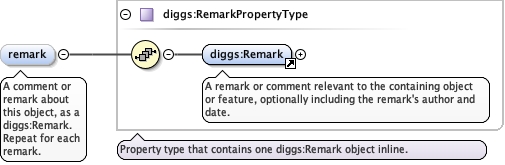

Diagram
DiagramCommon_xsd_Element_diggs_Remark.tmp#RemarkCommon_xsd_Complex_Type_diggs_RemarkPropertyType.tmp#RemarkPropertyType
Type diggs:RemarkPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Remark
Instance

<diggs:remark xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Remark owns="false">{1,1}</diggs:Remark>
</diggs:remark>
Source

<element maxOccurs="unbounded" minOccurs="0" name="remark" type="diggs:RemarkPropertyType">
  <annotation>
    <documentation>A comment or remark about this object, as a diggs:Remark. Repeat for each remark.</documentation>
  </annotation>
</element>
Complex Type diggs:ObjectNoDescriptionType
Namespace http://diggsml.org/schemas/3
Annotations

Base type for objects without description or name: retains only identifier, status
and remark. Used for objects whose description is managed externally or is not
needed.

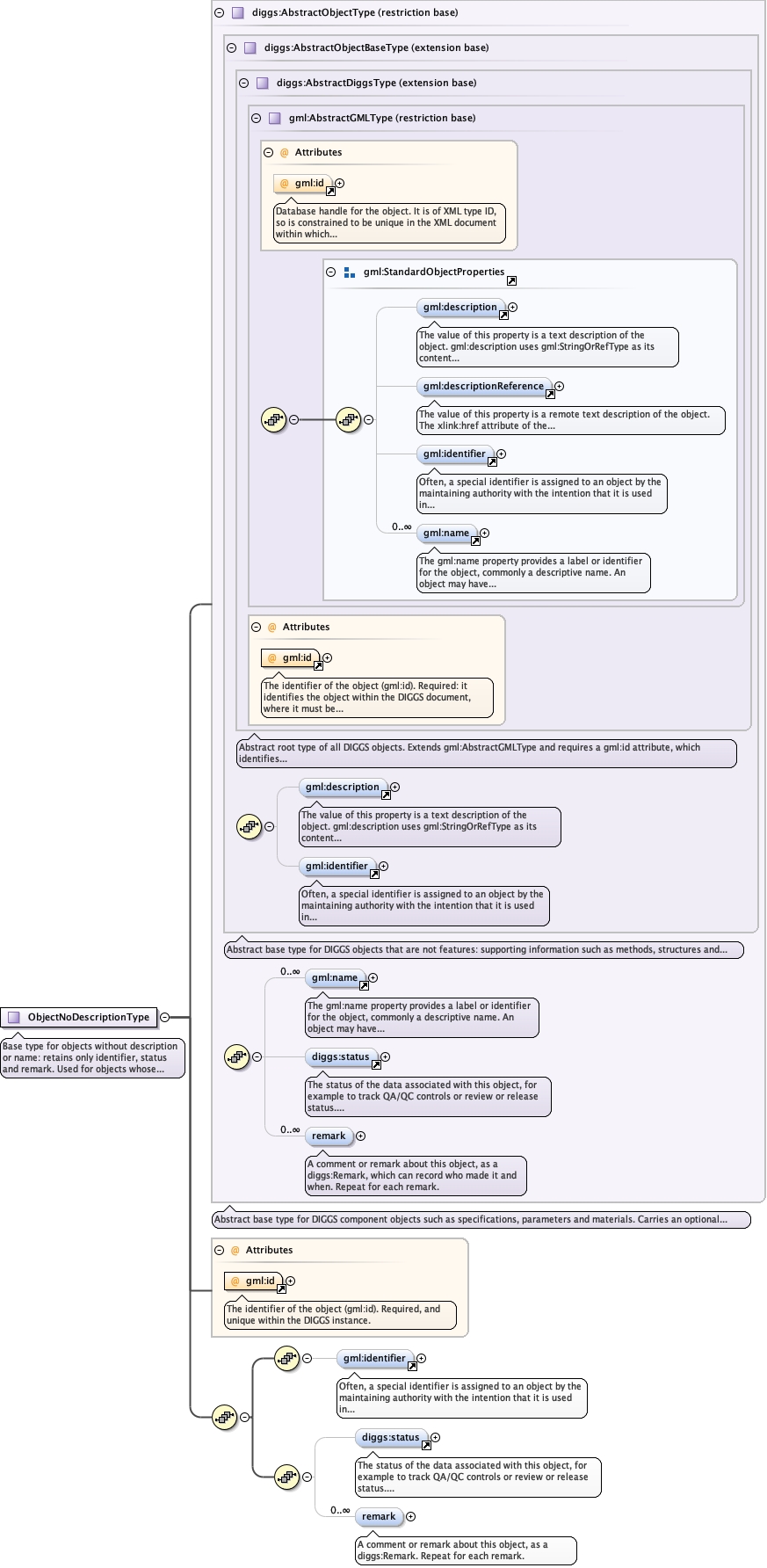

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Complex_Type_diggs_ObjectNoDescriptionType.tmp#ObjectNoDescriptionType_remark
Type restriction of diggs:AbstractObjectType
Type hierarchy
Properties
mixed false
Used by
Complex Type diggs:ParticleSizeType
Model
Children diggs:remark, diggs:status, gml:identifier
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="ObjectNoDescriptionType" mixed="false">
  <annotation>
    <documentation>Base type for objects without description or name: retains only identifier, status and remark. Used for objects whose description is managed externally or is not needed.</documentation>
  </annotation>
  <complexContent>
    <restriction base="diggs:AbstractObjectType">
      <sequence>
        <sequence>
          <element minOccurs="0" ref="gml:identifier"/>
        </sequence>
        <sequence>
          <element minOccurs="0" ref="diggs:status"/>
          <element maxOccurs="unbounded" minOccurs="0" name="remark" type="diggs:RemarkPropertyType">
            <annotation>
              <documentation>A comment or remark about this object, as a diggs:Remark. Repeat for each remark.</documentation>
            </annotation>
          </element>
        </sequence>
      </sequence>
      <attribute ref="gml:id" use="required">
        <annotation>
          <documentation>The identifier of the object (gml:id). Required, and unique within the DIGGS instance.</documentation>
        </annotation>
      </attribute>
    </restriction>
  </complexContent>
</complexType>
