Element gml:AbstractGML
Namespace http://www.opengis.net/gml/3.2
Annotations

The abstract element gml:AbstractGML is “any GML object having identity”. It
acts as the head of an XML Schema substitution group, which may include any element which is
a GML feature, or other object, with identity. This is used as a variable in content models
in GML core and application schemas. It is effectively an abstract superclass for all GML
objects.

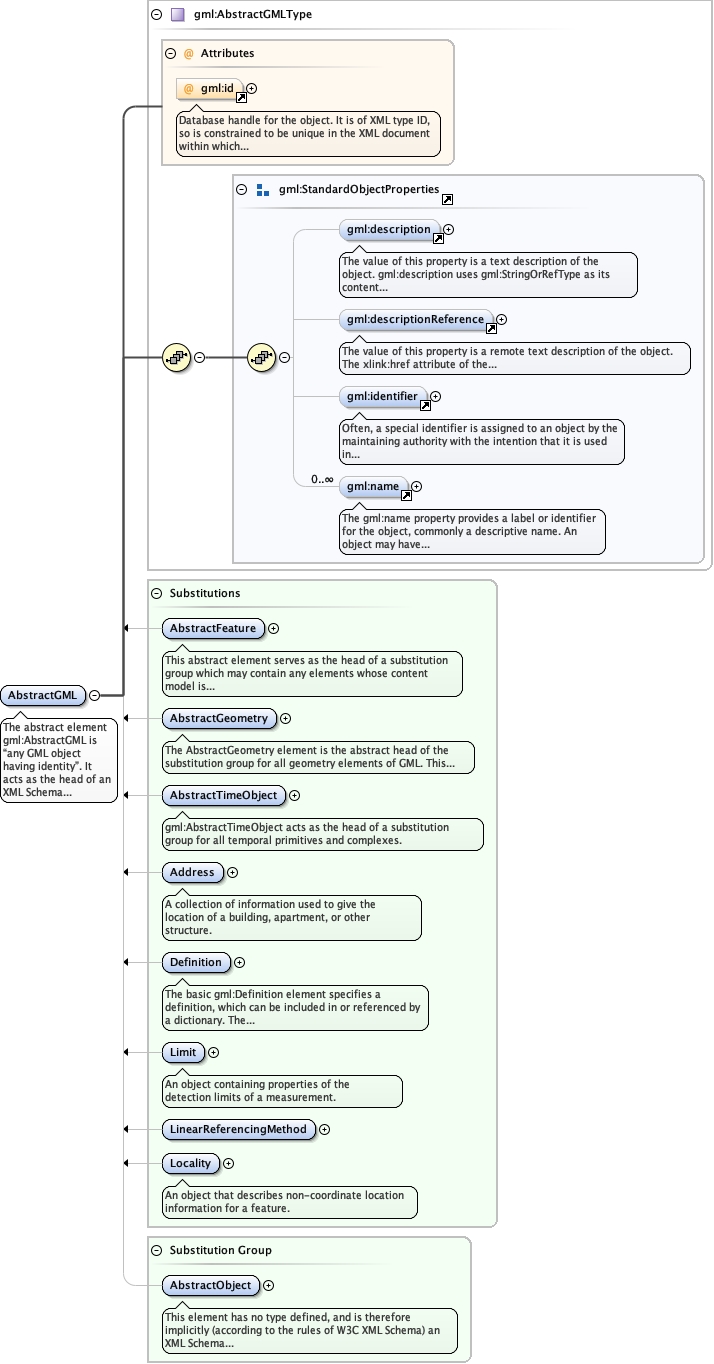

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_AbstractFeature.tmp#AbstractFeaturegml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectCommon_xsd_Element_diggs_Address.tmp#Addressgml3_2Profile_diggs_xsd_Element_gml_Definition.tmp#DefinitionCommon_xsd_Element_diggs_Limit.tmp#LimitglrProfile_diggs_xsd_Element_glr_LinearReferencingMethod.tmp#LinearReferencingMethodCommon_xsd_Element_diggs_Locality.tmp#Localitygml3_2Profile_diggs_xsd_Element_gml_AbstractObject.tmp#AbstractObject
Type gml:AbstractGMLType
Properties
content complex
abstract true
Substitution Group
Substitution Group Affiliation
Model
Children gml:description, gml:descriptionReference, gml:identifier, gml:name
Instance

<gml:AbstractGML gml:id="" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:AbstractGML>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="AbstractGML" type="gml:AbstractGMLType" abstract="true" substitutionGroup="gml:AbstractObject">
  <annotation>
    <documentation>The abstract element gml:AbstractGML is “any GML object having identity”. It acts as the head of an XML Schema substitution group, which may include any element which is a GML feature, or other object, with identity. This is used as a variable in content models in GML core and application schemas. It is effectively an abstract superclass for all GML objects.</documentation>
  </annotation>
</element>
