Element diggs:AbstractCurve
Namespace http://diggsml.org/schemas/3
Annotations

Abstract element for one-dimensional geometric primitives (curves).
Serves as the head of the curve substitution group.

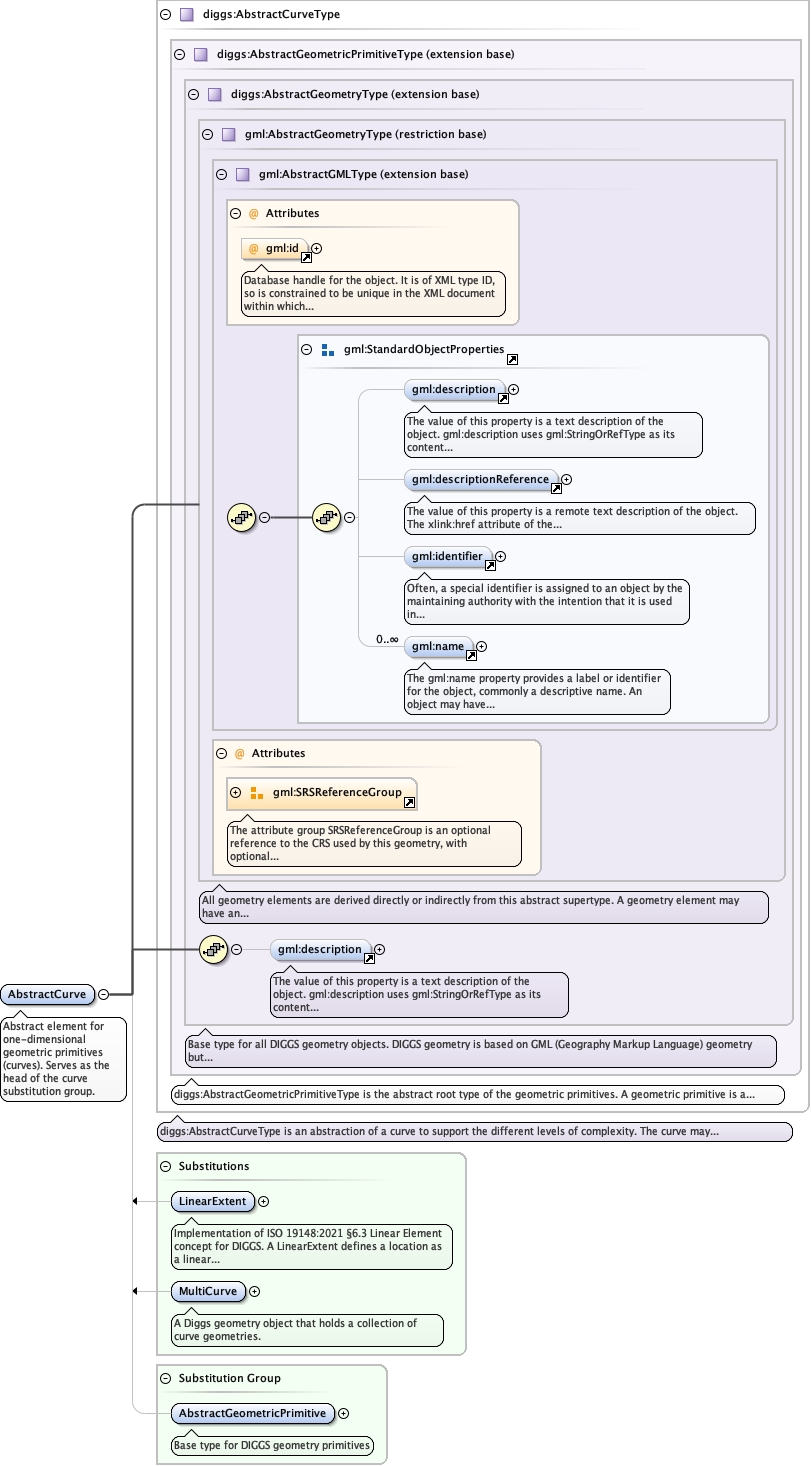

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#AbstractGeometryTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptionCore_xsd_Complex_Type_diggs_AbstractGeometryType.tmp#http___diggsml.org_schemas_3_AbstractGeometryTypeCore_xsd_Complex_Type_diggs_AbstractGeometricPrimitiveType.tmp#AbstractGeometricPrimitiveTypeCore_xsd_Complex_Type_diggs_AbstractCurveType.tmp#AbstractCurveTypeCore_xsd_Element_diggs_LinearExtent.tmp#LinearExtentExtSamplingFeatures_xsd_Element_diggs_MultiCurve.tmp#http___diggsml.org_schemas_3_MultiCurveCore_xsd_Element_diggs_AbstractGeometricPrimitive.tmp#http___diggsml.org_schemas_3_AbstractGeometricPrimitive
Type diggs:AbstractCurveType
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Substitution Group Affiliation
Model
gml:description{0,1}
Children gml:description
Instance

<diggs:AbstractCurve axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
</diggs:AbstractCurve>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element abstract="true" name="AbstractCurve" substitutionGroup="diggs:AbstractGeometricPrimitive" type="diggs:AbstractCurveType">
  <annotation>
    <documentation>Abstract element for one-dimensional geometric primitives (curves). Serves as the head of the curve substitution group.</documentation>
  </annotation>
</element>
