Element gml:TemporalCRS
Namespace http://www.opengis.net/gml/3.2
Annotations

gml:TemporalCRS is a 1D coordinate reference system used for the recording of time.

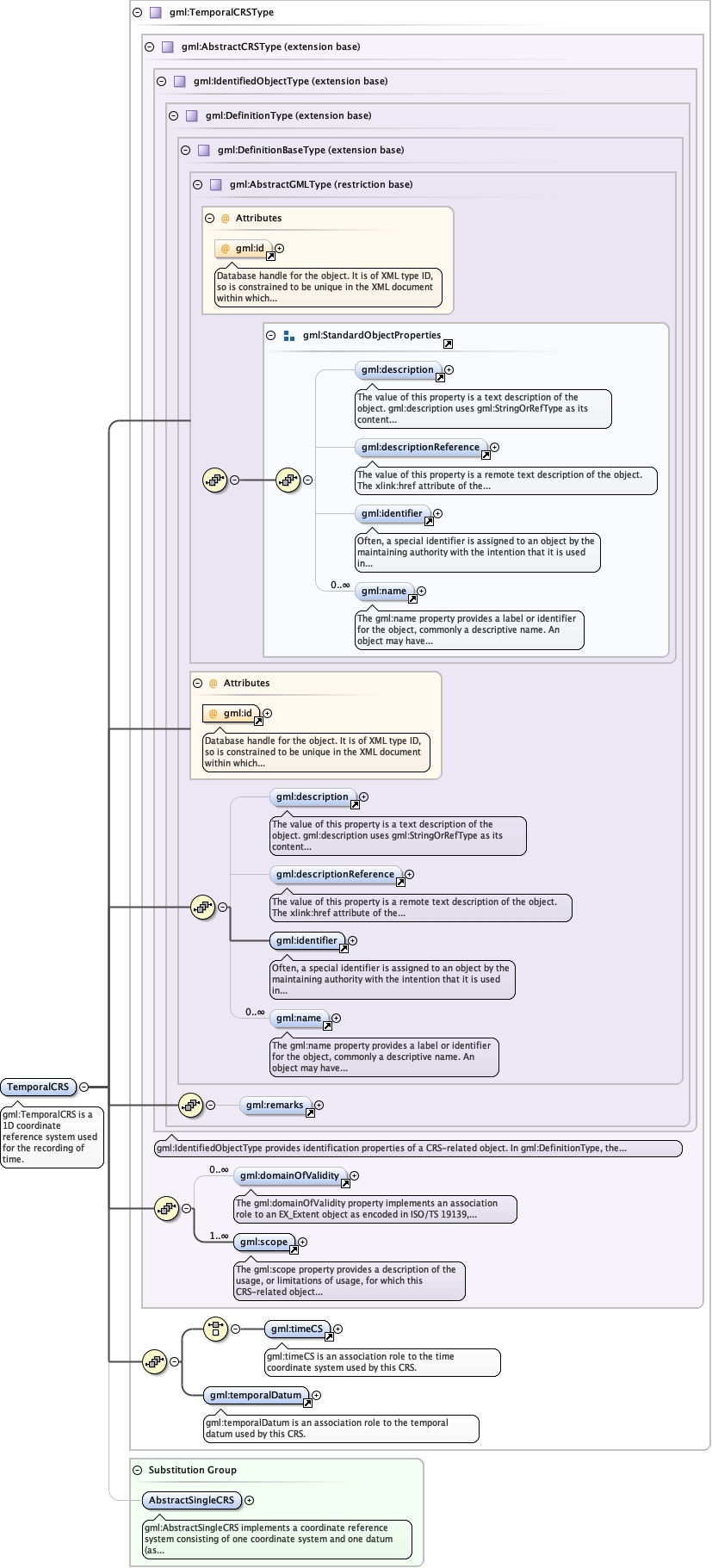

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Complex_Type_gml_DefinitionBaseType.tmp#DefinitionBaseTypegml3_2Profile_diggs_xsd_Element_gml_remarks.tmp#remarksgml3_2Profile_diggs_xsd_Complex_Type_gml_DefinitionType.tmp#DefinitionTypegml3_2Profile_diggs_xsd_Complex_Type_gml_IdentifiedObjectType.tmp#IdentifiedObjectTypegml3_2Profile_diggs_xsd_Element_gml_domainOfValidity.tmp#domainOfValiditygml3_2Profile_diggs_xsd_Element_gml_scope.tmp#scopegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractCRSType.tmp#AbstractCRSTypegml3_2Profile_diggs_xsd_Element_gml_timeCS_1.tmp#http___www.opengis.net_gml_3.2_timeCSgml3_2Profile_diggs_xsd_Element_gml_temporalDatum_1.tmp#http___www.opengis.net_gml_3.2_temporalDatumgml3_2Profile_diggs_xsd_Complex_Type_gml_TemporalCRSType.tmp#TemporalCRSTypegml3_2Profile_diggs_xsd_Element_gml_AbstractSingleCRS.tmp#AbstractSingleCRS
Type gml:TemporalCRSType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children gml:description, gml:descriptionReference, gml:domainOfValidity, gml:identifier, gml:name, gml:remarks, gml:scope, gml:temporalDatum, gml:timeCS
Instance

<gml:TemporalCRS gml:id="" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{1,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:remarks>{0,1}</gml:remarks>
  <gml:domainOfValidity xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</gml:domainOfValidity>
  <gml:scope>{1,unbounded}</gml:scope>
  <gml:timeCS xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:timeCS>
  <gml:temporalDatum xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:temporalDatum>
</gml:TemporalCRS>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="TemporalCRS" type="gml:TemporalCRSType" substitutionGroup="gml:AbstractSingleCRS">
  <annotation>
    <documentation>gml:TemporalCRS is a 1D coordinate reference system used for the recording of time.</documentation>
  </annotation>
</element>
