Element diggs:TrialGroutBatchType / diggs:admixture
Namespace http://diggsml.org/schemas/3
Annotations

Property containing information on admixtures used in mix

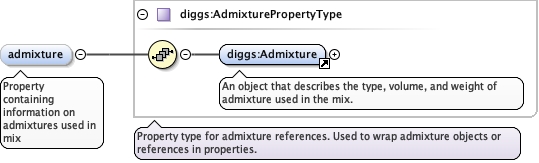

Diagram
DiagramGrouting_xsd_Element_diggs_Admixture.tmp#AdmixtureGrouting_xsd_Complex_Type_diggs_AdmixturePropertyType.tmp#AdmixturePropertyType
Type diggs:AdmixturePropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Admixture
Instance

<diggs:admixture xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Admixture gml:id="">{1,1}</diggs:Admixture>
</diggs:admixture>
Source

<element minOccurs="0" name="admixture" type="diggs:AdmixturePropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Property containing information on admixtures used in mix</documentation>
  </annotation>
</element>
Element diggs:TrialGroutBatchType / diggs:binder
Namespace http://diggsml.org/schemas/3
Annotations

Property containing information on binders used in mix;
includes fly ash, lime, etc., but excluding cement, which is
recorded in its own component property

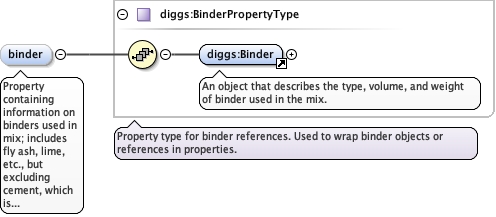

Diagram
DiagramGrouting_xsd_Element_diggs_Binder.tmp#BinderGrouting_xsd_Complex_Type_diggs_BinderPropertyType.tmp#BinderPropertyType
Type diggs:BinderPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Binder
Instance

<diggs:binder xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Binder gml:id="">{1,1}</diggs:Binder>
</diggs:binder>
Source

<element minOccurs="0" name="binder" type="diggs:BinderPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Property containing information on binders used in mix; includes fly ash, lime, etc., but excluding cement, which is recorded in its own component property</documentation>
  </annotation>
</element>

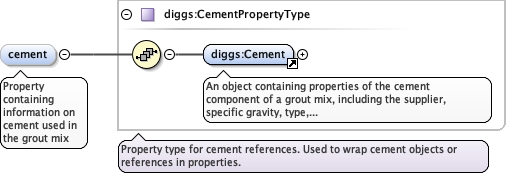

Element diggs:TrialGroutBatchType / diggs:cement
Namespace http://diggsml.org/schemas/3
Annotations

Property containing information on cement used in the
grout mix
Diagram
DiagramGrouting_xsd_Element_diggs_Cement.tmp#CementGrouting_xsd_Complex_Type_diggs_CementPropertyType.tmp#CementPropertyType
Type diggs:CementPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Cement
Instance

<diggs:cement xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Cement gml:id="">{1,1}</diggs:Cement>
</diggs:cement>
Source

<element minOccurs="0" name="cement" type="diggs:CementPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Property containing information on cement used in the grout mix</documentation>
  </annotation>
</element>

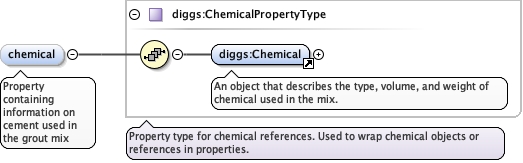

Element diggs:TrialGroutBatchType / diggs:chemical
Namespace http://diggsml.org/schemas/3
Annotations

Property containing information on cement used in the
grout mix
Diagram
DiagramGrouting_xsd_Element_diggs_Chemical.tmp#ChemicalGrouting_xsd_Complex_Type_diggs_ChemicalPropertyType.tmp#ChemicalPropertyType
Type diggs:ChemicalPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Chemical
Instance

<diggs:chemical xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Chemical gml:id="">{1,1}</diggs:Chemical>
</diggs:chemical>
Source

<element minOccurs="0" name="chemical" type="diggs:ChemicalPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Property containing information on cement used in the grout mix</documentation>
  </annotation>
</element>

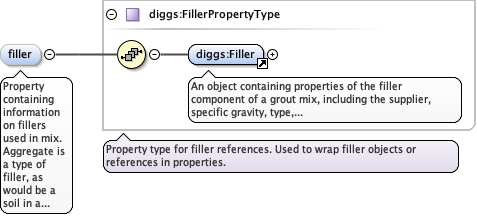

Element diggs:TrialGroutBatchType / diggs:filler
Namespace http://diggsml.org/schemas/3
Annotations

Property containing information on fillers used in mix.
Aggregate is a type of filler, as would be a soil in a soil-cement
mixture used to determine the appropriate slurry-soil mixes for deep
soil mixing
Diagram
DiagramGrouting_xsd_Element_diggs_Filler.tmp#FillerGrouting_xsd_Complex_Type_diggs_FillerPropertyType.tmp#FillerPropertyType
Type diggs:FillerPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Filler
Instance

<diggs:filler xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Filler gml:id="">{1,1}</diggs:Filler>
</diggs:filler>
Source

<element minOccurs="0" name="filler" type="diggs:FillerPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Property containing information on fillers used in mix. Aggregate is a type of filler, as would be a soil in a soil-cement mixture used to determine the appropriate slurry-soil mixes for deep soil mixing</documentation>
  </annotation>
</element>

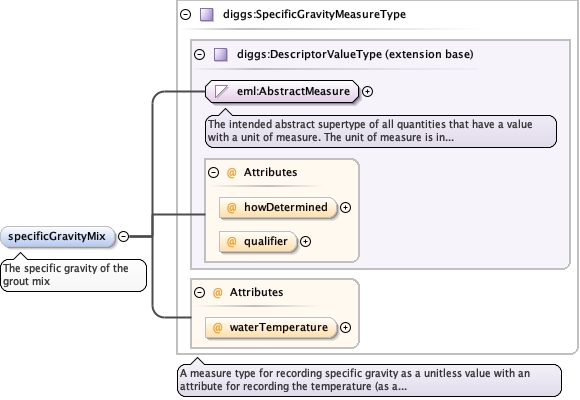

Element diggs:TrialGroutBatchType / diggs:specificGravityMix
Namespace http://diggsml.org/schemas/3
Annotations

The specific gravity of the grout mix
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_SpecificGravityMeasureType.tmp#SpecificGravityMeasureType_waterTemperatureMeasureTypes_xsd_Complex_Type_diggs_SpecificGravityMeasureType.tmp#SpecificGravityMeasureType
Type diggs:SpecificGravityMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
Source

<element minOccurs="0" name="specificGravityMix" type="diggs:SpecificGravityMeasureType">
  <annotation>
    <documentation>The specific gravity of the grout mix</documentation>
  </annotation>
</element>

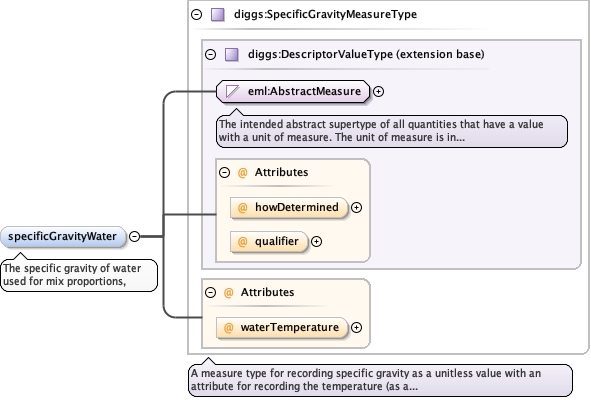

Element diggs:TrialGroutBatchType / diggs:specificGravityWater
Namespace http://diggsml.org/schemas/3
Annotations

The specific gravity of water used for mix
proportions,
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_SpecificGravityMeasureType.tmp#SpecificGravityMeasureType_waterTemperatureMeasureTypes_xsd_Complex_Type_diggs_SpecificGravityMeasureType.tmp#SpecificGravityMeasureType
Type diggs:SpecificGravityMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
Source

<element minOccurs="0" name="specificGravityWater" type="diggs:SpecificGravityMeasureType">
  <annotation>
    <documentation>The specific gravity of water used for mix proportions,</documentation>
  </annotation>
</element>

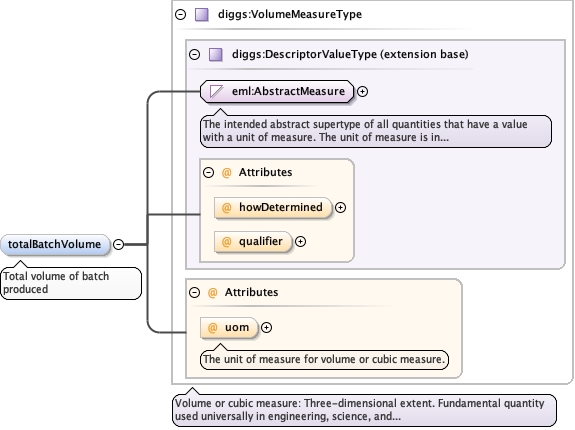

Element diggs:TrialGroutBatchType / diggs:totalBatchVolume
Namespace http://diggsml.org/schemas/3
Annotations

Total volume of batch produced
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType
Type diggs:VolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumeUomEnumType optional
The unit of measure for volume or cubic measure.
Source

<element minOccurs="0" name="totalBatchVolume" type="diggs:VolumeMeasureType">
  <annotation>
    <documentation>Total volume of batch produced</documentation>
  </annotation>
</element>
Element diggs:TrialGroutBatchType / diggs:typeMix
Namespace http://diggsml.org/schemas/3
Annotations

Type of grout mix; preferably from a controlled list, eg.
cement, chemical, soil-cement, etc.

Should this be an enum if only a few common
choices?
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="typeMix" type="gml:CodeType">
  <annotation>
    <documentation>Type of grout mix; preferably from a controlled list, eg. cement, chemical, soil-cement, etc.</documentation>
    <documentation>Should this be an enum if only a few common choices?</documentation>
  </annotation>
</element>

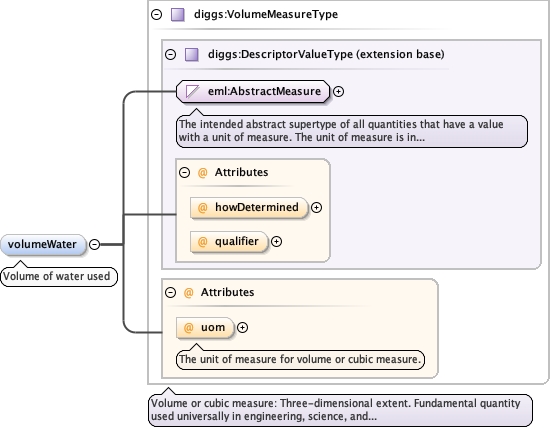

Element diggs:TrialGroutBatchType / diggs:volumeWater
Namespace http://diggsml.org/schemas/3
Annotations

Volume of water used
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType
Type diggs:VolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumeUomEnumType optional
The unit of measure for volume or cubic measure.
Source

<element minOccurs="0" name="volumeWater" type="diggs:VolumeMeasureType">
  <annotation>
    <documentation>Volume of water used</documentation>
  </annotation>
</element>

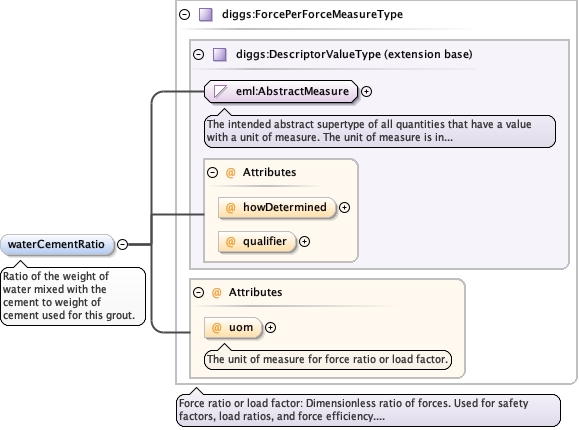

Element diggs:TrialGroutBatchType / diggs:waterCementRatio
Namespace http://diggsml.org/schemas/3
Annotations

Ratio of the weight of water mixed with the cement to
weight of cement used for this grout.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForcePerForceMeasureType.tmp#ForcePerForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForcePerForceMeasureType.tmp#ForcePerForceMeasureType
Type diggs:ForcePerForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForcePerForceUomEnumType optional
The unit of measure for force ratio or load factor.
Source

<element minOccurs="0" name="waterCementRatio" type="diggs:ForcePerForceMeasureType">
  <annotation>
    <documentation>Ratio of the weight of water mixed with the cement to weight of cement used for this grout.</documentation>
  </annotation>
</element>

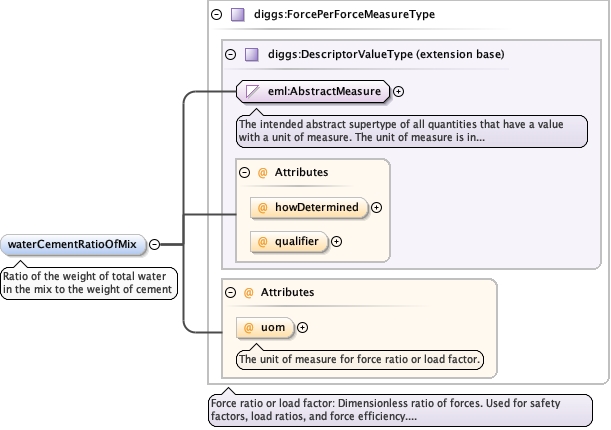

Element diggs:TrialGroutBatchType / diggs:waterCementRatioOfMix
Namespace http://diggsml.org/schemas/3
Annotations

Ratio of the weight of total water in the mix to the
weight of cement
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForcePerForceMeasureType.tmp#ForcePerForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForcePerForceMeasureType.tmp#ForcePerForceMeasureType
Type diggs:ForcePerForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForcePerForceUomEnumType optional
The unit of measure for force ratio or load factor.
Source

<element minOccurs="0" name="waterCementRatioOfMix" type="diggs:ForcePerForceMeasureType">
  <annotation>
    <documentation>Ratio of the weight of total water in the mix to the weight of cement</documentation>
  </annotation>
</element>

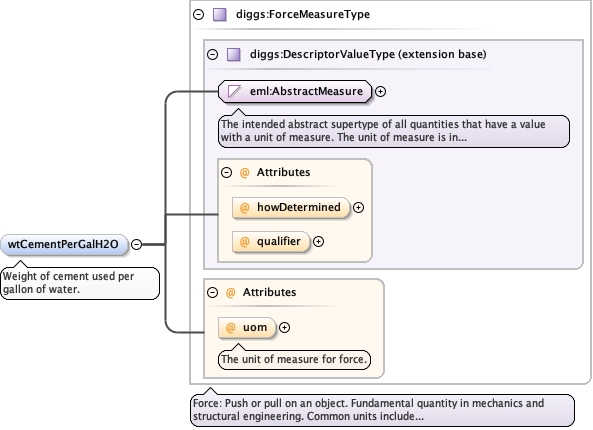

Element diggs:TrialGroutBatchType / diggs:wtCementPerGalH2O
Namespace http://diggsml.org/schemas/3
Annotations

Weight of cement used per gallon of
water.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Source

<element minOccurs="0" name="wtCementPerGalH2O" type="diggs:ForceMeasureType">
  <annotation>
    <documentation>Weight of cement used per gallon of water.</documentation>
  </annotation>
</element>

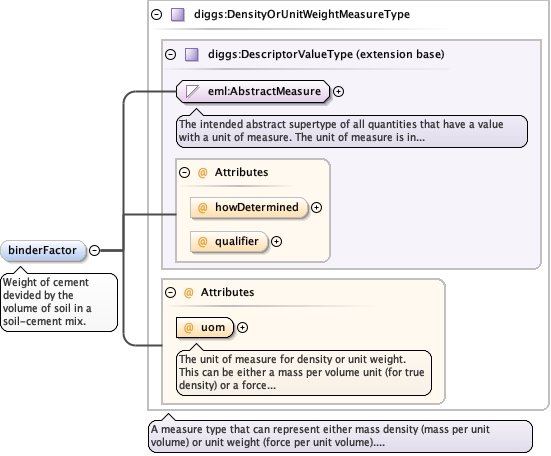

Element diggs:TrialGroutBatchType / diggs:binderFactor
Namespace http://diggsml.org/schemas/3
Annotations

Weight of cement devided by the volume of soil in a
soil-cement mix.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType
Type diggs:DensityOrUnitWeightMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DiggsDensityOrUnitWeightUomEnumType required
The unit of measure for density or unit weight. This can be either a mass per volume unit (for true density) or a force per volume unit (for unit weight).
Source

<element minOccurs="0" name="binderFactor" type="diggs:DensityOrUnitWeightMeasureType">
  <annotation>
    <documentation>Weight of cement devided by the volume of soil in a soil-cement mix.</documentation>
  </annotation>
</element>

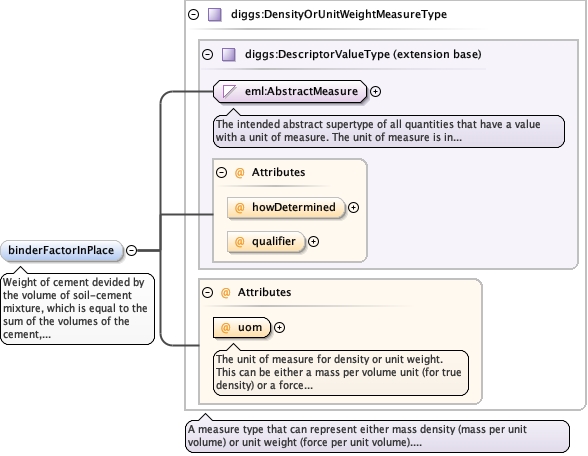

Element diggs:TrialGroutBatchType / diggs:binderFactorInPlace
Namespace http://diggsml.org/schemas/3
Annotations

Weight of cement devided by the volume of soil-cement
mixture, which is equal to the sum of the volumes of the cement,
soil, and water.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType
Type diggs:DensityOrUnitWeightMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DiggsDensityOrUnitWeightUomEnumType required
The unit of measure for density or unit weight. This can be either a mass per volume unit (for true density) or a force per volume unit (for unit weight).
Source

<element minOccurs="0" name="binderFactorInPlace" type="diggs:DensityOrUnitWeightMeasureType">
  <annotation>
    <documentation>Weight of cement devided by the volume of soil-cement mixture, which is equal to the sum of the volumes of the cement, soil, and water.</documentation>
  </annotation>
</element>
Element diggs:TrialGroutBatchType / diggs:binderContent
Namespace http://diggsml.org/schemas/3
Annotations

Weight of cement used per gallon of
water.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForcePerForceMeasureType.tmp#ForcePerForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForcePerForceMeasureType.tmp#ForcePerForceMeasureType
Type diggs:ForcePerForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForcePerForceUomEnumType optional
The unit of measure for force ratio or load factor.
Source

<element minOccurs="0" name="binderContent" type="diggs:ForcePerForceMeasureType">
  <annotation>
    <documentation>Weight of cement used per gallon of water.</documentation>
  </annotation>
</element>

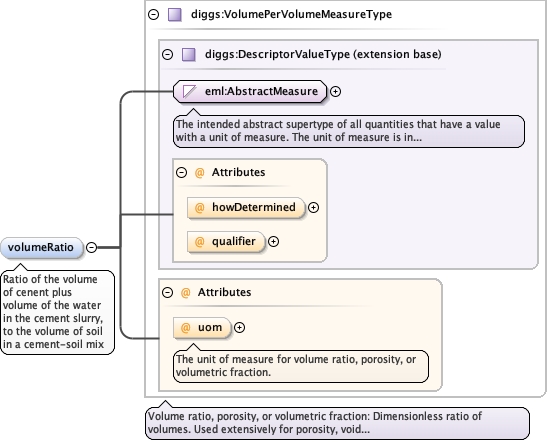

Element diggs:TrialGroutBatchType / diggs:volumeRatio
Namespace http://diggsml.org/schemas/3
Annotations

Ratio of the volume of cenent plus volume of the water in
the cement slurry, to the volume of soil in a cement-soil
mix
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerVolumeMeasureType.tmp#VolumePerVolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerVolumeMeasureType.tmp#VolumePerVolumeMeasureType
Type diggs:VolumePerVolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerVolumeUomEnumType optional
The unit of measure for volume ratio, porosity, or volumetric fraction.
Source

<element minOccurs="0" name="volumeRatio" type="diggs:VolumePerVolumeMeasureType">
  <annotation>
    <documentation>Ratio of the volume of cenent plus volume of the water in the cement slurry, to the volume of soil in a cement-soil mix</documentation>
  </annotation>
</element>
Complex Type diggs:TrialGroutBatchType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractSampleType. Adds elements for trial grout batch type definition.
Diagram

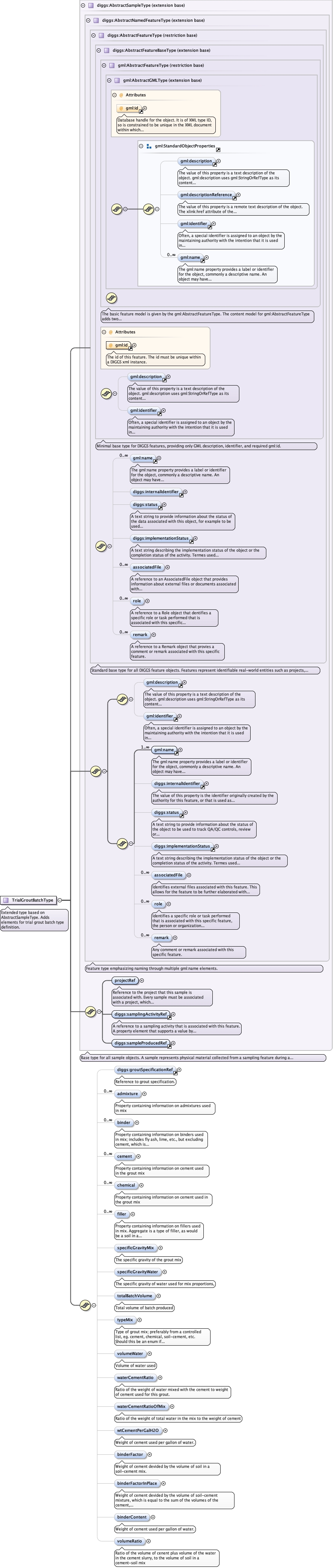

Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractSampleType.tmp#AbstractSampleType_projectRefCommon_xsd_Element_diggs_samplingActivityRef.tmp#samplingActivityRefCommon_xsd_Element_diggs_sampleProducedRef.tmp#sampleProducedRefAbstractTypes_xsd_Complex_Type_diggs_AbstractSampleType.tmp#AbstractSampleTypeGrouting_xsd_Element_diggs_groutSpecificationRef.tmp#groutSpecificationRefGrouting_xsd_Complex_Type_diggs_TrialGroutBatchType.tmp#TrialGroutBatchType_admixtureGrouting_xsd_Complex_Type_diggs_TrialGroutBatchType.tmp#TrialGroutBatchType_binderGrouting_xsd_Complex_Type_diggs_TrialGroutBatchType.tmp#TrialGroutBatchType_cementGrouting_xsd_Complex_Type_diggs_TrialGroutBatchType.tmp#TrialGroutBatchType_chemicalGrouting_xsd_Complex_Type_diggs_TrialGroutBatchType.tmp#TrialGroutBatchType_fillerGrouting_xsd_Complex_Type_diggs_TrialGroutBatchType.tmp#TrialGroutBatchType_specificGravityMixGrouting_xsd_Complex_Type_diggs_TrialGroutBatchType.tmp#TrialGroutBatchType_specificGravityWaterGrouting_xsd_Complex_Type_diggs_TrialGroutBatchType.tmp#TrialGroutBatchType_totalBatchVolumeGrouting_xsd_Complex_Type_diggs_TrialGroutBatchType.tmp#TrialGroutBatchType_typeMixGrouting_xsd_Complex_Type_diggs_TrialGroutBatchType.tmp#TrialGroutBatchType_volumeWaterGrouting_xsd_Complex_Type_diggs_TrialGroutBatchType.tmp#TrialGroutBatchType_waterCementRatioGrouting_xsd_Complex_Type_diggs_TrialGroutBatchType.tmp#TrialGroutBatchType_waterCementRatioOfMixGrouting_xsd_Complex_Type_diggs_TrialGroutBatchType.tmp#TrialGroutBatchType_wtCementPerGalH2OGrouting_xsd_Complex_Type_diggs_TrialGroutBatchType.tmp#TrialGroutBatchType_binderFactorGrouting_xsd_Complex_Type_diggs_TrialGroutBatchType.tmp#TrialGroutBatchType_binderFactorInPlaceGrouting_xsd_Complex_Type_diggs_TrialGroutBatchType.tmp#TrialGroutBatchType_binderContentGrouting_xsd_Complex_Type_diggs_TrialGroutBatchType.tmp#TrialGroutBatchType_volumeRatio
Type extension of diggs:AbstractSampleType
Type hierarchy
Used by
Model
Children diggs:admixture, diggs:associatedFile, diggs:binder, diggs:binderContent, diggs:binderFactor, diggs:binderFactorInPlace, diggs:cement, diggs:chemical, diggs:filler, diggs:groutSpecificationRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:projectRef, diggs:remark, diggs:role, diggs:sampleProducedRef, diggs:samplingActivityRef, diggs:specificGravityMix, diggs:specificGravityWater, diggs:status, diggs:totalBatchVolume, diggs:typeMix, diggs:volumeRatio, diggs:volumeWater, diggs:waterCementRatio, diggs:waterCementRatioOfMix, diggs:wtCementPerGalH2O, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="TrialGroutBatchType">
  <annotation>
    <documentation>Extended type based on AbstractSampleType. Adds elements for trial grout batch type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractSampleType">
      <sequence>
        <element minOccurs="0" ref="diggs:groutSpecificationRef"/>
        <element minOccurs="0" name="admixture" type="diggs:AdmixturePropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Property containing information on admixtures used in mix</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="binder" type="diggs:BinderPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Property containing information on binders used in mix; includes fly ash, lime, etc., but excluding cement, which is recorded in its own component property</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="cement" type="diggs:CementPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Property containing information on cement used in the grout mix</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="chemical" type="diggs:ChemicalPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Property containing information on cement used in the grout mix</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="filler" type="diggs:FillerPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Property containing information on fillers used in mix. Aggregate is a type of filler, as would be a soil in a soil-cement mixture used to determine the appropriate slurry-soil mixes for deep soil mixing</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="specificGravityMix" type="diggs:SpecificGravityMeasureType">
          <annotation>
            <documentation>The specific gravity of the grout mix</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="specificGravityWater" type="diggs:SpecificGravityMeasureType">
          <annotation>
            <documentation>The specific gravity of water used for mix proportions,</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totalBatchVolume" type="diggs:VolumeMeasureType">
          <annotation>
            <documentation>Total volume of batch produced</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="typeMix" type="gml:CodeType">
          <annotation>
            <documentation>Type of grout mix; preferably from a controlled list, eg. cement, chemical, soil-cement, etc.</documentation>
            <documentation>Should this be an enum if only a few common choices?</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="volumeWater" type="diggs:VolumeMeasureType">
          <annotation>
            <documentation>Volume of water used</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="waterCementRatio" type="diggs:ForcePerForceMeasureType">
          <annotation>
            <documentation>Ratio of the weight of water mixed with the cement to weight of cement used for this grout.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="waterCementRatioOfMix" type="diggs:ForcePerForceMeasureType">
          <annotation>
            <documentation>Ratio of the weight of total water in the mix to the weight of cement</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="wtCementPerGalH2O" type="diggs:ForceMeasureType">
          <annotation>
            <documentation>Weight of cement used per gallon of water.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="binderFactor" type="diggs:DensityOrUnitWeightMeasureType">
          <annotation>
            <documentation>Weight of cement devided by the volume of soil in a soil-cement mix.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="binderFactorInPlace" type="diggs:DensityOrUnitWeightMeasureType">
          <annotation>
            <documentation>Weight of cement devided by the volume of soil-cement mixture, which is equal to the sum of the volumes of the cement, soil, and water.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="binderContent" type="diggs:ForcePerForceMeasureType">
          <annotation>
            <documentation>Weight of cement used per gallon of water.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="volumeRatio" type="diggs:VolumePerVolumeMeasureType">
          <annotation>
            <documentation>Ratio of the volume of cenent plus volume of the water in the cement slurry, to the volume of soil in a cement-soil mix</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
