Namespace http://diggsml.org/schemas/3
Annotations
The abstract trial grout batch property.

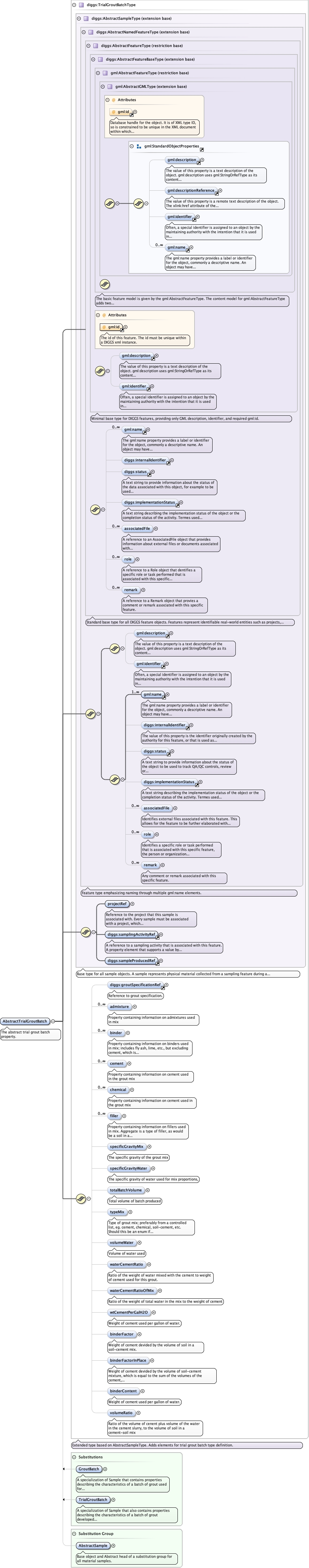

Diagram
Type diggs:TrialGroutBatchType
Type hierarchy
Properties
content
complex
abstract
true
Substitution Group
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name+ ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:projectRef ,
diggs:samplingActivityRef ,
diggs:sampleProducedRef ,
diggs:groutSpecificationRef{0,1} ,
diggs:admixture* ,
diggs:binder* ,
diggs:cement* ,
diggs:chemical* ,
diggs:filler* ,
diggs:specificGravityMix{0,1} ,
diggs:specificGravityWater{0,1} ,
diggs:totalBatchVolume{0,1} ,
diggs:typeMix{0,1} ,
diggs:volumeWater{0,1} ,
diggs:waterCementRatio{0,1} ,
diggs:waterCementRatioOfMix{0,1} ,
diggs:wtCementPerGalH2O{0,1} ,
diggs:binderFactor{0,1} ,
diggs:binderFactorInPlace{0,1} ,
diggs:binderContent{0,1} ,
diggs:volumeRatio{0,1}
Children diggs:admixture diggs:associatedFile diggs:binder diggs:binderContent diggs:binderFactor diggs:binderFactorInPlace diggs:cement diggs:chemical diggs:filler diggs:groutSpecificationRef diggs:implementationStatus diggs:internalIdentifier diggs:projectRef diggs:remark diggs:role diggs:sampleProducedRef diggs:samplingActivityRef diggs:specificGravityMix diggs:specificGravityWater diggs:status diggs:totalBatchVolume diggs:typeMix diggs:volumeRatio diggs:volumeWater diggs:waterCementRatio diggs:waterCementRatioOfMix diggs:wtCementPerGalH2O gml:description gml:identifier gml:name
Instance
<diggs:AbstractTrialGroutBatch gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {1,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:projectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </diggs:projectRef>
<diggs:samplingActivityRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </diggs:samplingActivityRef>
<diggs:sampleProducedRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </diggs:sampleProducedRef>
<diggs:groutSpecificationRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:groutSpecificationRef>
<diggs:admixture > {0,unbounded} </diggs:admixture>
<diggs:binder > {0,unbounded} </diggs:binder>
<diggs:cement > {0,unbounded} </diggs:cement>
<diggs:chemical > {0,unbounded} </diggs:chemical>
<diggs:filler > {0,unbounded} </diggs:filler>
<diggs:specificGravityMix howDetermined= "" qualifier= "" waterTemperature= "" > {0,1} </diggs:specificGravityMix>
<diggs:specificGravityWater howDetermined= "" qualifier= "" waterTemperature= "" > {0,1} </diggs:specificGravityWater>
<diggs:totalBatchVolume howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:totalBatchVolume>
<diggs:typeMix codeSpace= "" > {0,1} </diggs:typeMix>
<diggs:volumeWater howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:volumeWater>
<diggs:waterCementRatio howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:waterCementRatio>
<diggs:waterCementRatioOfMix howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:waterCementRatioOfMix>
<diggs:wtCementPerGalH2O howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:wtCementPerGalH2O>
<diggs:binderFactor howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:binderFactor>
<diggs:binderFactorInPlace howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:binderFactorInPlace>
<diggs:binderContent howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:binderContent>
<diggs:volumeRatio howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:volumeRatio>
</diggs:AbstractTrialGroutBatch>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element abstract= "true" name= "AbstractTrialGroutBatch" substitutionGroup= "diggs:AbstractSample" type= "diggs:TrialGroutBatchType" >
<annotation >
<documentation > The abstract trial grout batch property. </documentation>
</annotation>
</element>
