Schema documentation for component diggs:projectRef

Reference to the project that this sample is associated with. Every sample must be associated with a project, which provides the organizational and geographical context for the sample. This reference links the sample to its parent project, enabling queries and organization by project.

QName

Type

Fixed

Default

Use

Annotation

identifierRef

diggs:IdentifierReferenceType

optional

Provides a fully qualified gml:identifier value of the target
feature. Used primarily to reference a feature by a globally unique
identifier as opposed to the gml:id

nilReason

gml:NilReasonType

optional

owns

boolean

false

optional

xlink:actuate

restriction of string

optional

The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained

xlink:arcrole

anyURI

optional

xlink:href

anyURI

optional

xlink:role

anyURI

optional

xlink:show

restriction of string

optional

The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained

xlink:title

string

optional

xlink:type

string

simple

optional

<element name="projectRef" type="diggs:FeatureReferenceType" minOccurs="1"> <annotation> <documentation>Reference to the project that this sample is associated with. Every sample must be associated with a project, which provides the organizational and geographical context for the sample. This reference links the sample to its parent project, enabling queries and organization by project.</documentation> </annotation> </element>

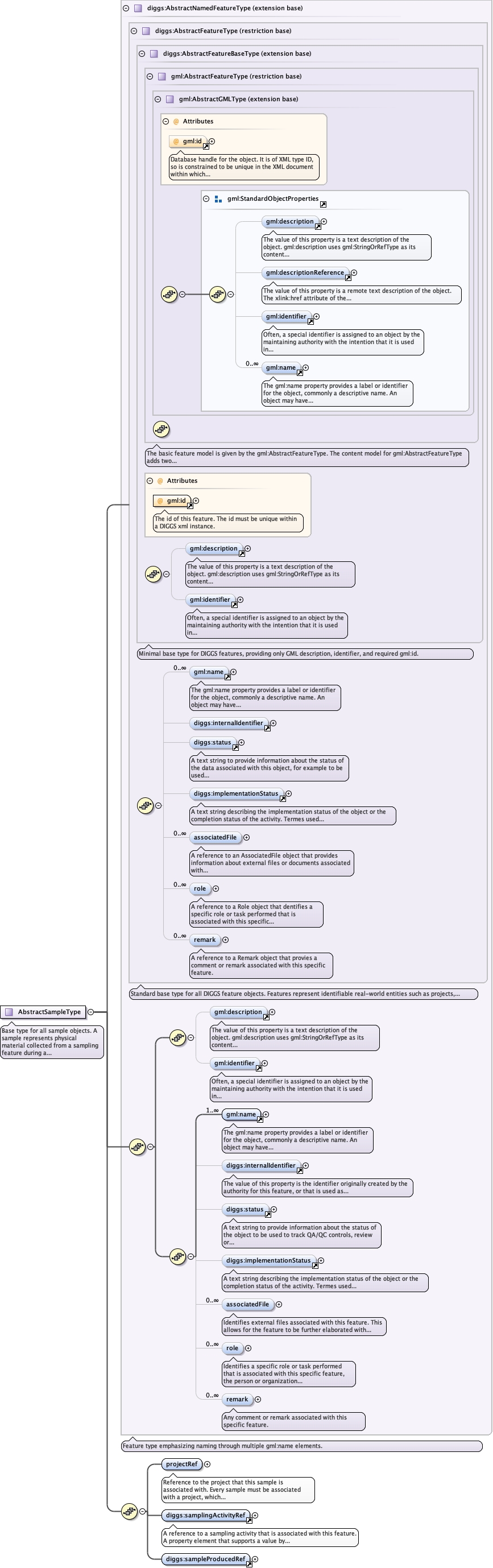

Base type for all sample objects. A sample represents physical material collected from a sampling feature during a sampling activity. Samples are the fundamental link between field investigations (sampling features) and laboratory testing (specimens and material tests). Samples maintain information about their collection location, parent sampling feature, collection method, and physical characteristics. Samples can be subdivided into specimens for laboratory testing or aggregated from multiple source samples.

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<complexType name="AbstractSampleType" abstract="true"> <annotation> <documentation>Base type for all sample objects. A sample represents physical material collected from a sampling feature during a sampling activity. Samples are the fundamental link between field investigations (sampling features) and laboratory testing (specimens and material tests). Samples maintain information about their collection location, parent sampling feature, collection method, and physical characteristics. Samples can be subdivided into specimens for laboratory testing or aggregated from multiple source samples.</documentation> </annotation> <complexContent> <extension base="diggs:AbstractNamedFeatureType"> <sequence> <element name="projectRef" type="diggs:FeatureReferenceType" minOccurs="1"> <annotation> <documentation>Reference to the project that this sample is associated with. Every sample must be associated with a project, which provides the organizational and geographical context for the sample. This reference links the sample to its parent project, enabling queries and organization by project.</documentation> </annotation> </element> <element ref="diggs:samplingActivityRef"/> <element ref="diggs:sampleProducedRef"> <annotation> <documentation/> </annotation> </element> </sequence> </extension> </complexContent> </complexType>

Showing:
