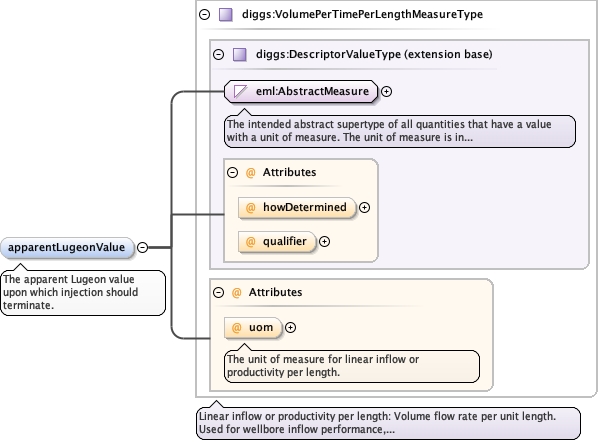

Element diggs:TerminationCriteriaType / diggs:apparentLugeonValue
Namespace http://diggsml.org/schemas/3
Annotations

The apparent Lugeon value upon which injection should
terminate.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimePerLengthMeasureType.tmp#VolumePerTimePerLengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimePerLengthMeasureType.tmp#VolumePerTimePerLengthMeasureType
Type diggs:VolumePerTimePerLengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerTimePerLengthUomEnumType optional
The unit of measure for linear inflow or productivity per length.
Source

<element minOccurs="0" name="apparentLugeonValue" type="diggs:VolumePerTimePerLengthMeasureType">
  <annotation>
    <documentation>The apparent Lugeon value upon which injection should terminate.</documentation>
  </annotation>
</element>
Element diggs:TerminationCriteriaType / diggs:crossCommunication
Namespace http://diggsml.org/schemas/3
Annotations

Value is true if cross-communication of grout (eg. grout
appearing in an adjacent hole) should be a criteria for injection
termination, false if not.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="crossCommunication" type="boolean">
  <annotation>
    <documentation>Value is true if cross-communication of grout (eg. grout appearing in an adjacent hole) should be a criteria for injection termination, false if not.</documentation>
  </annotation>
</element>

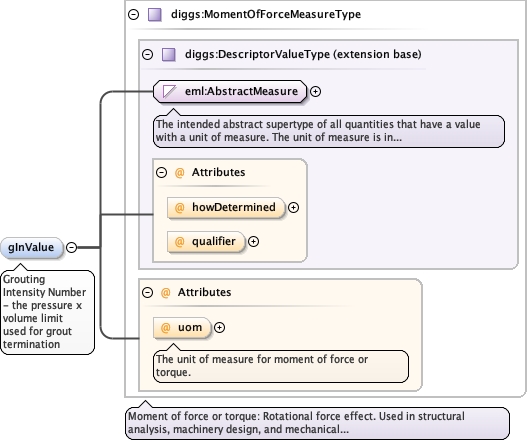

Element diggs:TerminationCriteriaType / diggs:gInValue
Namespace http://diggsml.org/schemas/3
Annotations

Grouting Intensity Number - the pressure x volume limit
used for grout termination
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MomentOfForceMeasureType.tmp#MomentOfForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_MomentOfForceMeasureType.tmp#MomentOfForceMeasureType
Type diggs:MomentOfForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MomentOfForceUomEnumType optional
The unit of measure for moment of force or torque.
Source

<element minOccurs="0" name="gInValue" type="diggs:MomentOfForceMeasureType">
  <annotation>
    <documentation>Grouting Intensity Number - the pressure x volume limit used for grout termination</documentation>
  </annotation>
</element>

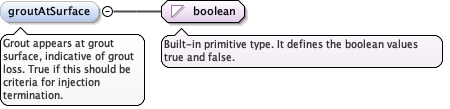

Element diggs:TerminationCriteriaType / diggs:groutAtSurface
Namespace http://diggsml.org/schemas/3
Annotations

Grout appears at grout surface, indicative of grout loss.
True if this should be criteria for injection
termination.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="groutAtSurface" type="boolean">
  <annotation>
    <documentation>Grout appears at grout surface, indicative of grout loss. True if this should be criteria for injection termination.</documentation>
  </annotation>
</element>

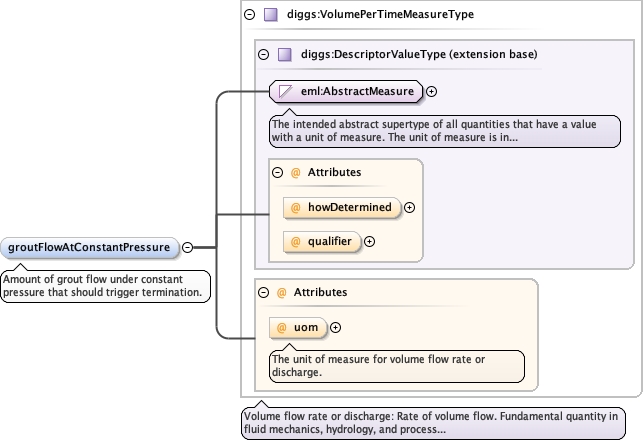

Element diggs:TerminationCriteriaType / diggs:groutFlowAtConstantPressure
Namespace http://diggsml.org/schemas/3
Annotations

Amount of grout flow under constant pressure that should
trigger termination.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType
Type diggs:VolumePerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerTimeUomEnumType optional
The unit of measure for volume flow rate or discharge.
Source

<element minOccurs="0" name="groutFlowAtConstantPressure" type="diggs:VolumePerTimeMeasureType">
  <annotation>
    <documentation>Amount of grout flow under constant pressure that should trigger termination.</documentation>
  </annotation>
</element>

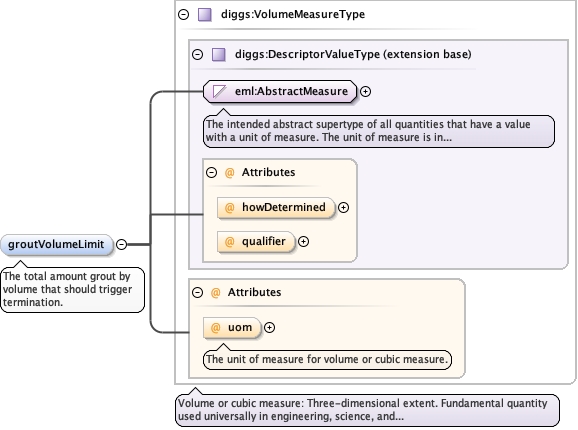

Element diggs:TerminationCriteriaType / diggs:groutVolumeLimit
Namespace http://diggsml.org/schemas/3
Annotations

The total amount grout by volume that should trigger
termination.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType
Type diggs:VolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumeUomEnumType optional
The unit of measure for volume or cubic measure.
Source

<element minOccurs="0" name="groutVolumeLimit" type="diggs:VolumeMeasureType">
  <annotation>
    <documentation>The total amount grout by volume that should trigger termination.</documentation>
  </annotation>
</element>

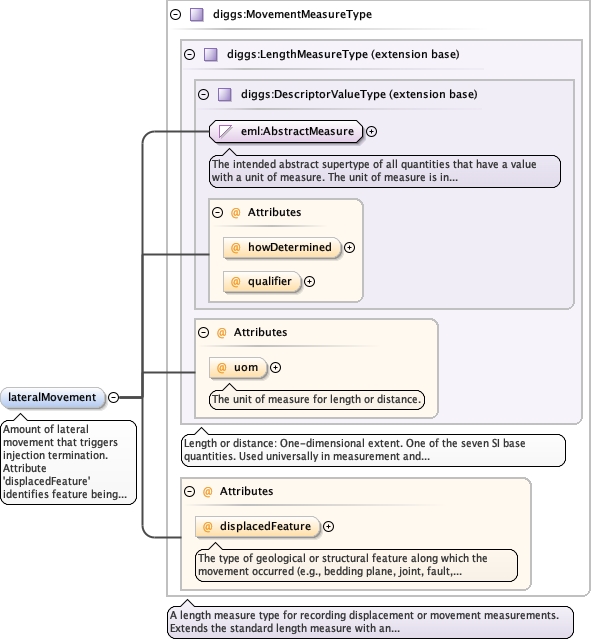

Element diggs:TerminationCriteriaType / diggs:lateralMovement
Namespace http://diggsml.org/schemas/3
Annotations

Amount of lateral movement that triggers injection
termination. Attribute 'displacedFeature' identifies feature being
monitored for movement.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureTypeMeasureTypes_xsd_Complex_Type_diggs_MovementMeasureType.tmp#MovementMeasureType_displacedFeatureMeasureTypes_xsd_Complex_Type_diggs_MovementMeasureType.tmp#MovementMeasureType
Type diggs:MovementMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use Annotation
displacedFeature diggs:TerminationFeatureExtEnumType optional
The type of geological or structural feature along which the movement occurred (e.g., bedding plane, joint, fault, shear surface, fracture). This identifies what was displaced and provides context for the movement measurement.
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="lateralMovement" maxOccurs="unbounded" type="diggs:MovementMeasureType">
  <annotation>
    <documentation>Amount of lateral movement that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
  </annotation>
</element>

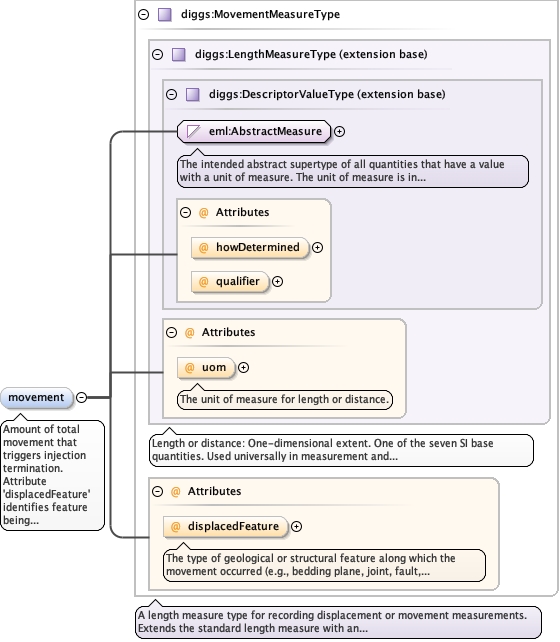

Element diggs:TerminationCriteriaType / diggs:movement
Namespace http://diggsml.org/schemas/3
Annotations

Amount of total movement that triggers injection
termination. Attribute 'displacedFeature' identifies feature being
monitored for movement.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureTypeMeasureTypes_xsd_Complex_Type_diggs_MovementMeasureType.tmp#MovementMeasureType_displacedFeatureMeasureTypes_xsd_Complex_Type_diggs_MovementMeasureType.tmp#MovementMeasureType
Type diggs:MovementMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use Annotation
displacedFeature diggs:TerminationFeatureExtEnumType optional
The type of geological or structural feature along which the movement occurred (e.g., bedding plane, joint, fault, shear surface, fracture). This identifies what was displaced and provides context for the movement measurement.
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="movement" maxOccurs="unbounded" type="diggs:MovementMeasureType">
  <annotation>
    <documentation>Amount of total movement that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
  </annotation>
</element>

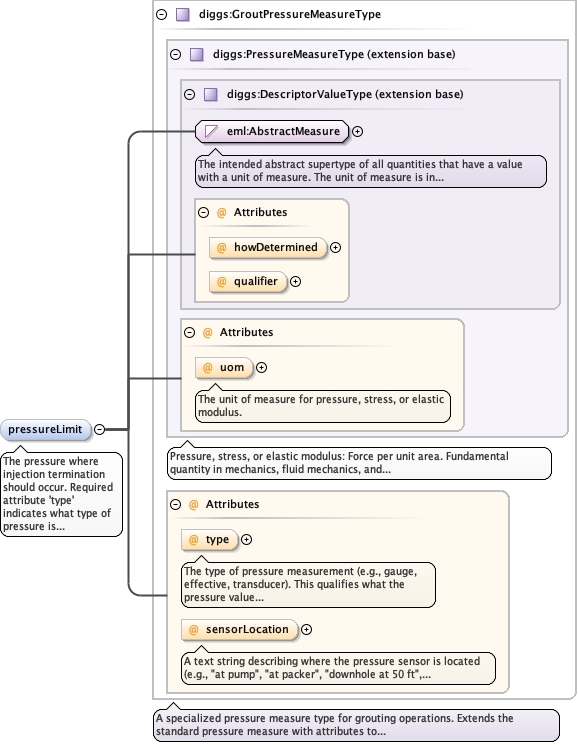

Element diggs:TerminationCriteriaType / diggs:pressureLimit
Namespace http://diggsml.org/schemas/3
Annotations

The pressure where injection termination should occur.
Required attribute 'type' indicates what type of pressure is being
measured - eg. gauge, effective, transducer) and optional attribute
'sensorLocation' is a string type indicating where sensor is located
(eg. pump, grout head, etc.).
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureTypeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_typeMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType_sensorLocationMeasureTypes_xsd_Complex_Type_diggs_GroutPressureMeasureType.tmp#GroutPressureMeasureType
Type diggs:GroutPressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
sensorLocation string optional
A text string describing where the pressure sensor is located (e.g., "at pump", "at packer", "downhole at 50 ft", "surface manifold"). This is important because pressure can vary significantly between the pump and the point of injection.
type diggs:PressureTypeEnumType optional
The type of pressure measurement (e.g., gauge, effective, transducer). This qualifies what the pressure value represents in the grouting operation.
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element minOccurs="0" name="pressureLimit" type="diggs:GroutPressureMeasureType" maxOccurs="unbounded">
  <annotation>
    <documentation>The pressure where injection termination should occur. Required attribute 'type' indicates what type of pressure is being measured - eg. gauge, effective, transducer) and optional attribute 'sensorLocation' is a string type indicating where sensor is located (eg. pump, grout head, etc.).</documentation>
  </annotation>
</element>

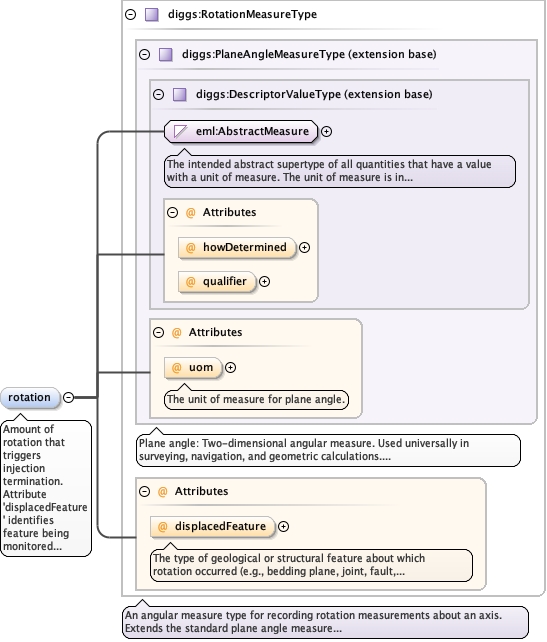

Element diggs:TerminationCriteriaType / diggs:rotation
Namespace http://diggsml.org/schemas/3
Annotations

Amount of rotation that triggers injection termination.
Attribute 'displacedFeature' identifies feature being monitored for
movement.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureTypeMeasureTypes_xsd_Complex_Type_diggs_RotationMeasureType.tmp#RotationMeasureType_displacedFeatureMeasureTypes_xsd_Complex_Type_diggs_RotationMeasureType.tmp#RotationMeasureType
Type diggs:RotationMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use Annotation
displacedFeature diggs:TerminationFeatureExtEnumType optional
The type of geological or structural feature about which rotation occurred (e.g., bedding plane, joint, fault, foliation). This identifies the axis or plane of rotation and provides geological context for the measurement.
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PlaneAngleUomEnumType optional
The unit of measure for plane angle.
Source

<element minOccurs="0" name="rotation" maxOccurs="unbounded" type="diggs:RotationMeasureType">
  <annotation>
    <documentation>Amount of rotation that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
  </annotation>
</element>

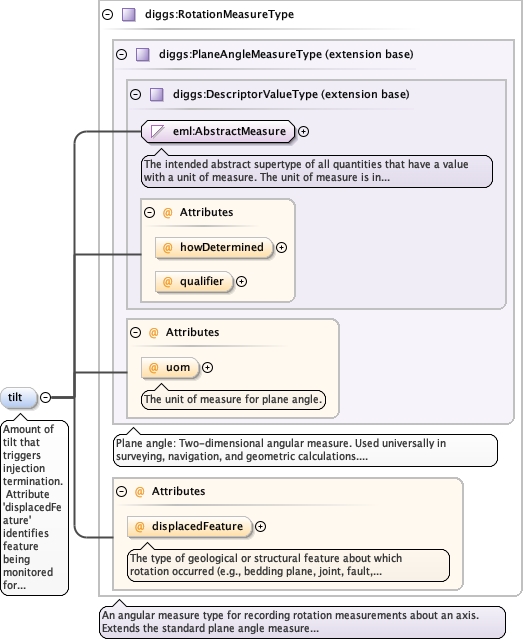

Element diggs:TerminationCriteriaType / diggs:tilt
Namespace http://diggsml.org/schemas/3
Annotations

Amount of tilt that triggers injection termination.
Attribute 'displacedFeature' identifies feature being monitored for
movement.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureTypeMeasureTypes_xsd_Complex_Type_diggs_RotationMeasureType.tmp#RotationMeasureType_displacedFeatureMeasureTypes_xsd_Complex_Type_diggs_RotationMeasureType.tmp#RotationMeasureType
Type diggs:RotationMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use Annotation
displacedFeature diggs:TerminationFeatureExtEnumType optional
The type of geological or structural feature about which rotation occurred (e.g., bedding plane, joint, fault, foliation). This identifies the axis or plane of rotation and provides geological context for the measurement.
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PlaneAngleUomEnumType optional
The unit of measure for plane angle.
Source

<element minOccurs="0" name="tilt" maxOccurs="unbounded" type="diggs:RotationMeasureType">
  <annotation>
    <documentation>Amount of tilt that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
  </annotation>
</element>

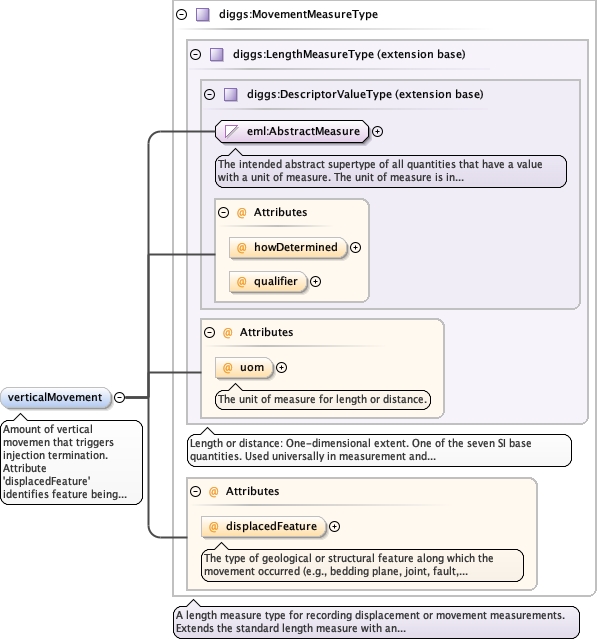

Element diggs:TerminationCriteriaType / diggs:verticalMovement
Namespace http://diggsml.org/schemas/3
Annotations

Amount of vertical movemen that triggers injection
termination. Attribute 'displacedFeature' identifies feature being
monitored for movement.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureTypeMeasureTypes_xsd_Complex_Type_diggs_MovementMeasureType.tmp#MovementMeasureType_displacedFeatureMeasureTypes_xsd_Complex_Type_diggs_MovementMeasureType.tmp#MovementMeasureType
Type diggs:MovementMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use Annotation
displacedFeature diggs:TerminationFeatureExtEnumType optional
The type of geological or structural feature along which the movement occurred (e.g., bedding plane, joint, fault, shear surface, fracture). This identifies what was displaced and provides context for the movement measurement.
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="verticalMovement" maxOccurs="unbounded" type="diggs:MovementMeasureType">
  <annotation>
    <documentation>Amount of vertical movemen that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
  </annotation>
</element>

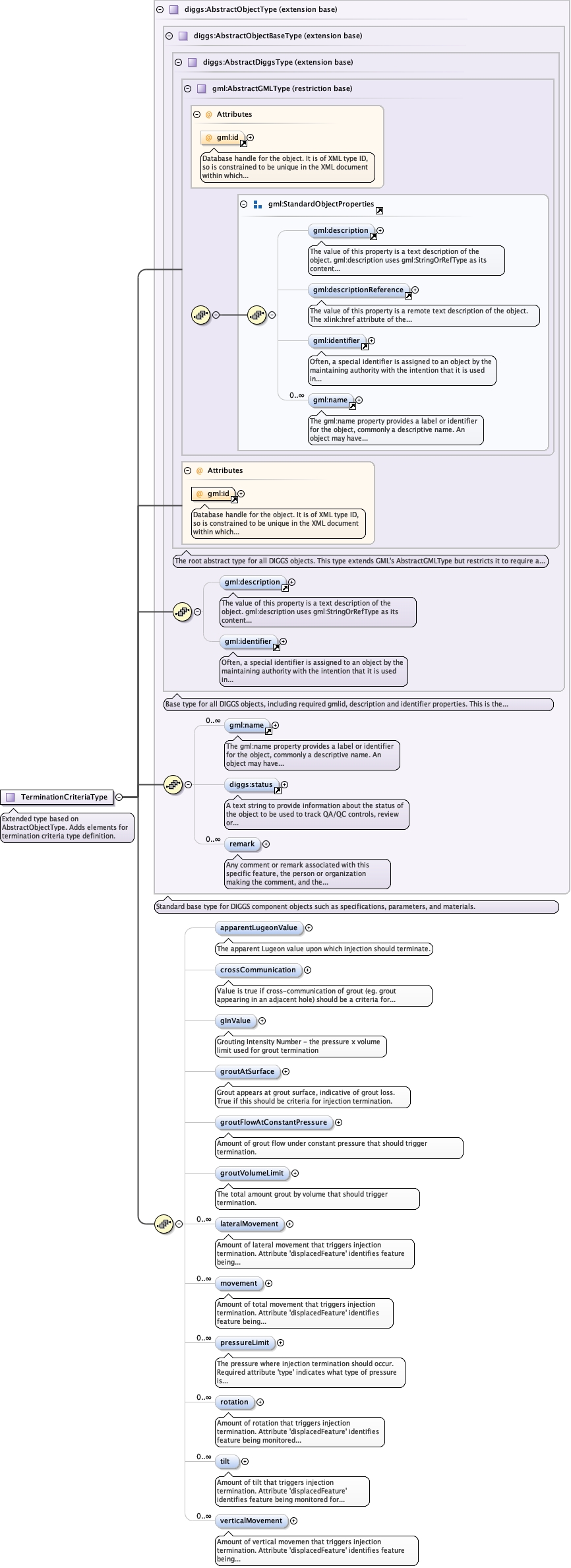

Complex Type diggs:TerminationCriteriaType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractObjectType. Adds elements for termination criteria type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeGrouting_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_apparentLugeonValueGrouting_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_crossCommunicationGrouting_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_gInValueGrouting_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_groutAtSurfaceGrouting_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_groutFlowAtConstantPressureGrouting_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_groutVolumeLimitGrouting_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_lateralMovementGrouting_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_movementGrouting_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_pressureLimitGrouting_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_rotationGrouting_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_tiltGrouting_xsd_Complex_Type_diggs_TerminationCriteriaType.tmp#TerminationCriteriaType_verticalMovement
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:apparentLugeonValue, diggs:crossCommunication, diggs:gInValue, diggs:groutAtSurface, diggs:groutFlowAtConstantPressure, diggs:groutVolumeLimit, diggs:lateralMovement, diggs:movement, diggs:pressureLimit, diggs:remark, diggs:rotation, diggs:status, diggs:tilt, diggs:verticalMovement, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="TerminationCriteriaType">
  <annotation>
    <documentation>Extended type based on AbstractObjectType. Adds elements for termination criteria type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" name="apparentLugeonValue" type="diggs:VolumePerTimePerLengthMeasureType">
          <annotation>
            <documentation>The apparent Lugeon value upon which injection should terminate.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="crossCommunication" type="boolean">
          <annotation>
            <documentation>Value is true if cross-communication of grout (eg. grout appearing in an adjacent hole) should be a criteria for injection termination, false if not.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="gInValue" type="diggs:MomentOfForceMeasureType">
          <annotation>
            <documentation>Grouting Intensity Number - the pressure x volume limit used for grout termination</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="groutAtSurface" type="boolean">
          <annotation>
            <documentation>Grout appears at grout surface, indicative of grout loss. True if this should be criteria for injection termination.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="groutFlowAtConstantPressure" type="diggs:VolumePerTimeMeasureType">
          <annotation>
            <documentation>Amount of grout flow under constant pressure that should trigger termination.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="groutVolumeLimit" type="diggs:VolumeMeasureType">
          <annotation>
            <documentation>The total amount grout by volume that should trigger termination.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="lateralMovement" maxOccurs="unbounded" type="diggs:MovementMeasureType">
          <annotation>
            <documentation>Amount of lateral movement that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="movement" maxOccurs="unbounded" type="diggs:MovementMeasureType">
          <annotation>
            <documentation>Amount of total movement that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pressureLimit" type="diggs:GroutPressureMeasureType" maxOccurs="unbounded">
          <annotation>
            <documentation>The pressure where injection termination should occur. Required attribute 'type' indicates what type of pressure is being measured - eg. gauge, effective, transducer) and optional attribute 'sensorLocation' is a string type indicating where sensor is located (eg. pump, grout head, etc.).</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="rotation" maxOccurs="unbounded" type="diggs:RotationMeasureType">
          <annotation>
            <documentation>Amount of rotation that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="tilt" maxOccurs="unbounded" type="diggs:RotationMeasureType">
          <annotation>
            <documentation>Amount of tilt that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="verticalMovement" maxOccurs="unbounded" type="diggs:MovementMeasureType">
          <annotation>
            <documentation>Amount of vertical movemen that triggers injection termination. Attribute 'displacedFeature' identifies feature being monitored for movement.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
