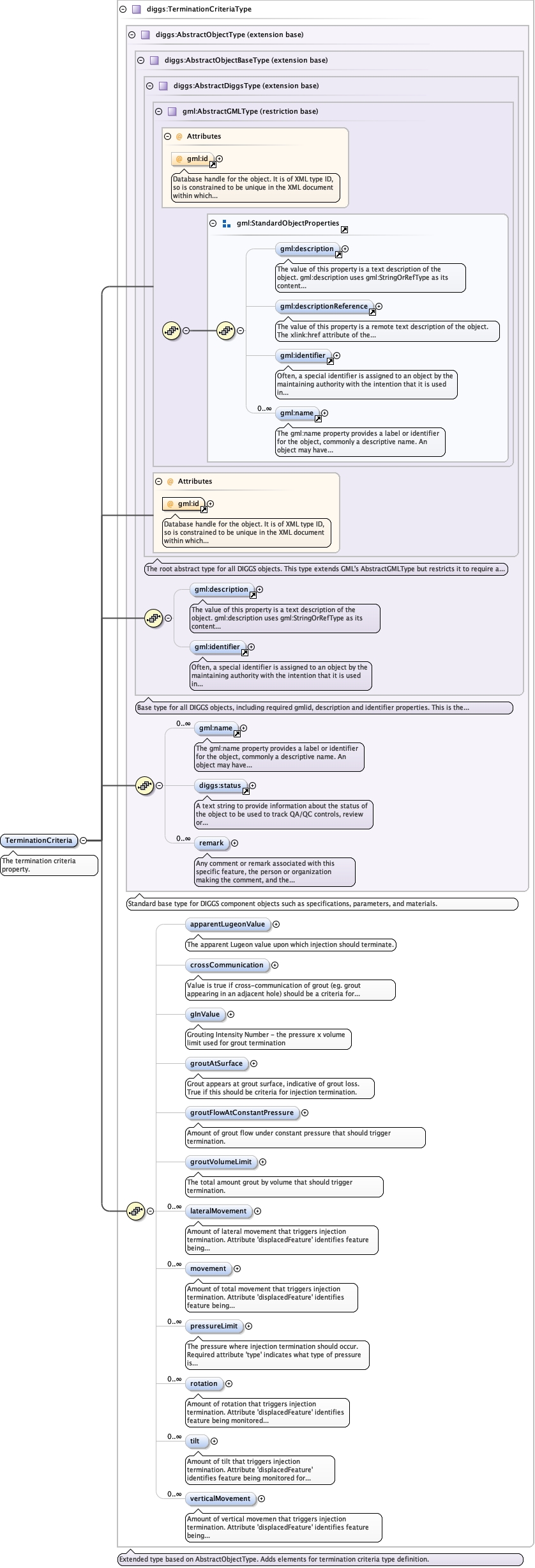

Schema documentation for component diggs:TerminationCriteria

<diggs:TerminationCriteria gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:apparentLugeonValue howDetermined="" qualifier="" uom="">{0,1}</diggs:apparentLugeonValue>
  <diggs:crossCommunication>{0,1}</diggs:crossCommunication>
  <diggs:gInValue howDetermined="" qualifier="" uom="">{0,1}</diggs:gInValue>
  <diggs:groutAtSurface>{0,1}</diggs:groutAtSurface>
  <diggs:groutFlowAtConstantPressure howDetermined="" qualifier="" uom="">{0,1}</diggs:groutFlowAtConstantPressure>
  <diggs:groutVolumeLimit howDetermined="" qualifier="" uom="">{0,1}</diggs:groutVolumeLimit>
  <diggs:lateralMovement displacedFeature="" howDetermined="" qualifier="" uom="">{0,unbounded}</diggs:lateralMovement>
  <diggs:movement displacedFeature="" howDetermined="" qualifier="" uom="">{0,unbounded}</diggs:movement>
  <diggs:pressureLimit howDetermined="" qualifier="" sensorLocation="" type="" uom="">{0,unbounded}</diggs:pressureLimit>
  <diggs:rotation displacedFeature="" howDetermined="" qualifier="" uom="">{0,unbounded}</diggs:rotation>
  <diggs:tilt displacedFeature="" howDetermined="" qualifier="" uom="">{0,unbounded}</diggs:tilt>
  <diggs:verticalMovement displacedFeature="" howDetermined="" qualifier="" uom="">{0,unbounded}</diggs:verticalMovement>
</diggs:TerminationCriteria>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
