Imported schema Environmental.xsd
Namespace http://schemas.diggsml.com/2.0.a/environmental
Properties
attribute form default: unqualified
element form default: qualified
version: 2.0.a
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd

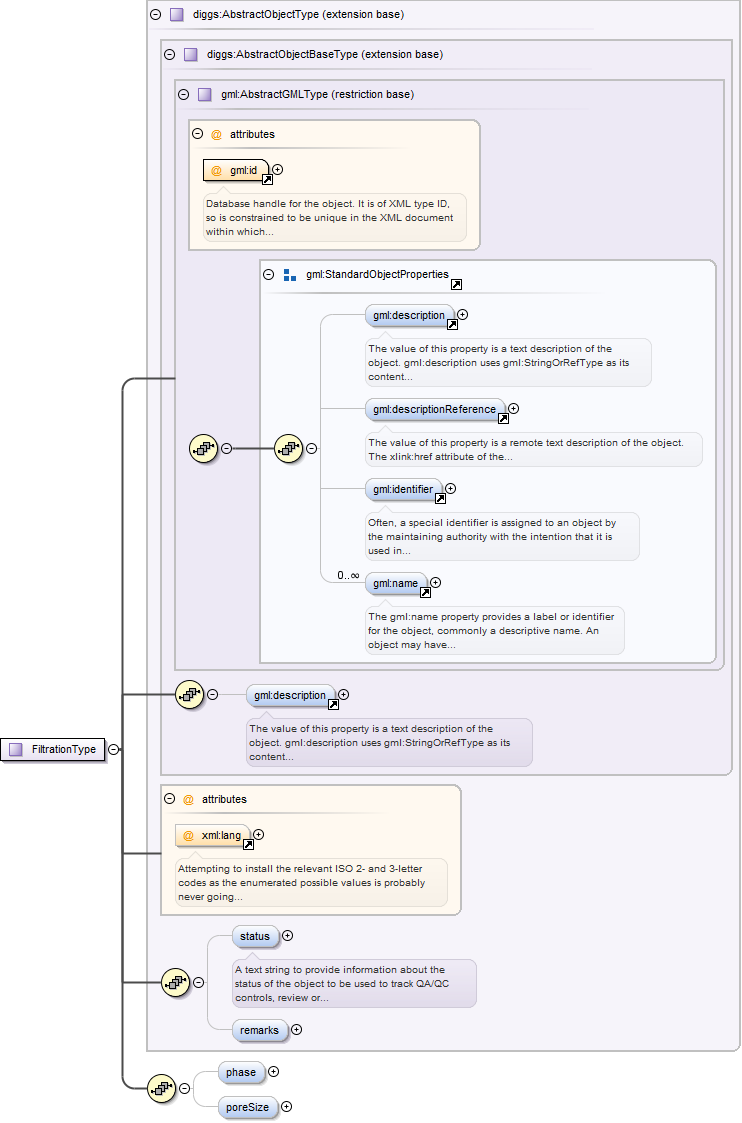

Element diggs_env:Filtration
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 3_2.tmp#id 3_2.tmp#description 3_2.tmp#descriptionReference 3_2.tmp#identifier 3_2.tmp#name 3_2.tmp#StandardObjectProperties 3_2.tmp#AbstractGMLType 3_2.tmp#description 2_0_a.tmp#AbstractObjectBaseType namespace.tmp#lang 2_0_a.tmp#AbstractObjectType_status 2_0_a.tmp#AbstractObjectType_remarks 2_0_a.tmp#AbstractObjectType environmental.tmp#FiltrationType_phase environmental.tmp#FiltrationType_poreSize environmental.tmp#FiltrationType 2_0_a.tmp#http___schemas.diggsml.com_2.0.a_AbstractObject
Type diggs_env:FiltrationType
Type hierarchy
Properties
content: complex
abstract: false
Substitution Group Affiliation
Used by
Model gml:description{0,1} , diggs:status{0,1} , diggs:remarks{0,1} , diggs_env:phase{0,1} , diggs_env:poreSize{0,1}
Children diggs:remarks, diggs:status, diggs_env:phase, diggs_env:poreSize, gml:description
Instance

<diggs_env:Filtration gml:id="" xml:lang="" xmlns:diggs_env="http://schemas.diggsml.com/2.0.a/environmental" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://schemas.diggsml.com/2.0.a">
  <gml:description xlink:href="" nilReason="" xlink:title="">{0,1}</gml:description>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remarks owns="false">{0,1}</diggs:remarks>
  <diggs_env:phase codeSpace="">{0,1}</diggs_env:phase>
  <diggs_env:poreSize uom="">{0,1}</diggs_env:poreSize>
</diggs_env:Filtration>
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<element name="Filtration" type="diggs_env:FiltrationType" substitutionGroup="diggs:AbstractObject" abstract="false"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:FiltrationType / diggs_env:phase
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram NO_NAMESPACE.tmp#CodeType_codeSpace 3_2.tmp#CodeType
Type gml:CodeType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
codeSpace anyURI optional
Source

<element name="phase" type="gml:CodeType" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd

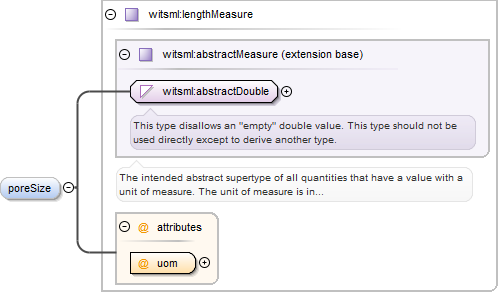

Element diggs_env:FiltrationType / diggs_env:poreSize
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 131.tmp#abstractDouble 131.tmp#abstractMeasure NO_NAMESPACE.tmp#lengthMeasure_uom 131.tmp#lengthMeasure
Type witsml:lengthMeasure
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom witsml:lengthUom required
Source

<element name="poreSize" type="witsml:lengthMeasure" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:Purge
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 3_2.tmp#id 3_2.tmp#description 3_2.tmp#descriptionReference 3_2.tmp#identifier 3_2.tmp#name 3_2.tmp#StandardObjectProperties 3_2.tmp#AbstractGMLType 3_2.tmp#AbstractFeatureType 3_2.tmp#description 2_0_a.tmp#AbstractFeatureBaseType namespace.tmp#lang 3_2.tmp#identifier 2_0_a.tmp#http___schemas.diggsml.com_2.0.a_AbstractFeatureType_status 2_0_a.tmp#FeatureMetadataProperties_associatedFiles 2_0_a.tmp#FeatureMetadataProperties_roles 2_0_a.tmp#FeatureMetadataProperties_remarks 2_0_a.tmp#FeatureMetadataProperties 2_0_a.tmp#http___schemas.diggsml.com_2.0.a_AbstractFeatureType environmental.tmp#PurgeType_casingVolume environmental.tmp#PurgeType_isProductContainerised environmental.tmp#PurgeType_isWaterContainerised environmental.tmp#PurgeType_isWaterTreated environmental.tmp#PurgeType_productContainersLabeled environmental.tmp#PurgeType_pumpingTiming environmental.tmp#PurgeType_purgeToDry environmental.tmp#PurgeType_timing environmental.tmp#PurgeType_totalPurgeVolume environmental.tmp#PurgeType_type environmental.tmp#PurgeType_waterLevelReadings environmental.tmp#PurgeType 2_0_a.tmp#http___schemas.diggsml.com_2.0.a_AbstractFeature

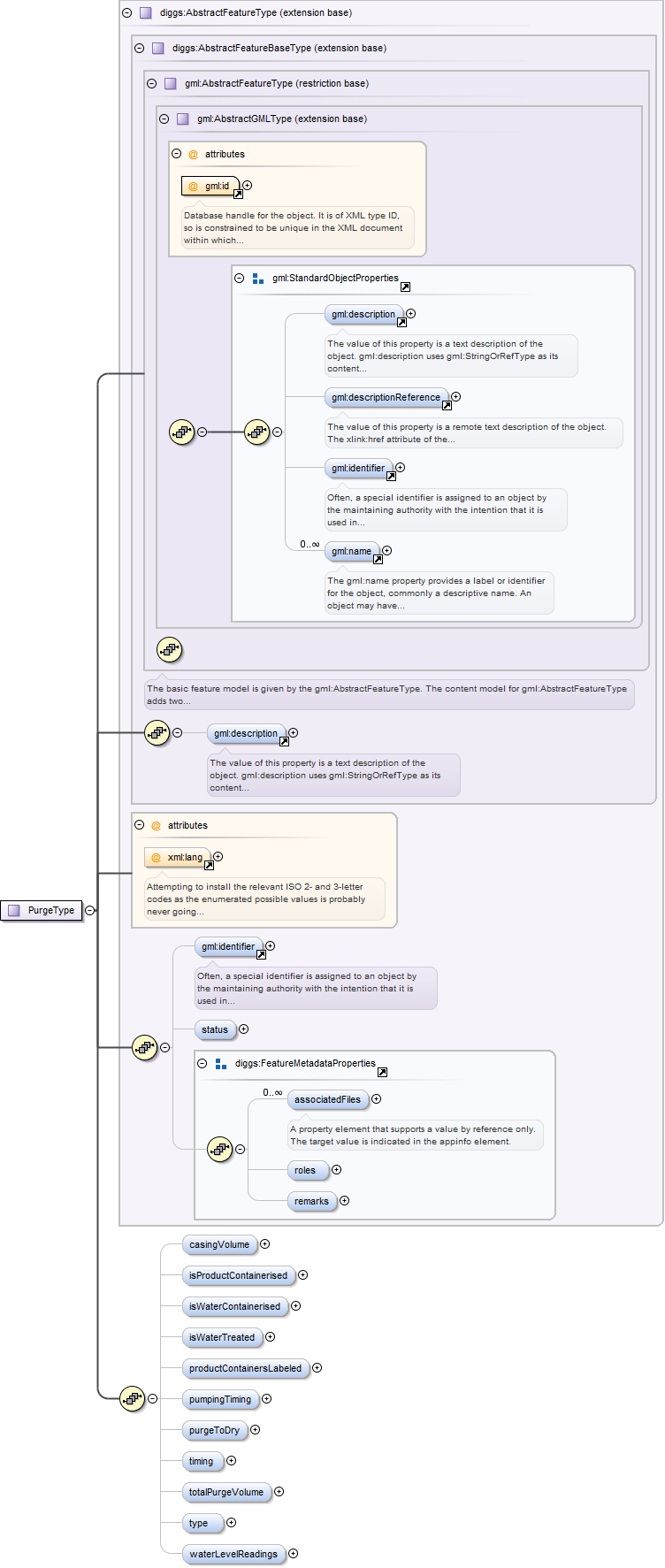

Type diggs_env:PurgeType
Type hierarchy
Properties
content: complex
abstract: false
Substitution Group Affiliation
Used by
Model gml:description{0,1} , gml:identifier{0,1} , diggs:status{0,1} , diggs:associatedFiles* , diggs:roles{0,1} , diggs:remarks{0,1} , diggs_env:casingVolume{0,1} , diggs_env:isProductContainerised{0,1} , diggs_env:isWaterContainerised{0,1} , diggs_env:isWaterTreated{0,1} , diggs_env:productContainersLabeled{0,1} , diggs_env:pumpingTiming{0,1} , diggs_env:purgeToDry{0,1} , diggs_env:timing{0,1} , diggs_env:totalPurgeVolume{0,1} , diggs_env:type{0,1} , diggs_env:waterLevelReadings{0,1}
Children diggs:associatedFiles, diggs:remarks, diggs:roles, diggs:status, diggs_env:casingVolume, diggs_env:isProductContainerised, diggs_env:isWaterContainerised, diggs_env:isWaterTreated, diggs_env:productContainersLabeled, diggs_env:pumpingTiming, diggs_env:purgeToDry, diggs_env:timing, diggs_env:totalPurgeVolume, diggs_env:type, diggs_env:waterLevelReadings, gml:description, gml:identifier
Instance

<diggs_env:Purge gml:id="" xml:lang="" xmlns:diggs_env="http://schemas.diggsml.com/2.0.a/environmental" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://schemas.diggsml.com/2.0.a">
  <gml:description xlink:href="" nilReason="" xlink:title="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:associatedFiles xlink:href="" nilReason="" owns="false" xlink:title="">{0,unbounded}</diggs:associatedFiles>
  <diggs:roles owns="false">{0,1}</diggs:roles>
  <diggs:remarks owns="false">{0,1}</diggs:remarks>
  <diggs_env:casingVolume uom="">{0,1}</diggs_env:casingVolume>
  <diggs_env:isProductContainerised>{0,1}</diggs_env:isProductContainerised>
  <diggs_env:isWaterContainerised>{0,1}</diggs_env:isWaterContainerised>
  <diggs_env:isWaterTreated>{0,1}</diggs_env:isWaterTreated>
  <diggs_env:productContainersLabeled>{0,1}</diggs_env:productContainersLabeled>
  <diggs_env:pumpingTiming>{0,1}</diggs_env:pumpingTiming>
  <diggs_env:purgeToDry>{0,1}</diggs_env:purgeToDry>
  <diggs_env:timing>{0,1}</diggs_env:timing>
  <diggs_env:totalPurgeVolume uom="">{0,1}</diggs_env:totalPurgeVolume>
  <diggs_env:type codeSpace="">{0,1}</diggs_env:type>
  <diggs_env:waterLevelReadings>{0,1}</diggs_env:waterLevelReadings>
</diggs_env:Purge>
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<element name="Purge" type="diggs_env:PurgeType" substitutionGroup="diggs:AbstractFeature" abstract="false"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd

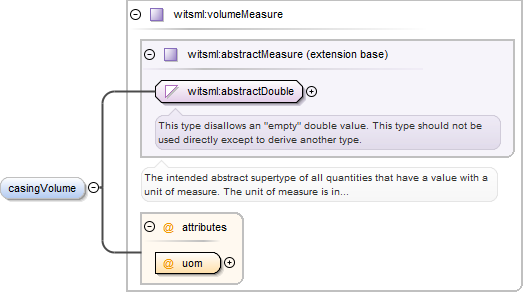

Element diggs_env:PurgeType / diggs_env:casingVolume
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 131.tmp#abstractDouble 131.tmp#abstractMeasure NO_NAMESPACE.tmp#volumeMeasure_uom 131.tmp#volumeMeasure
Type witsml:volumeMeasure
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom witsml:volumeUom required
Source

<element name="casingVolume" type="witsml:volumeMeasure" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:PurgeType / diggs_env:isProductContainerised
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram
Type boolean
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source

<element name="isProductContainerised" type="boolean" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:PurgeType / diggs_env:isWaterContainerised
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram
Type boolean
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source

<element name="isWaterContainerised" type="boolean" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:PurgeType / diggs_env:isWaterTreated
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram
Type boolean
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source

<element name="isWaterTreated" type="boolean" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:PurgeType / diggs_env:productContainersLabeled
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram
Type boolean
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source

<element name="productContainersLabeled" type="boolean" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:PurgeType / diggs_env:pumpingTiming
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 2_0_a.tmp#TimeInterval 2_0_a.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model diggs:TimeInterval
Children diggs:TimeInterval
Instance

<diggs_env:pumpingTiming xmlns:diggs_env="http://schemas.diggsml.com/2.0.a/environmental" xmlns:diggs="http://schemas.diggsml.com/2.0.a">
  <diggs:TimeInterval gml:id="" xml:lang="">{1,1}</diggs:TimeInterval>
</diggs_env:pumpingTiming>
Source

<element name="pumpingTiming" type="diggs:TimeIntervalPropertyType" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:PurgeType / diggs_env:purgeToDry
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram
Type boolean
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source

<element name="purgeToDry" type="boolean" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:PurgeType / diggs_env:timing
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 2_0_a.tmp#TimeInterval 2_0_a.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model diggs:TimeInterval
Children diggs:TimeInterval
Instance

<diggs_env:timing xmlns:diggs_env="http://schemas.diggsml.com/2.0.a/environmental" xmlns:diggs="http://schemas.diggsml.com/2.0.a">
  <diggs:TimeInterval gml:id="" xml:lang="">{1,1}</diggs:TimeInterval>
</diggs_env:timing>
Source

<element name="timing" type="diggs:TimeIntervalPropertyType" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd

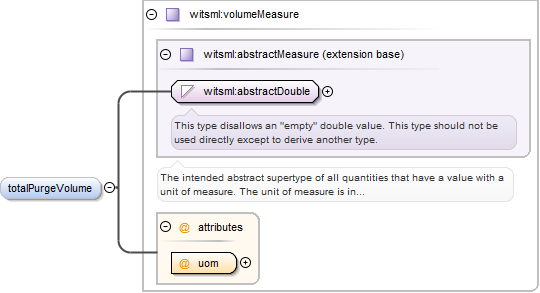

Element diggs_env:PurgeType / diggs_env:totalPurgeVolume
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 131.tmp#abstractDouble 131.tmp#abstractMeasure NO_NAMESPACE.tmp#volumeMeasure_uom 131.tmp#volumeMeasure
Type witsml:volumeMeasure
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom witsml:volumeUom required
Source

<element name="totalPurgeVolume" type="witsml:volumeMeasure" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd

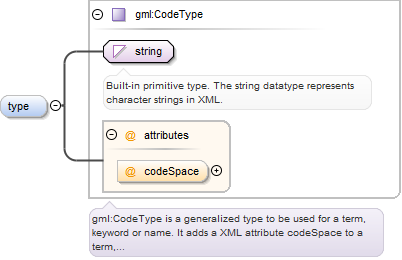

Element diggs_env:PurgeType / diggs_env:type
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram NO_NAMESPACE.tmp#CodeType_codeSpace 3_2.tmp#CodeType
Type gml:CodeType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
codeSpace anyURI optional
Source

<element name="type" type="gml:CodeType" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:PurgeType / diggs_env:waterLevelReadings
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram environmental.tmp#WaterLevelReading environmental.tmp#WaterLevelReadingPropertyType
Type diggs_env:WaterLevelReadingPropertyType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model diggs_env:WaterLevelReading*
Children diggs_env:WaterLevelReading
Instance

<diggs_env:waterLevelReadings xmlns:diggs_env="http://schemas.diggsml.com/2.0.a/environmental">
  <diggs_env:WaterLevelReading gml:id="" xml:lang="">{0,unbounded}</diggs_env:WaterLevelReading>
</diggs_env:waterLevelReadings>
Source

<element name="waterLevelReadings" type="diggs_env:WaterLevelReadingPropertyType" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd

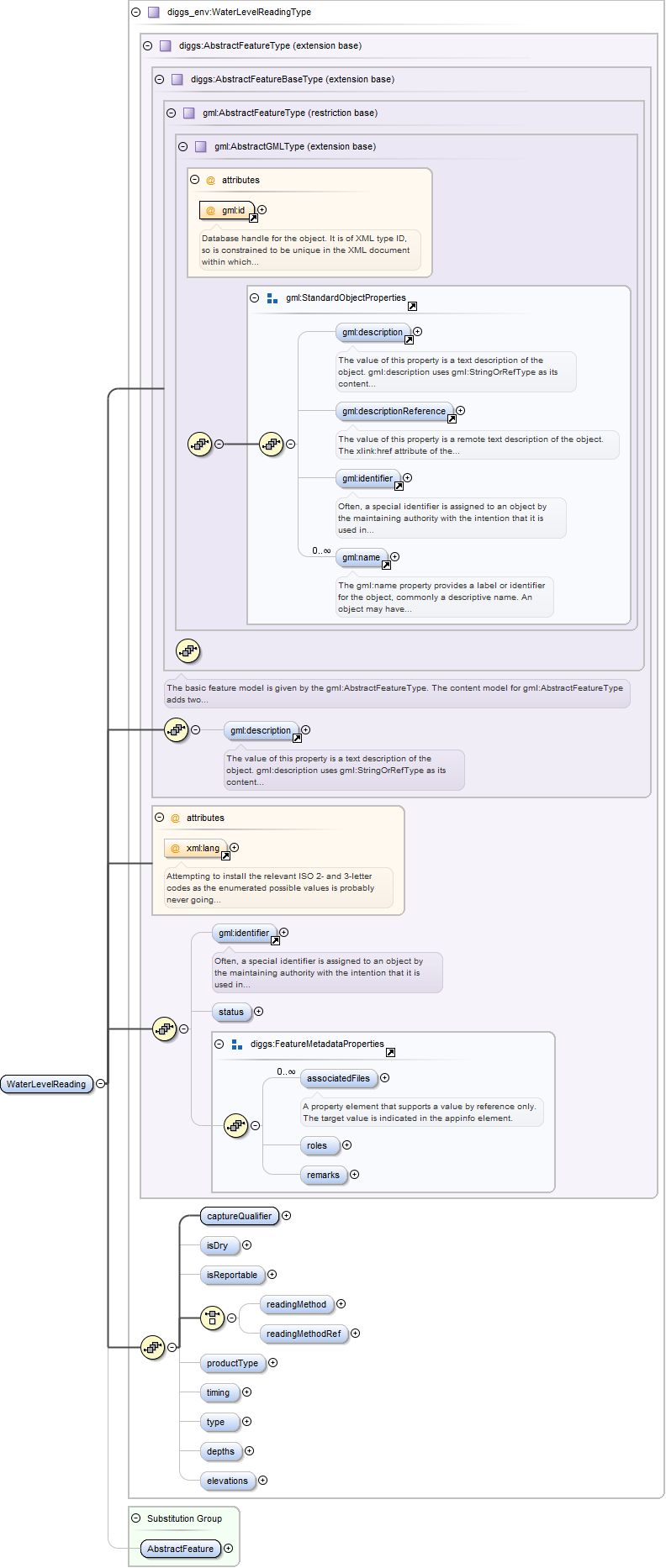

Element diggs_env:WaterLevelReading
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 3_2.tmp#id 3_2.tmp#description 3_2.tmp#descriptionReference 3_2.tmp#identifier 3_2.tmp#name 3_2.tmp#StandardObjectProperties 3_2.tmp#AbstractGMLType 3_2.tmp#AbstractFeatureType 3_2.tmp#description 2_0_a.tmp#AbstractFeatureBaseType namespace.tmp#lang 3_2.tmp#identifier 2_0_a.tmp#http___schemas.diggsml.com_2.0.a_AbstractFeatureType_status 2_0_a.tmp#FeatureMetadataProperties_associatedFiles 2_0_a.tmp#FeatureMetadataProperties_roles 2_0_a.tmp#FeatureMetadataProperties_remarks 2_0_a.tmp#FeatureMetadataProperties 2_0_a.tmp#http___schemas.diggsml.com_2.0.a_AbstractFeatureType environmental.tmp#WaterLevelReadingType_captureQualifier environmental.tmp#WaterLevelReadingType_isDry environmental.tmp#WaterLevelReadingType_isReportable environmental.tmp#WaterLevelReadingType_readingMethod environmental.tmp#WaterLevelReadingType_readingMethodRef environmental.tmp#WaterLevelReadingType_productType environmental.tmp#WaterLevelReadingType_timing environmental.tmp#WaterLevelReadingType_type environmental.tmp#WaterLevelReadingType_depths environmental.tmp#WaterLevelReadingType_elevations environmental.tmp#WaterLevelReadingType 2_0_a.tmp#http___schemas.diggsml.com_2.0.a_AbstractFeature
Type diggs_env:WaterLevelReadingType
Type hierarchy
Properties
content: complex
abstract: false
Substitution Group Affiliation
Used by
Model gml:description{0,1} , gml:identifier{0,1} , diggs:status{0,1} , diggs:associatedFiles* , diggs:roles{0,1} , diggs:remarks{0,1} , diggs_env:captureQualifier , diggs_env:isDry{0,1} , diggs_env:isReportable{0,1} , (diggs_env:readingMethod{0,1} | diggs_env:readingMethodRef{0,1}) , diggs_env:productType{0,1} , diggs_env:timing{0,1} , diggs_env:type{0,1} , diggs_env:depths{0,1} , diggs_env:elevations{0,1}
Children diggs:associatedFiles, diggs:remarks, diggs:roles, diggs:status, diggs_env:captureQualifier, diggs_env:depths, diggs_env:elevations, diggs_env:isDry, diggs_env:isReportable, diggs_env:productType, diggs_env:readingMethod, diggs_env:readingMethodRef, diggs_env:timing, diggs_env:type, gml:description, gml:identifier
Instance

<diggs_env:WaterLevelReading gml:id="" xml:lang="" xmlns:diggs_env="http://schemas.diggsml.com/2.0.a/environmental" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://schemas.diggsml.com/2.0.a">
  <gml:description xlink:href="" nilReason="" xlink:title="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:associatedFiles xlink:href="" nilReason="" owns="false" xlink:title="">{0,unbounded}</diggs:associatedFiles>
  <diggs:roles owns="false">{0,1}</diggs:roles>
  <diggs:remarks owns="false">{0,1}</diggs:remarks>
  <diggs_env:captureQualifier codeSpace="">{1,1}</diggs_env:captureQualifier>
  <diggs_env:isDry>{0,1}</diggs_env:isDry>
  <diggs_env:isReportable>{0,1}</diggs_env:isReportable>
  <diggs_env:readingMethod codeSpace="">{0,1}</diggs_env:readingMethod>
  <diggs_env:readingMethodRef xlink:href="" nilReason="" owns="false" xlink:title="">{0,1}</diggs_env:readingMethodRef>
  <diggs_env:productType codeSpace="">{0,1}</diggs_env:productType>
  <diggs_env:timing>{0,1}</diggs_env:timing>
  <diggs_env:type codeSpace="">{0,1}</diggs_env:type>
  <diggs_env:depths>{0,1}</diggs_env:depths>
  <diggs_env:elevations>{0,1}</diggs_env:elevations>
</diggs_env:WaterLevelReading>
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<element name="WaterLevelReading" type="diggs_env:WaterLevelReadingType" substitutionGroup="diggs:AbstractFeature" abstract="false"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd

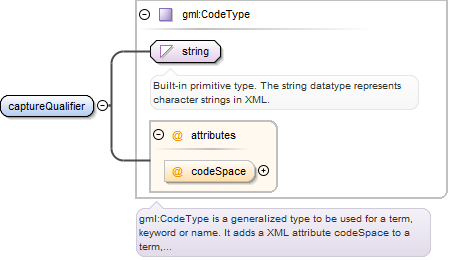

Element diggs_env:WaterLevelReadingType / diggs_env:captureQualifier
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram NO_NAMESPACE.tmp#CodeType_codeSpace 3_2.tmp#CodeType
Type gml:CodeType
Properties
content: complex
minOccurs: 1
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
codeSpace anyURI optional
Source

<element name="captureQualifier" type="gml:CodeType" minOccurs="1" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:WaterLevelReadingType / diggs_env:isDry
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram
Type boolean
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source

<element name="isDry" type="boolean" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:WaterLevelReadingType / diggs_env:isReportable
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram
Type boolean
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source

<element name="isReportable" type="boolean" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd

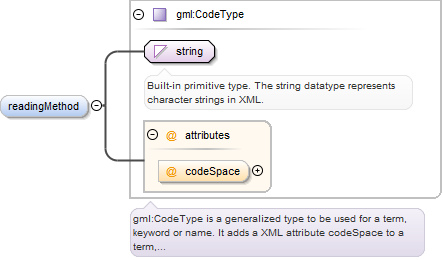

Element diggs_env:WaterLevelReadingType / diggs_env:readingMethod
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram NO_NAMESPACE.tmp#CodeType_codeSpace 3_2.tmp#CodeType
Type gml:CodeType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
codeSpace anyURI optional
Source

<element name="readingMethod" type="gml:CodeType" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:WaterLevelReadingType / diggs_env:readingMethodRef
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 3_2.tmp#OwnershipAttributeGroup 3_2.tmp#AbstractMetadataPropertyType 3_2.tmp#AssociationAttributeGroup 2_0_a.tmp#MetadataReferenceType
Type diggs:MetadataReferenceType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href xlink:hrefType optional
xlink:title xlink:titleAttrType optional
Source

<element minOccurs="0" name="readingMethodRef" type="diggs:MetadataReferenceType">
  <annotation>
    <appinfo>diggs:Specification</appinfo>
  </annotation>
</element>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd

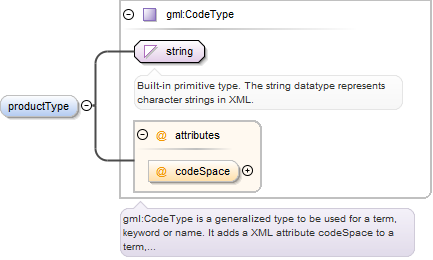

Element diggs_env:WaterLevelReadingType / diggs_env:productType
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram NO_NAMESPACE.tmp#CodeType_codeSpace 3_2.tmp#CodeType
Type gml:CodeType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
codeSpace anyURI optional
Source

<element name="productType" type="gml:CodeType" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:WaterLevelReadingType / diggs_env:timing
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 2_0_a.tmp#TimeInterval 2_0_a.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model diggs:TimeInterval
Children diggs:TimeInterval
Instance

<diggs_env:timing xmlns:diggs_env="http://schemas.diggsml.com/2.0.a/environmental" xmlns:diggs="http://schemas.diggsml.com/2.0.a">
  <diggs:TimeInterval gml:id="" xml:lang="">{1,1}</diggs:TimeInterval>
</diggs_env:timing>
Source

<element name="timing" type="diggs:TimeIntervalPropertyType" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:WaterLevelReadingType / diggs_env:type
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram NO_NAMESPACE.tmp#CodeType_codeSpace 3_2.tmp#CodeType
Type gml:CodeType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
codeSpace anyURI optional
Source

<element name="type" type="gml:CodeType" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:WaterLevelReadingType / diggs_env:depths
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram environmental.tmp#WaterLevelReadingMeasurements environmental.tmp#WaterLevelReadingMeasurementsPropertyType
Type diggs_env:WaterLevelReadingMeasurementsPropertyType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model diggs_env:WaterLevelReadingMeasurements*
Children diggs_env:WaterLevelReadingMeasurements
Instance

<diggs_env:depths xmlns:diggs_env="http://schemas.diggsml.com/2.0.a/environmental">
  <diggs_env:WaterLevelReadingMeasurements gml:id="">{0,unbounded}</diggs_env:WaterLevelReadingMeasurements>
</diggs_env:depths>
Source

<element name="depths" type="diggs_env:WaterLevelReadingMeasurementsPropertyType" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd

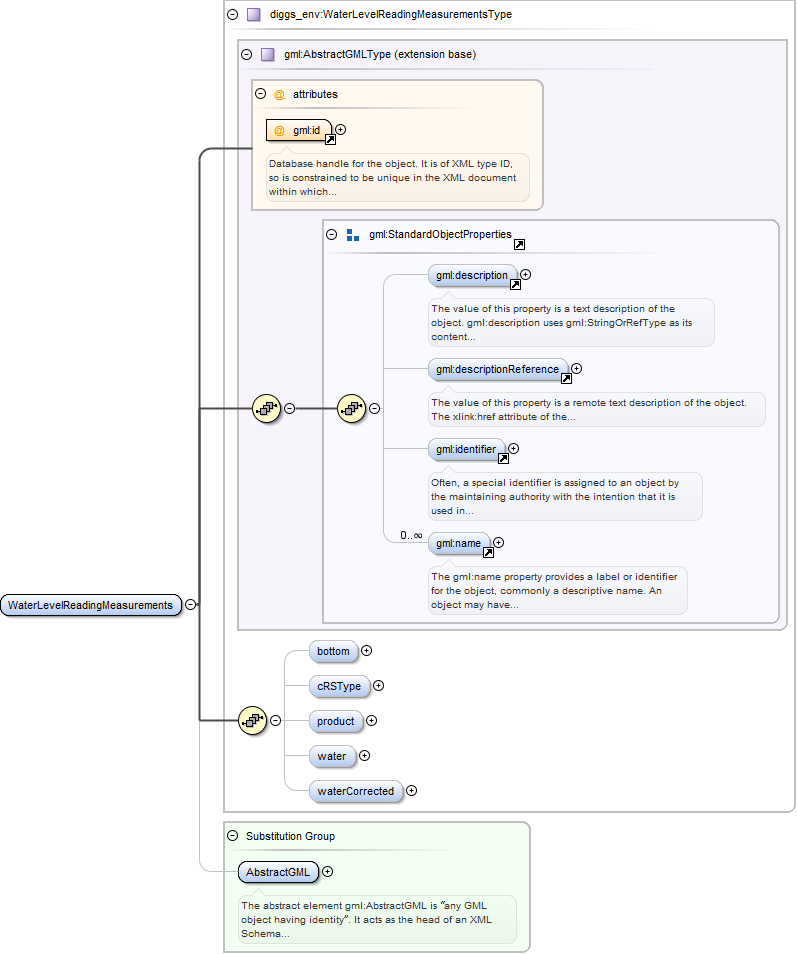

Element diggs_env:WaterLevelReadingMeasurements
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 3_2.tmp#id 3_2.tmp#description 3_2.tmp#descriptionReference 3_2.tmp#identifier 3_2.tmp#name 3_2.tmp#StandardObjectProperties 3_2.tmp#AbstractGMLType environmental.tmp#WaterLevelReadingMeasurementsType_bottom environmental.tmp#WaterLevelReadingMeasurementsType_cRSType environmental.tmp#WaterLevelReadingMeasurementsType_product environmental.tmp#WaterLevelReadingMeasurementsType_water environmental.tmp#WaterLevelReadingMeasurementsType_waterCorrected environmental.tmp#WaterLevelReadingMeasurementsType 3_2.tmp#AbstractGML
Type diggs_env:WaterLevelReadingMeasurementsType
Type hierarchy
Properties
content: complex
abstract: false
Substitution Group Affiliation
Used by
Model gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , diggs_env:bottom{0,1} , diggs_env:cRSType{0,1} , diggs_env:product{0,1} , diggs_env:water{0,1} , diggs_env:waterCorrected{0,1}
Children diggs_env:bottom, diggs_env:cRSType, diggs_env:product, diggs_env:water, diggs_env:waterCorrected, gml:description, gml:descriptionReference, gml:identifier, gml:name
Instance

<diggs_env:WaterLevelReadingMeasurements gml:id="" xmlns:diggs_env="http://schemas.diggsml.com/2.0.a/environmental" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="" xlink:title="">{0,1}</gml:description>
  <gml:descriptionReference xlink:href="" nilReason="" owns="false" xlink:title="">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs_env:bottom xlink:href="" nilReason="" owns="false" xlink:title="">{0,1}</diggs_env:bottom>
  <diggs_env:cRSType codeSpace="">{0,1}</diggs_env:cRSType>
  <diggs_env:product xlink:href="" nilReason="" owns="false" xlink:title="">{0,1}</diggs_env:product>
  <diggs_env:water xlink:href="" nilReason="" owns="false" xlink:title="">{0,1}</diggs_env:water>
  <diggs_env:waterCorrected xlink:href="" nilReason="" owns="false" xlink:title="">{0,1}</diggs_env:waterCorrected>
</diggs_env:WaterLevelReadingMeasurements>
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="WaterLevelReadingMeasurements" type="diggs_env:WaterLevelReadingMeasurementsType" substitutionGroup="gml:AbstractGML" abstract="false"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd

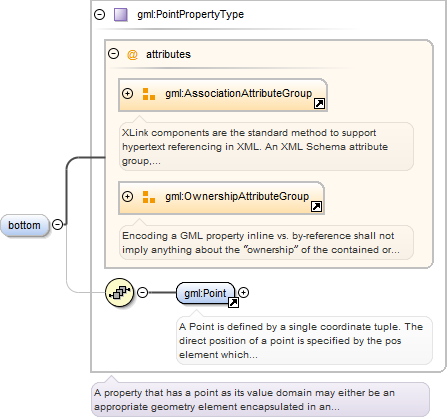

Element diggs_env:WaterLevelReadingMeasurementsType / diggs_env:bottom
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 3_2.tmp#AssociationAttributeGroup 3_2.tmp#OwnershipAttributeGroup 3_2.tmp#Point 3_2.tmp#PointPropertyType
Type gml:PointPropertyType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model gml:Point
Children gml:Point
Instance

<diggs_env:bottom xlink:href="" nilReason="" owns="false" xlink:title="" xmlns:diggs_env="http://schemas.diggsml.com/2.0.a/environmental" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:Point axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:Point>
</diggs_env:bottom>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href xlink:hrefType optional
xlink:title xlink:titleAttrType optional
Source

<element name="bottom" type="gml:PointPropertyType" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:WaterLevelReadingMeasurementsType / diggs_env:cRSType
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram NO_NAMESPACE.tmp#CodeType_codeSpace 3_2.tmp#CodeType
Type gml:CodeType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
codeSpace anyURI optional
Source

<element name="cRSType" type="gml:CodeType" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd

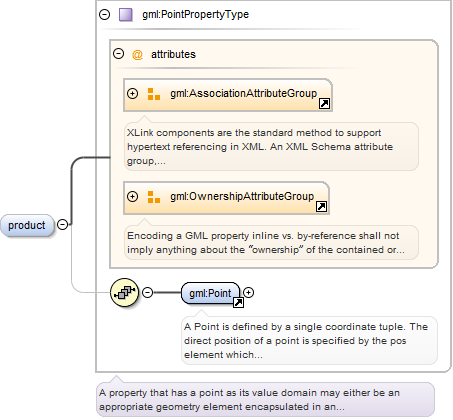

Element diggs_env:WaterLevelReadingMeasurementsType / diggs_env:product
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 3_2.tmp#AssociationAttributeGroup 3_2.tmp#OwnershipAttributeGroup 3_2.tmp#Point 3_2.tmp#PointPropertyType
Type gml:PointPropertyType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model gml:Point
Children gml:Point
Instance

<diggs_env:product xlink:href="" nilReason="" owns="false" xlink:title="" xmlns:diggs_env="http://schemas.diggsml.com/2.0.a/environmental" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:Point axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:Point>
</diggs_env:product>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href xlink:hrefType optional
xlink:title xlink:titleAttrType optional
Source

<element name="product" type="gml:PointPropertyType" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:WaterLevelReadingMeasurementsType / diggs_env:water
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 3_2.tmp#AssociationAttributeGroup 3_2.tmp#OwnershipAttributeGroup 3_2.tmp#Point 3_2.tmp#PointPropertyType
Type gml:PointPropertyType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model gml:Point
Children gml:Point
Instance

<diggs_env:water xlink:href="" nilReason="" owns="false" xlink:title="" xmlns:diggs_env="http://schemas.diggsml.com/2.0.a/environmental" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:Point axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:Point>
</diggs_env:water>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href xlink:hrefType optional
xlink:title xlink:titleAttrType optional
Source

<element name="water" type="gml:PointPropertyType" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd

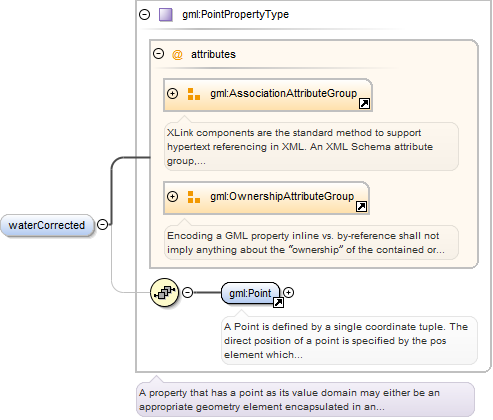

Element diggs_env:WaterLevelReadingMeasurementsType / diggs_env:waterCorrected
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 3_2.tmp#AssociationAttributeGroup 3_2.tmp#OwnershipAttributeGroup 3_2.tmp#Point 3_2.tmp#PointPropertyType
Type gml:PointPropertyType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model gml:Point
Children gml:Point
Instance

<diggs_env:waterCorrected xlink:href="" nilReason="" owns="false" xlink:title="" xmlns:diggs_env="http://schemas.diggsml.com/2.0.a/environmental" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:Point axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:Point>
</diggs_env:waterCorrected>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href xlink:hrefType optional
xlink:title xlink:titleAttrType optional
Source

<element name="waterCorrected" type="gml:PointPropertyType" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:WaterLevelReadingType / diggs_env:elevations
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram environmental.tmp#WaterLevelReadingMeasurements environmental.tmp#WaterLevelReadingMeasurementsPropertyType
Type diggs_env:WaterLevelReadingMeasurementsPropertyType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model diggs_env:WaterLevelReadingMeasurements*
Children diggs_env:WaterLevelReadingMeasurements
Instance

<diggs_env:elevations xmlns:diggs_env="http://schemas.diggsml.com/2.0.a/environmental">
  <diggs_env:WaterLevelReadingMeasurements gml:id="">{0,unbounded}</diggs_env:WaterLevelReadingMeasurements>
</diggs_env:elevations>
Source

<element name="elevations" type="diggs_env:WaterLevelReadingMeasurementsPropertyType" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:ChemicalAnalysisType / diggs_env:sampleVolume
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 131.tmp#abstractDouble 131.tmp#abstractMeasure NO_NAMESPACE.tmp#volumeMeasure_uom 131.tmp#volumeMeasure
Type witsml:volumeMeasure
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom witsml:volumeUom required
Source

<element name="sampleVolume" type="witsml:volumeMeasure" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:ChemicalAnalysisType / diggs_env:dilutionFactor
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram
Type double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source

<element name="dilutionFactor" type="double" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:ChemicalAnalysisType / diggs_env:analysisType
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram NO_NAMESPACE.tmp#CodeType_codeSpace 3_2.tmp#CodeType
Type gml:CodeType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
codeSpace anyURI optional
Source

<element name="analysisType" type="gml:CodeType" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:SpectralAnalysisType / diggs_env:wavelength
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 131.tmp#abstractDouble 131.tmp#abstractMeasure NO_NAMESPACE.tmp#lengthMeasure_uom 131.tmp#lengthMeasure
Type witsml:lengthMeasure
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom witsml:lengthUom required
Source

<element name="wavelength" type="witsml:lengthMeasure" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:SpectralAnalysis
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 3_2.tmp#id 3_2.tmp#description 3_2.tmp#descriptionReference 3_2.tmp#identifier 3_2.tmp#name 3_2.tmp#StandardObjectProperties 3_2.tmp#AbstractGMLType 3_2.tmp#description 2_0_a.tmp#AbstractObjectBaseType namespace.tmp#lang 2_0_a.tmp#AbstractObjectType_status 2_0_a.tmp#AbstractObjectType_remarks 2_0_a.tmp#AbstractObjectType 2_0_a.tmp#TestMetadataProperties_equipmentRef 2_0_a.tmp#TestMetadataProperties_equipment 2_0_a.tmp#TestMetadataProperties_specificationRef 2_0_a.tmp#TestMetadataProperties_specification 2_0_a.tmp#TestMetadataProperties 2_0_a.tmp#AbstractTestProcedureType 2_0_a.tmp#AbstractLaboratoryTestType_samplePreparations 2_0_a.tmp#AbstractLaboratoryTestType environmental.tmp#ChemicalAnalysisType_sampleVolume environmental.tmp#ChemicalAnalysisType_dilutionFactor environmental.tmp#ChemicalAnalysisType_analysisType environmental.tmp#ChemicalAnalysisType environmental.tmp#SpectralAnalysisType_wavelength environmental.tmp#SpectralAnalysisType environmental.tmp#ChemicalAnalysis
Type diggs_env:SpectralAnalysisType
Type hierarchy
Properties
content: complex
abstract: false
Substitution Group Affiliation
Model gml:description{0,1} , diggs:status{0,1} , diggs:remarks{0,1} , (diggs:equipmentRef | diggs:equipment) , (diggs:specificationRef | diggs:specification) , diggs:samplePreparations{0,1} , diggs_env:sampleVolume{0,1} , diggs_env:dilutionFactor{0,1} , diggs_env:analysisType{0,1} , diggs_env:wavelength{0,1}
Children diggs:equipment, diggs:equipmentRef, diggs:remarks, diggs:samplePreparations, diggs:specification, diggs:specificationRef, diggs:status, diggs_env:analysisType, diggs_env:dilutionFactor, diggs_env:sampleVolume, diggs_env:wavelength, gml:description
Instance

<diggs_env:SpectralAnalysis gml:id="" xml:lang="" xmlns:diggs_env="http://schemas.diggsml.com/2.0.a/environmental" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://schemas.diggsml.com/2.0.a">
  <gml:description xlink:href="" nilReason="" xlink:title="">{0,1}</gml:description>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remarks owns="false">{0,1}</diggs:remarks>
  <diggs:equipmentRef xlink:href="" nilReason="" owns="false" xlink:title="">{1,1}</diggs:equipmentRef>
  <diggs:equipment codeSpace="">{1,1}</diggs:equipment>
  <diggs:specificationRef xlink:href="" nilReason="" owns="false" xlink:title="">{1,1}</diggs:specificationRef>
  <diggs:specification codeSpace="">{1,1}</diggs:specification>
  <diggs:samplePreparations>{0,1}</diggs:samplePreparations>
  <diggs_env:sampleVolume uom="">{0,1}</diggs_env:sampleVolume>
  <diggs_env:dilutionFactor>{0,1}</diggs_env:dilutionFactor>
  <diggs_env:analysisType codeSpace="">{0,1}</diggs_env:analysisType>
  <diggs_env:wavelength uom="">{0,1}</diggs_env:wavelength>
</diggs_env:SpectralAnalysis>
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<element name="SpectralAnalysis" type="diggs_env:SpectralAnalysisType" substitutionGroup="diggs_env:ChemicalAnalysis" abstract="false"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:TICResult
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 3_2.tmp#id 3_2.tmp#description 3_2.tmp#descriptionReference 3_2.tmp#identifier 3_2.tmp#name 3_2.tmp#StandardObjectProperties 3_2.tmp#AbstractGMLType 3_2.tmp#description 2_0_a.tmp#AbstractObjectBaseType namespace.tmp#lang 2_0_a.tmp#AbstractObjectType_status 2_0_a.tmp#AbstractObjectType_remarks 2_0_a.tmp#AbstractObjectType NO_NAMESPACE.tmp#PropertyType_index 2_0_a.tmp#PropertyType_propertyCode 2_0_a.tmp#PropertyType_typeData 2_0_a.tmp#PropertyType_propertyClass 2_0_a.tmp#PropertyType_uom 2_0_a.tmp#PropertyType_nullValue 2_0_a.tmp#PropertyType_context 2_0_a.tmp#PropertyType_correctionUsed 2_0_a.tmp#PropertyType_measurementTechnique 2_0_a.tmp#PropertyType_detectorRef 2_0_a.tmp#PropertyType_reportable 2_0_a.tmp#PropertyType_detectionLimits 2_0_a.tmp#PropertyType_qualifiers 2_0_a.tmp#PropertyType_curveState 2_0_a.tmp#PropertyType environmental.tmp#TICResultType_percentMatch environmental.tmp#TICResultType_retentionTime environmental.tmp#TICResultType 3_2.tmp#AbstractValue
Type diggs_env:TICResultType
Type hierarchy
Properties
content: complex
abstract: false
Substitution Group Affiliation
Used by
Model gml:description{0,1} , diggs:status{0,1} , diggs:remarks{0,1} , diggs:propertyCode , diggs:typeData , diggs:propertyClass , diggs:uom{0,1} , diggs:nullValue* , diggs:context{0,1} , diggs:correctionUsed* , diggs:measurementTechnique{0,1} , diggs:detectorRef{0,1} , diggs:reportable{0,1} , diggs:detectionLimits{0,1} , diggs:qualifiers{0,1} , diggs:curveState{0,1} , diggs_env:percentMatch{0,1} , diggs_env:retentionTime{0,1}
Children diggs:context, diggs:correctionUsed, diggs:curveState, diggs:detectionLimits, diggs:detectorRef, diggs:measurementTechnique, diggs:nullValue, diggs:propertyClass, diggs:propertyCode, diggs:qualifiers, diggs:remarks, diggs:reportable, diggs:status, diggs:typeData, diggs:uom, diggs_env:percentMatch, diggs_env:retentionTime, gml:description
Instance

<diggs_env:TICResult gml:id="" index="" xml:lang="" xmlns:diggs_env="http://schemas.diggsml.com/2.0.a/environmental" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://schemas.diggsml.com/2.0.a">
  <gml:description xlink:href="" nilReason="" xlink:title="">{0,1}</gml:description>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remarks owns="false">{0,1}</diggs:remarks>
  <diggs:propertyCode codeSpace="">{1,1}</diggs:propertyCode>
  <diggs:typeData>{1,1}</diggs:typeData>
  <diggs:propertyClass codeSpace="">{1,1}</diggs:propertyClass>
  <diggs:uom>{0,1}</diggs:uom>
  <diggs:nullValue reason="">{0,unbounded}</diggs:nullValue>
  <diggs:context xml:lang="">{0,1}</diggs:context>
  <diggs:correctionUsed codeSpace="">{0,unbounded}</diggs:correctionUsed>
  <diggs:measurementTechnique>{0,1}</diggs:measurementTechnique>
  <diggs:detectorRef xlink:href="" nilReason="" owns="false" xlink:title="">{0,1}</diggs:detectorRef>
  <diggs:reportable>{0,1}</diggs:reportable>
  <diggs:detectionLimits>{0,1}</diggs:detectionLimits>
  <diggs:qualifiers>{0,1}</diggs:qualifiers>
  <diggs:curveState>{0,1}</diggs:curveState>
  <diggs_env:percentMatch uom="">{0,1}</diggs_env:percentMatch>
  <diggs_env:retentionTime>{0,1}</diggs_env:retentionTime>
</diggs_env:TICResult>
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
index integer required

http://schemas.diggsml.com/documentation/user

The
index order of this property within a tuple in the associated dataValues block (eg.
column order).
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<element name="TICResult" type="diggs_env:TICResultType" substitutionGroup="gml:AbstractValue" abstract="false"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd

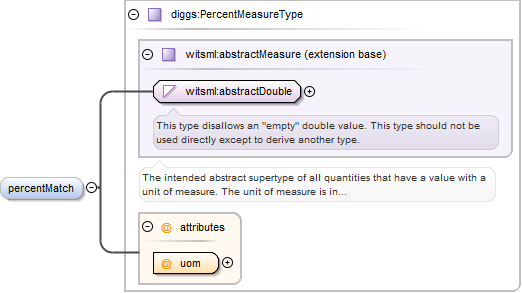

Element diggs_env:TICResultType / diggs_env:percentMatch
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 131.tmp#abstractDouble 131.tmp#abstractMeasure NO_NAMESPACE.tmp#PercentMeasureType_uom 2_0_a.tmp#PercentMeasureType
Type diggs:PercentMeasureType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Attributes
QName Type Fixed Default Use Annotation
uom witsml:PercentUom required
Source

<element name="percentMatch" type="diggs:PercentMeasureType" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:TICResultType / diggs_env:retentionTime
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 2_0_a.tmp#TimeInterval 2_0_a.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content: complex
minOccurs: 0
maxOccurs: 1
Model diggs:TimeInterval
Children diggs:TimeInterval
Instance

<diggs_env:retentionTime xmlns:diggs_env="http://schemas.diggsml.com/2.0.a/environmental" xmlns:diggs="http://schemas.diggsml.com/2.0.a">
  <diggs:TimeInterval gml:id="" xml:lang="">{1,1}</diggs:TimeInterval>
</diggs_env:retentionTime>
Source

<element name="retentionTime" type="diggs:TimeIntervalPropertyType" minOccurs="0" maxOccurs="1"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd

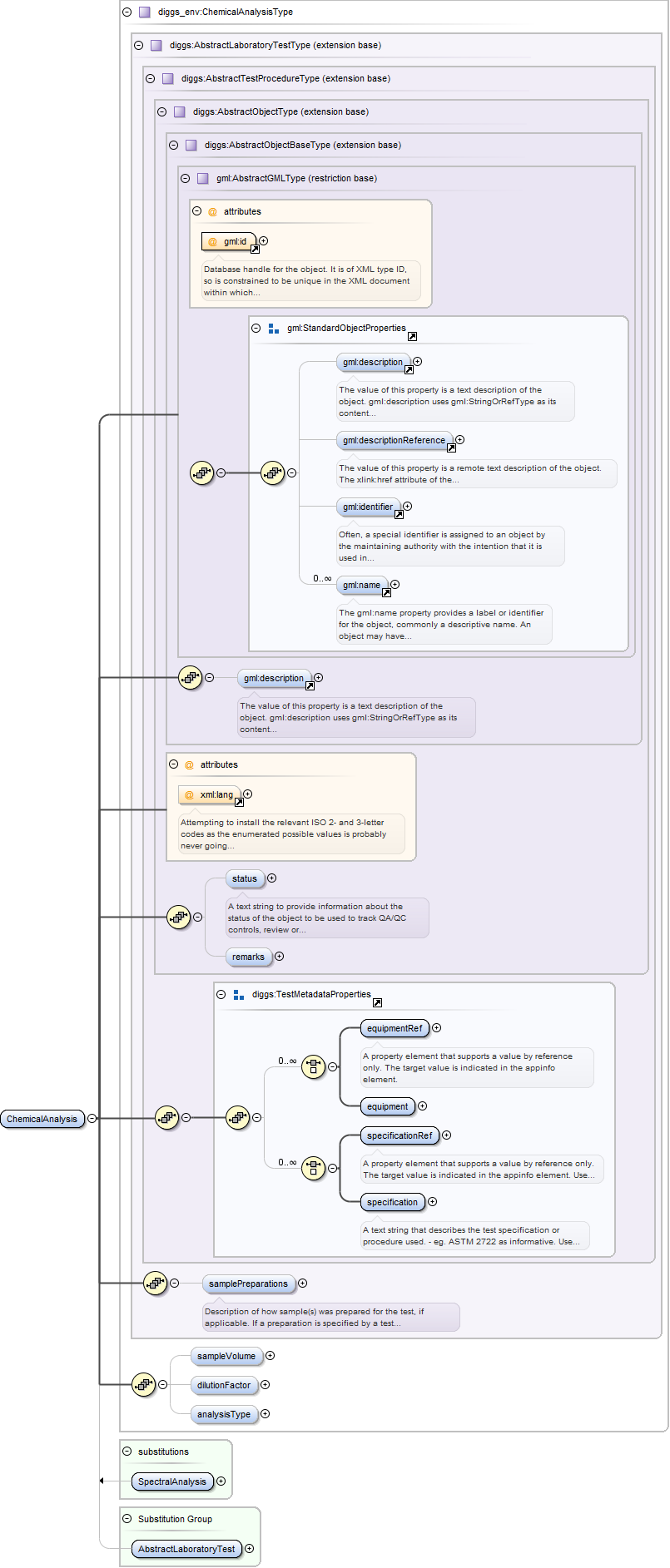

Element diggs_env:ChemicalAnalysis
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 3_2.tmp#id 3_2.tmp#description 3_2.tmp#descriptionReference 3_2.tmp#identifier 3_2.tmp#name 3_2.tmp#StandardObjectProperties 3_2.tmp#AbstractGMLType 3_2.tmp#description 2_0_a.tmp#AbstractObjectBaseType namespace.tmp#lang 2_0_a.tmp#AbstractObjectType_status 2_0_a.tmp#AbstractObjectType_remarks 2_0_a.tmp#AbstractObjectType 2_0_a.tmp#TestMetadataProperties_equipmentRef 2_0_a.tmp#TestMetadataProperties_equipment 2_0_a.tmp#TestMetadataProperties_specificationRef 2_0_a.tmp#TestMetadataProperties_specification 2_0_a.tmp#TestMetadataProperties 2_0_a.tmp#AbstractTestProcedureType 2_0_a.tmp#AbstractLaboratoryTestType_samplePreparations 2_0_a.tmp#AbstractLaboratoryTestType environmental.tmp#ChemicalAnalysisType_sampleVolume environmental.tmp#ChemicalAnalysisType_dilutionFactor environmental.tmp#ChemicalAnalysisType_analysisType environmental.tmp#ChemicalAnalysisType environmental.tmp#SpectralAnalysis 2_0_a.tmp#AbstractLaboratoryTest
Type diggs_env:ChemicalAnalysisType
Type hierarchy
Properties
content: complex
abstract: false
Substitution Group
Substitution Group Affiliation
Model gml:description{0,1} , diggs:status{0,1} , diggs:remarks{0,1} , (diggs:equipmentRef | diggs:equipment) , (diggs:specificationRef | diggs:specification) , diggs:samplePreparations{0,1} , diggs_env:sampleVolume{0,1} , diggs_env:dilutionFactor{0,1} , diggs_env:analysisType{0,1}
Children diggs:equipment, diggs:equipmentRef, diggs:remarks, diggs:samplePreparations, diggs:specification, diggs:specificationRef, diggs:status, diggs_env:analysisType, diggs_env:dilutionFactor, diggs_env:sampleVolume, gml:description
Instance

<diggs_env:ChemicalAnalysis gml:id="" xml:lang="" xmlns:diggs_env="http://schemas.diggsml.com/2.0.a/environmental" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://schemas.diggsml.com/2.0.a">
  <gml:description xlink:href="" nilReason="" xlink:title="">{0,1}</gml:description>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remarks owns="false">{0,1}</diggs:remarks>
  <diggs:equipmentRef xlink:href="" nilReason="" owns="false" xlink:title="">{1,1}</diggs:equipmentRef>
  <diggs:equipment codeSpace="">{1,1}</diggs:equipment>
  <diggs:specificationRef xlink:href="" nilReason="" owns="false" xlink:title="">{1,1}</diggs:specificationRef>
  <diggs:specification codeSpace="">{1,1}</diggs:specification>
  <diggs:samplePreparations>{0,1}</diggs:samplePreparations>
  <diggs_env:sampleVolume uom="">{0,1}</diggs_env:sampleVolume>
  <diggs_env:dilutionFactor>{0,1}</diggs_env:dilutionFactor>
  <diggs_env:analysisType codeSpace="">{0,1}</diggs_env:analysisType>
</diggs_env:ChemicalAnalysis>
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<element name="ChemicalAnalysis" type="diggs_env:ChemicalAnalysisType" substitutionGroup="diggs:AbstractLaboratoryTest" abstract="false"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Element diggs_env:AbstractChemicalAnalysis
Namespace http://schemas.diggsml.com/2.0.a/environmental

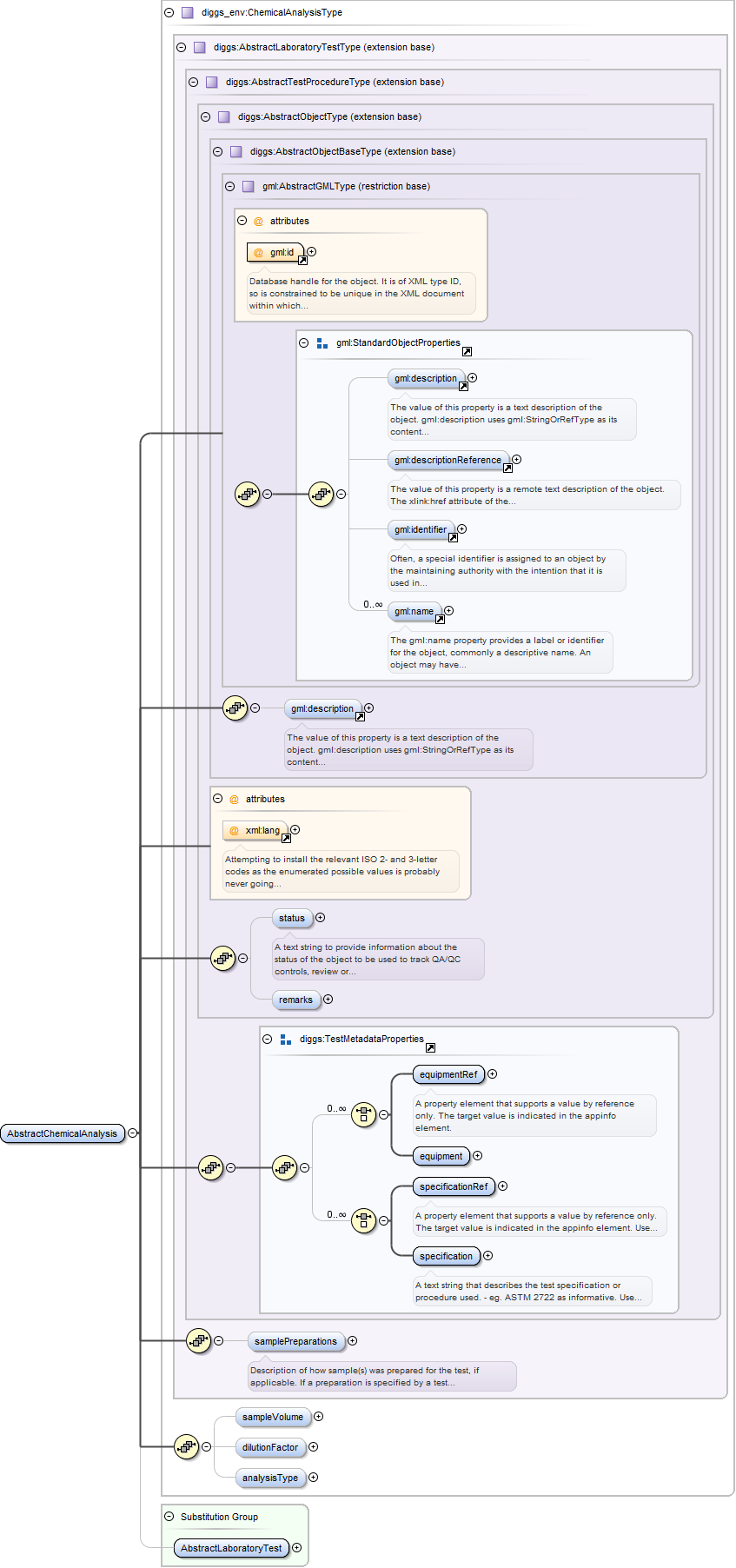

Diagram
Diagram 3_2.tmp#id 3_2.tmp#description 3_2.tmp#descriptionReference 3_2.tmp#identifier 3_2.tmp#name 3_2.tmp#StandardObjectProperties 3_2.tmp#AbstractGMLType 3_2.tmp#description 2_0_a.tmp#AbstractObjectBaseType namespace.tmp#lang 2_0_a.tmp#AbstractObjectType_status 2_0_a.tmp#AbstractObjectType_remarks 2_0_a.tmp#AbstractObjectType 2_0_a.tmp#TestMetadataProperties_equipmentRef 2_0_a.tmp#TestMetadataProperties_equipment 2_0_a.tmp#TestMetadataProperties_specificationRef 2_0_a.tmp#TestMetadataProperties_specification 2_0_a.tmp#TestMetadataProperties 2_0_a.tmp#AbstractTestProcedureType 2_0_a.tmp#AbstractLaboratoryTestType_samplePreparations 2_0_a.tmp#AbstractLaboratoryTestType environmental.tmp#ChemicalAnalysisType_sampleVolume environmental.tmp#ChemicalAnalysisType_dilutionFactor environmental.tmp#ChemicalAnalysisType_analysisType environmental.tmp#ChemicalAnalysisType 2_0_a.tmp#AbstractLaboratoryTest
Type diggs_env:ChemicalAnalysisType
Type hierarchy
Properties
content: complex
abstract: true
Substitution Group Affiliation
Model gml:description{0,1} , diggs:status{0,1} , diggs:remarks{0,1} , (diggs:equipmentRef | diggs:equipment) , (diggs:specificationRef | diggs:specification) , diggs:samplePreparations{0,1} , diggs_env:sampleVolume{0,1} , diggs_env:dilutionFactor{0,1} , diggs_env:analysisType{0,1}
Children diggs:equipment, diggs:equipmentRef, diggs:remarks, diggs:samplePreparations, diggs:specification, diggs:specificationRef, diggs:status, diggs_env:analysisType, diggs_env:dilutionFactor, diggs_env:sampleVolume, gml:description
Instance

<diggs_env:AbstractChemicalAnalysis gml:id="" xml:lang="" xmlns:diggs_env="http://schemas.diggsml.com/2.0.a/environmental" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://schemas.diggsml.com/2.0.a">
  <gml:description xlink:href="" nilReason="" xlink:title="">{0,1}</gml:description>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remarks owns="false">{0,1}</diggs:remarks>
  <diggs:equipmentRef xlink:href="" nilReason="" owns="false" xlink:title="">{1,1}</diggs:equipmentRef>
  <diggs:equipment codeSpace="">{1,1}</diggs:equipment>
  <diggs:specificationRef xlink:href="" nilReason="" owns="false" xlink:title="">{1,1}</diggs:specificationRef>
  <diggs:specification codeSpace="">{1,1}</diggs:specification>
  <diggs:samplePreparations>{0,1}</diggs:samplePreparations>
  <diggs_env:sampleVolume uom="">{0,1}</diggs_env:sampleVolume>
  <diggs_env:dilutionFactor>{0,1}</diggs_env:dilutionFactor>
  <diggs_env:analysisType codeSpace="">{0,1}</diggs_env:analysisType>
</diggs_env:AbstractChemicalAnalysis>
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<element name="AbstractChemicalAnalysis" type="diggs_env:ChemicalAnalysisType" substitutionGroup="diggs:AbstractLaboratoryTest" abstract="true"/>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Complex Type diggs_env:FiltrationType
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 3_2.tmp#id 3_2.tmp#description 3_2.tmp#descriptionReference 3_2.tmp#identifier 3_2.tmp#name 3_2.tmp#StandardObjectProperties 3_2.tmp#AbstractGMLType 3_2.tmp#description 2_0_a.tmp#AbstractObjectBaseType namespace.tmp#lang 2_0_a.tmp#AbstractObjectType_status 2_0_a.tmp#AbstractObjectType_remarks 2_0_a.tmp#AbstractObjectType environmental.tmp#FiltrationType_phase environmental.tmp#FiltrationType_poreSize
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model gml:description{0,1} , diggs:status{0,1} , diggs:remarks{0,1} , diggs_env:phase{0,1} , diggs_env:poreSize{0,1}
Children diggs:remarks, diggs:status, diggs_env:phase, diggs_env:poreSize, gml:description
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<complexType name="FiltrationType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="phase" type="gml:CodeType" minOccurs="0" maxOccurs="1"/>
        <element name="poreSize" type="witsml:lengthMeasure" minOccurs="0" maxOccurs="1"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Complex Type diggs_env:FiltrationPropertyType
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram environmental.tmp#Filtration
Model diggs_env:Filtration*
Children diggs_env:Filtration
Source

<complexType name="FiltrationPropertyType">
  <sequence>
    <element ref="diggs_env:Filtration" minOccurs="0" maxOccurs="unbounded"/>
  </sequence>
</complexType>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Complex Type diggs_env:PurgeType
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 3_2.tmp#id 3_2.tmp#description 3_2.tmp#descriptionReference 3_2.tmp#identifier 3_2.tmp#name 3_2.tmp#StandardObjectProperties 3_2.tmp#AbstractGMLType 3_2.tmp#AbstractFeatureType 3_2.tmp#description 2_0_a.tmp#AbstractFeatureBaseType namespace.tmp#lang 3_2.tmp#identifier 2_0_a.tmp#http___schemas.diggsml.com_2.0.a_AbstractFeatureType_status 2_0_a.tmp#FeatureMetadataProperties_associatedFiles 2_0_a.tmp#FeatureMetadataProperties_roles 2_0_a.tmp#FeatureMetadataProperties_remarks 2_0_a.tmp#FeatureMetadataProperties 2_0_a.tmp#http___schemas.diggsml.com_2.0.a_AbstractFeatureType environmental.tmp#PurgeType_casingVolume environmental.tmp#PurgeType_isProductContainerised environmental.tmp#PurgeType_isWaterContainerised environmental.tmp#PurgeType_isWaterTreated environmental.tmp#PurgeType_productContainersLabeled environmental.tmp#PurgeType_pumpingTiming environmental.tmp#PurgeType_purgeToDry environmental.tmp#PurgeType_timing environmental.tmp#PurgeType_totalPurgeVolume environmental.tmp#PurgeType_type environmental.tmp#PurgeType_waterLevelReadings
Type extension of diggs:AbstractFeatureType
Type hierarchy
Used by
Element diggs_env:Purge
Model gml:description{0,1} , gml:identifier{0,1} , diggs:status{0,1} , diggs:associatedFiles* , diggs:roles{0,1} , diggs:remarks{0,1} , diggs_env:casingVolume{0,1} , diggs_env:isProductContainerised{0,1} , diggs_env:isWaterContainerised{0,1} , diggs_env:isWaterTreated{0,1} , diggs_env:productContainersLabeled{0,1} , diggs_env:pumpingTiming{0,1} , diggs_env:purgeToDry{0,1} , diggs_env:timing{0,1} , diggs_env:totalPurgeVolume{0,1} , diggs_env:type{0,1} , diggs_env:waterLevelReadings{0,1}
Children diggs:associatedFiles, diggs:remarks, diggs:roles, diggs:status, diggs_env:casingVolume, diggs_env:isProductContainerised, diggs_env:isWaterContainerised, diggs_env:isWaterTreated, diggs_env:productContainersLabeled, diggs_env:pumpingTiming, diggs_env:purgeToDry, diggs_env:timing, diggs_env:totalPurgeVolume, diggs_env:type, diggs_env:waterLevelReadings, gml:description, gml:identifier
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<complexType name="PurgeType">
  <complexContent>
    <extension base="diggs:AbstractFeatureType">
      <sequence>
        <element name="casingVolume" type="witsml:volumeMeasure" minOccurs="0" maxOccurs="1"/>
        <element name="isProductContainerised" type="boolean" minOccurs="0" maxOccurs="1"/>
        <element name="isWaterContainerised" type="boolean" minOccurs="0" maxOccurs="1"/>
        <element name="isWaterTreated" type="boolean" minOccurs="0" maxOccurs="1"/>
        <element name="productContainersLabeled" type="boolean" minOccurs="0" maxOccurs="1"/>
        <element name="pumpingTiming" type="diggs:TimeIntervalPropertyType" minOccurs="0" maxOccurs="1"/>
        <element name="purgeToDry" type="boolean" minOccurs="0" maxOccurs="1"/>
        <element name="timing" type="diggs:TimeIntervalPropertyType" minOccurs="0" maxOccurs="1"/>
        <element name="totalPurgeVolume" type="witsml:volumeMeasure" minOccurs="0" maxOccurs="1"/>
        <element name="type" type="gml:CodeType" minOccurs="0" maxOccurs="1"/>
        <element name="waterLevelReadings" type="diggs_env:WaterLevelReadingPropertyType" minOccurs="0" maxOccurs="1"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Complex Type diggs_env:WaterLevelReadingPropertyType
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram environmental.tmp#WaterLevelReading
Used by
Model diggs_env:WaterLevelReading*
Children diggs_env:WaterLevelReading
Source

<complexType name="WaterLevelReadingPropertyType">
  <sequence>
    <element ref="diggs_env:WaterLevelReading" minOccurs="0" maxOccurs="unbounded"/>
  </sequence>
</complexType>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Complex Type diggs_env:WaterLevelReadingType
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 3_2.tmp#id 3_2.tmp#description 3_2.tmp#descriptionReference 3_2.tmp#identifier 3_2.tmp#name 3_2.tmp#StandardObjectProperties 3_2.tmp#AbstractGMLType 3_2.tmp#AbstractFeatureType 3_2.tmp#description 2_0_a.tmp#AbstractFeatureBaseType namespace.tmp#lang 3_2.tmp#identifier 2_0_a.tmp#http___schemas.diggsml.com_2.0.a_AbstractFeatureType_status 2_0_a.tmp#FeatureMetadataProperties_associatedFiles 2_0_a.tmp#FeatureMetadataProperties_roles 2_0_a.tmp#FeatureMetadataProperties_remarks 2_0_a.tmp#FeatureMetadataProperties 2_0_a.tmp#http___schemas.diggsml.com_2.0.a_AbstractFeatureType environmental.tmp#WaterLevelReadingType_captureQualifier environmental.tmp#WaterLevelReadingType_isDry environmental.tmp#WaterLevelReadingType_isReportable environmental.tmp#WaterLevelReadingType_readingMethod environmental.tmp#WaterLevelReadingType_readingMethodRef environmental.tmp#WaterLevelReadingType_productType environmental.tmp#WaterLevelReadingType_timing environmental.tmp#WaterLevelReadingType_type environmental.tmp#WaterLevelReadingType_depths environmental.tmp#WaterLevelReadingType_elevations
Type extension of diggs:AbstractFeatureType
Type hierarchy
Used by
Model gml:description{0,1} , gml:identifier{0,1} , diggs:status{0,1} , diggs:associatedFiles* , diggs:roles{0,1} , diggs:remarks{0,1} , diggs_env:captureQualifier , diggs_env:isDry{0,1} , diggs_env:isReportable{0,1} , (diggs_env:readingMethod{0,1} | diggs_env:readingMethodRef{0,1}) , diggs_env:productType{0,1} , diggs_env:timing{0,1} , diggs_env:type{0,1} , diggs_env:depths{0,1} , diggs_env:elevations{0,1}
Children diggs:associatedFiles, diggs:remarks, diggs:roles, diggs:status, diggs_env:captureQualifier, diggs_env:depths, diggs_env:elevations, diggs_env:isDry, diggs_env:isReportable, diggs_env:productType, diggs_env:readingMethod, diggs_env:readingMethodRef, diggs_env:timing, diggs_env:type, gml:description, gml:identifier
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<complexType name="WaterLevelReadingType">
  <complexContent>
    <extension base="diggs:AbstractFeatureType">
      <sequence>
        <element name="captureQualifier" type="gml:CodeType" minOccurs="1" maxOccurs="1"/>
        <element name="isDry" type="boolean" minOccurs="0" maxOccurs="1"/>
        <element name="isReportable" type="boolean" minOccurs="0" maxOccurs="1"/>
        <choice>
          <element name="readingMethod" type="gml:CodeType" minOccurs="0" maxOccurs="1"/>
          <element minOccurs="0" name="readingMethodRef" type="diggs:MetadataReferenceType">
            <annotation>
              <appinfo>diggs:Specification</appinfo>
            </annotation>
          </element>
        </choice>
        <element name="productType" type="gml:CodeType" minOccurs="0" maxOccurs="1"/>
        <element name="timing" type="diggs:TimeIntervalPropertyType" minOccurs="0" maxOccurs="1"/>
        <element name="type" type="gml:CodeType" minOccurs="0" maxOccurs="1"/>
        <element name="depths" type="diggs_env:WaterLevelReadingMeasurementsPropertyType" minOccurs="0" maxOccurs="1"/>
        <element name="elevations" type="diggs_env:WaterLevelReadingMeasurementsPropertyType" minOccurs="0" maxOccurs="1"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Complex Type diggs_env:WaterLevelReadingMeasurementsPropertyType
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram environmental.tmp#WaterLevelReadingMeasurements
Used by
Model diggs_env:WaterLevelReadingMeasurements*
Children diggs_env:WaterLevelReadingMeasurements
Source

<complexType name="WaterLevelReadingMeasurementsPropertyType">
  <sequence>
    <element ref="diggs_env:WaterLevelReadingMeasurements" minOccurs="0" maxOccurs="unbounded"/>
  </sequence>
</complexType>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Complex Type diggs_env:WaterLevelReadingMeasurementsType
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 3_2.tmp#id 3_2.tmp#description 3_2.tmp#descriptionReference 3_2.tmp#identifier 3_2.tmp#name 3_2.tmp#StandardObjectProperties 3_2.tmp#AbstractGMLType environmental.tmp#WaterLevelReadingMeasurementsType_bottom environmental.tmp#WaterLevelReadingMeasurementsType_cRSType environmental.tmp#WaterLevelReadingMeasurementsType_product environmental.tmp#WaterLevelReadingMeasurementsType_water environmental.tmp#WaterLevelReadingMeasurementsType_waterCorrected
Type extension of gml:AbstractGMLType
Type hierarchy
Used by
Model gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , diggs_env:bottom{0,1} , diggs_env:cRSType{0,1} , diggs_env:product{0,1} , diggs_env:water{0,1} , diggs_env:waterCorrected{0,1}
Children diggs_env:bottom, diggs_env:cRSType, diggs_env:product, diggs_env:water, diggs_env:waterCorrected, gml:description, gml:descriptionReference, gml:identifier, gml:name
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="WaterLevelReadingMeasurementsType">
  <complexContent>
    <extension base="gml:AbstractGMLType">
      <sequence>
        <element name="bottom" type="gml:PointPropertyType" minOccurs="0" maxOccurs="1"/>
        <element name="cRSType" type="gml:CodeType" minOccurs="0" maxOccurs="1"/>
        <element name="product" type="gml:PointPropertyType" minOccurs="0" maxOccurs="1"/>
        <element name="water" type="gml:PointPropertyType" minOccurs="0" maxOccurs="1"/>
        <element name="waterCorrected" type="gml:PointPropertyType" minOccurs="0" maxOccurs="1"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Complex Type diggs_env:PurgePropertyType
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram environmental.tmp#Purge
Model diggs_env:Purge*
Children diggs_env:Purge
Source

<complexType name="PurgePropertyType">
  <sequence>
    <element ref="diggs_env:Purge" minOccurs="0" maxOccurs="unbounded"/>
  </sequence>
</complexType>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Complex Type diggs_env:SpectralAnalysisType
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 3_2.tmp#id 3_2.tmp#description 3_2.tmp#descriptionReference 3_2.tmp#identifier 3_2.tmp#name 3_2.tmp#StandardObjectProperties 3_2.tmp#AbstractGMLType 3_2.tmp#description 2_0_a.tmp#AbstractObjectBaseType namespace.tmp#lang 2_0_a.tmp#AbstractObjectType_status 2_0_a.tmp#AbstractObjectType_remarks 2_0_a.tmp#AbstractObjectType 2_0_a.tmp#TestMetadataProperties_equipmentRef 2_0_a.tmp#TestMetadataProperties_equipment 2_0_a.tmp#TestMetadataProperties_specificationRef 2_0_a.tmp#TestMetadataProperties_specification 2_0_a.tmp#TestMetadataProperties 2_0_a.tmp#AbstractTestProcedureType 2_0_a.tmp#AbstractLaboratoryTestType_samplePreparations 2_0_a.tmp#AbstractLaboratoryTestType environmental.tmp#ChemicalAnalysisType_sampleVolume environmental.tmp#ChemicalAnalysisType_dilutionFactor environmental.tmp#ChemicalAnalysisType_analysisType environmental.tmp#ChemicalAnalysisType environmental.tmp#SpectralAnalysisType_wavelength
Type extension of diggs_env:ChemicalAnalysisType
Type hierarchy
Used by
Model gml:description{0,1} , diggs:status{0,1} , diggs:remarks{0,1} , (diggs:equipmentRef | diggs:equipment) , (diggs:specificationRef | diggs:specification) , diggs:samplePreparations{0,1} , diggs_env:sampleVolume{0,1} , diggs_env:dilutionFactor{0,1} , diggs_env:analysisType{0,1} , diggs_env:wavelength{0,1}
Children diggs:equipment, diggs:equipmentRef, diggs:remarks, diggs:samplePreparations, diggs:specification, diggs:specificationRef, diggs:status, diggs_env:analysisType, diggs_env:dilutionFactor, diggs_env:sampleVolume, diggs_env:wavelength, gml:description
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<complexType name="SpectralAnalysisType">
  <complexContent>
    <extension base="diggs_env:ChemicalAnalysisType">
      <sequence>
        <element name="wavelength" type="witsml:lengthMeasure" minOccurs="0" maxOccurs="1"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Complex Type diggs_env:ChemicalAnalysisType
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 3_2.tmp#id 3_2.tmp#description 3_2.tmp#descriptionReference 3_2.tmp#identifier 3_2.tmp#name 3_2.tmp#StandardObjectProperties 3_2.tmp#AbstractGMLType 3_2.tmp#description 2_0_a.tmp#AbstractObjectBaseType namespace.tmp#lang 2_0_a.tmp#AbstractObjectType_status 2_0_a.tmp#AbstractObjectType_remarks 2_0_a.tmp#AbstractObjectType 2_0_a.tmp#TestMetadataProperties_equipmentRef 2_0_a.tmp#TestMetadataProperties_equipment 2_0_a.tmp#TestMetadataProperties_specificationRef 2_0_a.tmp#TestMetadataProperties_specification 2_0_a.tmp#TestMetadataProperties 2_0_a.tmp#AbstractTestProcedureType 2_0_a.tmp#AbstractLaboratoryTestType_samplePreparations 2_0_a.tmp#AbstractLaboratoryTestType environmental.tmp#ChemicalAnalysisType_sampleVolume environmental.tmp#ChemicalAnalysisType_dilutionFactor environmental.tmp#ChemicalAnalysisType_analysisType
Type extension of diggs:AbstractLaboratoryTestType
Type hierarchy
Used by
Model gml:description{0,1} , diggs:status{0,1} , diggs:remarks{0,1} , (diggs:equipmentRef | diggs:equipment) , (diggs:specificationRef | diggs:specification) , diggs:samplePreparations{0,1} , diggs_env:sampleVolume{0,1} , diggs_env:dilutionFactor{0,1} , diggs_env:analysisType{0,1}
Children diggs:equipment, diggs:equipmentRef, diggs:remarks, diggs:samplePreparations, diggs:specification, diggs:specificationRef, diggs:status, diggs_env:analysisType, diggs_env:dilutionFactor, diggs_env:sampleVolume, gml:description
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<complexType name="ChemicalAnalysisType">
  <complexContent>
    <extension base="diggs:AbstractLaboratoryTestType">
      <sequence>
        <element name="sampleVolume" type="witsml:volumeMeasure" minOccurs="0" maxOccurs="1"/>
        <element name="dilutionFactor" type="double" minOccurs="0" maxOccurs="1"/>
        <element name="analysisType" type="gml:CodeType" minOccurs="0" maxOccurs="1"/>
        <!--         <element name="results" type="diggs_env:AbstractResultPropertyType" minOccurs="0"
   maxOccurs="1"/> -->
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Complex Type diggs_env:TICResultType
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram 3_2.tmp#id 3_2.tmp#description 3_2.tmp#descriptionReference 3_2.tmp#identifier 3_2.tmp#name 3_2.tmp#StandardObjectProperties 3_2.tmp#AbstractGMLType 3_2.tmp#description 2_0_a.tmp#AbstractObjectBaseType namespace.tmp#lang 2_0_a.tmp#AbstractObjectType_status 2_0_a.tmp#AbstractObjectType_remarks 2_0_a.tmp#AbstractObjectType NO_NAMESPACE.tmp#PropertyType_index 2_0_a.tmp#PropertyType_propertyCode 2_0_a.tmp#PropertyType_typeData 2_0_a.tmp#PropertyType_propertyClass 2_0_a.tmp#PropertyType_uom 2_0_a.tmp#PropertyType_nullValue 2_0_a.tmp#PropertyType_context 2_0_a.tmp#PropertyType_correctionUsed 2_0_a.tmp#PropertyType_measurementTechnique 2_0_a.tmp#PropertyType_detectorRef 2_0_a.tmp#PropertyType_reportable 2_0_a.tmp#PropertyType_detectionLimits 2_0_a.tmp#PropertyType_qualifiers 2_0_a.tmp#PropertyType_curveState 2_0_a.tmp#PropertyType environmental.tmp#TICResultType_percentMatch environmental.tmp#TICResultType_retentionTime
Type extension of diggs:PropertyType
Type hierarchy
Used by
Model gml:description{0,1} , diggs:status{0,1} , diggs:remarks{0,1} , diggs:propertyCode , diggs:typeData , diggs:propertyClass , diggs:uom{0,1} , diggs:nullValue* , diggs:context{0,1} , diggs:correctionUsed* , diggs:measurementTechnique{0,1} , diggs:detectorRef{0,1} , diggs:reportable{0,1} , diggs:detectionLimits{0,1} , diggs:qualifiers{0,1} , diggs:curveState{0,1} , diggs_env:percentMatch{0,1} , diggs_env:retentionTime{0,1}
Children diggs:context, diggs:correctionUsed, diggs:curveState, diggs:detectionLimits, diggs:detectorRef, diggs:measurementTechnique, diggs:nullValue, diggs:propertyClass, diggs:propertyCode, diggs:qualifiers, diggs:remarks, diggs:reportable, diggs:status, diggs:typeData, diggs:uom, diggs_env:percentMatch, diggs_env:retentionTime, gml:description
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
index integer required

http://schemas.diggsml.com/documentation/user

The
index order of this property within a tuple in the associated dataValues block (eg.
column order).
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<complexType name="TICResultType">
  <complexContent>
    <extension base="diggs:PropertyType">
      <sequence>
        <element name="percentMatch" type="diggs:PercentMeasureType" minOccurs="0" maxOccurs="1"/>
        <element name="retentionTime" type="diggs:TimeIntervalPropertyType" minOccurs="0" maxOccurs="1"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
Complex Type diggs_env:TICResultPropertyType
Namespace http://schemas.diggsml.com/2.0.a/environmental
Diagram
Diagram environmental.tmp#TICResult
Model diggs_env:TICResult*
Children diggs_env:TICResult
Source

<complexType name="TICResultPropertyType">
  <sequence>
    <element ref="diggs_env:TICResult" minOccurs="0" maxOccurs="unbounded"/>
  </sequence>
</complexType>
Schema location http://diggsml.org/2.0a/schemas/Environmental.xsd
XML Schema documentation generated by ® XML Editor.
