Imported schema xlink.xsd
Namespace http://www.w3.org/1999/xlink
Annotations

This schema is not normative, or even definitive.  The
prose copy in the XLink 1.1 recommendation (http://www.w3.org/TR/xlink11/) is
definitive, although it should not differ from this file, except for the
absence of these two initial comments.

In keeping with the W3C's standard versioning
policy, this schema document will persist at
http://www.w3.org/XML/2008/06/xlink.xsd.
At the date of issue it can also be found at
http://www.w3.org/1999/xlink.xsd.
The schema document at that URI may however change in the future,
in order to remain compatible with the latest version of XML Schema
itself, or with the XLink namespace itself.  In other words, if the XML
Schema or XLink namespaces change, the version of this document at
http://www.w3.org/1999/xlink.xsd will change
accordingly; the version at
http://www.w3.org/2008/06/xlink.xsd will not change.

This schema document provides attribute declarations and
attribute group, complex type and simple type definitions which can be used in
the construction of user schemas to define the structure of particular linking
constructs, e.g.<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema"
           xmlns:xl="http://www.w3.org/1999/xlink">

 <xs:import namespace="http://www.w3.org/1999/xlink"
            location="http://www.w3.org/1999/xlink.xsd">

 <xs:element name="mySimple">
  <xs:complexType>
   ...
   <xs:attributeGroup ref="xl:simpleAttrs"/>
   ...
  </xs:complexType>
 </xs:element>
 ...
</xs:schema>
Properties
attribute form default: unqualified
element form default: unqualified
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Element xlink:title
Namespace http://www.w3.org/1999/xlink
Diagram

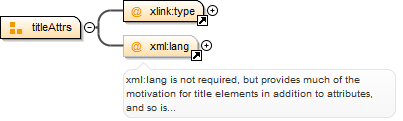

Diagram xlink.tmp#titleAttrs xlink.tmp#titleModel xlink.tmp#titleEltType
Type xlink:titleEltType
Properties
content: complex
abstract: true
mixed: true
Used by
Element Groups xlink:arcModel, xlink:extendedModel, xlink:locatorModel
Model ANY element from ANY namespace
Attributes
QName Type Fixed Default Use Annotation
xlink:type xlink:typeType title required
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<xs:element name="title" type="xlink:titleEltType" abstract="true"/>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd

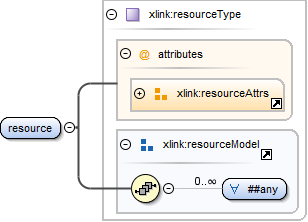

Element xlink:resource
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink.tmp#resourceAttrs xlink.tmp#resourceModel xlink.tmp#resourceType

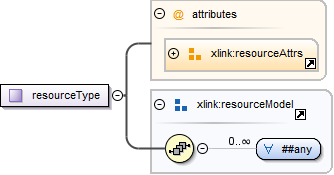

Type xlink:resourceType
Properties
content: complex
abstract: true
mixed: true
Used by
Element Group xlink:extendedModel
Model ANY element from ANY namespace
Attributes
QName Type Fixed Default Use Annotation
xlink:label xlink:labelType optional
xlink:role xlink:roleType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType resource required
Source

<xs:element name="resource" type="xlink:resourceType" abstract="true"/>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd

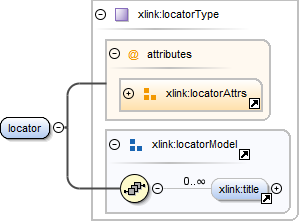

Element xlink:locator
Namespace http://www.w3.org/1999/xlink
Diagram

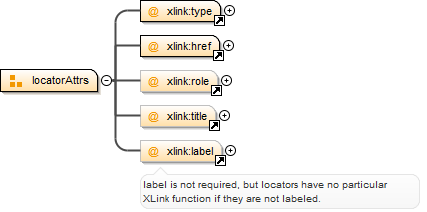

Diagram xlink.tmp#locatorAttrs xlink.tmp#http___www.w3.org_1999_xlink_title xlink.tmp#locatorModel xlink.tmp#locatorType

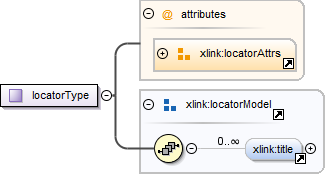

Type xlink:locatorType
Properties
content: complex
abstract: true
Used by
Element Group xlink:extendedModel
Model xlink:title*
Children xlink:title
Instance

<xlink:locator xlink:href="" xlink:label="" xlink:role="" xlink:title="" xlink:type="locator" xmlns:xlink="http://www.w3.org/1999/xlink">
  <xlink:title xml:lang="" xlink:type="title">{0,unbounded}</xlink:title>
</xlink:locator>
Attributes
QName Type Fixed Default Use Annotation
xlink:href xlink:hrefType required
xlink:label xlink:labelType optional
xlink:role xlink:roleType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType locator required
Source

<xs:element name="locator" type="xlink:locatorType" abstract="true"/>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd

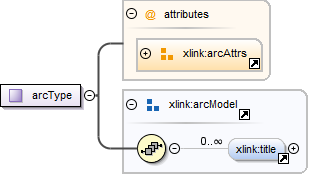

Element xlink:arc
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink.tmp#arcAttrs xlink.tmp#http___www.w3.org_1999_xlink_title xlink.tmp#arcModel xlink.tmp#arcType
Type xlink:arcType
Properties
content: complex
abstract: true
Used by
Element Group xlink:extendedModel
Model xlink:title*
Children xlink:title
Instance

<xlink:arc xlink:actuate="" xlink:arcrole="" xlink:from="" xlink:show="" xlink:title="" xlink:to="" xlink:type="arc" xmlns:xlink="http://www.w3.org/1999/xlink">
  <xlink:title xml:lang="" xlink:type="title">{0,unbounded}</xlink:title>
</xlink:arc>
Attributes
QName Type Fixed Default Use Annotation
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:from xlink:fromType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:to xlink:toType optional
xlink:type xlink:typeType arc required
Source

<xs:element name="arc" type="xlink:arcType" abstract="true"/>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Simple Type xlink:hrefType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type xs:anyURI
Used by
Attribute @xlink:href
Source

<xs:simpleType name="hrefType">
  <xs:restriction base="xs:anyURI"/>
</xs:simpleType>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Simple Type xlink:titleAttrType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type xs:string
Used by
Attribute @xlink:title
Source

<xs:simpleType name="titleAttrType">
  <xs:restriction base="xs:string"/>
</xs:simpleType>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Simple Type xlink:typeType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type restriction of xs:token
Facets
enumeration simple
enumeration extended
enumeration title
enumeration resource
enumeration locator
enumeration arc
Used by
Attribute @xlink:type
Source

<xs:simpleType name="typeType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="simple"/>
    <xs:enumeration value="extended"/>
    <xs:enumeration value="title"/>
    <xs:enumeration value="resource"/>
    <xs:enumeration value="locator"/>
    <xs:enumeration value="arc"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Simple Type xlink:roleType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type restriction of xs:anyURI
Facets
minLength 1
Used by
Attribute @xlink:role
Source

<xs:simpleType name="roleType">
  <xs:restriction base="xs:anyURI">
    <xs:minLength value="1"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Simple Type xlink:arcroleType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type restriction of xs:anyURI
Facets
minLength 1
Used by
Attribute @xlink:arcrole
Source

<xs:simpleType name="arcroleType">
  <xs:restriction base="xs:anyURI">
    <xs:minLength value="1"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Simple Type xlink:showType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type restriction of xs:token
Facets
enumeration new
enumeration replace
enumeration embed
enumeration other
enumeration none
Used by
Attribute @xlink:show
Source

<xs:simpleType name="showType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="new"/>
    <xs:enumeration value="replace"/>
    <xs:enumeration value="embed"/>
    <xs:enumeration value="other"/>
    <xs:enumeration value="none"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Simple Type xlink:actuateType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type restriction of xs:token
Facets
enumeration onLoad
enumeration onRequest
enumeration other
enumeration none
Used by
Attribute @xlink:actuate
Source

<xs:simpleType name="actuateType">
  <xs:restriction base="xs:token">
    <xs:enumeration value="onLoad"/>
    <xs:enumeration value="onRequest"/>
    <xs:enumeration value="other"/>
    <xs:enumeration value="none"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Simple Type xlink:labelType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type xs:NCName
Used by
Attribute @xlink:label
Source

<xs:simpleType name="labelType">
  <xs:restriction base="xs:NCName"/>
</xs:simpleType>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Simple Type xlink:fromType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type xs:NCName
Used by
Attribute @xlink:from
Source

<xs:simpleType name="fromType">
  <xs:restriction base="xs:NCName"/>
</xs:simpleType>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Simple Type xlink:toType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Type xs:NCName
Used by
Attribute @xlink:to
Source

<xs:simpleType name="toType">
  <xs:restriction base="xs:NCName"/>
</xs:simpleType>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd

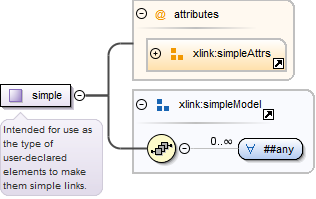

Complex Type xlink:simple
Namespace http://www.w3.org/1999/xlink
Annotations

Intended for use as the type of user-declared elements to make them
simple links.
Diagram
Diagram xlink.tmp#simpleAttrs xlink.tmp#simpleModel
Properties
mixed: true
Model ANY element from ANY namespace
Attributes
QName Type Fixed Default Use Annotation
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<xs:complexType mixed="true" name="simple">
  <xs:annotation>
    <xs:documentation>Intended for use as the type of user-declared elements to make them simple links.</xs:documentation>
  </xs:annotation>
  <xs:group ref="xlink:simpleModel"/>
  <xs:attributeGroup ref="xlink:simpleAttrs"/>
</xs:complexType>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd

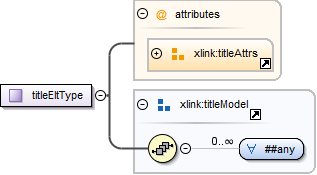

Complex Type xlink:titleEltType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink.tmp#titleAttrs xlink.tmp#titleModel
Properties
mixed: true
Used by
Element xlink:title
Model ANY element from ANY namespace
Attributes
QName Type Fixed Default Use Annotation
xlink:type xlink:typeType title required
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<xs:complexType mixed="true" name="titleEltType">
  <xs:group ref="xlink:titleModel"/>
  <xs:attributeGroup ref="xlink:titleAttrs"/>
</xs:complexType>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Complex Type xlink:resourceType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink.tmp#resourceAttrs xlink.tmp#resourceModel
Properties
mixed: true
Used by
Element xlink:resource
Model ANY element from ANY namespace
Attributes
QName Type Fixed Default Use Annotation
xlink:label xlink:labelType optional
xlink:role xlink:roleType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType resource required
Source

<xs:complexType mixed="true" name="resourceType">
  <xs:group ref="xlink:resourceModel"/>
  <xs:attributeGroup ref="xlink:resourceAttrs"/>
</xs:complexType>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Complex Type xlink:locatorType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink.tmp#locatorAttrs xlink.tmp#http___www.w3.org_1999_xlink_title xlink.tmp#locatorModel
Used by
Element xlink:locator
Model xlink:title*
Children xlink:title
Attributes
QName Type Fixed Default Use Annotation
xlink:href xlink:hrefType required
xlink:label xlink:labelType optional
xlink:role xlink:roleType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType locator required
Source

<xs:complexType name="locatorType">
  <xs:group ref="xlink:locatorModel"/>
  <xs:attributeGroup ref="xlink:locatorAttrs"/>
</xs:complexType>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Complex Type xlink:arcType
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink.tmp#arcAttrs xlink.tmp#http___www.w3.org_1999_xlink_title xlink.tmp#arcModel
Used by
Element xlink:arc
Model xlink:title*
Children xlink:title
Attributes
QName Type Fixed Default Use Annotation
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:from xlink:fromType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:to xlink:toType optional
xlink:type xlink:typeType arc required
Source

<xs:complexType name="arcType">
  <xs:group ref="xlink:arcModel"/>
  <xs:attributeGroup ref="xlink:arcAttrs"/>
</xs:complexType>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd

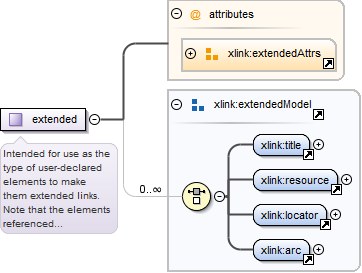

Complex Type xlink:extended
Namespace http://www.w3.org/1999/xlink
Annotations

Intended for use as the type of user-declared elements to make them
extended links.
Note that the elements referenced in the content model are all abstract.
The intention is that by simply declaring elements with these as their
substitutionGroup, all the right things will happen.
Diagram
Diagram xlink.tmp#extendedAttrs xlink.tmp#http___www.w3.org_1999_xlink_title xlink.tmp#resource xlink.tmp#locator xlink.tmp#arc xlink.tmp#extendedModel
Model xlink:title | xlink:resource | xlink:locator | xlink:arc
Children xlink:arc, xlink:locator, xlink:resource, xlink:title
Attributes
QName Type Fixed Default Use Annotation
xlink:role xlink:roleType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType extended required
Source

<xs:complexType name="extended">
  <xs:annotation>
    <xs:documentation>Intended for use as the type of user-declared elements to make them extended links. Note that the elements referenced in the content model are all abstract. The intention is that by simply declaring elements with these as their substitutionGroup, all the right things will happen.</xs:documentation>
  </xs:annotation>
  <xs:group ref="xlink:extendedModel" minOccurs="0" maxOccurs="unbounded"/>
  <xs:attributeGroup ref="xlink:extendedAttrs"/>
</xs:complexType>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Attribute @xlink:href
Namespace http://www.w3.org/1999/xlink
Type xlink:hrefType
Properties
content: simple
Used by
Source

<xs:attribute name="href" type="xlink:hrefType"/>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Attribute @xlink:title
Namespace http://www.w3.org/1999/xlink
Type xlink:titleAttrType
Properties
content: simple
Used by
Source

<xs:attribute name="title" type="xlink:titleAttrType"/>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Attribute @xlink:type
Namespace http://www.w3.org/1999/xlink
Type xlink:typeType
Properties
content: simple
Facets
enumeration simple
enumeration extended
enumeration title
enumeration resource
enumeration locator
enumeration arc
Used by
Source

<xs:attribute name="type" type="xlink:typeType"/>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Attribute @xlink:role
Namespace http://www.w3.org/1999/xlink
Type xlink:roleType
Properties
content: simple
Facets
minLength 1
Used by
Source

<xs:attribute name="role" type="xlink:roleType"/>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Attribute @xlink:arcrole
Namespace http://www.w3.org/1999/xlink
Type xlink:arcroleType
Properties
content: simple
Facets
minLength 1
Used by
Attribute Groups xlink:arcAttrs, xlink:simpleAttrs
Source

<xs:attribute name="arcrole" type="xlink:arcroleType"/>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Attribute @xlink:show
Namespace http://www.w3.org/1999/xlink
Type xlink:showType
Properties
content: simple
Facets
enumeration new
enumeration replace
enumeration embed
enumeration other
enumeration none
Used by
Attribute Groups xlink:arcAttrs, xlink:simpleAttrs
Source

<xs:attribute name="show" type="xlink:showType"/>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Attribute @xlink:actuate
Namespace http://www.w3.org/1999/xlink
Type xlink:actuateType
Properties
content: simple
Facets
enumeration onLoad
enumeration onRequest
enumeration other
enumeration none
Used by
Attribute Groups xlink:arcAttrs, xlink:simpleAttrs
Source

<xs:attribute name="actuate" type="xlink:actuateType"/>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Attribute @xlink:label
Namespace http://www.w3.org/1999/xlink
Type xlink:labelType
Properties
content: simple
Used by
Source

<xs:attribute name="label" type="xlink:labelType"/>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Attribute @xlink:from
Namespace http://www.w3.org/1999/xlink
Type xlink:fromType
Properties
content: simple
Used by
Attribute Group xlink:arcAttrs
Source

<xs:attribute name="from" type="xlink:fromType"/>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Attribute @xlink:to
Namespace http://www.w3.org/1999/xlink
Type xlink:toType
Properties
content: simple
Used by
Attribute Group xlink:arcAttrs
Source

<xs:attribute name="to" type="xlink:toType"/>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Element Group xlink:simpleModel
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Used by
Complex Type xlink:simple
Model ANY element from ANY namespace
Source

<xs:group name="simpleModel">
  <xs:sequence>
    <xs:any processContents="lax" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:group>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Element Group xlink:extendedModel
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink.tmp#http___www.w3.org_1999_xlink_title xlink.tmp#resource xlink.tmp#locator xlink.tmp#arc
Used by
Complex Type xlink:extended
Model xlink:title | xlink:resource | xlink:locator | xlink:arc
Children xlink:arc, xlink:locator, xlink:resource, xlink:title
Source

<xs:group name="extendedModel">
  <xs:choice>
    <xs:element ref="xlink:title"/>
    <xs:element ref="xlink:resource"/>
    <xs:element ref="xlink:locator"/>
    <xs:element ref="xlink:arc"/>
  </xs:choice>
</xs:group>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Element Group xlink:titleModel
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Used by
Complex Type xlink:titleEltType
Model ANY element from ANY namespace
Source

<xs:group name="titleModel">
  <xs:sequence>
    <xs:any processContents="lax" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:group>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Element Group xlink:resourceModel
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram
Used by
Complex Type xlink:resourceType
Model ANY element from ANY namespace
Source

<xs:group name="resourceModel">
  <xs:sequence>
    <xs:any processContents="lax" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:group>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Element Group xlink:locatorModel
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink.tmp#http___www.w3.org_1999_xlink_title
Used by
Complex Type xlink:locatorType
Model xlink:title*
Children xlink:title
Source

<xs:group name="locatorModel">
  <xs:sequence>
    <xs:element ref="xlink:title" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:group>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Element Group xlink:arcModel
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink.tmp#http___www.w3.org_1999_xlink_title
Used by
Complex Type xlink:arcType
Model xlink:title*
Children xlink:title
Source

<xs:group name="arcModel">
  <xs:sequence>
    <xs:element ref="xlink:title" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:group>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Attribute Group xlink:simpleAttrs
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink.tmp#type xlink.tmp#href xlink.tmp#role xlink.tmp#arcrole xlink.tmp#title xlink.tmp#show xlink.tmp#actuate
Used by
Complex Type xlink:simple
Attributes
QName Type Fixed Default Use Annotation
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:href xlink:hrefType optional
xlink:role xlink:roleType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType simple optional
Source

<xs:attributeGroup name="simpleAttrs">
  <xs:attribute ref="xlink:type" fixed="simple"/>
  <xs:attribute ref="xlink:href"/>
  <xs:attribute ref="xlink:role"/>
  <xs:attribute ref="xlink:arcrole"/>
  <xs:attribute ref="xlink:title"/>
  <xs:attribute ref="xlink:show"/>
  <xs:attribute ref="xlink:actuate"/>
</xs:attributeGroup>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Attribute Group xlink:extendedAttrs
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink.tmp#type xlink.tmp#role xlink.tmp#title
Used by
Complex Type xlink:extended
Attributes
QName Type Fixed Default Use Annotation
xlink:role xlink:roleType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType extended required
Source

<xs:attributeGroup name="extendedAttrs">
  <xs:attribute ref="xlink:type" fixed="extended" use="required"/>
  <xs:attribute ref="xlink:role"/>
  <xs:attribute ref="xlink:title"/>
</xs:attributeGroup>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Attribute Group xlink:titleAttrs
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink.tmp#type namespace.tmp#lang
Used by
Complex Type xlink:titleEltType
Attributes
QName Type Fixed Default Use Annotation
xlink:type xlink:typeType title required
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<xs:attributeGroup name="titleAttrs">
  <xs:attribute ref="xlink:type" fixed="title" use="required"/>
  <xs:attribute ref="xml:lang">
    <xs:annotation>
      <xs:documentation>xml:lang is not required, but provides much of the motivation for title elements in addition to attributes, and so is provided here for convenience.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:attributeGroup>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Attribute Group xlink:resourceAttrs
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink.tmp#type xlink.tmp#role xlink.tmp#title xlink.tmp#label
Used by
Complex Type xlink:resourceType
Attributes
QName Type Fixed Default Use Annotation
xlink:label xlink:labelType optional
xlink:role xlink:roleType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType resource required
Source

<xs:attributeGroup name="resourceAttrs">
  <xs:attribute ref="xlink:type" fixed="resource" use="required"/>
  <xs:attribute ref="xlink:role"/>
  <xs:attribute ref="xlink:title"/>
  <xs:attribute ref="xlink:label"/>
</xs:attributeGroup>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Attribute Group xlink:locatorAttrs
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink.tmp#type xlink.tmp#href xlink.tmp#role xlink.tmp#title xlink.tmp#label
Used by
Complex Type xlink:locatorType
Attributes
QName Type Fixed Default Use Annotation
xlink:href xlink:hrefType required
xlink:label xlink:labelType optional
xlink:role xlink:roleType optional
xlink:title xlink:titleAttrType optional
xlink:type xlink:typeType locator required
Source

<xs:attributeGroup name="locatorAttrs">
  <xs:attribute ref="xlink:type" fixed="locator" use="required"/>
  <xs:attribute ref="xlink:href" use="required"/>
  <xs:attribute ref="xlink:role"/>
  <xs:attribute ref="xlink:title"/>
  <xs:attribute ref="xlink:label">
    <xs:annotation>
      <xs:documentation>label is not required, but locators have no particular XLink function if they are not labeled.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:attributeGroup>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
Attribute Group xlink:arcAttrs
Namespace http://www.w3.org/1999/xlink
Diagram
Diagram xlink.tmp#type xlink.tmp#arcrole xlink.tmp#title xlink.tmp#show xlink.tmp#actuate xlink.tmp#from xlink.tmp#to
Used by
Complex Type xlink:arcType
Attributes
QName Type Fixed Default Use Annotation
xlink:actuate xlink:actuateType optional
xlink:arcrole xlink:arcroleType optional
xlink:from xlink:fromType optional
xlink:show xlink:showType optional
xlink:title xlink:titleAttrType optional
xlink:to xlink:toType optional
xlink:type xlink:typeType arc required
Source

<xs:attributeGroup name="arcAttrs">
  <xs:attribute ref="xlink:type" fixed="arc" use="required"/>
  <xs:attribute ref="xlink:arcrole"/>
  <xs:attribute ref="xlink:title"/>
  <xs:attribute ref="xlink:show"/>
  <xs:attribute ref="xlink:actuate"/>
  <xs:attribute ref="xlink:from"/>
  <xs:attribute ref="xlink:to">
    <xs:annotation>
      <xs:documentation>from and to have default behavior when values are missing</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:attributeGroup>
Schema location file:/C:/GaldosOffline/DIGGS_Offline - GMLProfile/Diggs2.0.a/Schemas/xlink.xsd
XML Schema documentation generated by ® XML Editor.
