Element diggs:SpecificationRegistryType / diggs:registryEntry
Namespace http://diggsml.org/schemas/3
Annotations

One entry of the registry, containing exactly one
diggs:SpecificationRegistryEntry. Repeatable; a registry with no
entries is permitted so that a domain registry can be published
before it is populated.

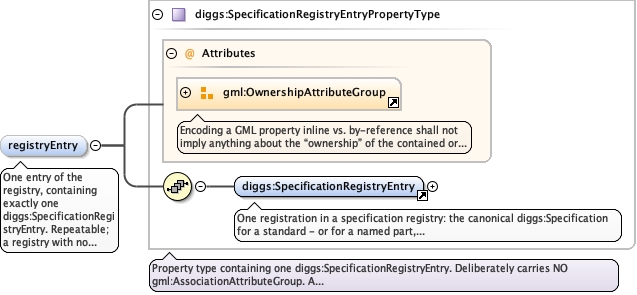

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupSpecificationRegistry_xsd_Element_diggs_SpecificationRegistryEntry.tmp#SpecificationRegistryEntrySpecificationRegistry_xsd_Complex_Type_diggs_SpecificationRegistryEntryPropertyType.tmp#SpecificationRegistryEntryPropertyType
Type diggs:SpecificationRegistryEntryPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:SpecificationRegistryEntry
Instance

<diggs:registryEntry owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:SpecificationRegistryEntry gml:id="">{1,1}</diggs:SpecificationRegistryEntry>
</diggs:registryEntry>
Attributes
QName Type Default Use
owns boolean false optional
Source

<element maxOccurs="unbounded" minOccurs="0" name="registryEntry" type="diggs:SpecificationRegistryEntryPropertyType">
  <annotation>
    <documentation>One entry of the registry, containing exactly one diggs:SpecificationRegistryEntry. Repeatable; a registry with no entries is permitted so that a domain registry can be published before it is populated.</documentation>
  </annotation>
</element>
Complex Type diggs:SpecificationRegistryType
Namespace http://diggsml.org/schemas/3
Annotations

Type for the root of a specification registry. Extends
gml:AbstractGMLType so that a registry carries gml:id, gml:identifier, gml:name and
gml:description exactly as a gml:Dictionary does - the registry's own citable
identity, distinct from the identity of the standards it holds.

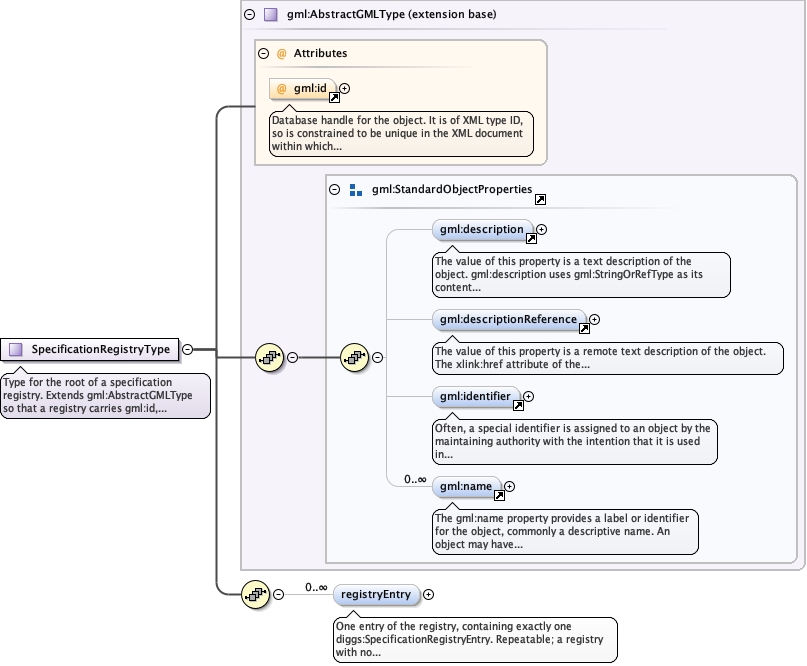

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypeSpecificationRegistry_xsd_Complex_Type_diggs_SpecificationRegistryType.tmp#SpecificationRegistryType_registryEntry
Type extension of gml:AbstractGMLType
Type hierarchy
Used by
Model
Children diggs:registryEntry, gml:description, gml:descriptionReference, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="SpecificationRegistryType">
  <annotation>
    <documentation>Type for the root of a specification registry. Extends gml:AbstractGMLType so that a registry carries gml:id, gml:identifier, gml:name and gml:description exactly as a gml:Dictionary does - the registry's own citable identity, distinct from the identity of the standards it holds.</documentation>
  </annotation>
  <complexContent>
    <extension base="gml:AbstractGMLType">
      <sequence>
        <element maxOccurs="unbounded" minOccurs="0" name="registryEntry" type="diggs:SpecificationRegistryEntryPropertyType">
          <annotation>
            <documentation>One entry of the registry, containing exactly one diggs:SpecificationRegistryEntry. Repeatable; a registry with no entries is permitted so that a domain registry can be published before it is populated.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
