Element diggs:LTPLift
Namespace http://diggsml.org/schemas/3
Annotations

One lift of a load transfer platform: a discrete body of material laid down in a
single construction operation, with its own material and thickness. A lift is
defined by thickness, not by elevation, so it carries no elevation and no extent:
the plan extent is the featureExtent of the platform, which every lift shares.
Contrast diggs:Geosynthetic, a sheet at a level that states its position in its
extent geometry, then in its own elevation property, and only indirectly through
heightAboveWorkingPlatform. For a lift, liftThickness and heightAboveWorkingPlatform
are both mandatory and between them fix it completely: its thickness directly, and
its elevation as wpElevation plus heightAboveWorkingPlatform. Reached only through
diggs:LoadTransferPlatformType/lifts, which states the vertical invariant.

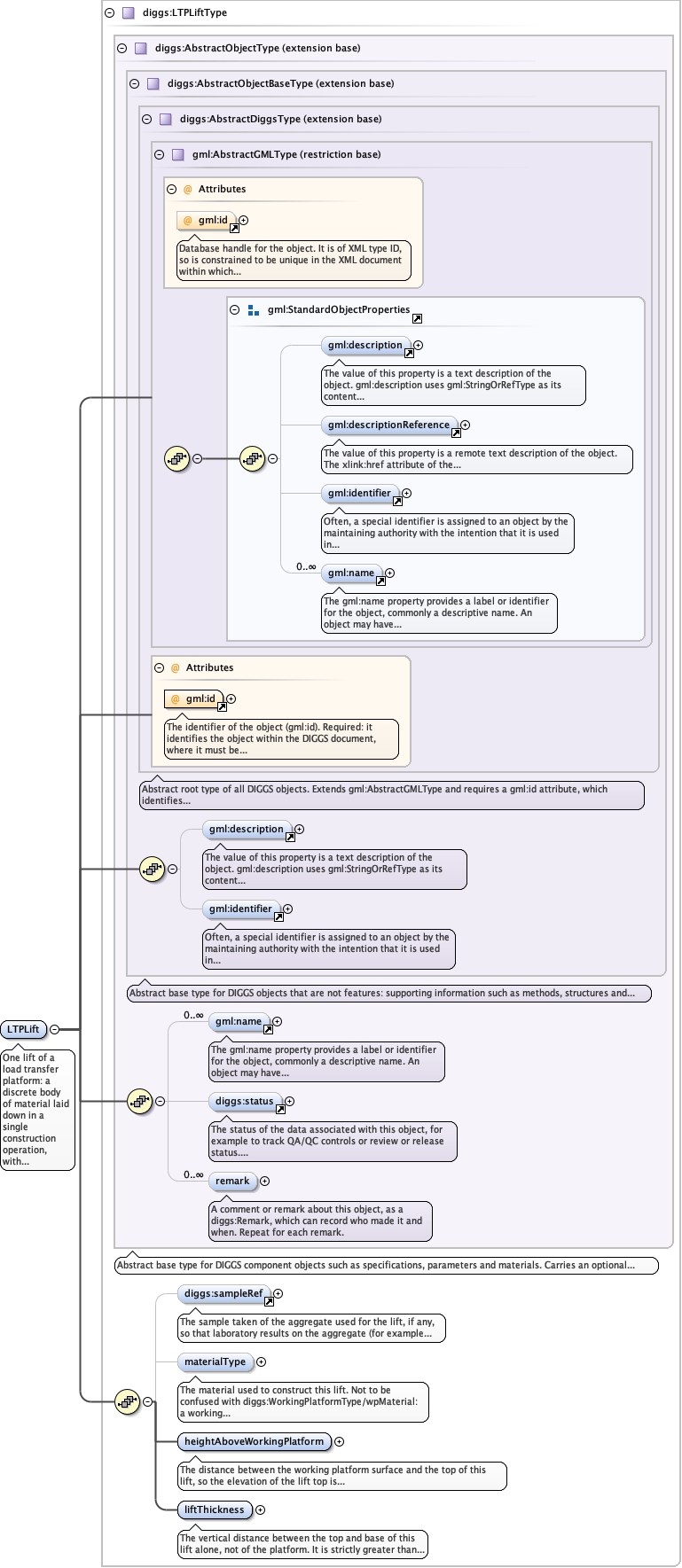

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCommon_xsd_Element_diggs_sampleRef.tmp#sampleRefRigidInclusions_xsd_Complex_Type_diggs_LTPLiftType.tmp#LTPLiftType_materialTypeRigidInclusions_xsd_Complex_Type_diggs_LTPLiftType.tmp#LTPLiftType_heightAboveWorkingPlatformRigidInclusions_xsd_Complex_Type_diggs_LTPLiftType.tmp#LTPLiftType_liftThicknessRigidInclusions_xsd_Complex_Type_diggs_LTPLiftType.tmp#LTPLiftType
Type diggs:LTPLiftType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:heightAboveWorkingPlatform, diggs:liftThickness, diggs:materialType, diggs:remark, diggs:sampleRef, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:LTPLift gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:sampleRef xlink:href="" identifierRef="" nilReason="" owns="false" percentage="">{0,1}</diggs:sampleRef>
  <diggs:materialType xlink:href="" nilReason="">{0,1}</diggs:materialType>
  <diggs:heightAboveWorkingPlatform howDetermined="" qualifier="" uom="">{1,1}</diggs:heightAboveWorkingPlatform>
  <diggs:liftThickness howDetermined="" qualifier="" uom="">{1,1}</diggs:liftThickness>
</diggs:LTPLift>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="LTPLift" type="diggs:LTPLiftType">
  <annotation>
    <documentation>One lift of a load transfer platform: a discrete body of material laid down in a single construction operation, with its own material and thickness. A lift is defined by thickness, not by elevation, so it carries no elevation and no extent: the plan extent is the featureExtent of the platform, which every lift shares. Contrast diggs:Geosynthetic, a sheet at a level that states its position in its extent geometry, then in its own elevation property, and only indirectly through heightAboveWorkingPlatform. For a lift, liftThickness and heightAboveWorkingPlatform are both mandatory and between them fix it completely: its thickness directly, and its elevation as wpElevation plus heightAboveWorkingPlatform. Reached only through diggs:LoadTransferPlatformType/lifts, which states the vertical invariant.</documentation>
  </annotation>
</element>
