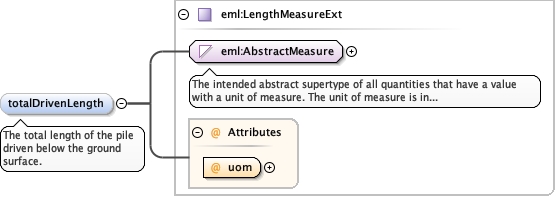

Showing:

Annotations
Attributes
Diagrams
Instances
Model
Properties
Source
Used by
Element diggs:PileDrivingActivityType / diggs:totalDrivenLength
Namespace http://diggsml.org/schema-dev
Annotations

The total length of the pile driven below the ground
surface.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="totalDrivenLength" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>The total length of the pile driven below the ground surface.</documentation>
  </annotation>
</element>

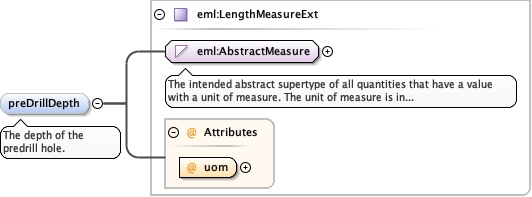

Element diggs:PileDrivingActivityType / diggs:preDrillDepth
Namespace http://diggsml.org/schema-dev
Annotations

The depth of the predrill hole.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="preDrillDepth" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>The depth of the predrill hole.</documentation>
  </annotation>
</element>

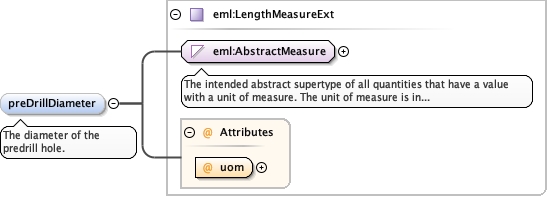

Element diggs:PileDrivingActivityType / diggs:preDrillDiameter
Namespace http://diggsml.org/schema-dev
Annotations

The diameter of the predrill hole.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="preDrillDiameter" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>The diameter of the predrill hole.</documentation>
  </annotation>
</element>

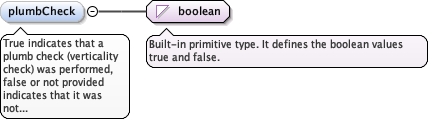

Element diggs:PileDrivingActivityType / diggs:plumbCheck
Namespace http://diggsml.org/schema-dev
Annotations

True indicates that a plumb check (verticality check) was
performed, false or not provided indicates that it was not
performed.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="plumbCheck" type="boolean">
  <annotation>
    <documentation>True indicates that a plumb check (verticality check) was performed, false or not provided indicates that it was not performed.</documentation>
  </annotation>
</element>

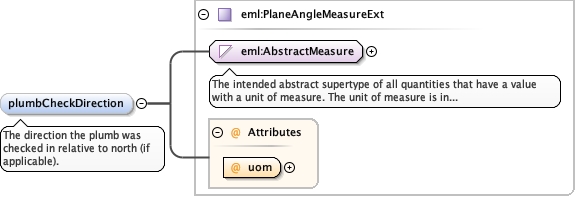

Element diggs:PileDrivingActivityType / diggs:plumbCheckDirection
Namespace http://diggsml.org/schema-dev
Annotations

The direction the plumb was checked in relative to north
(if applicable).
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasureExt.tmp#PlaneAngleMeasureExt_uomMeasureType_xsd_Complex_Type_eml_PlaneAngleMeasureExt.tmp#PlaneAngleMeasureExt
Type eml:PlaneAngleMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:PlaneAngleUomExt required
Source

<element minOccurs="0" name="plumbCheckDirection" type="eml:PlaneAngleMeasureExt">
  <annotation>
    <documentation>The direction the plumb was checked in relative to north (if applicable).</documentation>
  </annotation>
</element>

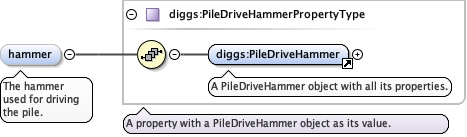

Element diggs:PileDrivingActivityType / diggs:hammer
Namespace http://diggsml.org/schema-dev
Annotations

The hammer used for driving the pile.
Diagram
DiagramPiling_xsd_Element_diggs_PileDriveHammer.tmp#PileDriveHammerPiling_xsd_Complex_Type_diggs_PileDriveHammerPropertyType.tmp#PileDriveHammerPropertyType
Type diggs:PileDriveHammerPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:PileDriveHammer
Instance

<diggs:hammer xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:PileDriveHammer gml:id="" xml:lang="">{1,1}</diggs:PileDriveHammer>
</diggs:hammer>
Source

<element minOccurs="0" name="hammer" type="diggs:PileDriveHammerPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>The hammer used for driving the pile.</documentation>
  </annotation>
</element>

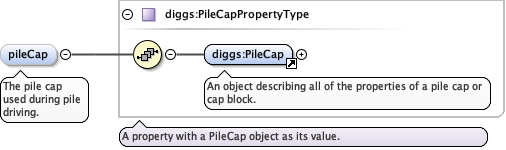

Element diggs:PileDrivingActivityType / diggs:pileCap
Namespace http://diggsml.org/schema-dev
Annotations

The pile cap used during pile driving.
Diagram
DiagramPiling_xsd_Element_diggs_PileCap.tmp#PileCapPiling_xsd_Complex_Type_diggs_PileCapPropertyType.tmp#PileCapPropertyType
Type diggs:PileCapPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:PileCap
Instance

<diggs:pileCap xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:PileCap gml:id="" xml:lang="">{1,1}</diggs:PileCap>
</diggs:pileCap>
Source

<element minOccurs="0" name="pileCap" type="diggs:PileCapPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>The pile cap used during pile driving.</documentation>
  </annotation>
</element>

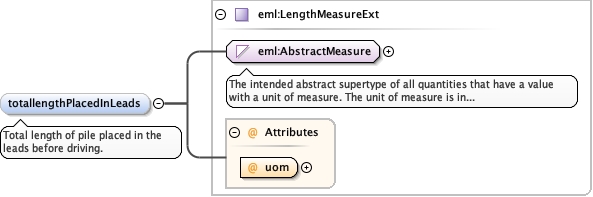

Element diggs:PileDrivingActivityType / diggs:totallengthPlacedInLeads
Namespace http://diggsml.org/schema-dev
Annotations

Total length of pile placed in the leads before
driving.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="totallengthPlacedInLeads" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>Total length of pile placed in the leads before driving.</documentation>
  </annotation>
</element>

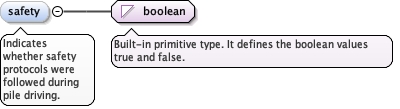

Element diggs:PileDrivingActivityType / diggs:safety
Namespace http://diggsml.org/schema-dev
Annotations

Indicates whether safety protocols were followed during
pile driving.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="safety" type="boolean">
  <annotation>
    <documentation>Indicates whether safety protocols were followed during pile driving.</documentation>
  </annotation>
</element>

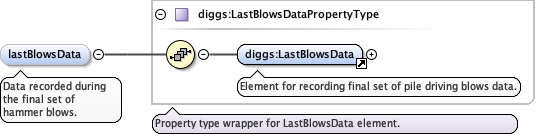

Element diggs:PileDrivingActivityType / diggs:lastBlowsData
Namespace http://diggsml.org/schema-dev
Annotations

Data recorded during the final set of hammer
blows.
Diagram
DiagramPiling_xsd_Element_diggs_LastBlowsData.tmp#LastBlowsDataPiling_xsd_Complex_Type_diggs_LastBlowsDataPropertyType.tmp#LastBlowsDataPropertyType
Type diggs:LastBlowsDataPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:LastBlowsData
Instance

<diggs:lastBlowsData xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:LastBlowsData gml:id="">{1,1}</diggs:LastBlowsData>
</diggs:lastBlowsData>
Source

<element minOccurs="0" maxOccurs="unbounded" name="lastBlowsData" type="diggs:LastBlowsDataPropertyType">
  <annotation>
    <documentation>Data recorded during the final set of hammer blows.</documentation>
  </annotation>
</element>

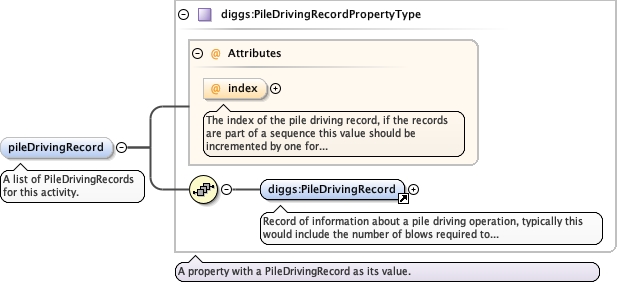

Element diggs:PileDrivingActivityType / diggs:pileDrivingRecord
Namespace http://diggsml.org/schema-dev
Annotations

A list of PileDrivingRecords for this
activity.
Diagram
DiagramPiling_xsd_Complex_Type_diggs_PileDrivingRecordPropertyType.tmp#PileDrivingRecordPropertyType_indexPiling_xsd_Element_diggs_PileDrivingRecord.tmp#PileDrivingRecordPiling_xsd_Complex_Type_diggs_PileDrivingRecordPropertyType.tmp#PileDrivingRecordPropertyType
Type diggs:PileDrivingRecordPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:PileDrivingRecord
Instance

<diggs:pileDrivingRecord index="" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:PileDrivingRecord gml:id="">{1,1}</diggs:PileDrivingRecord>
</diggs:pileDrivingRecord>
Attributes
QName Type Use Annotation
index positiveInteger optional
The index of the pile driving record, if the records are part of a
sequence this value should be incremented by one for each record in the
sequence.
Source

<element maxOccurs="unbounded" minOccurs="0" name="pileDrivingRecord" type="diggs:PileDrivingRecordPropertyType">
  <annotation>
    <documentation>A list of PileDrivingRecords for this activity.</documentation>
  </annotation>
</element>

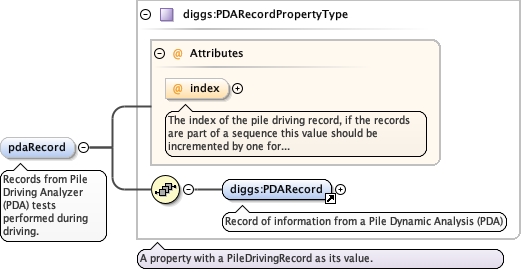

Element diggs:PileDrivingActivityType / diggs:pdaRecord
Namespace http://diggsml.org/schema-dev
Annotations

Records from Pile Driving Analyzer (PDA) tests performed
during driving.
Diagram
DiagramPiling_xsd_Complex_Type_diggs_PDARecordPropertyType.tmp#PDARecordPropertyType_indexPiling_xsd_Element_diggs_PDARecord.tmp#PDARecordPiling_xsd_Complex_Type_diggs_PDARecordPropertyType.tmp#PDARecordPropertyType
Type diggs:PDARecordPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:PDARecord
Instance

<diggs:pdaRecord index="" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:PDARecord gml:id="">{1,1}</diggs:PDARecord>
</diggs:pdaRecord>
Attributes
QName Type Use Annotation
index positiveInteger optional
The index of the pile driving record, if the records are part of a
sequence this value should be incremented by one for each record in the
sequence.
Source

<element maxOccurs="unbounded" minOccurs="0" name="pdaRecord" type="diggs:PDARecordPropertyType">
  <annotation>
    <documentation>Records from Pile Driving Analyzer (PDA) tests performed during driving.</documentation>
  </annotation>
</element>

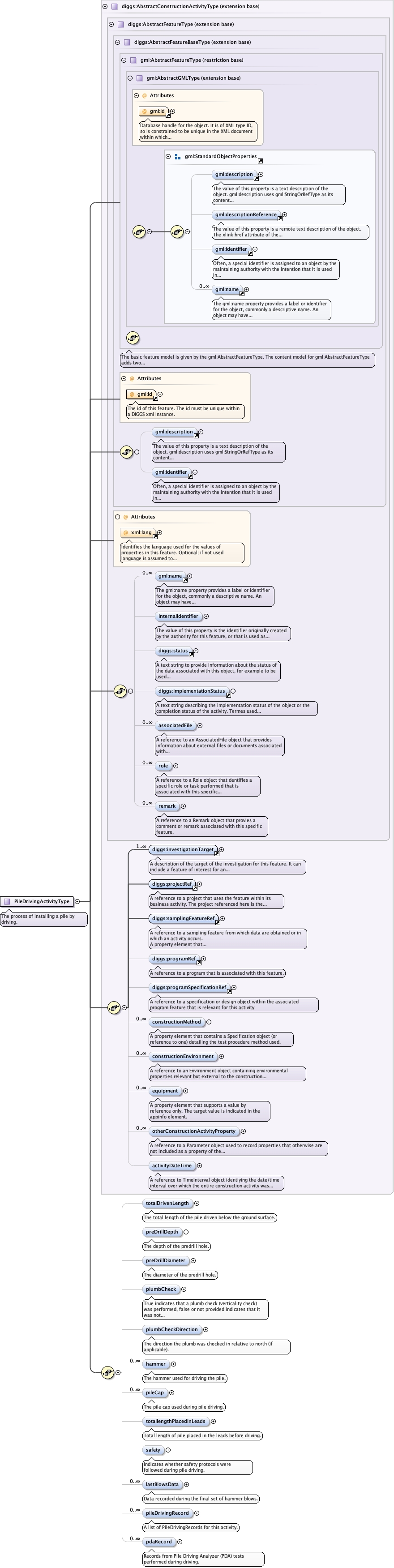

Complex Type diggs:PileDrivingActivityType
Namespace http://diggsml.org/schema-dev
Annotations

The process of installing a pile by driving.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Element_diggs_investigationTarget.tmp#investigationTargetKernel_xsd_Element_diggs_projectRef.tmp#projectRefKernel_xsd_Element_diggs_samplingFeatureRef.tmp#samplingFeatureRefKernel_xsd_Element_diggs_programRef.tmp#programRefKernel_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefKernel_xsd_Complex_Type_diggs_AbstractConstructionActivityType.tmp#AbstractConstructionActivityType_constructionMethodKernel_xsd_Complex_Type_diggs_AbstractConstructionActivityType.tmp#AbstractConstructionActivityType_constructionEnvironmentKernel_xsd_Complex_Type_diggs_AbstractConstructionActivityType.tmp#AbstractConstructionActivityType_equipmentKernel_xsd_Complex_Type_diggs_AbstractConstructionActivityType.tmp#AbstractConstructionActivityType_otherConstructionActivityPropertyKernel_xsd_Complex_Type_diggs_AbstractConstructionActivityType.tmp#AbstractConstructionActivityType_activityDateTimeKernel_xsd_Complex_Type_diggs_AbstractConstructionActivityType.tmp#AbstractConstructionActivityTypePiling_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_totalDrivenLengthPiling_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_preDrillDepthPiling_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_preDrillDiameterPiling_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_plumbCheckPiling_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_plumbCheckDirectionPiling_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_hammerPiling_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_pileCapPiling_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_totallengthPlacedInLeadsPiling_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_safetyPiling_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_lastBlowsDataPiling_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_pileDrivingRecordPiling_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_pdaRecord
Type extension of diggs:AbstractConstructionActivityType
Type hierarchy
Used by
Model
Children diggs:activityDateTime, diggs:associatedFile, diggs:constructionEnvironment, diggs:constructionMethod, diggs:equipment, diggs:hammer, diggs:implementationStatus, diggs:internalIdentifier, diggs:investigationTarget, diggs:lastBlowsData, diggs:otherConstructionActivityProperty, diggs:pdaRecord, diggs:pileCap, diggs:pileDrivingRecord, diggs:plumbCheck, diggs:plumbCheckDirection, diggs:preDrillDepth, diggs:preDrillDiameter, diggs:programRef, diggs:programSpecificationRef, diggs:projectRef, diggs:remark, diggs:role, diggs:safety, diggs:samplingFeatureRef, diggs:status, diggs:totalDrivenLength, diggs:totallengthPlacedInLeads, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="PileDrivingActivityType">
  <annotation>
    <documentation>The process of installing a pile by driving.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractConstructionActivityType">
      <sequence>
        <element minOccurs="0" name="totalDrivenLength" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>The total length of the pile driven below the ground surface.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="preDrillDepth" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>The depth of the predrill hole.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="preDrillDiameter" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>The diameter of the predrill hole.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="plumbCheck" type="boolean">
          <annotation>
            <documentation>True indicates that a plumb check (verticality check) was performed, false or not provided indicates that it was not performed.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="plumbCheckDirection" type="eml:PlaneAngleMeasureExt">
          <annotation>
            <documentation>The direction the plumb was checked in relative to north (if applicable).</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="hammer" type="diggs:PileDriveHammerPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>The hammer used for driving the pile.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pileCap" type="diggs:PileCapPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>The pile cap used during pile driving.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totallengthPlacedInLeads" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>Total length of pile placed in the leads before driving.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="safety" type="boolean">
          <annotation>
            <documentation>Indicates whether safety protocols were followed during pile driving.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" maxOccurs="unbounded" name="lastBlowsData" type="diggs:LastBlowsDataPropertyType">
          <annotation>
            <documentation>Data recorded during the final set of hammer blows.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="pileDrivingRecord" type="diggs:PileDrivingRecordPropertyType">
          <annotation>
            <documentation>A list of PileDrivingRecords for this activity.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="pdaRecord" type="diggs:PDARecordPropertyType">
          <annotation>
            <documentation>Records from Pile Driving Analyzer (PDA) tests performed during driving.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
