Element diggs:PileDriveHammerType / diggs:hammerType
Namespace http://diggsml.org/schema-dev
Annotations

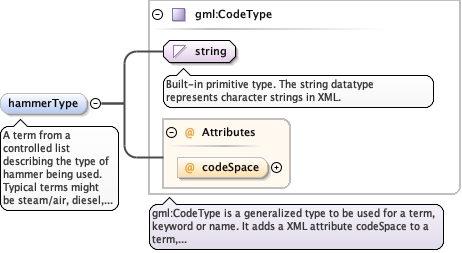

A term from a controlled list describing the type of
hammer being used. Typical terms might be steam/air, diesel,
hydraulic, vibratory, etc.)
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="hammerType" type="gml:CodeType">
  <annotation>
    <documentation>A term from a controlled list describing the type of hammer being used. Typical terms might be steam/air, diesel, hydraulic, vibratory, etc.)</documentation>
  </annotation>
</element>

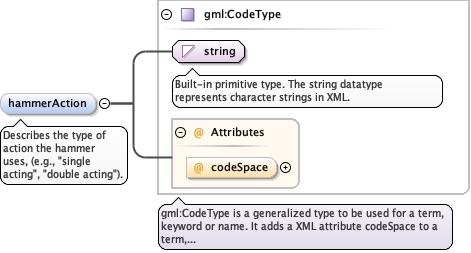

Element diggs:PileDriveHammerType / diggs:hammerAction
Namespace http://diggsml.org/schema-dev
Annotations

Describes the type of action the hammer uses, (e.g.,
"single acting", "double acting").
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="hammerAction" type="gml:CodeType">
  <annotation>
    <documentation>Describes the type of action the hammer uses, (e.g., "single acting", "double acting").</documentation>
  </annotation>
</element>

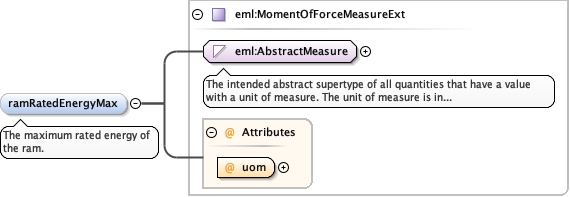

Element diggs:PileDriveHammerType / diggs:ramRatedEnergyMax
Namespace http://diggsml.org/schema-dev
Annotations

The maximum rated energy of the ram.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasureExt.tmp#MomentOfForceMeasureExt_uomMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasureExt.tmp#MomentOfForceMeasureExt
Type eml:MomentOfForceMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:MomentOfForceUomExt required
Source

<element minOccurs="0" name="ramRatedEnergyMax" type="eml:MomentOfForceMeasureExt">
  <annotation>
    <documentation>The maximum rated energy of the ram.</documentation>
  </annotation>
</element>
Element diggs:PileDriveHammerType / diggs:ramRatedEnergyMin
Namespace http://diggsml.org/schema-dev
Annotations

The minimum rated energy of the ram.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasureExt.tmp#MomentOfForceMeasureExt_uomMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasureExt.tmp#MomentOfForceMeasureExt
Type eml:MomentOfForceMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:MomentOfForceUomExt required
Source

<element minOccurs="0" name="ramRatedEnergyMin" type="eml:MomentOfForceMeasureExt">
  <annotation>
    <documentation>The minimum rated energy of the ram.</documentation>
  </annotation>
</element>
Element diggs:PileDriveHammerType / diggs:ramWeight
Namespace http://diggsml.org/schema-dev
Annotations

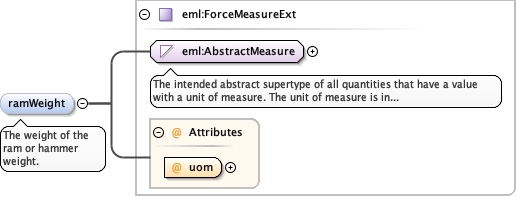

The weight of the ram or hammer weight.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasureExt.tmp#ForceMeasureExt_uomMeasureType_xsd_Complex_Type_eml_ForceMeasureExt.tmp#ForceMeasureExt
Type eml:ForceMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUomExt required
Source

<element minOccurs="0" name="ramWeight" type="eml:ForceMeasureExt">
  <annotation>
    <documentation>The weight of the ram or hammer weight.</documentation>
  </annotation>
</element>
Element diggs:PileDriveHammerType / diggs:ratedStroke
Namespace http://diggsml.org/schema-dev
Annotations

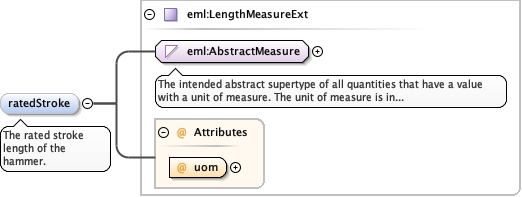

The rated stroke length of the hammer.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt_uomMeasureType_xsd_Complex_Type_eml_LengthMeasureExt.tmp#LengthMeasureExt
Type eml:LengthMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:LengthUomExt required
Source

<element minOccurs="0" name="ratedStroke" type="eml:LengthMeasureExt">
  <annotation>
    <documentation>The rated stroke length of the hammer.</documentation>
  </annotation>
</element>
Element diggs:PileDriveHammerType / diggs:totalHammerWeight
Namespace http://diggsml.org/schema-dev
Annotations

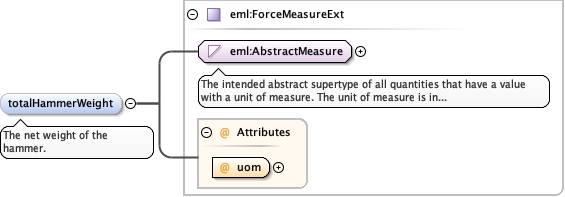

The net weight of the hammer.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasureExt.tmp#ForceMeasureExt_uomMeasureType_xsd_Complex_Type_eml_ForceMeasureExt.tmp#ForceMeasureExt
Type eml:ForceMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUomExt required
Source

<element minOccurs="0" name="totalHammerWeight" type="eml:ForceMeasureExt">
  <annotation>
    <documentation>The net weight of the hammer.</documentation>
  </annotation>
</element>

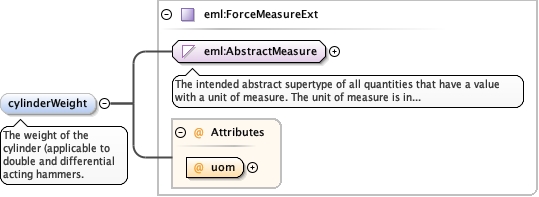

Element diggs:PileDriveHammerType / diggs:cylinderWeight
Namespace http://diggsml.org/schema-dev
Annotations

The weight of the cylinder (applicable to double and
differential acting hammers.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasureExt.tmp#ForceMeasureExt_uomMeasureType_xsd_Complex_Type_eml_ForceMeasureExt.tmp#ForceMeasureExt
Type eml:ForceMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUomExt required
Source

<element minOccurs="0" name="cylinderWeight" type="eml:ForceMeasureExt">
  <annotation>
    <documentation>The weight of the cylinder (applicable to double and differential acting hammers.</documentation>
  </annotation>
</element>
Element diggs:PileDriveHammerType / diggs:helmetWeight
Namespace http://diggsml.org/schema-dev
Annotations

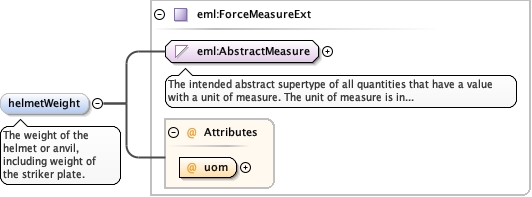

The weight of the helmet or anvil, including weight of
the striker plate.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForceMeasureExt.tmp#ForceMeasureExt_uomMeasureType_xsd_Complex_Type_eml_ForceMeasureExt.tmp#ForceMeasureExt
Type eml:ForceMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ForceUomExt required
Source

<element minOccurs="0" name="helmetWeight" type="eml:ForceMeasureExt">
  <annotation>
    <documentation>The weight of the helmet or anvil, including weight of the striker plate.</documentation>
  </annotation>
</element>

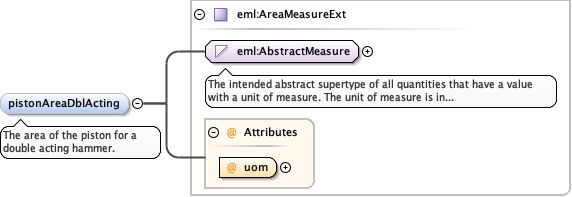

Element diggs:PileDriveHammerType / diggs:pistonAreaDblActing
Namespace http://diggsml.org/schema-dev
Annotations

The area of the piston for a double acting
hammer.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AreaMeasureExt.tmp#AreaMeasureExt_uomMeasureType_xsd_Complex_Type_eml_AreaMeasureExt.tmp#AreaMeasureExt
Type eml:AreaMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:AreaUomExt required
Source

<element minOccurs="0" name="pistonAreaDblActing" type="eml:AreaMeasureExt">
  <annotation>
    <documentation>The area of the piston for a double acting hammer.</documentation>
  </annotation>
</element>

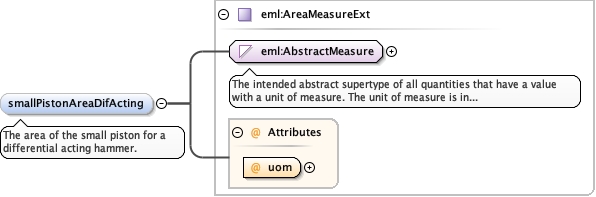

Element diggs:PileDriveHammerType / diggs:smallPistonAreaDifActing
Namespace http://diggsml.org/schema-dev
Annotations

The area of the small piston for a differential acting
hammer.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AreaMeasureExt.tmp#AreaMeasureExt_uomMeasureType_xsd_Complex_Type_eml_AreaMeasureExt.tmp#AreaMeasureExt
Type eml:AreaMeasureExt
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:AreaUomExt required
Source

<element minOccurs="0" name="smallPistonAreaDifActing" type="eml:AreaMeasureExt">
  <annotation>
    <documentation>The area of the small piston for a differential acting hammer.</documentation>
  </annotation>
</element>
Element diggs:PileDriveHammerType / diggs:strikerPlate
Namespace http://diggsml.org/schema-dev
Annotations

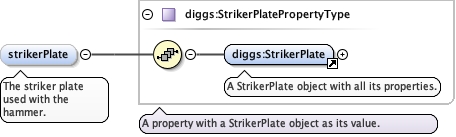

The striker plate used with the hammer.
Diagram
DiagramPiling_xsd_Element_diggs_StrikerPlate.tmp#StrikerPlatePiling_xsd_Complex_Type_diggs_StrikerPlatePropertyType.tmp#StrikerPlatePropertyType
Type diggs:StrikerPlatePropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:StrikerPlate
Instance

<diggs:strikerPlate xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:StrikerPlate gml:id="">{1,1}</diggs:StrikerPlate>
</diggs:strikerPlate>
Source

<element minOccurs="0" name="strikerPlate" type="diggs:StrikerPlatePropertyType">
  <annotation>
    <documentation>The striker plate used with the hammer.</documentation>
  </annotation>
</element>
Element diggs:PileDriveHammerType / diggs:hammerCushion
Namespace http://diggsml.org/schema-dev
Annotations

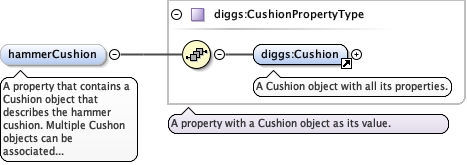

A property that contains a Cushion object that describes
the hammer cushion. Multiple Cushon objects can be associated witht
the hammer to account for multiple drives that might occur for the
pile driving activity if the cushion is changed out between
drives.
Diagram
DiagramPiling_xsd_Element_diggs_Cushion.tmp#CushionPiling_xsd_Complex_Type_diggs_CushionPropertyType.tmp#CushionPropertyType
Type diggs:CushionPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Cushion
Instance

<diggs:hammerCushion xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Cushion gml:id="" xml:lang="">{1,1}</diggs:Cushion>
</diggs:hammerCushion>
Source

<element minOccurs="0" name="hammerCushion" type="diggs:CushionPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>A property that contains a Cushion object that describes the hammer cushion. Multiple Cushon objects can be associated witht the hammer to account for multiple drives that might occur for the pile driving activity if the cushion is changed out between drives.</documentation>
  </annotation>
</element>
Element diggs:PileDriveHammerType / diggs:blowsPerMinuteMin
Namespace http://diggsml.org/schema-dev
Annotations

The minimum blows per minute the hammer can
deliver.
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="blowsPerMinuteMin" type="positiveInteger">
  <annotation>
    <documentation>The minimum blows per minute the hammer can deliver.</documentation>
  </annotation>
</element>
Element diggs:PileDriveHammerType / diggs:blowsPerMinuteMax
Namespace http://diggsml.org/schema-dev
Annotations

The maximum blows per minute the hammer can
deliver.
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="blowsPerMinuteMax" type="positiveInteger">
  <annotation>
    <documentation>The maximum blows per minute the hammer can deliver.</documentation>
  </annotation>
</element>
Complex Type diggs:PileDriveHammerType
Namespace http://diggsml.org/schema-dev
Annotations

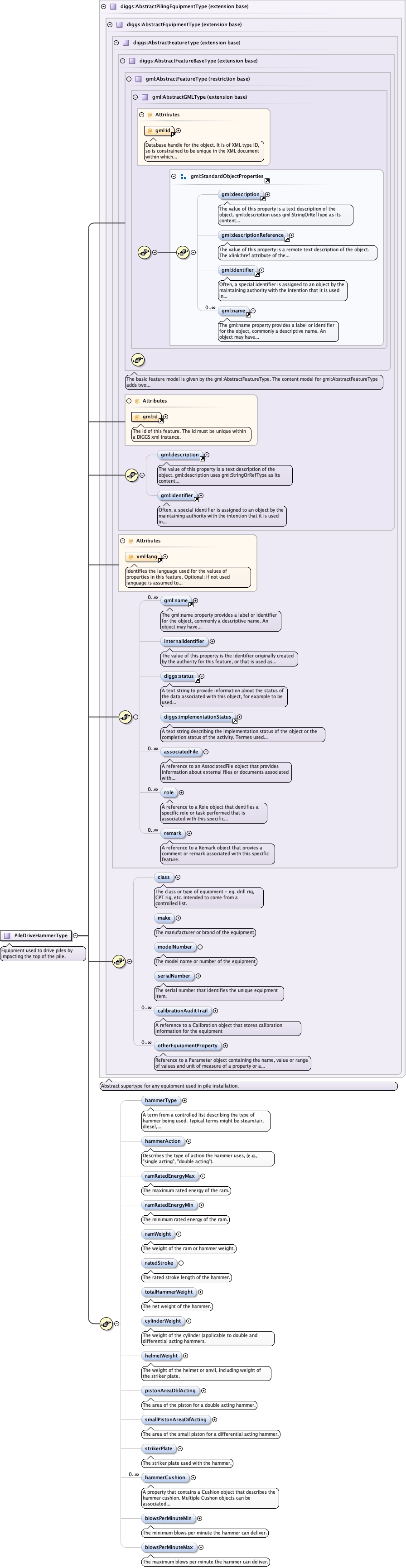

Equipment used to drive piles by impacting the top of the
pile.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentPropertyKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentTypePiling_xsd_Complex_Type_diggs_AbstractPilingEquipmentType.tmp#AbstractPilingEquipmentTypePiling_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_hammerTypePiling_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_hammerActionPiling_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_ramRatedEnergyMaxPiling_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_ramRatedEnergyMinPiling_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_ramWeightPiling_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_ratedStrokePiling_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_totalHammerWeightPiling_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_cylinderWeightPiling_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_helmetWeightPiling_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_pistonAreaDblActingPiling_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_smallPistonAreaDifActingPiling_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_strikerPlatePiling_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_hammerCushionPiling_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_blowsPerMinuteMinPiling_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_blowsPerMinuteMax
Type extension of diggs:AbstractPilingEquipmentType
Type hierarchy
Properties
mixed false
Used by
Model
Children diggs:associatedFile, diggs:blowsPerMinuteMax, diggs:blowsPerMinuteMin, diggs:calibrationAuditTrail, diggs:class, diggs:cylinderWeight, diggs:hammerAction, diggs:hammerCushion, diggs:hammerType, diggs:helmetWeight, diggs:implementationStatus, diggs:internalIdentifier, diggs:make, diggs:modelNumber, diggs:otherEquipmentProperty, diggs:pistonAreaDblActing, diggs:ramRatedEnergyMax, diggs:ramRatedEnergyMin, diggs:ramWeight, diggs:ratedStroke, diggs:remark, diggs:role, diggs:serialNumber, diggs:smallPistonAreaDifActing, diggs:status, diggs:strikerPlate, diggs:totalHammerWeight, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType mixed="false" name="PileDriveHammerType">
  <annotation>
    <documentation>Equipment used to drive piles by impacting the top of the pile.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractPilingEquipmentType">
      <sequence>
        <element minOccurs="0" name="hammerType" type="gml:CodeType">
          <annotation>
            <documentation>A term from a controlled list describing the type of hammer being used. Typical terms might be steam/air, diesel, hydraulic, vibratory, etc.)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="hammerAction" type="gml:CodeType">
          <annotation>
            <documentation>Describes the type of action the hammer uses, (e.g., "single acting", "double acting").</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="ramRatedEnergyMax" type="eml:MomentOfForceMeasureExt">
          <annotation>
            <documentation>The maximum rated energy of the ram.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="ramRatedEnergyMin" type="eml:MomentOfForceMeasureExt">
          <annotation>
            <documentation>The minimum rated energy of the ram.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="ramWeight" type="eml:ForceMeasureExt">
          <annotation>
            <documentation>The weight of the ram or hammer weight.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="ratedStroke" type="eml:LengthMeasureExt">
          <annotation>
            <documentation>The rated stroke length of the hammer.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totalHammerWeight" type="eml:ForceMeasureExt">
          <annotation>
            <documentation>The net weight of the hammer.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="cylinderWeight" type="eml:ForceMeasureExt">
          <annotation>
            <documentation>The weight of the cylinder (applicable to double and differential acting hammers.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="helmetWeight" type="eml:ForceMeasureExt">
          <annotation>
            <documentation>The weight of the helmet or anvil, including weight of the striker plate.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pistonAreaDblActing" type="eml:AreaMeasureExt">
          <annotation>
            <documentation>The area of the piston for a double acting hammer.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="smallPistonAreaDifActing" type="eml:AreaMeasureExt">
          <annotation>
            <documentation>The area of the small piston for a differential acting hammer.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="strikerPlate" type="diggs:StrikerPlatePropertyType">
          <annotation>
            <documentation>The striker plate used with the hammer.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="hammerCushion" type="diggs:CushionPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>A property that contains a Cushion object that describes the hammer cushion. Multiple Cushon objects can be associated witht the hammer to account for multiple drives that might occur for the pile driving activity if the cushion is changed out between drives.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="blowsPerMinuteMin" type="positiveInteger">
          <annotation>
            <documentation>The minimum blows per minute the hammer can deliver.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="blowsPerMinuteMax" type="positiveInteger">
          <annotation>
            <documentation>The maximum blows per minute the hammer can deliver.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
