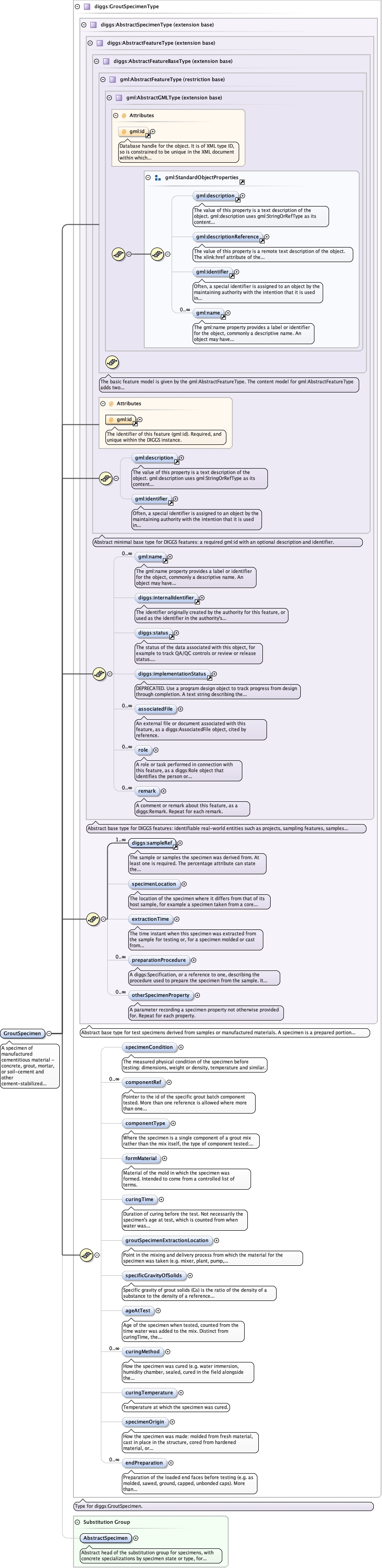

Schema documentation for component diggs:GroutSpecimen

A specimen of manufactured cementitious material - concrete, grout, mortar, or soil-cement and other cement-stabilized soil - molded, cast, cored or otherwise prepared from a sample or batch of that material for testing. Records how the specimen was made and cured and, through specimenCondition, its measured physical condition before testing.

<diggs:GroutSpecimen gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:sampleRef xlink:href="" identifierRef="" nilReason="" owns="false" percentage="">{1,unbounded}</diggs:sampleRef>
  <diggs:specimenLocation owns="false" xlink:href="" nilReason="">{0,1}</diggs:specimenLocation>
  <diggs:extractionTime calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:extractionTime>
  <diggs:preparationProcedure xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:preparationProcedure>
  <diggs:otherSpecimenProperty>{0,unbounded}</diggs:otherSpecimenProperty>
  <diggs:specimenCondition>{0,1}</diggs:specimenCondition>
  <diggs:componentRef xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:componentRef>
  <diggs:componentType>{0,1}</diggs:componentType>
  <diggs:formMaterial codeSpace="">{0,1}</diggs:formMaterial>
  <diggs:curingTime howDetermined="" qualifier="" uom="">{0,1}</diggs:curingTime>
  <diggs:groutSpecimenExtractionLocation codeSpace="">{0,1}</diggs:groutSpecimenExtractionLocation>
  <diggs:specificGravityOfSolids howDetermined="" qualifier="" waterTemperature="">{0,1}</diggs:specificGravityOfSolids>
  <diggs:ageAtTest howDetermined="" qualifier="" uom="">{0,1}</diggs:ageAtTest>
  <diggs:curingMethod codeSpace="">{0,unbounded}</diggs:curingMethod>
  <diggs:curingTemperature howDetermined="" qualifier="" uom="">{0,1}</diggs:curingTemperature>
  <diggs:specimenOrigin>{0,1}</diggs:specimenOrigin>
  <diggs:endPreparation codeSpace="">{0,unbounded}</diggs:endPreparation>
</diggs:GroutSpecimen>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="GroutSpecimen" substitutionGroup="diggs:AbstractSpecimen" type="diggs:GroutSpecimenType"> <annotation> <documentation>A specimen of manufactured cementitious material - concrete, grout, mortar, or soil-cement and other cement-stabilized soil - molded, cast, cored or otherwise prepared from a sample or batch of that material for testing. Records how the specimen was made and cured and, through specimenCondition, its measured physical condition before testing.</documentation> </annotation> </element>
