Element diggs:GP_Source
Namespace http://diggsml.org/schemas/3
Annotations

A generic field survey source object containing properties of a
source.

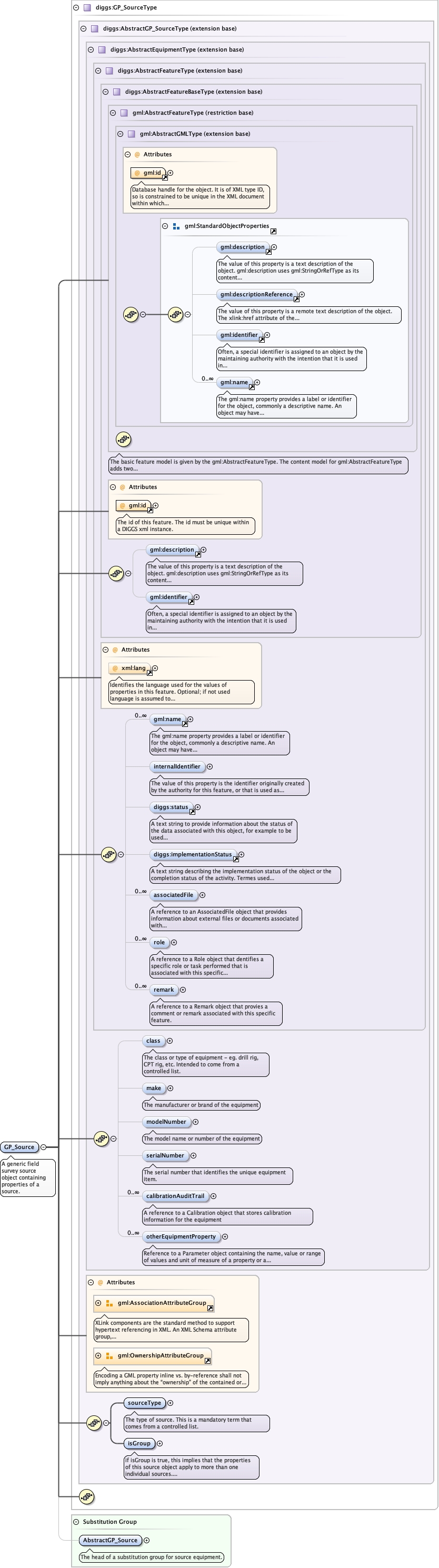

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentTypeGeophysics_xsd_Complex_Type_diggs_AbstractGP_SourceType.tmp#AbstractGP_SourceType_sourceTypeGeophysics_xsd_Complex_Type_diggs_AbstractGP_SourceType.tmp#AbstractGP_SourceType_isGroupGeophysics_xsd_Complex_Type_diggs_AbstractGP_SourceType.tmp#AbstractGP_SourceTypeGeophysics_xsd_Complex_Type_diggs_GP_SourceType.tmp#GP_SourceTypeGeophysics_xsd_Element_diggs_AbstractGP_Source.tmp#AbstractGP_Source
Type diggs:GP_SourceType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:calibrationAuditTrail, diggs:class, diggs:implementationStatus, diggs:internalIdentifier, diggs:isGroup, diggs:make, diggs:modelNumber, diggs:otherEquipmentProperty, diggs:remark, diggs:role, diggs:serialNumber, diggs:sourceType, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:GP_Source gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:class codeSpace="">{0,1}</diggs:class>
  <diggs:make>{0,1}</diggs:make>
  <diggs:modelNumber>{0,1}</diggs:modelNumber>
  <diggs:serialNumber>{0,1}</diggs:serialNumber>
  <diggs:calibrationAuditTrail xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:calibrationAuditTrail>
  <diggs:otherEquipmentProperty>{0,unbounded}</diggs:otherEquipmentProperty>
  <diggs:sourceType>{1,1}</diggs:sourceType>
  <diggs:isGroup noSources="">{1,1}</diggs:isGroup>
</diggs:GP_Source>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="GP_Source" substitutionGroup="diggs:AbstractGP_Source" type="diggs:GP_SourceType">
  <annotation>
    <documentation>A generic field survey source object containing properties of a source.</documentation>
  </annotation>
</element>
