Element diggs:AbstractGP_Source
Namespace http://diggsml.org/schema-dev
Annotations
The head of a substitution group for source equipment.

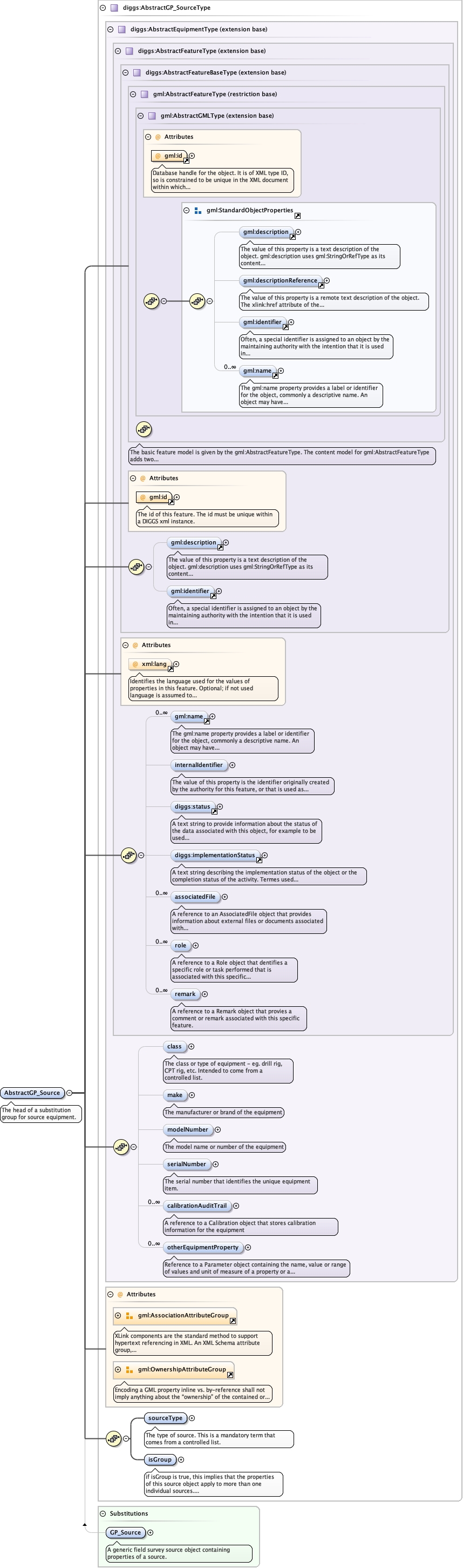

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentPropertyKernel_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupGeophysics_xsd_Complex_Type_diggs_AbstractGP_SourceType.tmp#AbstractGP_SourceType_sourceTypeGeophysics_xsd_Complex_Type_diggs_AbstractGP_SourceType.tmp#AbstractGP_SourceType_isGroupGeophysics_xsd_Complex_Type_diggs_AbstractGP_SourceType.tmp#AbstractGP_SourceTypeGeophysics_xsd_Element_diggs_GP_Source.tmp#GP_Source
Type diggs:AbstractGP_SourceType
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Used by
Model
Children diggs:associatedFile, diggs:calibrationAuditTrail, diggs:class, diggs:implementationStatus, diggs:internalIdentifier, diggs:isGroup, diggs:make, diggs:modelNumber, diggs:otherEquipmentProperty, diggs:remark, diggs:role, diggs:serialNumber, diggs:sourceType, diggs:status, gml:description, gml:identifier, gml:name
Instance
<diggs:AbstractGP_Source xlink:actuate="" xlink:arcrole="" xlink:href="" gml:id="" xml:lang="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:class codeSpace="">{0,1}</diggs:class>
  <diggs:make xml:lang="">{0,1}</diggs:make>
  <diggs:modelNumber xml:lang="">{0,1}</diggs:modelNumber>
  <diggs:serialNumber xml:lang="">{0,1}</diggs:serialNumber>
  <diggs:calibrationAuditTrail>{0,unbounded}</diggs:calibrationAuditTrail>
  <diggs:otherEquipmentProperty>{0,unbounded}</diggs:otherEquipmentProperty>
  <diggs:sourceType>{1,1}</diggs:sourceType>
  <diggs:isGroup noSources="">{1,1}</diggs:isGroup>
</diggs:AbstractGP_Source>
Attributes
QName Type Fixed Default Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source
<element name="AbstractGP_Source" type="diggs:AbstractGP_SourceType" abstract="true">
  <annotation>
    <documentation>The head of a substitution group for source equipment.</documentation>
  </annotation>
</element>
