Element diggs:AbstractSurface
Namespace http://diggsml.org/schema-dev
Annotations

Head of a substitution group for all 2D surface objects.

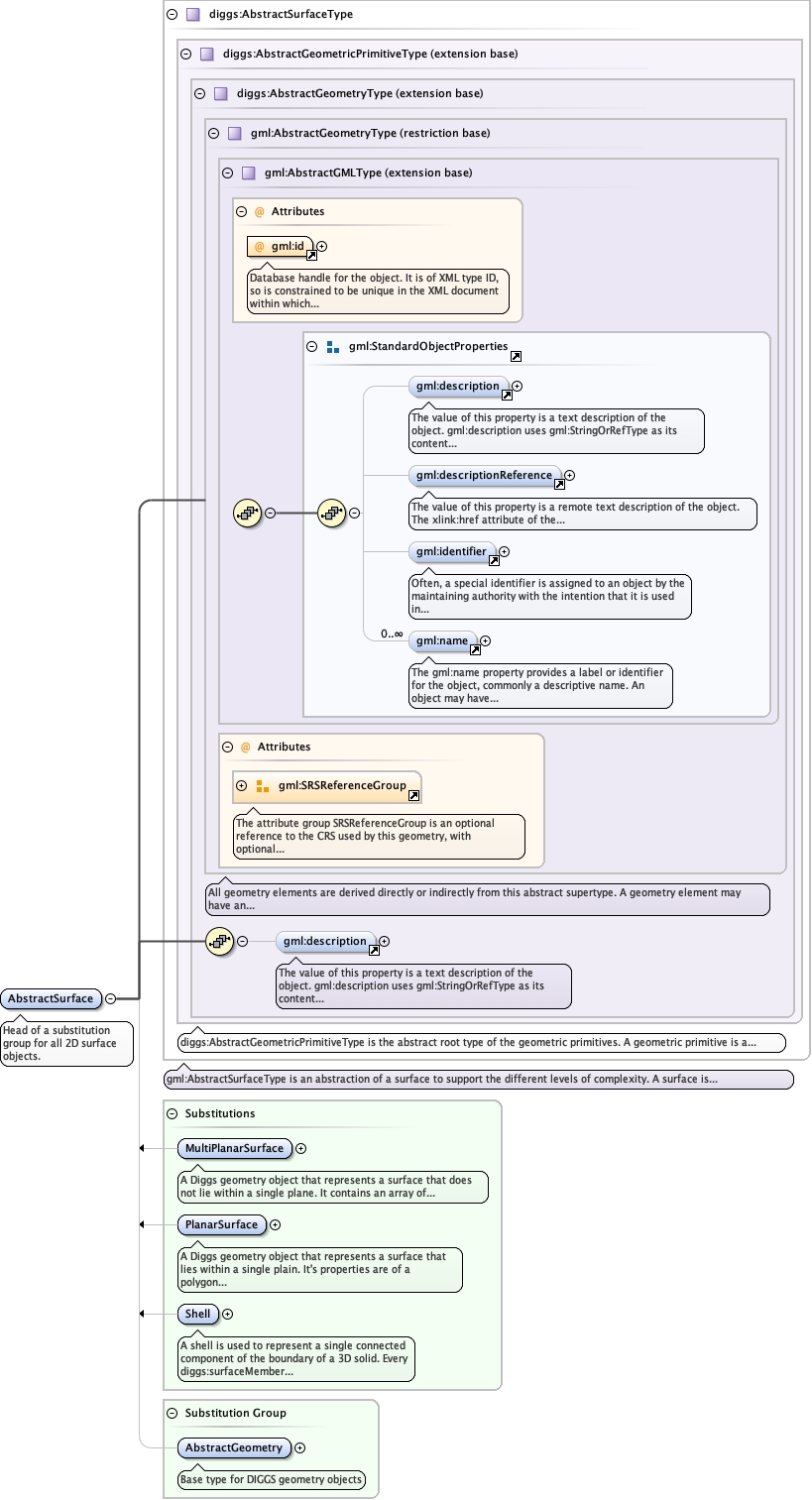

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometryTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptionKernel_xsd_Complex_Type_diggs_AbstractGeometryType.tmp#AbstractGeometryTypeKernel_xsd_Complex_Type_diggs_AbstractGeometricPrimitiveType.tmp#AbstractGeometricPrimitiveTypeGeophysics_xsd_Complex_Type_diggs_AbstractSurfaceType.tmp#AbstractSurfaceTypeGeophysics_xsd_Element_diggs_MultiPlanarSurface.tmp#MultiPlanarSurfaceGeophysics_xsd_Element_diggs_PlanarSurface.tmp#PlanarSurfaceGeophysics_xsd_Element_diggs_Shell.tmp#http___diggsml.org_schema-dev_ShellKernel_xsd_Element_diggs_AbstractGeometry.tmp#http___diggsml.org_schema-dev_AbstractGeometry
Type diggs:AbstractSurfaceType
Type hierarchy
Properties
content complex
abstract true
nillable false
Substitution Group
Substitution Group Affiliation
Used by
Complex Type diggs:AbstractSurfacePropertyType
Model
gml:description{0,1}
Children gml:description
Instance

<diggs:AbstractSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
</diggs:AbstractSurface>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element abstract="true" name="AbstractSurface" nillable="false" substitutionGroup="diggs:AbstractGeometry" type="diggs:AbstractSurfaceType">
  <annotation>
    <documentation>Head of a substitution group for all 2D surface objects.</documentation>
  </annotation>
</element>
