Element diggs:PlanarSurface
Namespace http://diggsml.org/schema-dev
Annotations

A Diggs geometry object that represents a surface that lies within a
single plain. It's properties are of a polygon with an outer ring and optionally
multiple inner rings The coordinate points that define all of the rings must be
coplanar

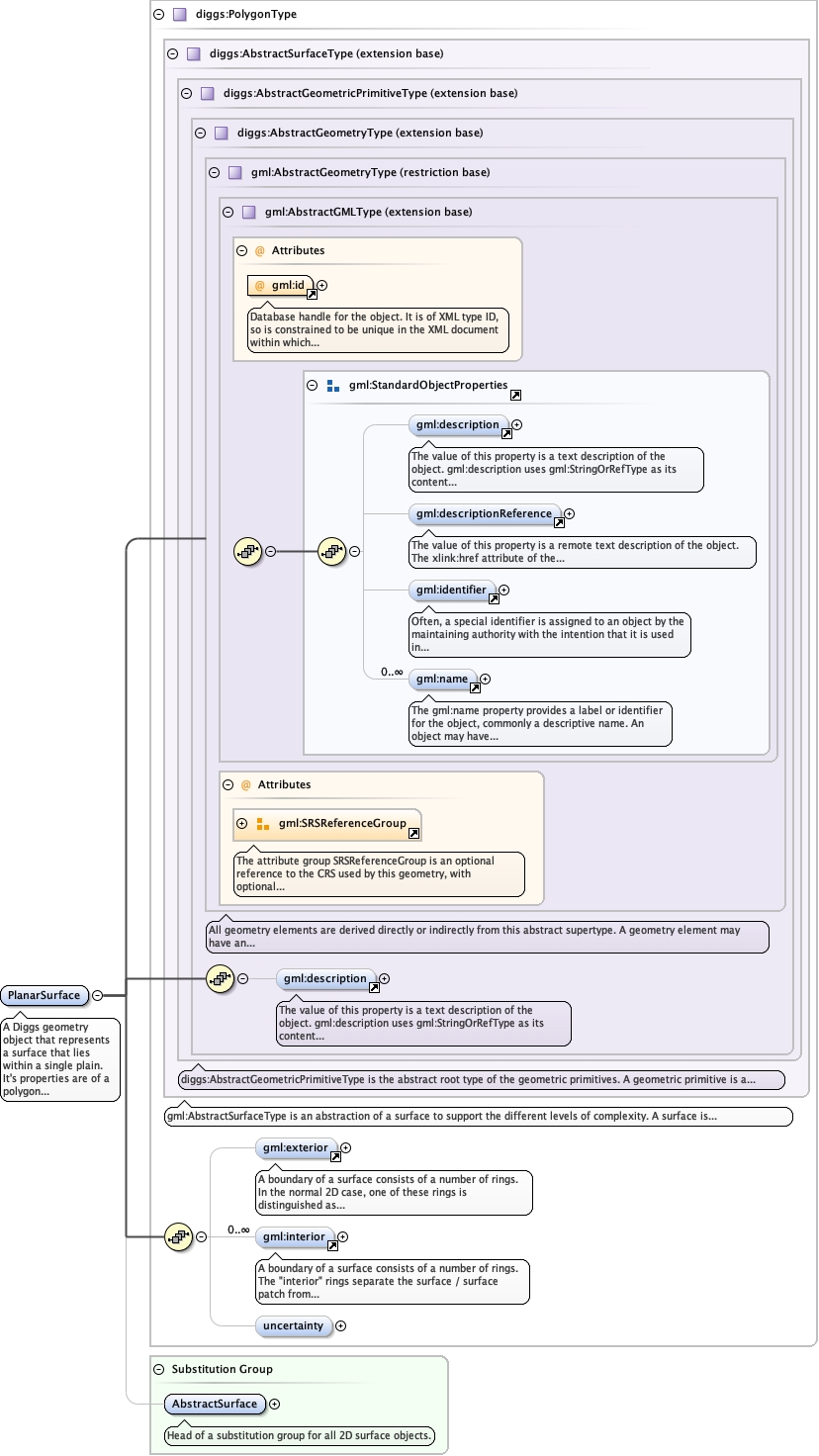

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometryTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptionKernel_xsd_Complex_Type_diggs_AbstractGeometryType.tmp#AbstractGeometryTypeKernel_xsd_Complex_Type_diggs_AbstractGeometricPrimitiveType.tmp#AbstractGeometricPrimitiveTypeGeophysics_xsd_Complex_Type_diggs_AbstractSurfaceType.tmp#AbstractSurfaceTypegml3_2Profile_diggs_xsd_Element_gml_exterior.tmp#exteriorgml3_2Profile_diggs_xsd_Element_gml_interior.tmp#interiorKernel_xsd_Complex_Type_diggs_PolygonType.tmp#PolygonType_uncertaintyKernel_xsd_Complex_Type_diggs_PolygonType.tmp#PolygonTypeGeophysics_xsd_Element_diggs_AbstractSurface.tmp#http___diggsml.org_schema-dev_AbstractSurface
Type diggs:PolygonType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:uncertainty, gml:description, gml:exterior, gml:interior
Instance

<diggs:PlanarSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:exterior>{0,1}</gml:exterior>
  <gml:interior>{0,unbounded}</gml:interior>
  <diggs:uncertainty>{0,1}</diggs:uncertainty>
</diggs:PlanarSurface>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element name="PlanarSurface" substitutionGroup="diggs:AbstractSurface" type="diggs:PolygonType">
  <annotation>
    <documentation>A Diggs geometry object that represents a surface that lies within a single plain. It's properties are of a polygon with an outer ring and optionally multiple inner rings The coordinate points that define all of the rings must be coplanar</documentation>
  </annotation>
</element>
