Element diggs:MultiPlanarSurface
Namespace http://diggsml.org/schema-dev
Annotations

A Diggs geometry object that represents a surface that does not lie
within a single plane. It contains an array of polygon patches, each of which
contain and inner and optionally outer ring that define the extent of the patch. All
of the coordinate points within a patch must be coplanar, and each patch must share
an edge with an adjacent patch to form a continuous surface.

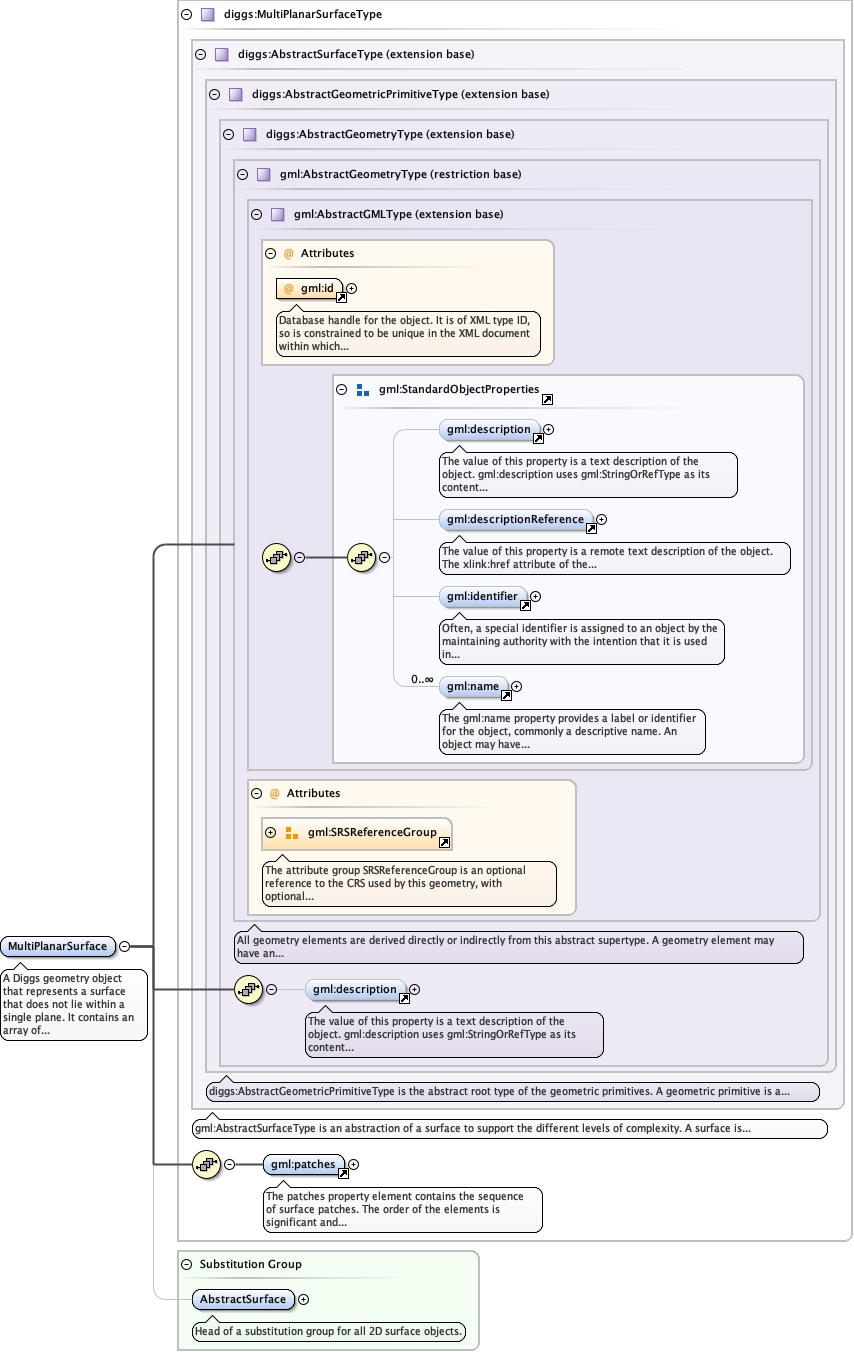

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometryTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptionKernel_xsd_Complex_Type_diggs_AbstractGeometryType.tmp#AbstractGeometryTypeKernel_xsd_Complex_Type_diggs_AbstractGeometricPrimitiveType.tmp#AbstractGeometricPrimitiveTypeGeophysics_xsd_Complex_Type_diggs_AbstractSurfaceType.tmp#AbstractSurfaceTypegml3_2Profile_diggs_xsd_Element_gml_patches.tmp#patchesGeophysics_xsd_Complex_Type_diggs_MultiPlanarSurfaceType.tmp#MultiPlanarSurfaceTypeGeophysics_xsd_Element_diggs_AbstractSurface.tmp#http___diggsml.org_schema-dev_AbstractSurface
Type diggs:MultiPlanarSurfaceType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children gml:description, gml:patches
Instance

<diggs:MultiPlanarSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:patches>{1,1}</gml:patches>
</diggs:MultiPlanarSurface>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element name="MultiPlanarSurface" substitutionGroup="diggs:AbstractSurface" type="diggs:MultiPlanarSurfaceType">
  <annotation>
    <documentation>A Diggs geometry object that represents a surface that does not lie within a single plane. It contains an array of polygon patches, each of which contain and inner and optionally outer ring that define the extent of the patch. All of the coordinate points within a patch must be coplanar, and each patch must share an edge with an adjacent patch to form a continuous surface.</documentation>
  </annotation>
</element>
