Element diggs:Shell
Namespace http://diggsml.org/schema-dev
Annotations

A shell is used to represent a single connected component of the boundary
of a 3D solid. Every diggs:surfaceMember references or contains one surface, i.e.
any element which is substitutable for diggs:AbstractSurface. In the context of a
shell, the surfaces describe the boundary of the solid. If provided, the
aggregationType attribute shall have the value "set".

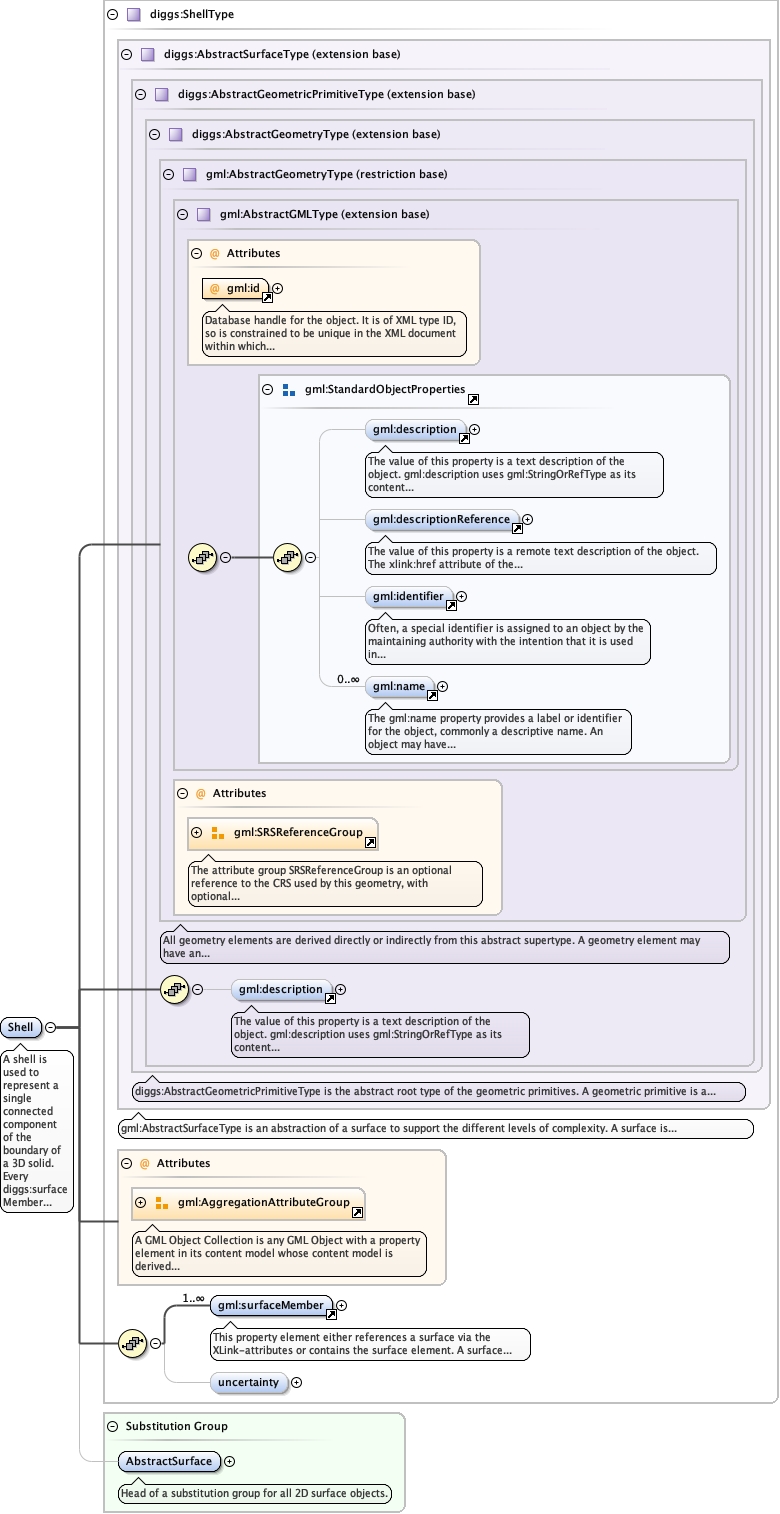

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometryTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptionKernel_xsd_Complex_Type_diggs_AbstractGeometryType.tmp#AbstractGeometryTypeKernel_xsd_Complex_Type_diggs_AbstractGeometricPrimitiveType.tmp#AbstractGeometricPrimitiveTypeGeophysics_xsd_Complex_Type_diggs_AbstractSurfaceType.tmp#AbstractSurfaceTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_AggregationAttributeGroup.tmp#AggregationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_surfaceMember.tmp#surfaceMemberGeophysics_xsd_Complex_Type_diggs_ShellType.tmp#http___diggsml.org_schema-dev_ShellType_uncertaintyGeophysics_xsd_Complex_Type_diggs_ShellType.tmp#http___diggsml.org_schema-dev_ShellTypeGeophysics_xsd_Element_diggs_AbstractSurface.tmp#http___diggsml.org_schema-dev_AbstractSurface
Type diggs:ShellType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Complex Type diggs:ShellPropertyType
Model
gml:description{0,1} , gml:surfaceMember+ , diggs:uncertainty{0,1}
Children diggs:uncertainty, gml:description, gml:surfaceMember
Instance

<diggs:Shell aggregationType="" axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:surfaceMember xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,unbounded}</gml:surfaceMember>
  <diggs:uncertainty>{0,1}</diggs:uncertainty>
</diggs:Shell>
Attributes
QName Type Use Annotation
aggregationType gml:AggregationType optional
axisLabels gml:NCNameList optional
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element name="Shell" type="diggs:ShellType" substitutionGroup="diggs:AbstractSurface">
  <annotation>
    <documentation>A shell is used to represent a single connected component of the boundary of a 3D solid. Every diggs:surfaceMember references or contains one surface, i.e. any element which is substitutable for diggs:AbstractSurface. In the context of a shell, the surfaces describe the boundary of the solid. If provided, the aggregationType attribute shall have the value "set".</documentation>
  </annotation>
</element>
XML Schema documentation generated by ® XML Editor.
