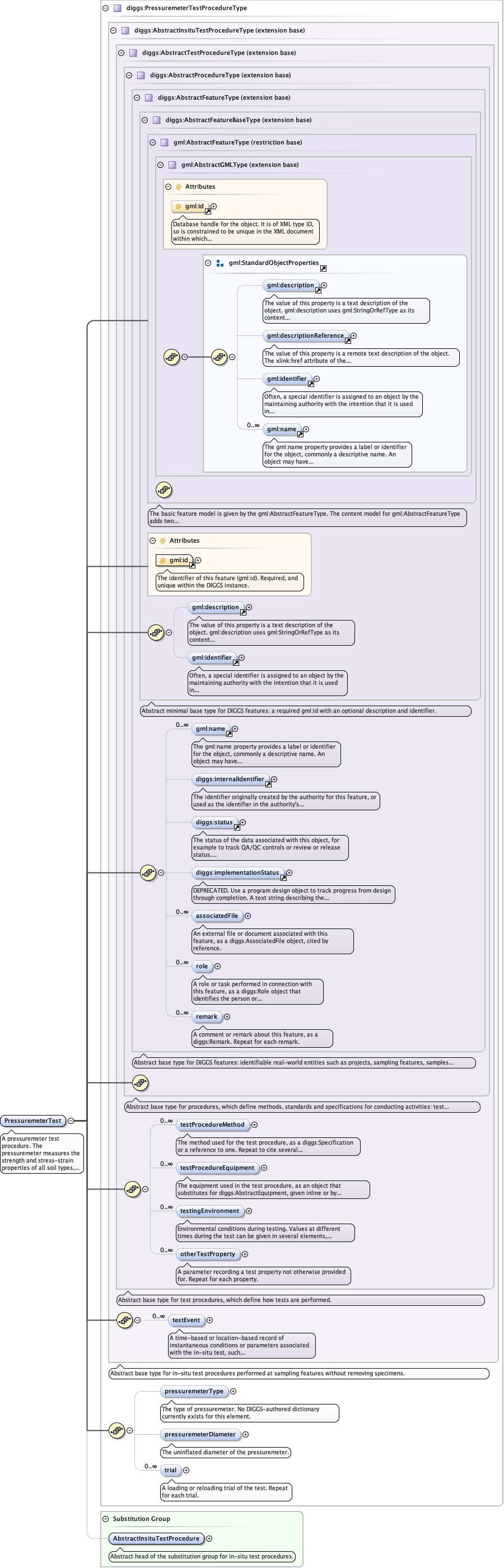

Schema documentation for component diggs:PressuremeterTest

A pressuremeter test procedure. The pressuremeter measures the strength and stress-strain properties of all soil types, including soft rock. It is used primarily to calculate the bearing capacity and settlement of shallow and deep foundations, the deformation of laterally loaded piles and sheet piles, and the resistance of anchors.

<diggs:PressuremeterTest gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,unbounded}</diggs:testEvent>
  <diggs:pressuremeterType codeSpace="">{0,1}</diggs:pressuremeterType>
  <diggs:pressuremeterDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs:pressuremeterDiameter>
  <diggs:trial>{0,unbounded}</diggs:trial>
</diggs:PressuremeterTest>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="PressuremeterTest" type="diggs:PressuremeterTestProcedureType" abstract="false" substitutionGroup="diggs:AbstractInsituTestProcedure"> <annotation> <documentation>A pressuremeter test procedure. The pressuremeter measures the strength and stress-strain properties of all soil types, including soft rock. It is used primarily to calculate the bearing capacity and settlement of shallow and deep foundations, the deformation of laterally loaded piles and sheet piles, and the resistance of anchors.</documentation> </annotation> </element>
