Element diggs:PressuremeterTestTrialType / diggs:trialNo
Namespace http://diggsml.org/schemas/3
Annotations

The pressuremeter loading or reloading cycle of the trial.

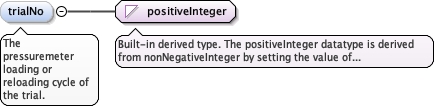

Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element name="trialNo" type="positiveInteger" minOccurs="0">
  <annotation>
    <documentation>The pressuremeter loading or reloading cycle of the trial.</documentation>
  </annotation>
</element>
Element diggs:PressuremeterTestTrialType / diggs:shearModulus
Namespace http://diggsml.org/schemas/3
Annotations

The unload or reload shear modulus for the cycle.

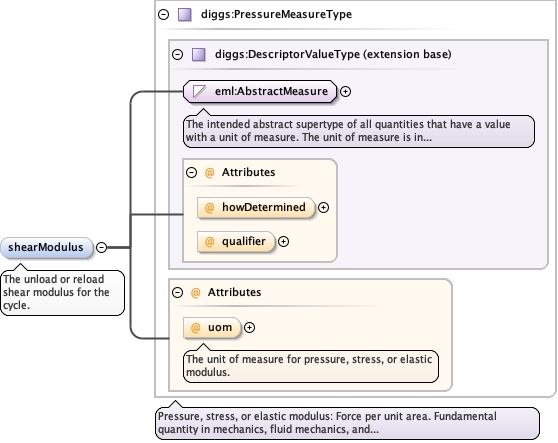

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element name="shearModulus" type="diggs:PressureMeasureType" minOccurs="0">
  <annotation>
    <documentation>The unload or reload shear modulus for the cycle.</documentation>
  </annotation>
</element>
Element diggs:PressuremeterTestTrialType / diggs:meanStrain
Namespace http://diggsml.org/schemas/3
Annotations

The mean strain of the cycle.
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element name="meanStrain" type="double" minOccurs="0">
  <annotation>
    <documentation>The mean strain of the cycle.</documentation>
  </annotation>
</element>
Element diggs:PressuremeterTestTrialType / diggs:strainRange
Namespace http://diggsml.org/schemas/3
Annotations

The strain range or amplitude of the cycle.
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element name="strainRange" type="double" minOccurs="0">
  <annotation>
    <documentation>The strain range or amplitude of the cycle.</documentation>
  </annotation>
</element>
Element diggs:PressuremeterTestTrialType / diggs:meanPressure
Namespace http://diggsml.org/schemas/3
Annotations

The mean pressure of the cycle.

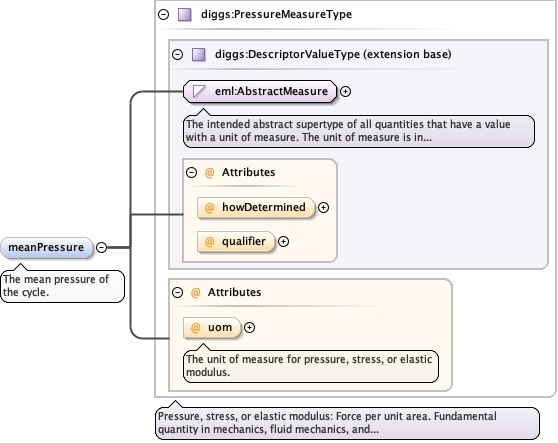

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element name="meanPressure" type="diggs:PressureMeasureType" minOccurs="0">
  <annotation>
    <documentation>The mean pressure of the cycle.</documentation>
  </annotation>
</element>
Element diggs:PressuremeterTestTrialType / diggs:pressureRange
Namespace http://diggsml.org/schemas/3
Annotations

The pressure range or amplitude of the cycle.

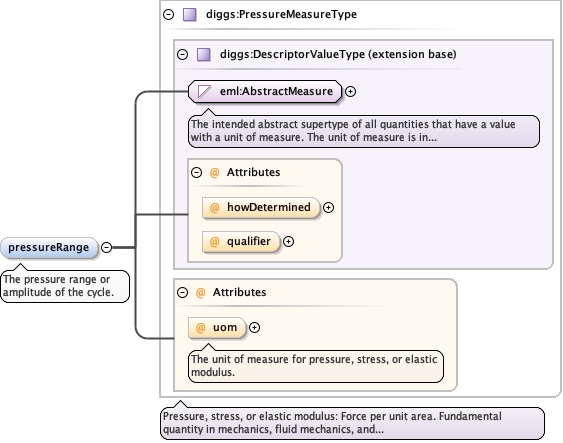

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element name="pressureRange" type="diggs:PressureMeasureType" minOccurs="0">
  <annotation>
    <documentation>The pressure range or amplitude of the cycle.</documentation>
  </annotation>
</element>
Element diggs:PressuremeterTestTrialType / diggs:linearity
Namespace http://diggsml.org/schemas/3
Annotations

The linearity exponent (Bolton and Whittle, 1999).
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element name="linearity" type="double" minOccurs="0">
  <annotation>
    <documentation>The linearity exponent (Bolton and Whittle, 1999).</documentation>
  </annotation>
</element>
Complex Type diggs:PressuremeterTestTrialType
Namespace http://diggsml.org/schemas/3

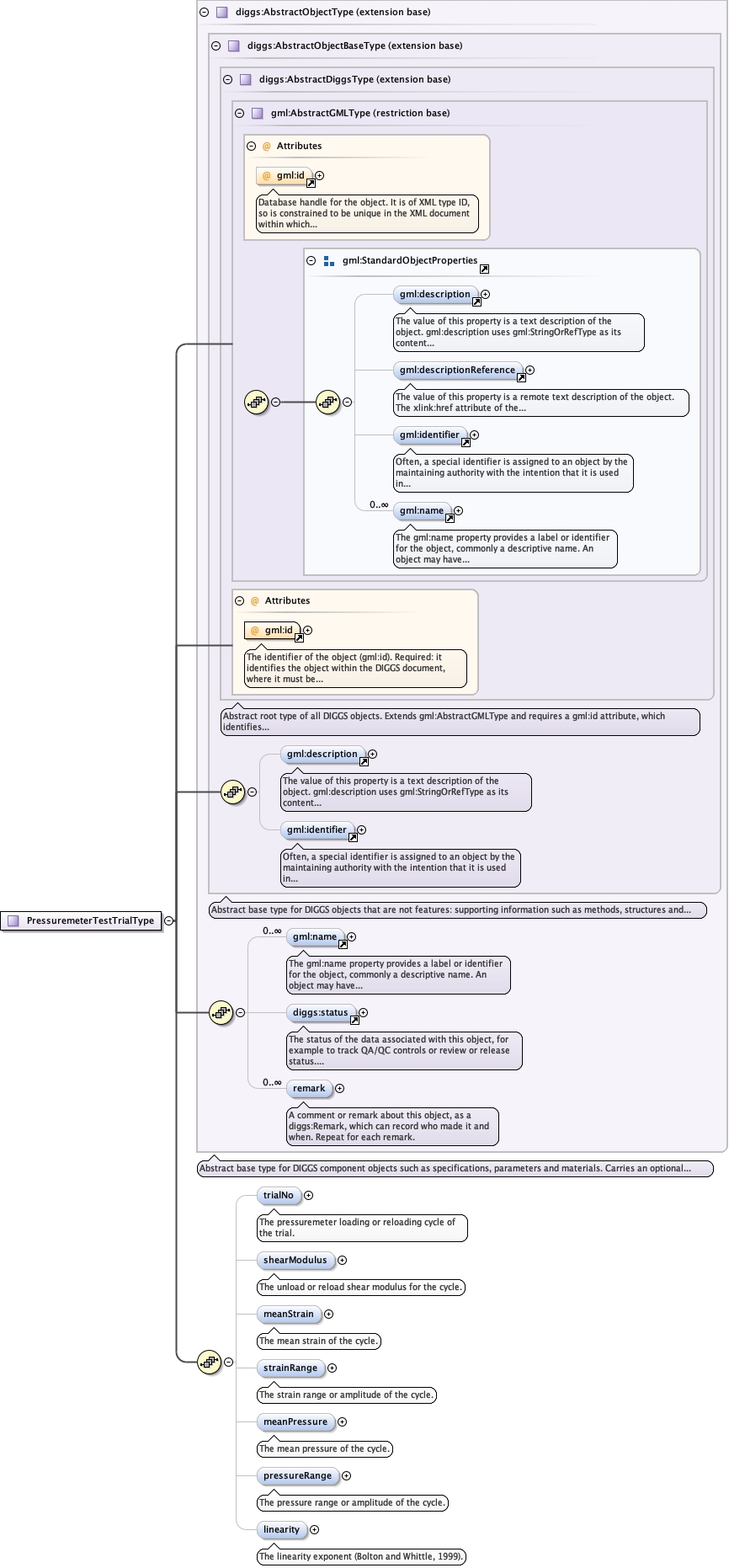

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeExtProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_trialNoExtProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_shearModulusExtProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_meanStrainExtProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_strainRangeExtProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_meanPressureExtProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_pressureRangeExtProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_linearity
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:linearity, diggs:meanPressure, diggs:meanStrain, diggs:pressureRange, diggs:remark, diggs:shearModulus, diggs:status, diggs:strainRange, diggs:trialNo, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="PressuremeterTestTrialType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="trialNo" type="positiveInteger" minOccurs="0">
          <annotation>
            <documentation>The pressuremeter loading or reloading cycle of the trial.</documentation>
          </annotation>
        </element>
        <element name="shearModulus" type="diggs:PressureMeasureType" minOccurs="0">
          <annotation>
            <documentation>The unload or reload shear modulus for the cycle.</documentation>
          </annotation>
        </element>
        <element name="meanStrain" type="double" minOccurs="0">
          <annotation>
            <documentation>The mean strain of the cycle.</documentation>
          </annotation>
        </element>
        <element name="strainRange" type="double" minOccurs="0">
          <annotation>
            <documentation>The strain range or amplitude of the cycle.</documentation>
          </annotation>
        </element>
        <element name="meanPressure" type="diggs:PressureMeasureType" minOccurs="0">
          <annotation>
            <documentation>The mean pressure of the cycle.</documentation>
          </annotation>
        </element>
        <element name="pressureRange" type="diggs:PressureMeasureType" minOccurs="0">
          <annotation>
            <documentation>The pressure range or amplitude of the cycle.</documentation>
          </annotation>
        </element>
        <element name="linearity" type="double" minOccurs="0">
          <annotation>
            <documentation>The linearity exponent (Bolton and Whittle, 1999).</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
