Element diggs:MCVTestTrialType / diggs:trialNo
Namespace http://diggsml.org/schemas/3
Annotations

The number of the test cycle.
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element name="trialNo" type="positiveInteger" minOccurs="0">
  <annotation>
    <documentation>The number of the test cycle.</documentation>
  </annotation>
</element>

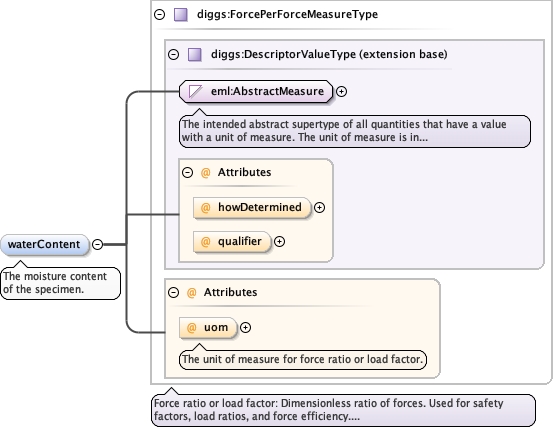

Element diggs:MCVTestTrialType / diggs:waterContent
Namespace http://diggsml.org/schemas/3
Annotations

The moisture content of the specimen.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForcePerForceMeasureType.tmp#ForcePerForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForcePerForceMeasureType.tmp#ForcePerForceMeasureType
Type diggs:ForcePerForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForcePerForceUomEnumType optional
The unit of measure for force ratio or load factor.
Source

<element name="waterContent" type="diggs:ForcePerForceMeasureType" minOccurs="0">
  <annotation>
    <documentation>The moisture content of the specimen.</documentation>
  </annotation>
</element>

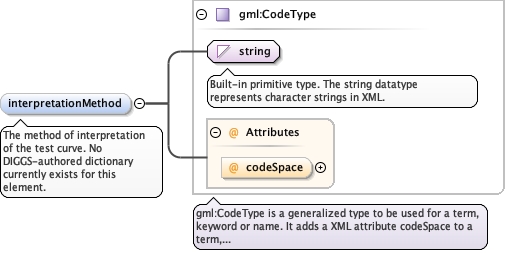

Element diggs:MCVTestTrialType / diggs:interpretationMethod
Namespace http://diggsml.org/schemas/3
Annotations

The method of interpretation of the test curve. No DIGGS-authored
dictionary currently exists for this element.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="interpretationMethod" type="gml:CodeType" minOccurs="0">
  <annotation>
    <documentation>The method of interpretation of the test curve. No DIGGS-authored dictionary currently exists for this element.</documentation>
  </annotation>
</element>

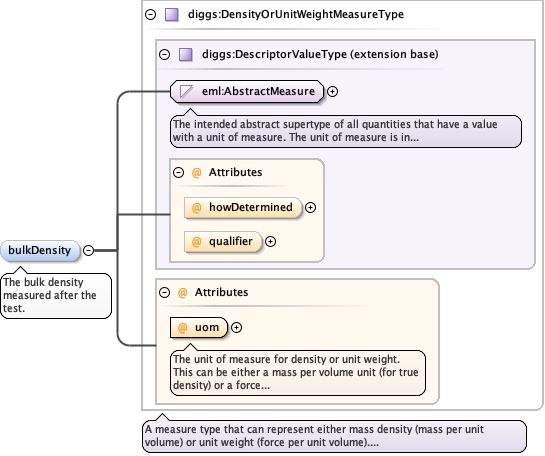

Element diggs:MCVTestTrialType / diggs:bulkDensity
Namespace http://diggsml.org/schemas/3
Annotations

The bulk density measured after the test.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType
Type diggs:DensityOrUnitWeightMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DiggsDensityOrUnitWeightUomEnumType required
The unit of measure for density or unit weight. This can be either a mass per volume unit (for true density) or a force per volume unit (for unit weight).
Source

<element name="bulkDensity" type="diggs:DensityOrUnitWeightMeasureType" minOccurs="0">
  <annotation>
    <documentation>The bulk density measured after the test.</documentation>
  </annotation>
</element>
Element diggs:MCVTestTrialType / diggs:mcv
Namespace http://diggsml.org/schemas/3
Annotations

The measured MCV.
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element name="mcv" type="double" minOccurs="0">
  <annotation>
    <documentation>The measured MCV.</documentation>
  </annotation>
</element>

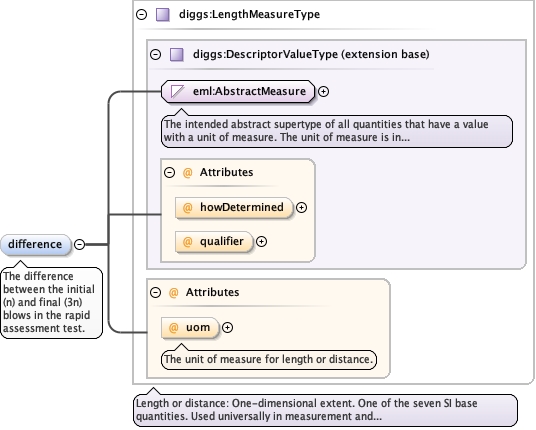

Element diggs:MCVTestTrialType / diggs:difference
Namespace http://diggsml.org/schemas/3
Annotations

The difference between the initial (n) and final (3n) blows in the
rapid assessment test.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="difference" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The difference between the initial (n) and final (3n) blows in the rapid assessment test.</documentation>
  </annotation>
</element>
Element diggs:MCVTestTrialType / diggs:strongerWeaker
Namespace http://diggsml.org/schemas/3
Annotations

Whether the material is stronger or weaker than the pre-calibrated
standard.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element name="strongerWeaker" type="string" minOccurs="0">
  <annotation>
    <documentation>Whether the material is stronger or weaker than the pre-calibrated standard.</documentation>
  </annotation>
</element>

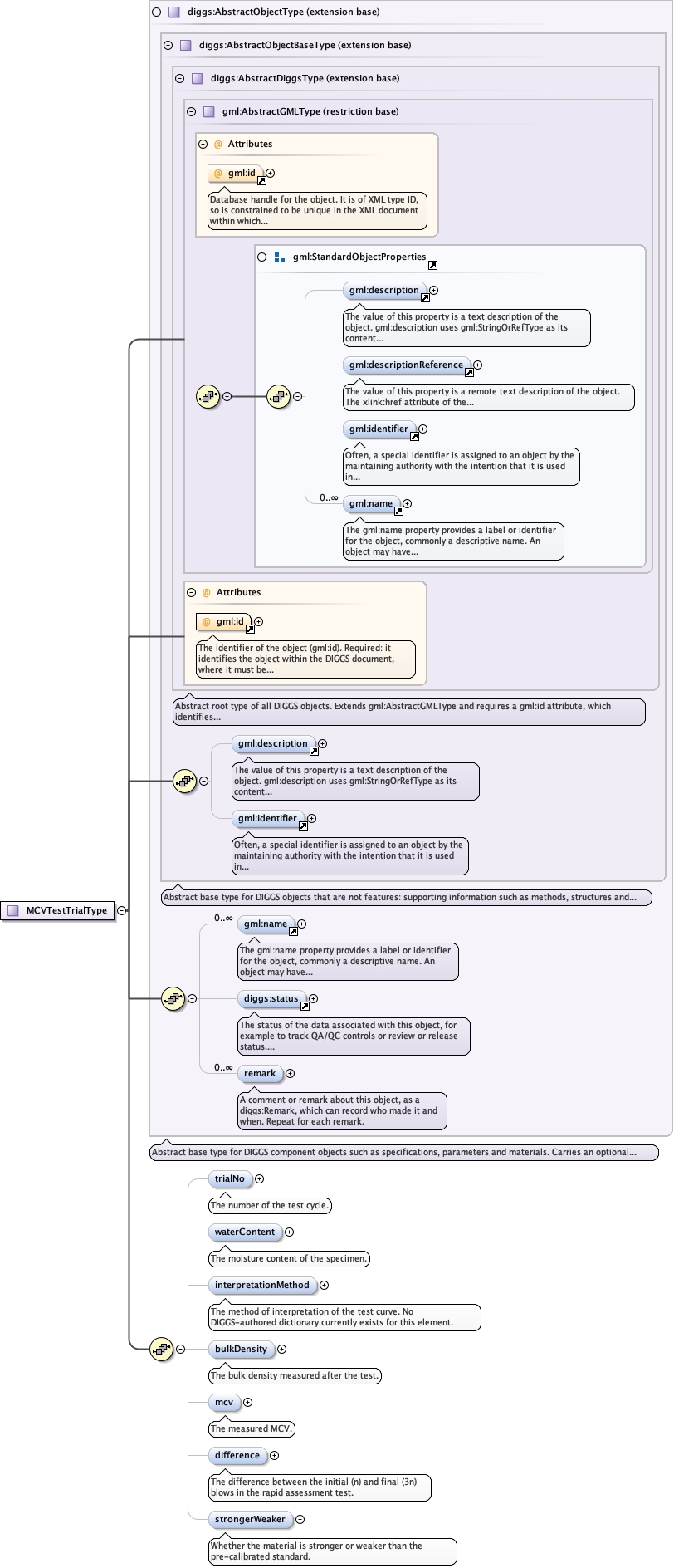

Complex Type diggs:MCVTestTrialType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeExtProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_trialNoExtProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_waterContentExtProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_interpretationMethodExtProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_bulkDensityExtProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_mcvExtProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_differenceExtProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_strongerWeaker
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:bulkDensity, diggs:difference, diggs:interpretationMethod, diggs:mcv, diggs:remark, diggs:status, diggs:strongerWeaker, diggs:trialNo, diggs:waterContent, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="MCVTestTrialType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="trialNo" type="positiveInteger" minOccurs="0">
          <annotation>
            <documentation>The number of the test cycle.</documentation>
          </annotation>
        </element>
        <element name="waterContent" type="diggs:ForcePerForceMeasureType" minOccurs="0">
          <annotation>
            <documentation>The moisture content of the specimen.</documentation>
          </annotation>
        </element>
        <element name="interpretationMethod" type="gml:CodeType" minOccurs="0">
          <annotation>
            <documentation>The method of interpretation of the test curve. No DIGGS-authored dictionary currently exists for this element.</documentation>
          </annotation>
        </element>
        <element name="bulkDensity" type="diggs:DensityOrUnitWeightMeasureType" minOccurs="0">
          <annotation>
            <documentation>The bulk density measured after the test.</documentation>
          </annotation>
        </element>
        <element name="mcv" type="double" minOccurs="0">
          <annotation>
            <documentation>The measured MCV.</documentation>
          </annotation>
        </element>
        <element name="difference" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The difference between the initial (n) and final (3n) blows in the rapid assessment test.</documentation>
          </annotation>
        </element>
        <element name="strongerWeaker" type="string" minOccurs="0">
          <annotation>
            <documentation>Whether the material is stronger or weaker than the pre-calibrated standard.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
