Schema documentation for component diggs:SampleGroupType

Showing:

Annotations

Attributes

Diagrams

Model

Source

Used by

Complex Type diggs:SampleGroupType

Namespace

http://diggsml.org/schemas/3

Annotations

DEPRECATED. Use a type deriving from diggs:AbstractSampleGroupType or
diggs:AbstractMeasurementGroupType. A group type holding measurement references,
despite its name.

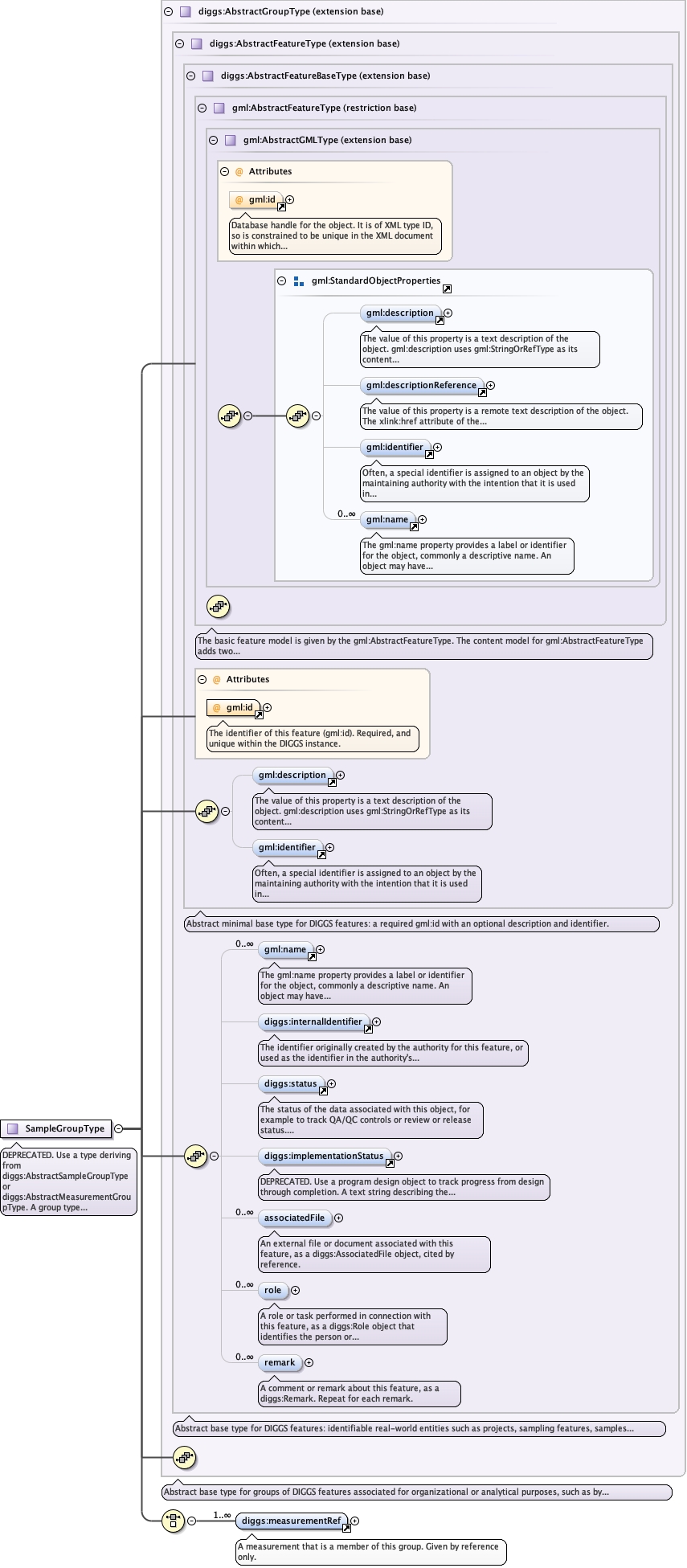

Diagram

Type

extension of diggs:AbstractGroupType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - diggs:AbstractFeatureBaseType
    - diggs:AbstractFeatureType
      - diggs:AbstractGroupType

        diggs:SampleGroupType

Used by

Elements

diggs:MeasurementGroup, diggs:SampleGroup

Model

gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:internalIdentifier{0,1} , diggs:status{0,1} , diggs:implementationStatus{0,1} , diggs:associatedFile* , diggs:role* , diggs:remark* , (diggs:measurementRef+)

Children

diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:measurementRef, diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name

Attributes

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<complexType name="SampleGroupType">
  <annotation>
    <appinfo>
      <diggs:deprecated since="3.1.0" note="a type deriving from diggs:AbstractSampleGroupType or diggs:AbstractMeasurementGroupType"/>
    </appinfo>
    <documentation>DEPRECATED. Use a type deriving from diggs:AbstractSampleGroupType or diggs:AbstractMeasurementGroupType. A group type holding measurement references, despite its name.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractGroupType">
      <choice>
        <element maxOccurs="unbounded" minOccurs="1" ref="diggs:measurementRef">
          <annotation>
            <documentation>A measurement that is a member of this group. Given by reference only.</documentation>
          </annotation>
        </element>
      </choice>
    </extension>
  </complexContent>
</complexType>
