Element diggs:SampleGroup
Namespace http://diggsml.org/schemas/3
Annotations

DEPRECATED. Use a concrete group substituting diggs:AbstractSampleGroup,
whose member samples cite it through sampleGroupRef. A feature intended to group
samples; its type holds measurement references, not sample
references.

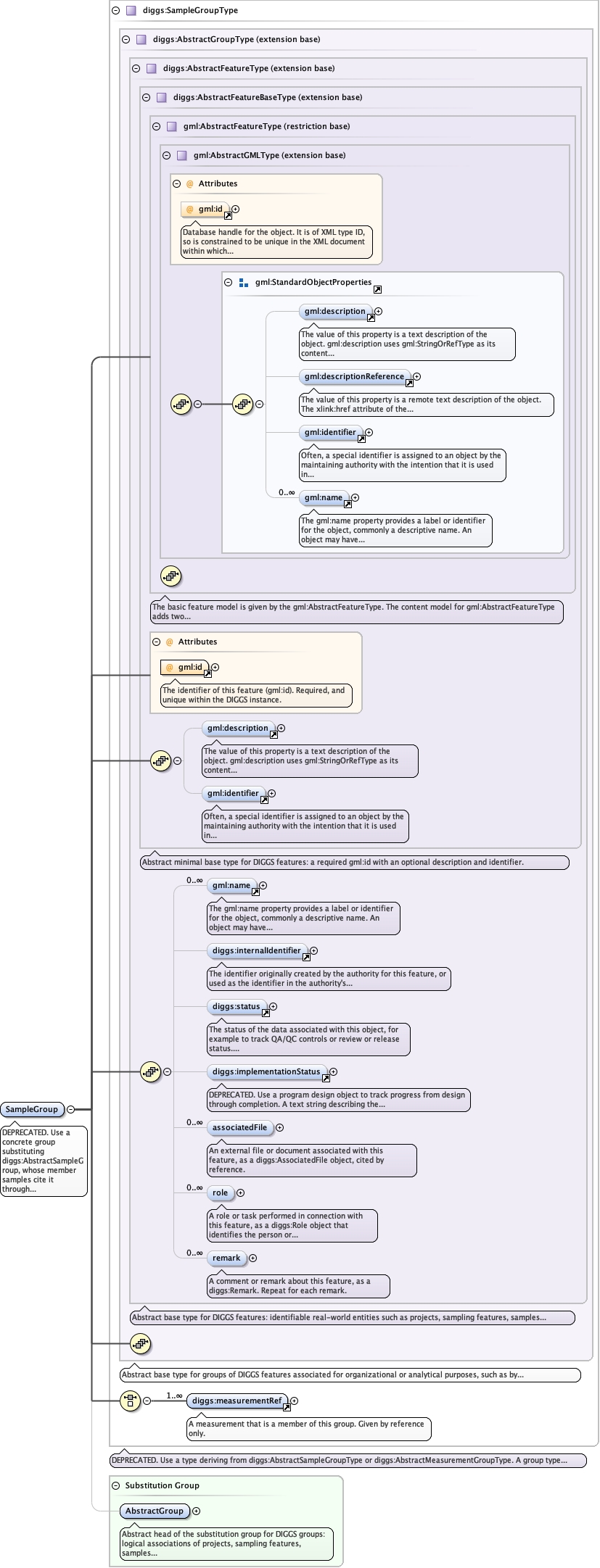

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractGroupType.tmp#AbstractGroupTypeCommon_xsd_Element_diggs_measurementRef.tmp#measurementRefExtGroup_xsd_Complex_Type_diggs_SampleGroupType.tmp#SampleGroupTypeAbstractTypes_xsd_Element_diggs_AbstractGroup.tmp#AbstractGroup
Type diggs:SampleGroupType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:measurementRef, diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:SampleGroup gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:measurementRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:measurementRef>
</diggs:SampleGroup>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="SampleGroup" substitutionGroup="diggs:AbstractGroup" type="diggs:SampleGroupType">
  <annotation>
    <appinfo>
      <diggs:deprecated since="3.1.0" note="a concrete group substituting diggs:AbstractSampleGroup, whose member samples cite it through diggs:sampleGroupRef"/>
    </appinfo>
    <documentation>DEPRECATED. Use a concrete group substituting diggs:AbstractSampleGroup, whose member samples cite it through sampleGroupRef. A feature intended to group samples; its type holds measurement references, not sample references.</documentation>
  </annotation>
</element>
