Element diggs:BoreholeEvent
Namespace http://diggsml.org/schemas/3
Annotations

A non-geological event recorded during construction of a borehole, at a depth or
time. Typical content is driller's comments from the drilling log, such as an
incident ("Fishing for broken U100"), a record that fits no other group ("Pushing
boulder ahead of casing") or a non-geological observation ("Strong petrol smell").

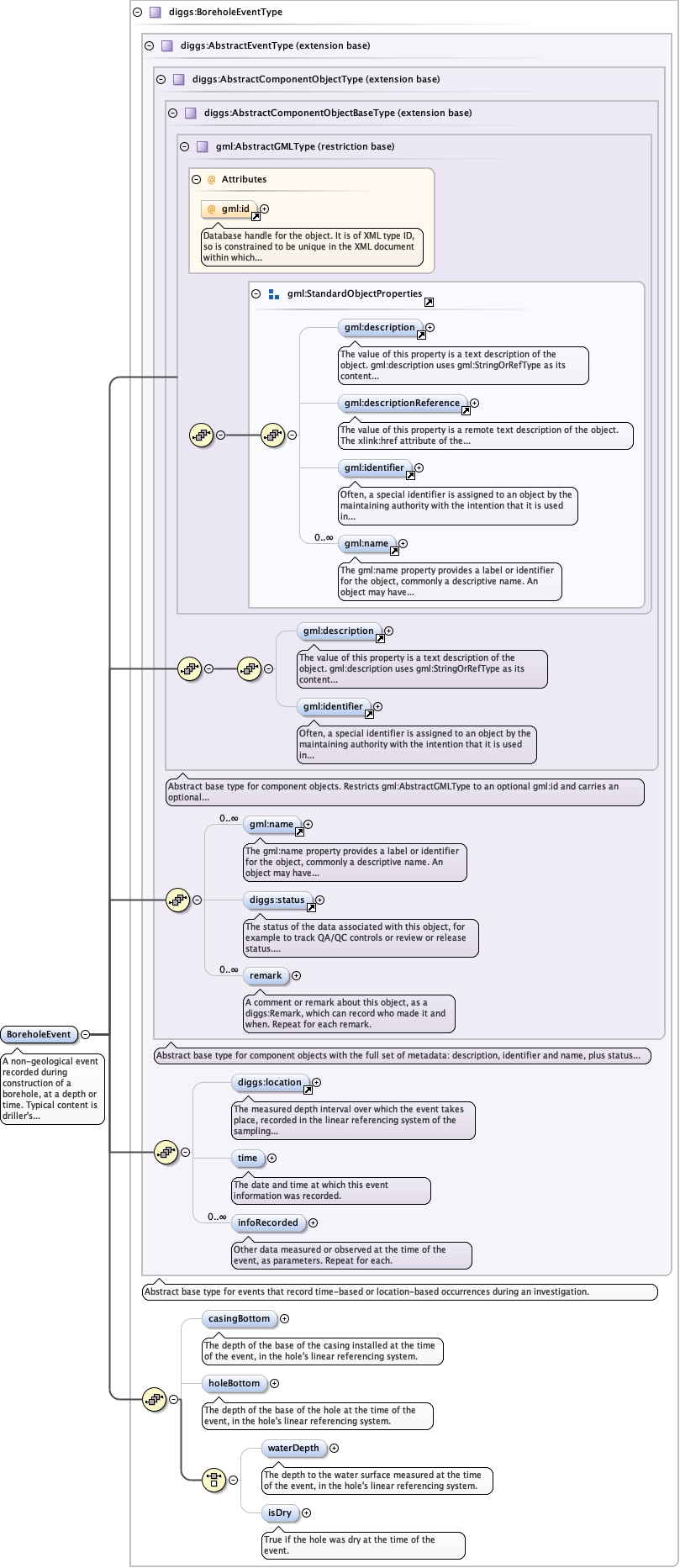

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypeCommon_xsd_Element_diggs_location.tmp#locationAbstractTypes_xsd_Complex_Type_diggs_AbstractEventType.tmp#AbstractEventType_timeAbstractTypes_xsd_Complex_Type_diggs_AbstractEventType.tmp#AbstractEventType_infoRecordedAbstractTypes_xsd_Complex_Type_diggs_AbstractEventType.tmp#AbstractEventTypeCore_xsd_Complex_Type_diggs_BoreholeEventType.tmp#BoreholeEventType_casingBottomCore_xsd_Complex_Type_diggs_BoreholeEventType.tmp#BoreholeEventType_holeBottomCore_xsd_Complex_Type_diggs_BoreholeEventType.tmp#BoreholeEventType_waterDepthCore_xsd_Complex_Type_diggs_BoreholeEventType.tmp#BoreholeEventType_isDryCore_xsd_Complex_Type_diggs_BoreholeEventType.tmp#BoreholeEventType
Type diggs:BoreholeEventType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:casingBottom, diggs:holeBottom, diggs:infoRecorded, diggs:isDry, diggs:location, diggs:remark, diggs:status, diggs:time, diggs:waterDepth, gml:description, gml:identifier, gml:name
Instance

<diggs:BoreholeEvent gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:location owns="false" xlink:href="" nilReason="">{0,1}</diggs:location>
  <diggs:time>{0,1}</diggs:time>
  <diggs:infoRecorded>{0,unbounded}</diggs:infoRecorded>
  <diggs:casingBottom owns="false" xlink:href="" nilReason="">{0,1}</diggs:casingBottom>
  <diggs:holeBottom owns="false" xlink:href="" nilReason="">{0,1}</diggs:holeBottom>
  <diggs:waterDepth owns="false" xlink:href="" nilReason="">{0,1}</diggs:waterDepth>
  <diggs:isDry>{0,1}</diggs:isDry>
</diggs:BoreholeEvent>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="BoreholeEvent" type="diggs:BoreholeEventType">
  <annotation>
    <documentation>A non-geological event recorded during construction of a borehole, at a depth or time. Typical content is driller's comments from the drilling log, such as an incident ("Fishing for broken U100"), a record that fits no other group ("Pushing boulder ahead of casing") or a non-geological observation ("Strong petrol smell").</documentation>
  </annotation>
</element>
