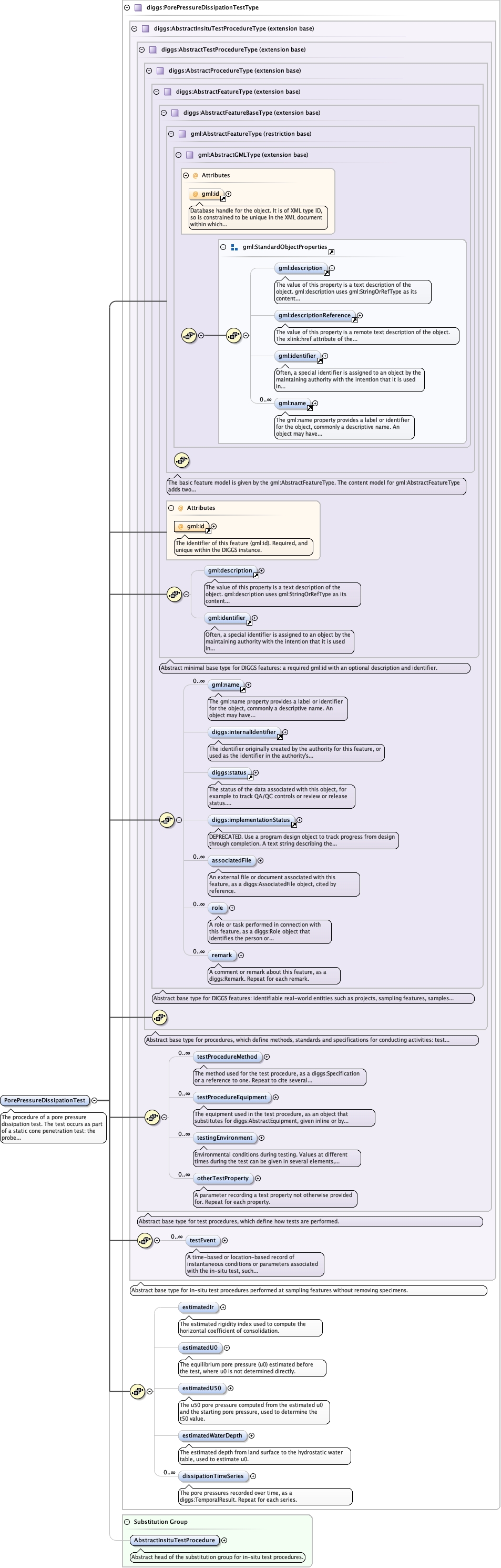

Schema documentation for component diggs:PorePressureDissipationTest

The procedure of a pore pressure dissipation test. The test occurs as part of a static cone penetration test: the probe stops advancing and the excess pore pressures are recorded over time. It measures the equilibrium pore pressure and estimates the in situ horizontal coefficient of consolidation (ch) and horizontal coefficient of permeability (kh).

<diggs:PorePressureDissipationTest gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,unbounded}</diggs:testEvent>
  <diggs:estimatedIr howDetermined="" qualifier="" uom="">{0,1}</diggs:estimatedIr>
  <diggs:estimatedU0 howDetermined="" qualifier="" uom="">{0,1}</diggs:estimatedU0>
  <diggs:estimatedU50 howDetermined="" qualifier="" uom="">{0,1}</diggs:estimatedU50>
  <diggs:estimatedWaterDepth howDetermined="" qualifier="" uom="">{0,1}</diggs:estimatedWaterDepth>
  <diggs:dissipationTimeSeries>{0,unbounded}</diggs:dissipationTimeSeries>
</diggs:PorePressureDissipationTest>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="PorePressureDissipationTest" type="diggs:PorePressureDissipationTestType" substitutionGroup="diggs:AbstractInsituTestProcedure" abstract="false"> <annotation> <documentation>The procedure of a pore pressure dissipation test. The test occurs as part of a static cone penetration test: the probe stops advancing and the excess pore pressures are recorded over time. It measures the equilibrium pore pressure and estimates the in situ horizontal coefficient of consolidation (ch) and horizontal coefficient of permeability (kh).</documentation> </annotation> </element>
