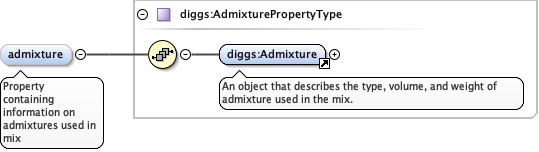

Schema documentation for component diggs:admixture

Property containing information on admixtures used in mix

content	complex
minOccurs	0
maxOccurs	unbounded

<diggs:admixture xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Admixture gml:id="" xml:lang="">{1,1}</diggs:Admixture>
</diggs:admixture>

<element minOccurs="0" name="admixture" type="diggs:AdmixturePropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Property containing information on admixtures used in mix</documentation>
  </annotation>
</element>

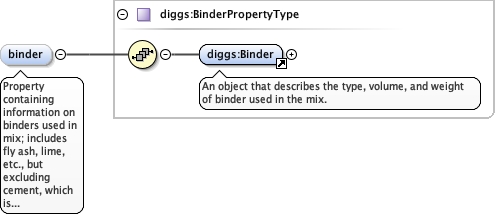

Property containing information on binders used in mix;
includes fly ash, lime, etc., but excluding cement, which is
recorded in its own component property

content	complex
minOccurs	0
maxOccurs	unbounded

<diggs:binder xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Binder gml:id="" xml:lang="">{1,1}</diggs:Binder>
</diggs:binder>

<element minOccurs="0" name="binder" type="diggs:BinderPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Property containing information on binders used in mix; includes fly ash, lime, etc., but excluding cement, which is recorded in its own component property</documentation>
  </annotation>
</element>

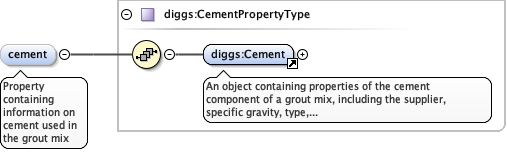

Property containing information on cement used in the
grout mix

content	complex
minOccurs	0
maxOccurs	unbounded

<diggs:cement xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Cement gml:id="" xml:lang="">{1,1}</diggs:Cement>
</diggs:cement>

<element minOccurs="0" name="cement" type="diggs:CementPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Property containing information on cement used in the grout mix</documentation>
  </annotation>
</element>

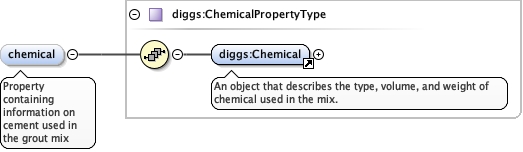

Property containing information on cement used in the
grout mix

content	complex
minOccurs	0
maxOccurs	unbounded

<diggs:chemical xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Chemical gml:id="" xml:lang="">{1,1}</diggs:Chemical>
</diggs:chemical>

<element minOccurs="0" name="chemical" type="diggs:ChemicalPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Property containing information on cement used in the grout mix</documentation>
  </annotation>
</element>

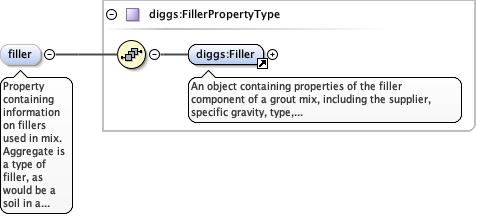

Property containing information on fillers used in mix.
Aggregate is a type of filler, as would be a soil in a soil-cement
mixture used to determine the appropriate slurry-soil mixes for deep
soil mixing

content	complex
minOccurs	0
maxOccurs	unbounded

<diggs:filler xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Filler gml:id="" xml:lang="">{1,1}</diggs:Filler>
</diggs:filler>

<element minOccurs="0" name="filler" type="diggs:FillerPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Property containing information on fillers used in mix. Aggregate is a type of filler, as would be a soil in a soil-cement mixture used to determine the appropriate slurry-soil mixes for deep soil mixing</documentation>
  </annotation>
</element>

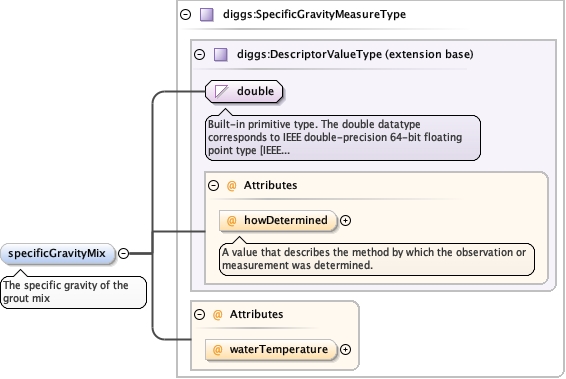

The specific gravity of the grout mix

content	complex
minOccurs	0

QName

Type

Use

Annotation

howDetermined

diggs:DescriptorMethodEnumType

optional

A value that describes the method by which the observation or measurement
was determined.

waterTemperature

string

optional

<element minOccurs="0" name="specificGravityMix" type="diggs:SpecificGravityMeasureType">
  <annotation>
    <documentation>The specific gravity of the grout mix</documentation>
  </annotation>
</element>

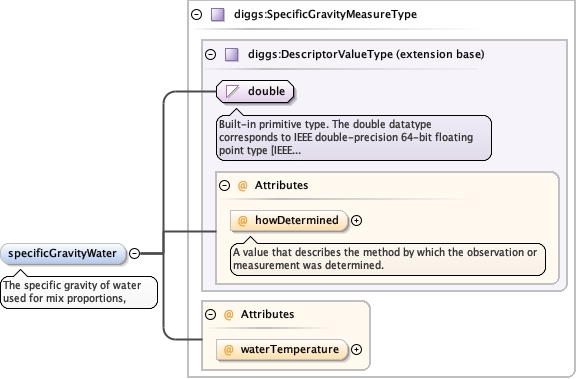

The specific gravity of water used for mix
proportions,

content	complex
minOccurs	0

QName

Type

Use

Annotation

howDetermined

diggs:DescriptorMethodEnumType

optional

A value that describes the method by which the observation or measurement
was determined.

waterTemperature

string

optional

<element minOccurs="0" name="specificGravityWater" type="diggs:SpecificGravityMeasureType">
  <annotation>
    <documentation>The specific gravity of water used for mix proportions,</documentation>
  </annotation>
</element>

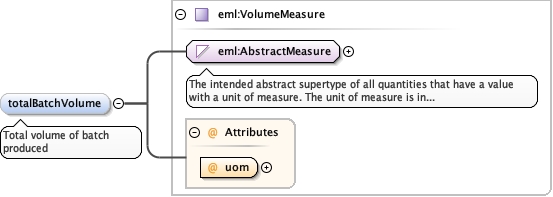

Total volume of batch produced

content	complex
minOccurs	0

QName	Type	Use
uom	eml:VolumeUom	required

<element minOccurs="0" name="totalBatchVolume" type="eml:VolumeMeasure">
  <annotation>
    <documentation>Total volume of batch produced</documentation>
  </annotation>
</element>

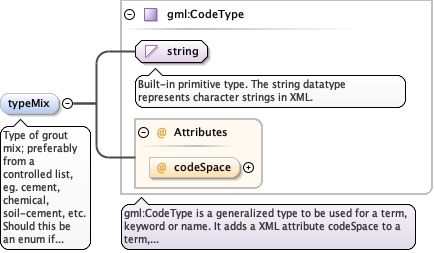

Type of grout mix; preferably from a controlled list, eg.
cement, chemical, soil-cement, etc.

Should this be an enum if only a few common
choices?

content	complex
minOccurs	0

QName	Type	Use
codeSpace	anyURI	optional

<element minOccurs="0" name="typeMix" type="gml:CodeType">
  <annotation>
    <documentation>Type of grout mix; preferably from a controlled list, eg. cement, chemical, soil-cement, etc.</documentation>
    <documentation>Should this be an enum if only a few common choices?</documentation>
  </annotation>
</element>

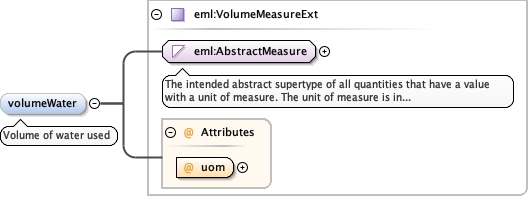

Volume of water used

content	complex
minOccurs	0

QName	Type	Use
uom	eml:VolumeUomExt	required

<element minOccurs="0" name="volumeWater" type="eml:VolumeMeasureExt">
  <annotation>
    <documentation>Volume of water used</documentation>
  </annotation>
</element>

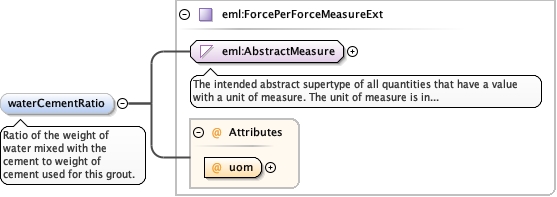

Ratio of the weight of water mixed with the cement to
weight of cement used for this grout.

content	complex
minOccurs	0

QName	Type	Use
uom	eml:ForcePerForceUomExt	required

<element minOccurs="0" name="waterCementRatio" type="eml:ForcePerForceMeasureExt">
  <annotation>
    <documentation>Ratio of the weight of water mixed with the cement to weight of cement used for this grout.</documentation>
  </annotation>
</element>

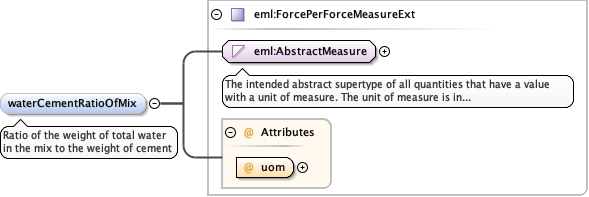

Ratio of the weight of total water in the mix to the
weight of cement

content	complex
minOccurs	0

QName	Type	Use
uom	eml:ForcePerForceUomExt	required

<element minOccurs="0" name="waterCementRatioOfMix" type="eml:ForcePerForceMeasureExt">
  <annotation>
    <documentation>Ratio of the weight of total water in the mix to the weight of cement</documentation>
  </annotation>
</element>

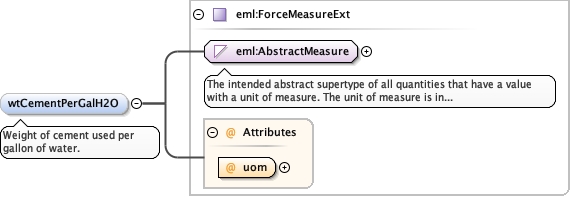

Weight of cement used per gallon of
water.

content	complex
minOccurs	0

QName	Type	Use
uom	eml:ForceUomExt	required

<element minOccurs="0" name="wtCementPerGalH2O" type="eml:ForceMeasureExt">
  <annotation>
    <documentation>Weight of cement used per gallon of water.</documentation>
  </annotation>
</element>

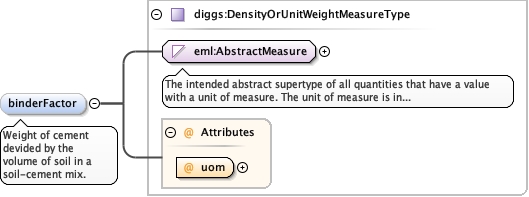

Weight of cement devided by the volume of soil in a
soil-cement mix.

content	complex
minOccurs	0

QName	Type	Use
uom	diggs:diggsDensityOrUnitWeightUom	required

<element minOccurs="0" name="binderFactor" type="diggs:DensityOrUnitWeightMeasureType">
  <annotation>
    <documentation>Weight of cement devided by the volume of soil in a soil-cement mix.</documentation>
  </annotation>
</element>

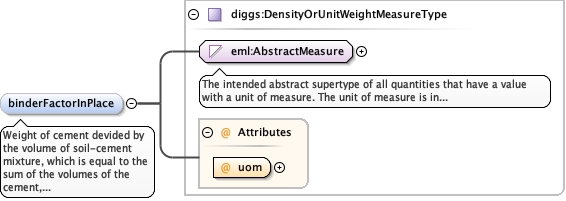

Weight of cement devided by the volume of soil-cement
mixture, which is equal to the sum of the volumes of the cement,
soil, and water.

content	complex
minOccurs	0

QName	Type	Use
uom	diggs:diggsDensityOrUnitWeightUom	required

<element minOccurs="0" name="binderFactorInPlace" type="diggs:DensityOrUnitWeightMeasureType">
  <annotation>
    <documentation>Weight of cement devided by the volume of soil-cement mixture, which is equal to the sum of the volumes of the cement, soil, and water.</documentation>
  </annotation>
</element>

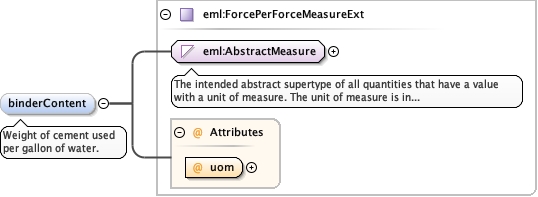

Weight of cement used per gallon of
water.

content	complex
minOccurs	0

QName	Type	Use
uom	eml:ForcePerForceUomExt	required

<element minOccurs="0" name="binderContent" type="eml:ForcePerForceMeasureExt">
  <annotation>
    <documentation>Weight of cement used per gallon of water.</documentation>
  </annotation>
</element>

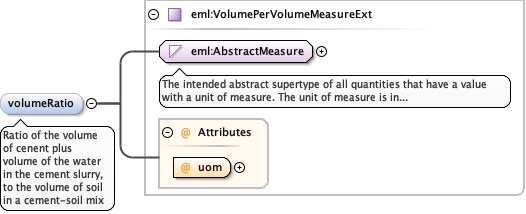

Ratio of the volume of cenent plus volume of the water in
the cement slurry, to the volume of soil in a cement-soil
mix

content	complex
minOccurs	0

QName	Type	Use
uom	eml:VolumePerVolumeUomExt	required

<element minOccurs="0" name="volumeRatio" type="eml:VolumePerVolumeMeasureExt">
  <annotation>
    <documentation>Ratio of the volume of cenent plus volume of the water in the cement slurry, to the volume of soil in a cement-soil mix</documentation>
  </annotation>
</element>

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>

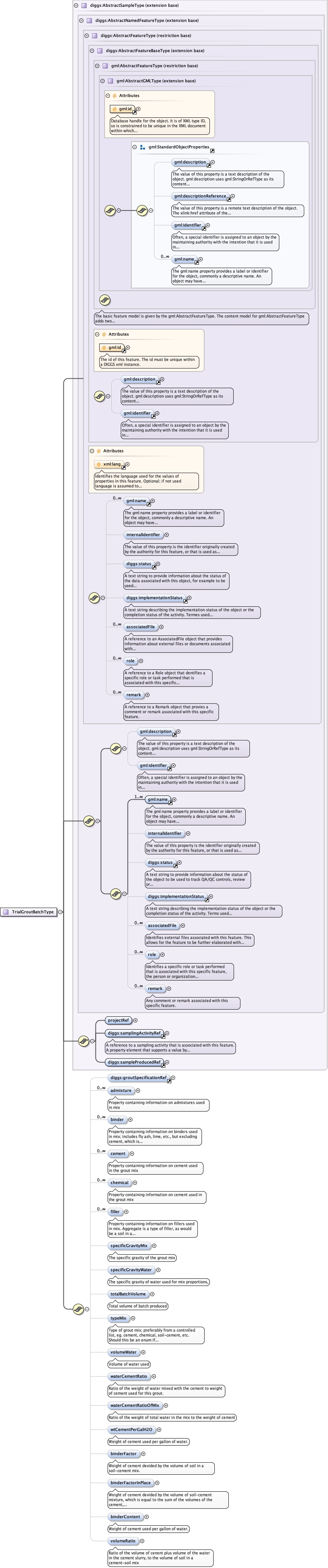

<complexType name="TrialGroutBatchType">
  <complexContent>
    <extension base="diggs:AbstractSampleType">
      <sequence>
        <element minOccurs="0" ref="diggs:groutSpecificationRef"/>
        <element minOccurs="0" name="admixture" type="diggs:AdmixturePropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Property containing information on admixtures used in mix</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="binder" type="diggs:BinderPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Property containing information on binders used in mix; includes fly ash, lime, etc., but excluding cement, which is recorded in its own component property</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="cement" type="diggs:CementPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Property containing information on cement used in the grout mix</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="chemical" type="diggs:ChemicalPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Property containing information on cement used in the grout mix</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="filler" type="diggs:FillerPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Property containing information on fillers used in mix. Aggregate is a type of filler, as would be a soil in a soil-cement mixture used to determine the appropriate slurry-soil mixes for deep soil mixing</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="specificGravityMix" type="diggs:SpecificGravityMeasureType">
          <annotation>
            <documentation>The specific gravity of the grout mix</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="specificGravityWater" type="diggs:SpecificGravityMeasureType">
          <annotation>
            <documentation>The specific gravity of water used for mix proportions,</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totalBatchVolume" type="eml:VolumeMeasure">
          <annotation>
            <documentation>Total volume of batch produced</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="typeMix" type="gml:CodeType">
          <annotation>
            <documentation>Type of grout mix; preferably from a controlled list, eg. cement, chemical, soil-cement, etc.</documentation>
            <documentation>Should this be an enum if only a few common choices?</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="volumeWater" type="eml:VolumeMeasureExt">
          <annotation>
            <documentation>Volume of water used</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="waterCementRatio" type="eml:ForcePerForceMeasureExt">
          <annotation>
            <documentation>Ratio of the weight of water mixed with the cement to weight of cement used for this grout.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="waterCementRatioOfMix" type="eml:ForcePerForceMeasureExt">
          <annotation>
            <documentation>Ratio of the weight of total water in the mix to the weight of cement</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="wtCementPerGalH2O" type="eml:ForceMeasureExt">
          <annotation>
            <documentation>Weight of cement used per gallon of water.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="binderFactor" type="diggs:DensityOrUnitWeightMeasureType">
          <annotation>
            <documentation>Weight of cement devided by the volume of soil in a soil-cement mix.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="binderFactorInPlace" type="diggs:DensityOrUnitWeightMeasureType">
          <annotation>
            <documentation>Weight of cement devided by the volume of soil-cement mixture, which is equal to the sum of the volumes of the cement, soil, and water.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="binderContent" type="eml:ForcePerForceMeasureExt">
          <annotation>
            <documentation>Weight of cement used per gallon of water.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="volumeRatio" type="eml:VolumePerVolumeMeasureExt">
          <annotation>
            <documentation>Ratio of the volume of cenent plus volume of the water in the cement slurry, to the volume of soil in a cement-soil mix</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>

XML Schema documentation generated by <oXygen/>^® XML Editor.

Showing:
