Element diggs:sampleProducedRef
Namespace http://diggsml.org/schema-dev
Annotations
A link to the gml:id of the SampleProduced object contained within the
associated SamplingActivity feature that is associated with this feature. The
associated SampleProduced object has as its properties the location and specific
sampling time for the associated sample.

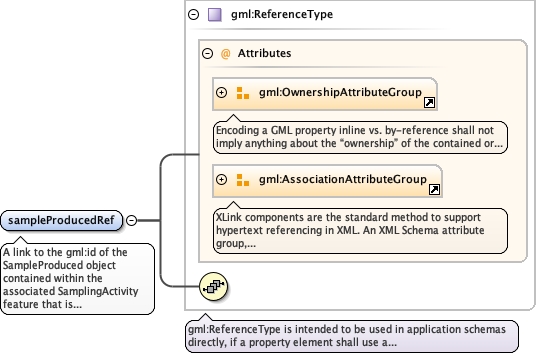

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceType
Type gml:ReferenceType
Properties
content complex
Used by
Model
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source
<element name="sampleProducedRef" type="gml:ReferenceType">
  <annotation>
    <documentation>A link to the gml:id of the SampleProduced object contained within the associated SamplingActivity feature that is associated with this feature. The associated SampleProduced object has as its properties the location and specific sampling time for the associated sample.</documentation>
  </annotation>
</element>
