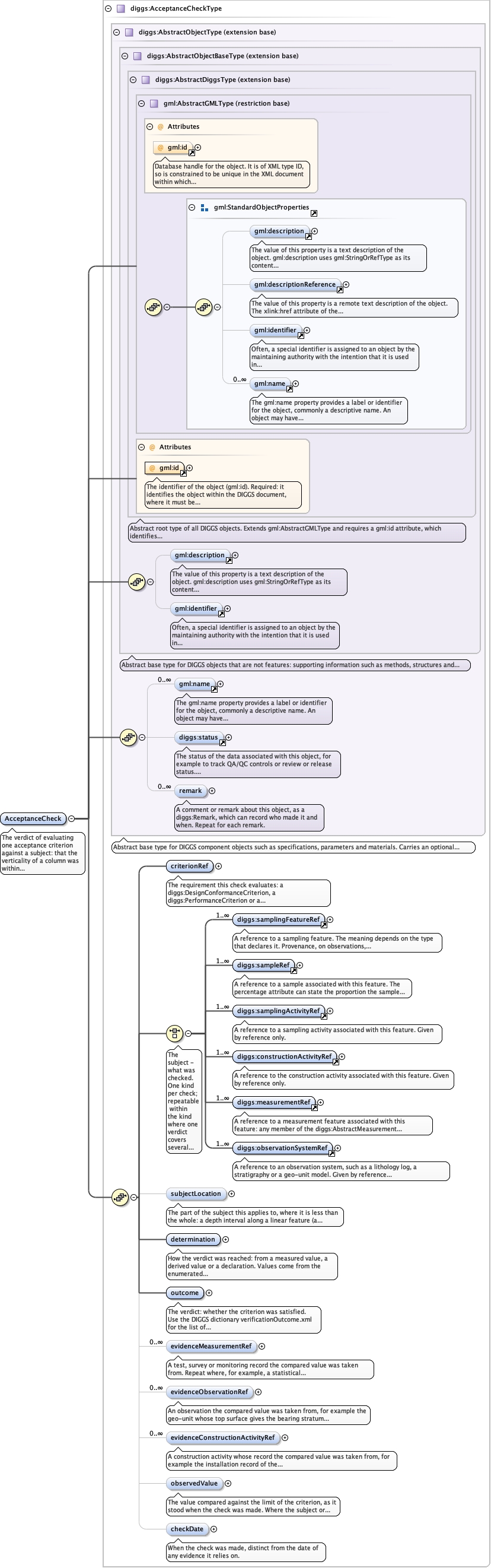

Schema documentation for component diggs:AcceptanceCheck

The verdict of evaluating one acceptance criterion against a subject: that the verticality of a column was within tolerance, that a grout batch met its strength requirement, that a test was performed to its procedure. Records a pass as well as a fail; a failure that needs a decision is recorded as a diggs:NonConformance citing this check. Contained in a diggs:AcceptanceEvaluation. The subject is identified by at least one of samplingFeatureRef, sampleRef, samplingActivityRef, constructionActivityRef, measurementRef or observationSystemRef, and subjectLocation narrows it to the part concerned. gml:name carries a check reference where a project numbers them; diggs:status is the state of this record (draft, reviewed, released), which is distinct from outcome, the verdict on the work.

<diggs:AcceptanceCheck gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:criterionRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,1}</diggs:criterionRef>
  <diggs:samplingFeatureRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:samplingFeatureRef>
  <diggs:sampleRef xlink:href="" identifierRef="" nilReason="" owns="false" percentage="">{1,unbounded}</diggs:sampleRef>
  <diggs:samplingActivityRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:samplingActivityRef>
  <diggs:constructionActivityRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:constructionActivityRef>
  <diggs:measurementRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:measurementRef>
  <diggs:observationSystemRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:observationSystemRef>
  <diggs:subjectLocation owns="false" xlink:href="" nilReason="">{0,1}</diggs:subjectLocation>
  <diggs:determination>{1,1}</diggs:determination>
  <diggs:outcome codeSpace="">{1,1}</diggs:outcome>
  <diggs:evidenceMeasurementRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:evidenceMeasurementRef>
  <diggs:evidenceObservationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:evidenceObservationRef>
  <diggs:evidenceConstructionActivityRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:evidenceConstructionActivityRef>
  <diggs:observedValue>{0,1}</diggs:observedValue>
  <diggs:checkDate calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:checkDate>
</diggs:AcceptanceCheck>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="AcceptanceCheck" type="diggs:AcceptanceCheckType"> <annotation> <documentation>The verdict of evaluating one acceptance criterion against a subject: that the verticality of a column was within tolerance, that a grout batch met its strength requirement, that a test was performed to its procedure. Records a pass as well as a fail; a failure that needs a decision is recorded as a diggs:NonConformance citing this check. Contained in a diggs:AcceptanceEvaluation. The subject is identified by at least one of samplingFeatureRef, sampleRef, samplingActivityRef, constructionActivityRef, measurementRef or observationSystemRef, and subjectLocation narrows it to the part concerned. gml:name carries a check reference where a project numbers them; diggs:status is the state of this record (draft, reviewed, released), which is distinct from outcome, the verdict on the work.</documentation> </annotation> </element>
