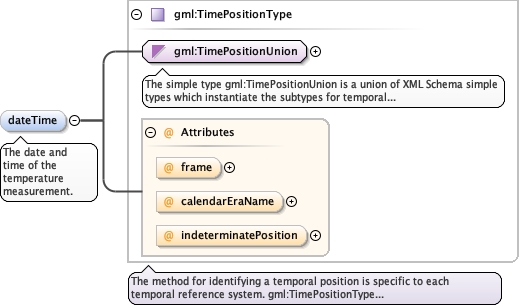

Element diggs:TemperatureMeasurementType / diggs:dateTime
Namespace http://diggsml.org/schemas/3
Annotations

The date and time of the temperature measurement.
Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element minOccurs="0" name="dateTime" type="gml:TimePositionType">
  <annotation>
    <documentation>The date and time of the temperature measurement.</documentation>
  </annotation>
</element>

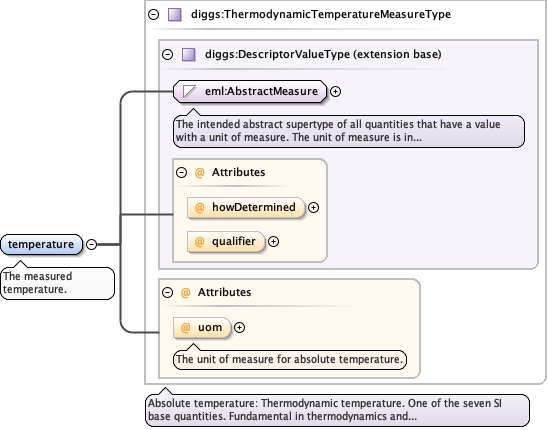

Element diggs:TemperatureMeasurementType / diggs:temperature
Namespace http://diggsml.org/schemas/3
Annotations

The measured temperature.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ThermodynamicTemperatureMeasureType.tmp#ThermodynamicTemperatureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ThermodynamicTemperatureMeasureType.tmp#ThermodynamicTemperatureMeasureType
Type diggs:ThermodynamicTemperatureMeasureType
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ThermodynamicTemperatureUomEnumType optional
The unit of measure for absolute temperature.
Source

<element minOccurs="1" name="temperature" type="diggs:ThermodynamicTemperatureMeasureType">
  <annotation>
    <documentation>The measured temperature.</documentation>
  </annotation>
</element>

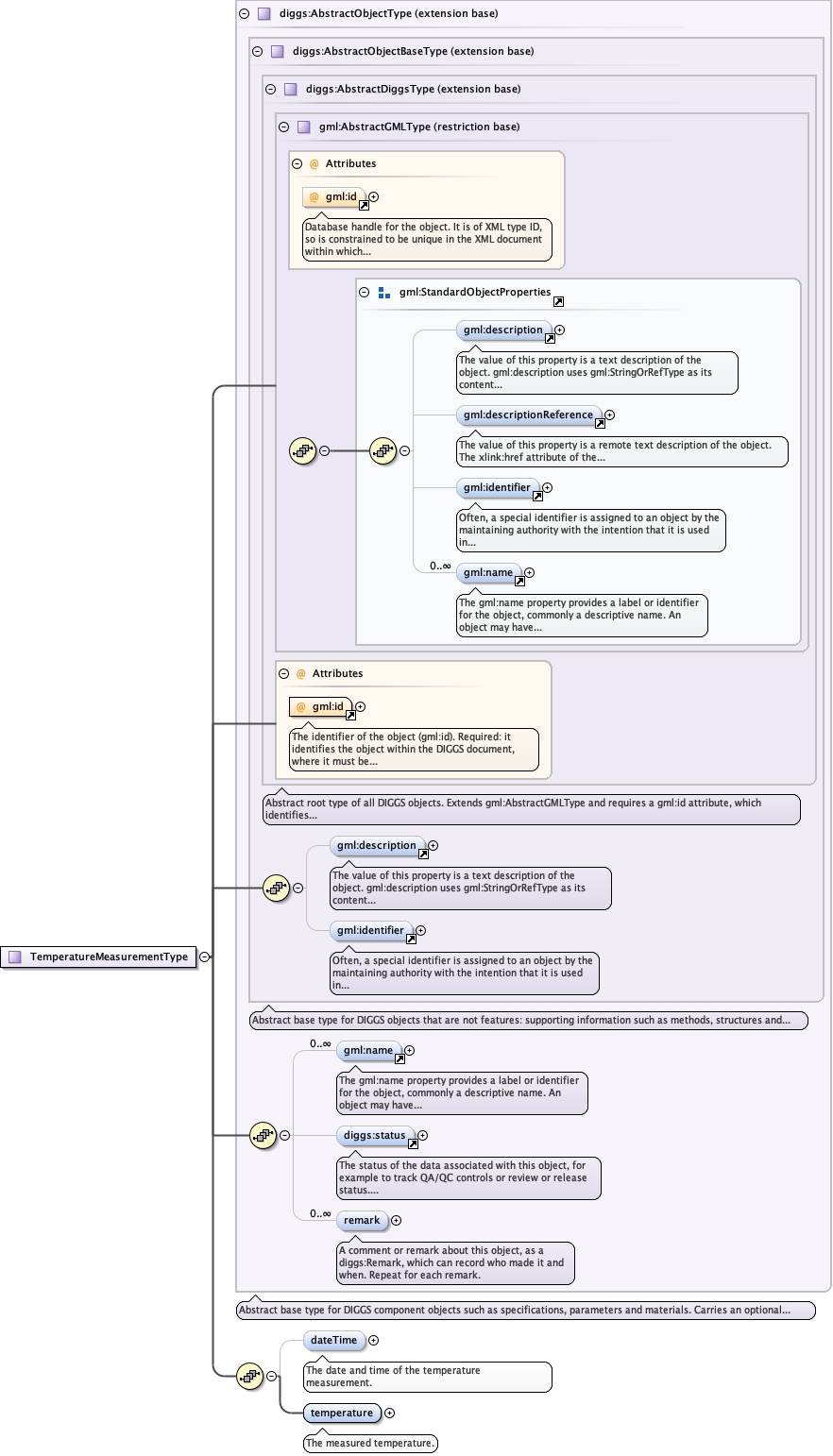

Complex Type diggs:TemperatureMeasurementType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCommon_xsd_Complex_Type_diggs_TemperatureMeasurementType.tmp#TemperatureMeasurementType_dateTimeCommon_xsd_Complex_Type_diggs_TemperatureMeasurementType.tmp#TemperatureMeasurementType_temperature
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:dateTime, diggs:remark, diggs:status, diggs:temperature, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="TemperatureMeasurementType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" name="dateTime" type="gml:TimePositionType">
          <annotation>
            <documentation>The date and time of the temperature measurement.</documentation>
          </annotation>
        </element>
        <element minOccurs="1" name="temperature" type="diggs:ThermodynamicTemperatureMeasureType">
          <annotation>
            <documentation>The measured temperature.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
