Element diggs:SoftwareApplicationType / diggs:version
Namespace http://diggsml.org/schemas/3
Annotations

The version of the software application.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="version" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The version of the software application.</documentation>
  </annotation>
</element>
Complex Type diggs:SoftwareApplicationType
Namespace http://diggsml.org/schemas/3

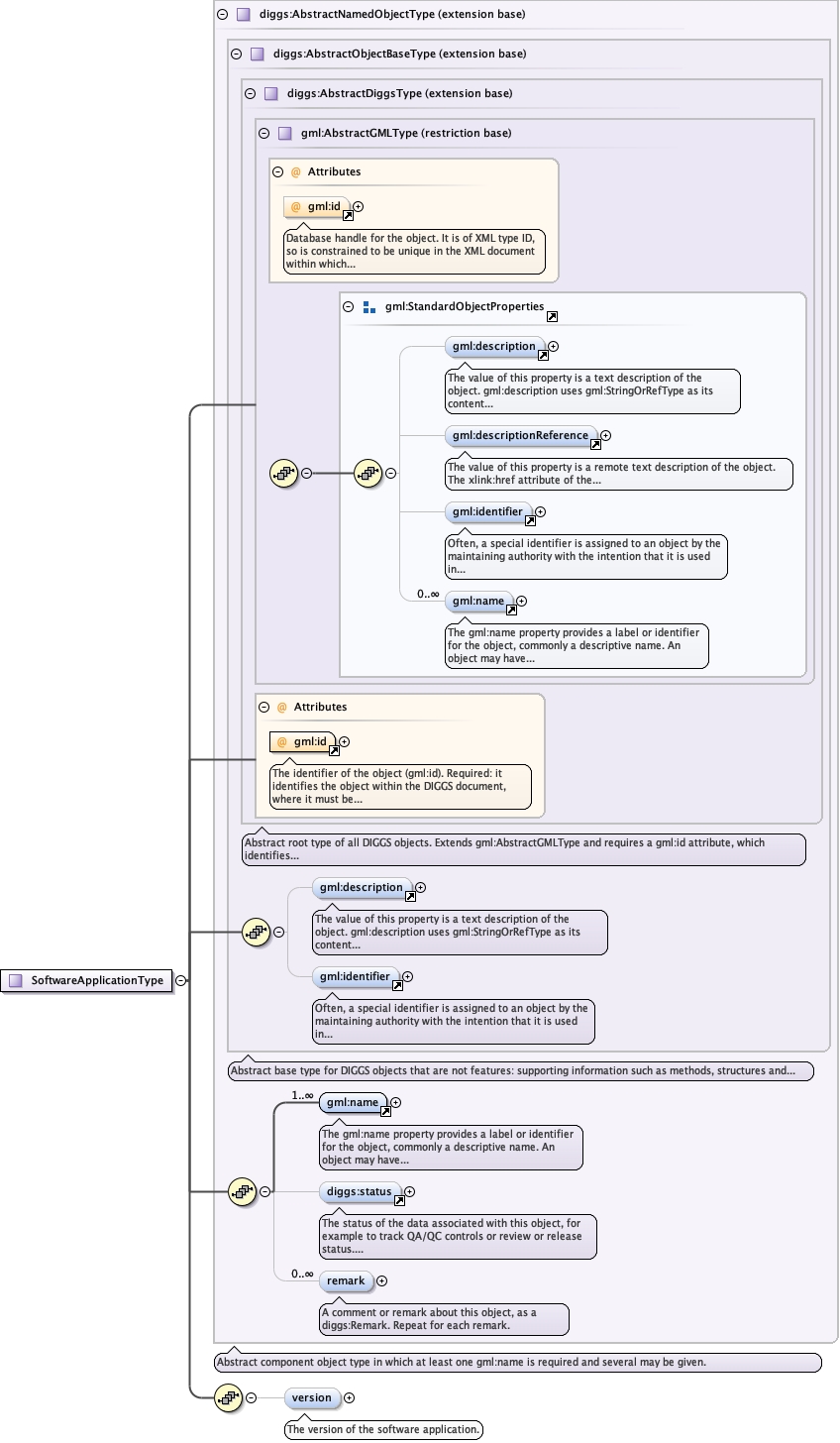

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedObjectType.tmp#AbstractNamedObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedObjectType.tmp#AbstractNamedObjectTypeCommon_xsd_Complex_Type_diggs_SoftwareApplicationType.tmp#SoftwareApplicationType_version
Type extension of diggs:AbstractNamedObjectType
Type hierarchy
Used by
Model
Children diggs:remark, diggs:status, diggs:version, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="SoftwareApplicationType">
  <complexContent>
    <extension base="diggs:AbstractNamedObjectType">
      <sequence>
        <element name="version" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The version of the software application.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
