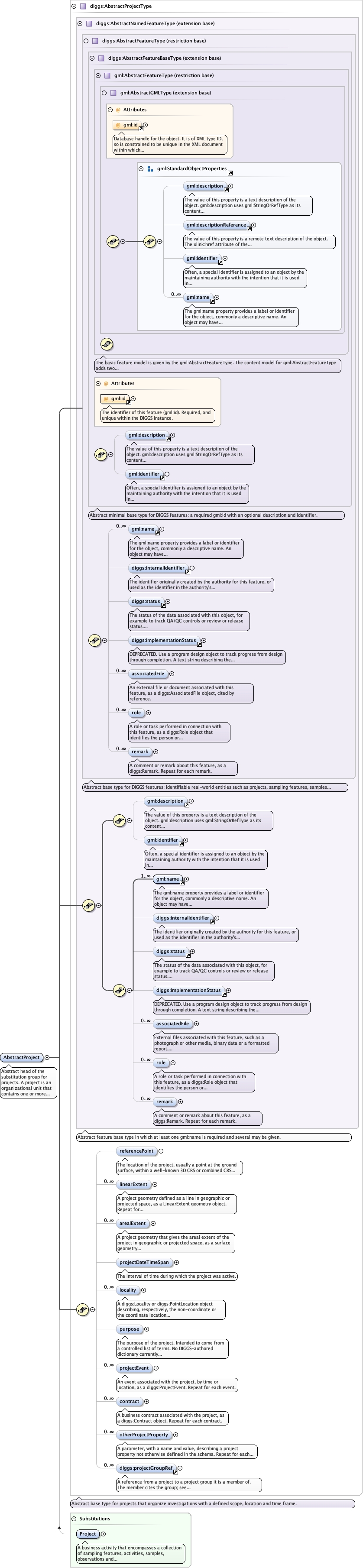

Schema documentation for component diggs:AbstractProject

Abstract head of the substitution group for projects. A project is an organizational unit that contains one or more sampling features, samples and associated data, typically corresponding to a geographic location or an engineering study. All DIGGS data must be associated with a project, which provides the organizational context for the investigation.

<diggs:AbstractProject gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{1,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:referencePoint owns="false" xlink:href="" nilReason="">{0,1}</diggs:referencePoint>
  <diggs:linearExtent owns="false" xlink:href="" nilReason="">{0,unbounded}</diggs:linearExtent>
  <diggs:arealExtent owns="false" xlink:href="" nilReason="">{0,unbounded}</diggs:arealExtent>
  <diggs:projectDateTimeSpan>{0,1}</diggs:projectDateTimeSpan>
  <diggs:locality>{0,unbounded}</diggs:locality>
  <diggs:purpose codeSpace="">{0,1}</diggs:purpose>
  <diggs:projectEvent>{0,unbounded}</diggs:projectEvent>
  <diggs:contract>{0,unbounded}</diggs:contract>
  <diggs:otherProjectProperty>{0,unbounded}</diggs:otherProjectProperty>
  <diggs:projectGroupRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:projectGroupRef>
</diggs:AbstractProject>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element abstract="true" name="AbstractProject" type="diggs:AbstractProjectType"> <annotation> <documentation>Abstract head of the substitution group for projects. A project is an organizational unit that contains one or more sampling features, samples and associated data, typically corresponding to a geographic location or an engineering study. All DIGGS data must be associated with a project, which provides the organizational context for the investigation.</documentation> </annotation> </element>
