Element diggs:AggregateImpactValueTestProcedureType / diggs:particleDensity
Namespace http://diggsml.org/schemas/3
Annotations

Particle density of size fraction between 8 mm and
12.5mm

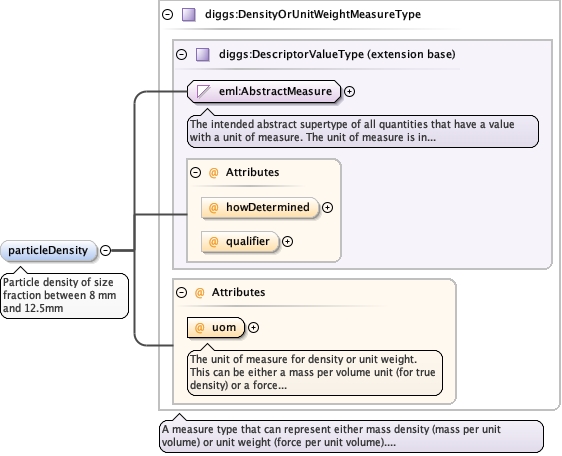

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType
Type diggs:DensityOrUnitWeightMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DiggsDensityOrUnitWeightUomEnumType required
The unit of measure for density or unit weight. This can be either a mass per volume unit (for true density) or a force per volume unit (for unit weight).
Source

<element name="particleDensity" type="diggs:DensityOrUnitWeightMeasureType" minOccurs="0">
  <annotation>
    <documentation>Particle density of size fraction between 8 mm and 12.5mm</documentation>
  </annotation>
</element>
Element diggs:AggregateImpactValueTestProcedureType / diggs:impactValue1
Namespace http://diggsml.org/schemas/3
Annotations

Aggregate impact value from first test.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForcePerForceMeasureType.tmp#ForcePerForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForcePerForceMeasureType.tmp#ForcePerForceMeasureType
Type diggs:ForcePerForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForcePerForceUomEnumType optional
The unit of measure for force ratio or load factor.
Source

<element name="impactValue1" type="diggs:ForcePerForceMeasureType" minOccurs="0">
  <annotation>
    <documentation>Aggregate impact value from first test.</documentation>
  </annotation>
</element>
Element diggs:AggregateImpactValueTestProcedureType / diggs:impactValue2
Namespace http://diggsml.org/schemas/3
Annotations

Aggregate impact value from second test.

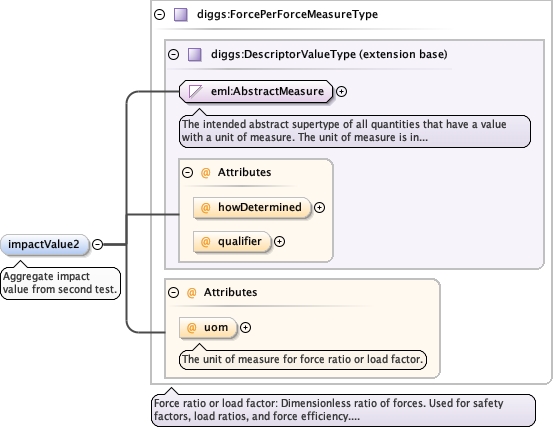

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForcePerForceMeasureType.tmp#ForcePerForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForcePerForceMeasureType.tmp#ForcePerForceMeasureType
Type diggs:ForcePerForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForcePerForceUomEnumType optional
The unit of measure for force ratio or load factor.
Source

<element name="impactValue2" type="diggs:ForcePerForceMeasureType" minOccurs="0">
  <annotation>
    <documentation>Aggregate impact value from second test.</documentation>
  </annotation>
</element>
Element diggs:AggregateImpactValueTestProcedureType / diggs:numberOfBlows
Namespace http://diggsml.org/schemas/3
Annotations

The number of blows property.
Diagram
Diagram
Type integer
Properties
content simple
minOccurs 0
Source

<element name="numberOfBlows" type="integer" minOccurs="0">
  <annotation>
    <documentation>The number of blows property.</documentation>
  </annotation>
</element>
Complex Type diggs:AggregateImpactValueTestProcedureType
Namespace http://diggsml.org/schemas/3
Annotations

Base type for AggregateImpactValueTest

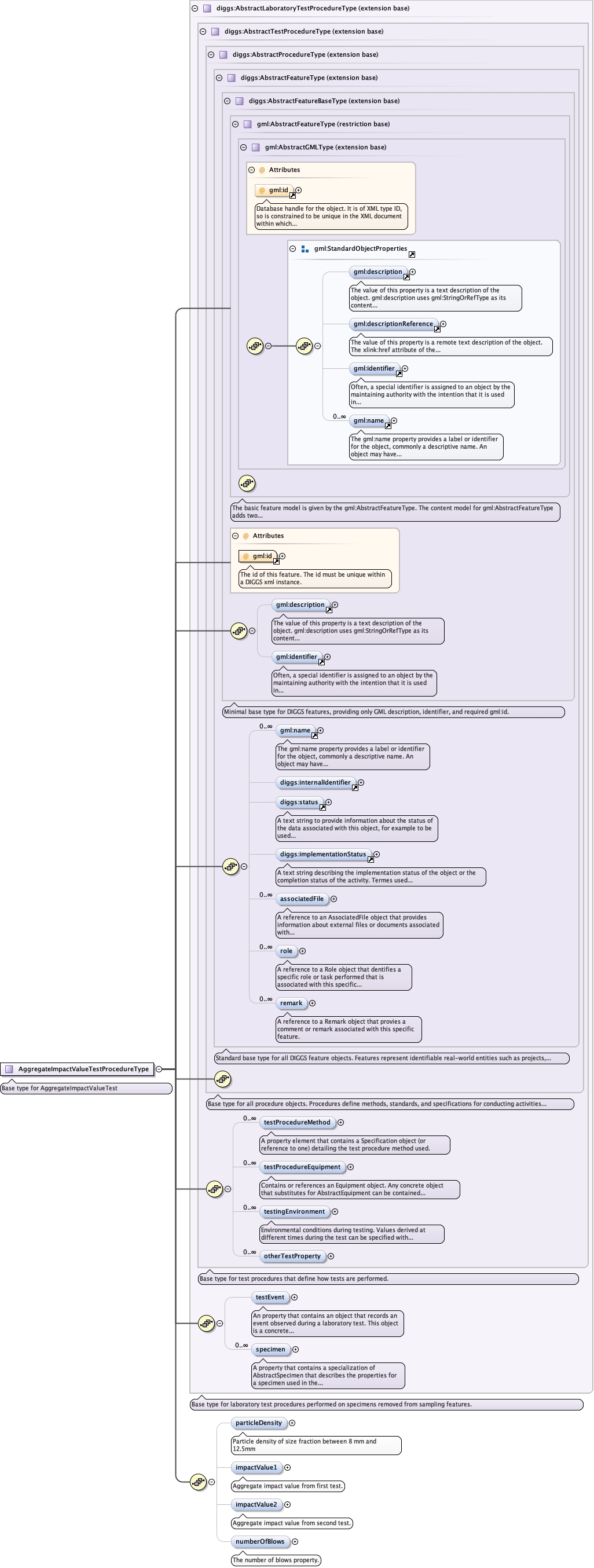

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureType_specimenAbstractTypes_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureTypeExtProcedures_xsd_Complex_Type_diggs_AggregateImpactValueTestProcedureType.tmp#AggregateImpactValueTestProcedureType_particleDensityExtProcedures_xsd_Complex_Type_diggs_AggregateImpactValueTestProcedureType.tmp#AggregateImpactValueTestProcedureType_impactValue1ExtProcedures_xsd_Complex_Type_diggs_AggregateImpactValueTestProcedureType.tmp#AggregateImpactValueTestProcedureType_impactValue2ExtProcedures_xsd_Complex_Type_diggs_AggregateImpactValueTestProcedureType.tmp#AggregateImpactValueTestProcedureType_numberOfBlows
Type extension of diggs:AbstractLaboratoryTestProcedureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:impactValue1, diggs:impactValue2, diggs:implementationStatus, diggs:internalIdentifier, diggs:numberOfBlows, diggs:otherTestProperty, diggs:particleDensity, diggs:remark, diggs:role, diggs:specimen, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AggregateImpactValueTestProcedureType">
  <annotation>
    <documentation>Base type for AggregateImpactValueTest</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractLaboratoryTestProcedureType">
      <sequence>
        <element name="particleDensity" type="diggs:DensityOrUnitWeightMeasureType" minOccurs="0">
          <annotation>
            <documentation>Particle density of size fraction between 8 mm and 12.5mm</documentation>
          </annotation>
        </element>
        <element name="impactValue1" type="diggs:ForcePerForceMeasureType" minOccurs="0">
          <annotation>
            <documentation>Aggregate impact value from first test.</documentation>
          </annotation>
        </element>
        <element name="impactValue2" type="diggs:ForcePerForceMeasureType" minOccurs="0">
          <annotation>
            <documentation>Aggregate impact value from second test.</documentation>
          </annotation>
        </element>
        <element name="numberOfBlows" type="integer" minOccurs="0">
          <annotation>
            <documentation>The number of blows property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
