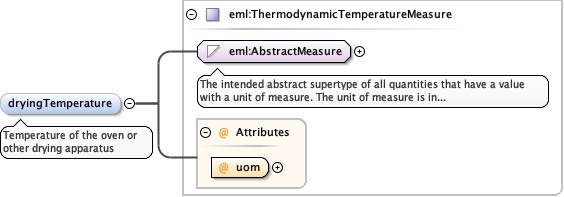

Element diggs:LossOnIgnitionTestType / diggs:dryingTemperature
Namespace http://diggsml.org/schema-dev
Annotations

Temperature of the oven or other drying
apparatus
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ThermodynamicTemperatureMeasure.tmp#ThermodynamicTemperatureMeasure_uomMeasureType_xsd_Complex_Type_eml_ThermodynamicTemperatureMeasure.tmp#ThermodynamicTemperatureMeasure
Type eml:ThermodynamicTemperatureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ThermodynamicTemperatureUom required
Source

<element minOccurs="0" name="dryingTemperature" type="eml:ThermodynamicTemperatureMeasure">
  <annotation>
    <documentation>Temperature of the oven or other drying apparatus</documentation>
  </annotation>
</element>

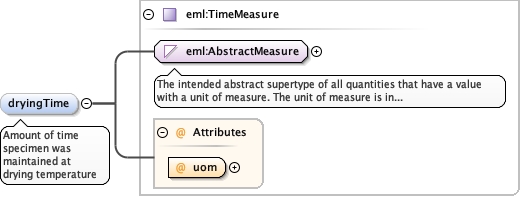

Element diggs:LossOnIgnitionTestType / diggs:dryingTime
Namespace http://diggsml.org/schema-dev
Annotations

Amount of time specimen was maintained at drying
temperature
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure_uomMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure
Type eml:TimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:TimeUom required
Source

<element minOccurs="0" name="dryingTime" type="eml:TimeMeasure">
  <annotation>
    <documentation>Amount of time specimen was maintained at drying temperature</documentation>
  </annotation>
</element>

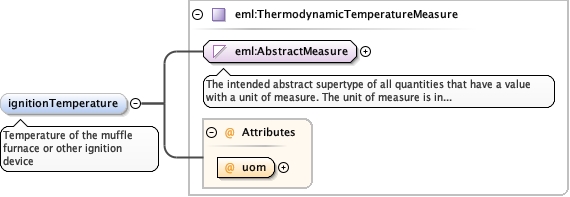

Element diggs:LossOnIgnitionTestType / diggs:ignitionTemperature
Namespace http://diggsml.org/schema-dev
Annotations

Temperature of the muffle furnace or other ignition
device
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ThermodynamicTemperatureMeasure.tmp#ThermodynamicTemperatureMeasure_uomMeasureType_xsd_Complex_Type_eml_ThermodynamicTemperatureMeasure.tmp#ThermodynamicTemperatureMeasure
Type eml:ThermodynamicTemperatureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:ThermodynamicTemperatureUom required
Source

<element minOccurs="0" name="ignitionTemperature" type="eml:ThermodynamicTemperatureMeasure">
  <annotation>
    <documentation>Temperature of the muffle furnace or other ignition device</documentation>
  </annotation>
</element>

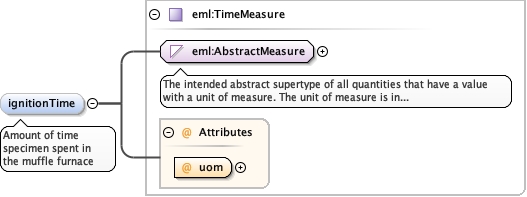

Element diggs:LossOnIgnitionTestType / diggs:ignitionTime
Namespace http://diggsml.org/schema-dev
Annotations

Amount of time specimen spent in the muffle
furnace
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure_uomMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure
Type eml:TimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:TimeUom required
Source

<element minOccurs="0" name="ignitionTime" type="eml:TimeMeasure">
  <annotation>
    <documentation>Amount of time specimen spent in the muffle furnace</documentation>
  </annotation>
</element>

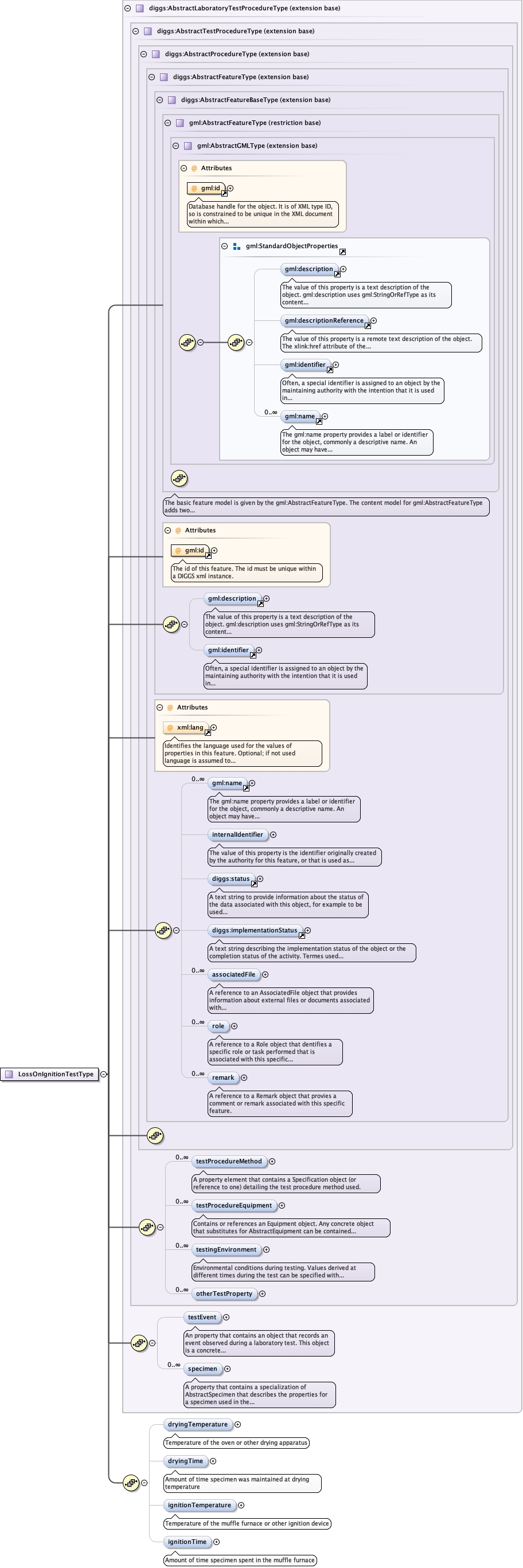

Complex Type diggs:LossOnIgnitionTestType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyKernel_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeKernel_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureType_testEventKernel_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureType_specimenKernel_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureTypeTestProcedures_xsd_Complex_Type_diggs_LossOnIgnitionTestType.tmp#http___diggsml.org_schema-dev_LossOnIgnitionTestType_dryingTemperatureTestProcedures_xsd_Complex_Type_diggs_LossOnIgnitionTestType.tmp#http___diggsml.org_schema-dev_LossOnIgnitionTestType_dryingTimeTestProcedures_xsd_Complex_Type_diggs_LossOnIgnitionTestType.tmp#http___diggsml.org_schema-dev_LossOnIgnitionTestType_ignitionTemperatureTestProcedures_xsd_Complex_Type_diggs_LossOnIgnitionTestType.tmp#http___diggsml.org_schema-dev_LossOnIgnitionTestType_ignitionTime
Type extension of diggs:AbstractLaboratoryTestProcedureType
Type hierarchy
Used by
Element diggs:LossOnIgnitionTest
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:internalIdentifier{0,1} , diggs:status{0,1} , diggs:implementationStatus{0,1} , diggs:associatedFile* , diggs:role* , diggs:remark* , diggs:testProcedureMethod* , diggs:testProcedureEquipment* , diggs:testingEnvironment* , diggs:otherTestProperty* , diggs:testEvent{0,1} , diggs:specimen* , diggs:dryingTemperature{0,1} , diggs:dryingTime{0,1} , diggs:ignitionTemperature{0,1} , diggs:ignitionTime{0,1}
Children diggs:associatedFile, diggs:dryingTemperature, diggs:dryingTime, diggs:ignitionTemperature, diggs:ignitionTime, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:remark, diggs:role, diggs:specimen, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="LossOnIgnitionTestType">
  <complexContent>
    <extension base="diggs:AbstractLaboratoryTestProcedureType">
      <sequence>
        <element minOccurs="0" name="dryingTemperature" type="eml:ThermodynamicTemperatureMeasure">
          <annotation>
            <documentation>Temperature of the oven or other drying apparatus</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="dryingTime" type="eml:TimeMeasure">
          <annotation>
            <documentation>Amount of time specimen was maintained at drying temperature</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="ignitionTemperature" type="eml:ThermodynamicTemperatureMeasure">
          <annotation>
            <documentation>Temperature of the muffle furnace or other ignition device</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="ignitionTime" type="eml:TimeMeasure">
          <annotation>
            <documentation>Amount of time specimen spent in the muffle furnace</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
