Schema documentation for component diggs:ovenDriedBeforeTest

<element minOccurs="0" name="ovenDriedBeforeTest" type="boolean"> <annotation> <documentation>True if sample is oven dried at 100 deg C or hotter prior to testing; otherwise false. True value for this property should produce a liquid_limit_oven_dried reportable result</documentation> </annotation> </element>

Value is wet if wet sieving on No. 40 screen (0.425 mm) is performed; dry if dry sieving on No. 40 screen (0.425 mm) is performed; none if no sieving is performed (sample is all finer-grained than 0.425 mm or coarser particles are picked out; unknown if not known. If value is None, the property handRemoved should be used.

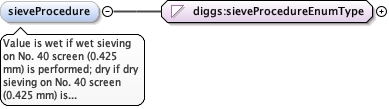

<element minOccurs="0" name="sieveProcedure" type="diggs:sieveProcedureEnumType"> <annotation> <documentation>Value is wet if wet sieving on No. 40 screen (0.425 mm) is performed; dry if dry sieving on No. 40 screen (0.425 mm) is performed; none if no sieving is performed (sample is all finer-grained than 0.425 mm or coarser particles are picked out; unknown if not known. If value is None, the property handRemoved should be used.</documentation> </annotation> </element>

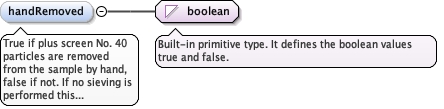

<element minOccurs="0" name="handRemoved" type="boolean"> <annotation> <documentation>True if plus screen No. 40 particles are removed from the sample by hand, false if not. If no sieving is performed this property is required</documentation> </annotation> </element>

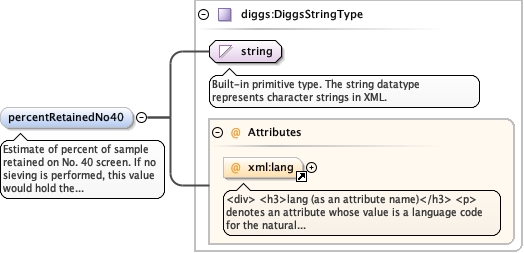

Estimate of percent of sample retained on No. 40 screen. If no sieving is performed, this value would hold the estimated percentage of plus 40 particles removed by hand from the sample, if applicable. String type.

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

<element minOccurs="0" name="percentRetainedNo40" type="diggs:DiggsStringType"> <annotation> <documentation>Estimate of percent of sample retained on No. 40 screen. If no sieving is performed, this value would hold the estimated percentage of plus 40 particles removed by hand from the sample, if applicable. String type.</documentation> </annotation> </element>

<element minOccurs="0" name="multiPointLLmethod" type="boolean"> <annotation> <documentation>Value is true if the liquid limit method is multi-point, false if liquid limit is calculated from a single point test</documentation> </annotation> </element>

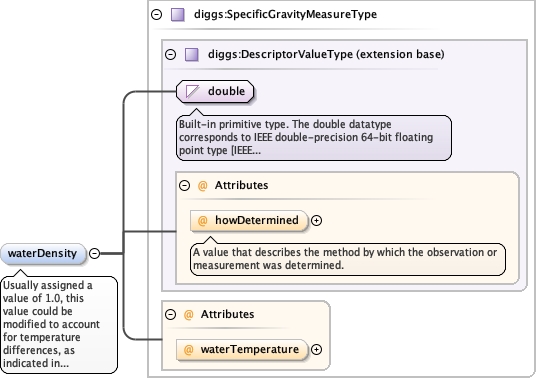

<element minOccurs="0" name="waterDensity" type="diggs:SpecificGravityMeasureType"> <annotation> <documentation>Usually assigned a value of 1.0, this value could be modified to account for temperature differences, as indicated in the attributes of this type.</documentation> </annotation> </element>

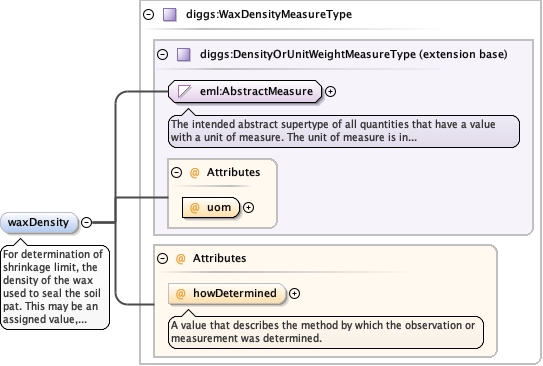

For determination of shrinkage limit, the density of the wax used to seal the soil pat. This may be an assigned value, reported from the manufacturer or determined by a test procedure such as described in ASTM D 4943.

<element minOccurs="0" name="waxDensity" type="diggs:WaxDensityMeasureType"> <annotation> <documentation>For determination of shrinkage limit, the density of the wax used to seal the soil pat. This may be an assigned value, reported from the manufacturer or determined by a test procedure such as described in ASTM D 4943.</documentation> </annotation> </element>

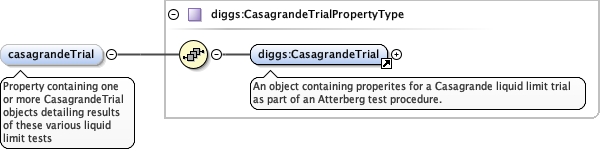

<element minOccurs="0" name="casagrandeTrial" type="diggs:CasagrandeTrialPropertyType" maxOccurs="unbounded"> <annotation> <documentation>Property containing one or more CasagrandeTrial objects detailing results of these various liquid limit tests</documentation> </annotation> </element>

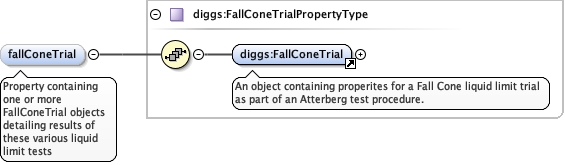

<element minOccurs="0" name="fallConeTrial" type="diggs:FallConeTrialPropertyType" maxOccurs="unbounded"> <annotation> <documentation>Property containing one or more FallConeTrial objects detailing results of these various liquid limit tests</documentation> </annotation> </element>

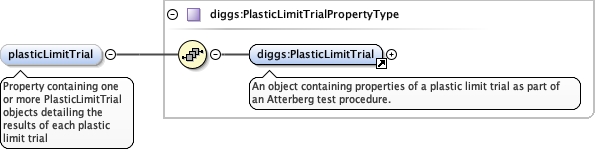

<element minOccurs="0" name="plasticLimitTrial" type="diggs:PlasticLimitTrialPropertyType" maxOccurs="unbounded"> <annotation> <documentation>Property containing one or more PlasticLimitTrial objects detailing the results of each plastic limit trial</documentation> </annotation> </element>

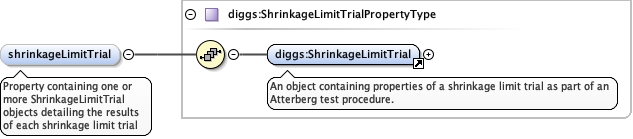

<element minOccurs="0" name="shrinkageLimitTrial" type="diggs:ShrinkageLimitTrialPropertyType" maxOccurs="unbounded"> <annotation> <documentation>Property containing one or more ShrinkageLimitTrial objects detailing the results of each shrinkage limit trial</documentation> </annotation> </element>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

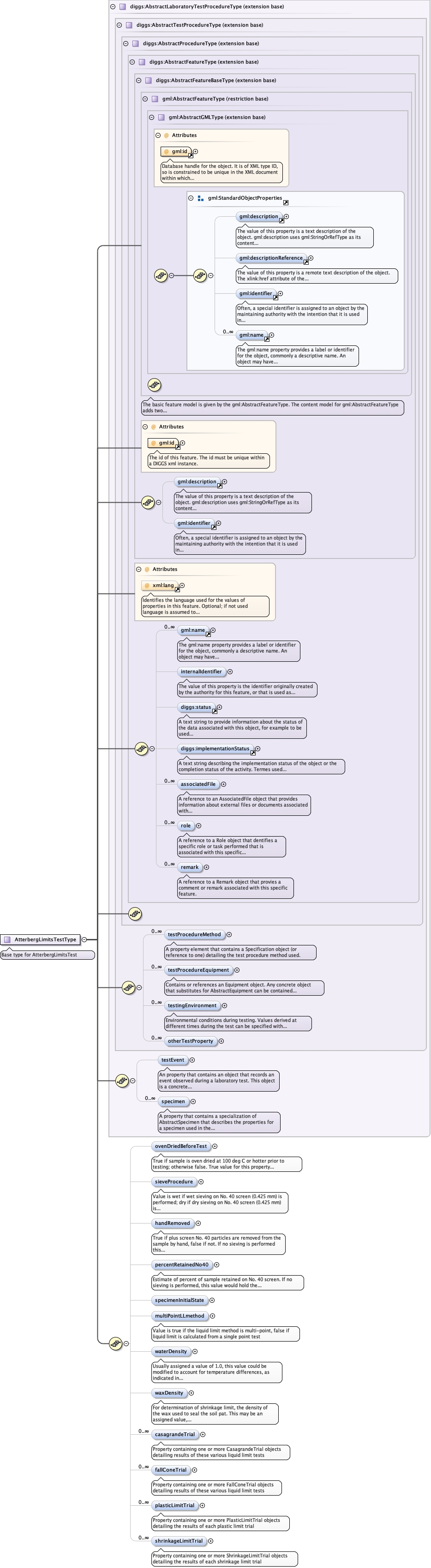

<complexType name="AtterbergLimitsTestType">
  <annotation>
    <documentation>Base type for AtterbergLimitsTest</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractLaboratoryTestProcedureType">
      <sequence>
        <element minOccurs="0" name="ovenDriedBeforeTest" type="boolean">
          <annotation>
            <documentation>True if sample is oven dried at 100 deg C or hotter prior to testing; otherwise false. True value for this property should produce a liquid_limit_oven_dried reportable result</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="sieveProcedure" type="diggs:sieveProcedureEnumType">
          <annotation>
            <documentation>Value is wet if wet sieving on No. 40 screen (0.425 mm) is performed; dry if dry sieving on No. 40 screen (0.425 mm) is performed; none if no sieving is performed (sample is all finer-grained than 0.425 mm or coarser particles are picked out; unknown if not known. If value is None, the property handRemoved should be used.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="handRemoved" type="boolean">
          <annotation>
            <documentation>True if plus screen No. 40 particles are removed from the sample by hand, false if not. If no sieving is performed this property is required</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="percentRetainedNo40" type="diggs:DiggsStringType">
          <annotation>
            <documentation>Estimate of percent of sample retained on No. 40 screen. If no sieving is performed, this value would hold the estimated percentage of plus 40 particles removed by hand from the sample, if applicable. String type.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="specimenInitialState" type="diggs:AtterbergInitialConditionEnumType"/>
        <element minOccurs="0" name="multiPointLLmethod" type="boolean">
          <annotation>
            <documentation>Value is true if the liquid limit method is multi-point, false if liquid limit is calculated from a single point test</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="waterDensity" type="diggs:SpecificGravityMeasureType">
          <annotation>
            <documentation>Usually assigned a value of 1.0, this value could be modified to account for temperature differences, as indicated in the attributes of this type.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="waxDensity" type="diggs:WaxDensityMeasureType">
          <annotation>
            <documentation>For determination of shrinkage limit, the density of the wax used to seal the soil pat. This may be an assigned value, reported from the manufacturer or determined by a test procedure such as described in ASTM D 4943.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="casagrandeTrial" type="diggs:CasagrandeTrialPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Property containing one or more CasagrandeTrial objects detailing results of these various liquid limit tests</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="fallConeTrial" type="diggs:FallConeTrialPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Property containing one or more FallConeTrial objects detailing results of these various liquid limit tests</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="plasticLimitTrial" type="diggs:PlasticLimitTrialPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Property containing one or more PlasticLimitTrial objects detailing the results of each plastic limit trial</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="shrinkageLimitTrial" type="diggs:ShrinkageLimitTrialPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Property containing one or more ShrinkageLimitTrial objects detailing the results of each shrinkage limit trial</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
