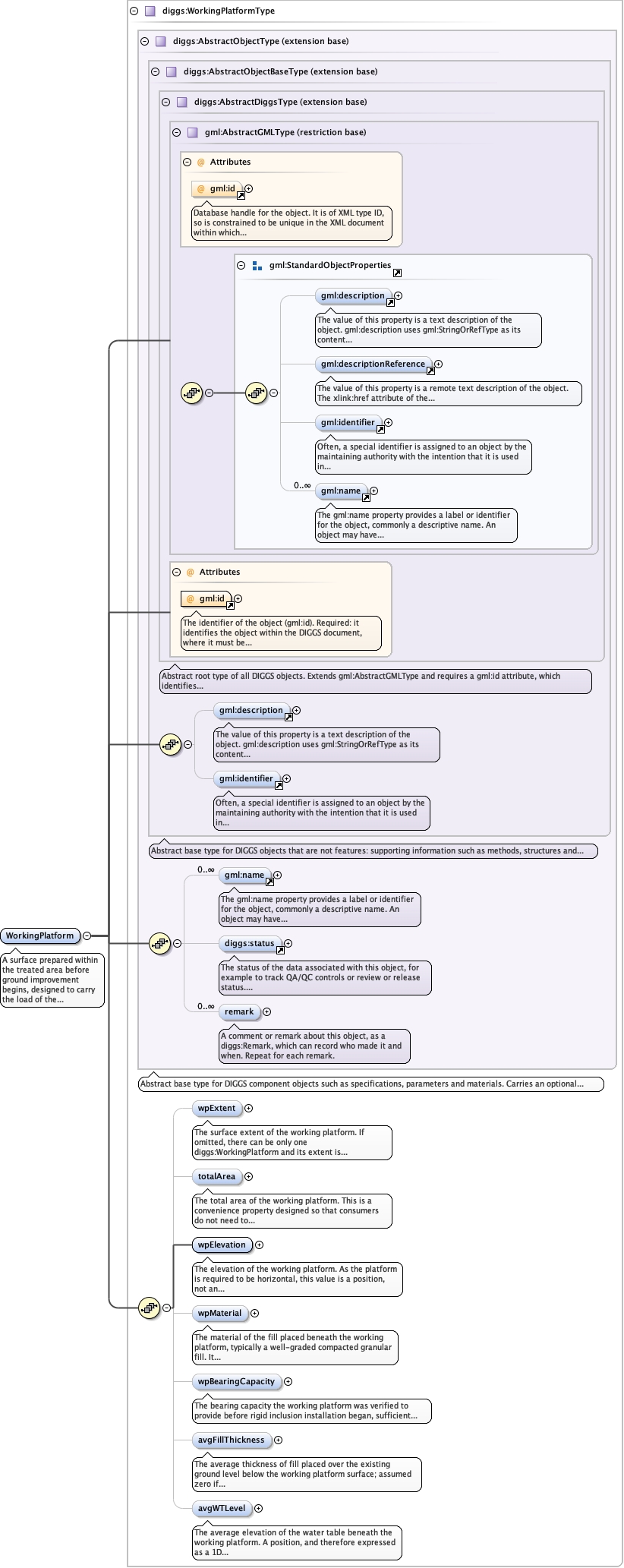

Schema documentation for component diggs:WorkingPlatform

A surface prepared within the treated area before ground improvement begins, designed to carry the load of the equipment used to construct the rigid inclusion columns and load transfer platform(s). It is prepared to be horizontal and, depending on site conditions, may be underlain by granular fill over the natural ground surface to provide sufficient bearing capacity. If only one working platform exists within the treated area, its wpExtent may be omitted and the extent is that of diggs:RITreatedArea. Its wpElevation is mandatory and overrides any elevation in wpExtent when wpExtent is in a 3D CRS. It is a component object, not a sampling feature: it extends diggs:AbstractObjectType and is reached only through diggs:RITreatedAreaType/workingPlatform, because it bounds the work rather than being a thing the work is performed on; nothing is sampled from it and no observation targets it. diggs:Geosynthetic is likewise a component of the diggs:LoadTransferPlatform that contains it.

<diggs:WorkingPlatform gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2"> <gml:description xlink:href="" nilReason="">{0,1}</gml:description> <gml:identifier codeSpace="">{0,1}</gml:identifier> <gml:name codeSpace="">{0,unbounded}</gml:name> <diggs:status codeSpace="">{0,1}</diggs:status> <diggs:remark>{0,unbounded}</diggs:remark> <diggs:wpExtent xlink:href="" nilReason="" owns="false">{0,1}</diggs:wpExtent> <diggs:totalArea howDetermined="" qualifier="" uom="">{0,1}</diggs:totalArea> <diggs:wpElevation owns="false" xlink:href="" nilReason="">{1,1}</diggs:wpElevation> <diggs:wpMaterial xlink:href="" nilReason="">{0,1}</diggs:wpMaterial> <diggs:wpBearingCapacity howDetermined="" qualifier="" uom="">{0,1}</diggs:wpBearingCapacity> <diggs:avgFillThickness howDetermined="" qualifier="" uom="">{0,1}</diggs:avgFillThickness> <diggs:avgWTLevel owns="false" xlink:href="" nilReason="">{0,1}</diggs:avgWTLevel> </diggs:WorkingPlatform>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="WorkingPlatform" type="diggs:WorkingPlatformType">
  <annotation>
    <documentation>A surface prepared within the treated area before ground improvement begins, designed to carry the load of the equipment used to construct the rigid inclusion columns and load transfer platform(s). It is prepared to be horizontal and, depending on site conditions, may be underlain by granular fill over the natural ground surface to provide sufficient bearing capacity. If only one working platform exists within the treated area, its wpExtent may be omitted and the extent is that of diggs:RITreatedArea. Its wpElevation is mandatory and overrides any elevation in wpExtent when wpExtent is in a 3D CRS. It is a component object, not a sampling feature: it extends diggs:AbstractObjectType and is reached only through diggs:RITreatedAreaType/workingPlatform, because it bounds the work rather than being a thing the work is performed on; nothing is sampled from it and no observation targets it. diggs:Geosynthetic is likewise a component of the diggs:LoadTransferPlatform that contains it.</documentation>
  </annotation>
</element>
