Element diggs:Reinforcement
Namespace http://diggsml.org/schemas/3
Annotations

Steel reinforcement occupying one interval of a rigid inclusion column: a cage over
the top few metres at an edge column, or full length where bending governs.
Reinforcement in rigid inclusions is the exception rather than the rule; where
present it is zoned, so the object carries the interval it occupies rather than a
bare length. One object serves both the design and the as-built side:
diggs:DesignRIColumnType carries it as the required reinforcement and
diggs:RIColumnType as the installed reinforcement, and either host repeats it for a
column with more than one reinforced zone. intervalLocation is modelled on
diggs:TaperType/intervalLocation, the depth-interval-scoped property on a linear
installation.

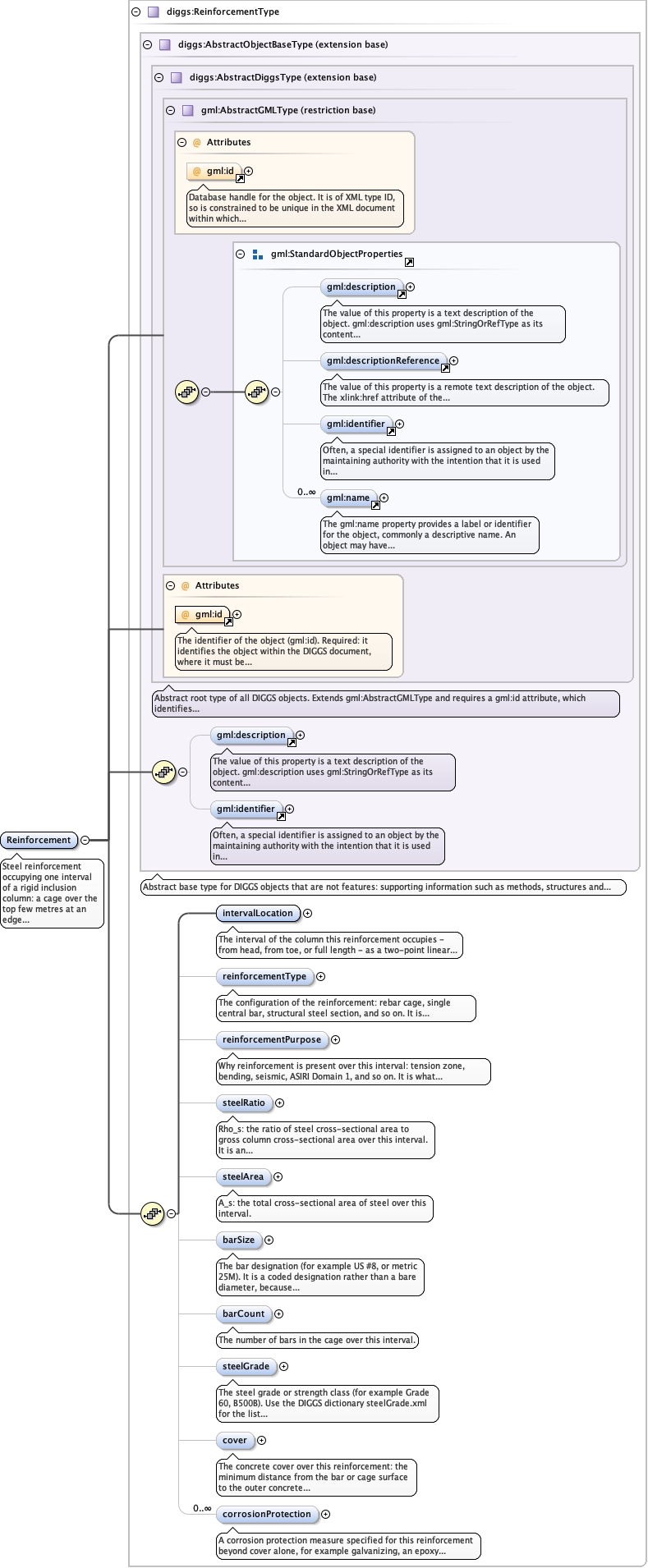

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypeRigidInclusions_xsd_Complex_Type_diggs_ReinforcementType.tmp#ReinforcementType_intervalLocationRigidInclusions_xsd_Complex_Type_diggs_ReinforcementType.tmp#ReinforcementType_reinforcementTypeRigidInclusions_xsd_Complex_Type_diggs_ReinforcementType.tmp#ReinforcementType_reinforcementPurposeRigidInclusions_xsd_Complex_Type_diggs_ReinforcementType.tmp#ReinforcementType_steelRatioRigidInclusions_xsd_Complex_Type_diggs_ReinforcementType.tmp#ReinforcementType_steelAreaRigidInclusions_xsd_Complex_Type_diggs_ReinforcementType.tmp#ReinforcementType_barSizeRigidInclusions_xsd_Complex_Type_diggs_ReinforcementType.tmp#ReinforcementType_barCountRigidInclusions_xsd_Complex_Type_diggs_ReinforcementType.tmp#ReinforcementType_steelGradeRigidInclusions_xsd_Complex_Type_diggs_ReinforcementType.tmp#ReinforcementType_coverRigidInclusions_xsd_Complex_Type_diggs_ReinforcementType.tmp#ReinforcementType_corrosionProtectionRigidInclusions_xsd_Complex_Type_diggs_ReinforcementType.tmp#ReinforcementType
Type diggs:ReinforcementType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:barCount, diggs:barSize, diggs:corrosionProtection, diggs:cover, diggs:intervalLocation, diggs:reinforcementPurpose, diggs:reinforcementType, diggs:steelArea, diggs:steelGrade, diggs:steelRatio, gml:description, gml:identifier
Instance

<diggs:Reinforcement gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:intervalLocation owns="false" xlink:href="" nilReason="">{1,1}</diggs:intervalLocation>
  <diggs:reinforcementType>{0,1}</diggs:reinforcementType>
  <diggs:reinforcementPurpose codeSpace="">{0,1}</diggs:reinforcementPurpose>
  <diggs:steelRatio howDetermined="" qualifier="" uom="">{0,1}</diggs:steelRatio>
  <diggs:steelArea howDetermined="" qualifier="" uom="">{0,1}</diggs:steelArea>
  <diggs:barSize codeSpace="">{0,1}</diggs:barSize>
  <diggs:barCount>{0,1}</diggs:barCount>
  <diggs:steelGrade codeSpace="">{0,1}</diggs:steelGrade>
  <diggs:cover howDetermined="" qualifier="" uom="">{0,1}</diggs:cover>
  <diggs:corrosionProtection codeSpace="">{0,unbounded}</diggs:corrosionProtection>
</diggs:Reinforcement>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="Reinforcement" type="diggs:ReinforcementType">
  <annotation>
    <documentation>Steel reinforcement occupying one interval of a rigid inclusion column: a cage over the top few metres at an edge column, or full length where bending governs. Reinforcement in rigid inclusions is the exception rather than the rule; where present it is zoned, so the object carries the interval it occupies rather than a bare length. One object serves both the design and the as-built side: diggs:DesignRIColumnType carries it as the required reinforcement and diggs:RIColumnType as the installed reinforcement, and either host repeats it for a column with more than one reinforced zone. intervalLocation is modelled on diggs:TaperType/intervalLocation, the depth-interval-scoped property on a linear installation.</documentation>
  </annotation>
</element>
XML Schema documentation generated by ® XML Editor.
