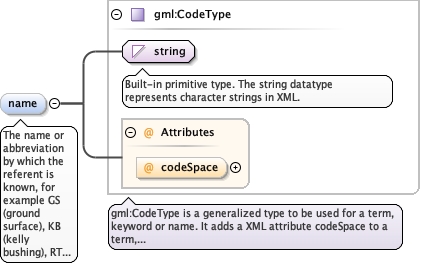

Element diggs:ReferentType / diggs:name
Namespace http://diggsml.org/schemas/3
Annotations

The name or abbreviation by which the referent is known, for example
GS (ground surface), KB (kelly bushing), RT (rotary table), SF (sea
floor) or TOC (top of core, or top of casing). Use the DIGGS
dictionary referentName.xml for the list of values; its entries
accept either the full name or a common abbreviation as the value.
Identify the entry with codeSpace, for example
referentName.xml#ground_surface; this also resolves an abbreviation
that two entries share.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element maxOccurs="1" minOccurs="0" name="name" type="gml:CodeType">
  <annotation>
    <documentation>The name or abbreviation by which the referent is known, for example GS (ground surface), KB (kelly bushing), RT (rotary table), SF (sea floor) or TOC (top of core, or top of casing). Use the DIGGS dictionary referentName.xml for the list of values; its entries accept either the full name or a common abbreviation as the value. Identify the entry with codeSpace, for example referentName.xml#ground_surface; this also resolves an abbreviation that two entries share.</documentation>
  </annotation>
</element>

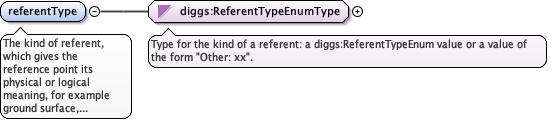

Element diggs:ReferentType / diggs:referentType
Namespace http://diggsml.org/schemas/3
Annotations

The kind of referent, which gives the reference point its physical
or logical meaning, for example ground surface, kelly bushing,
kickoff point, top of core or bottom of core. Values come from the
enumerated list, or "Other: xx", where xx is a user-defined term
whose meaning differs from every listed value (not a synonym of
one).
Diagram
DiagramLinearReferencing_xsd_Simple_Type_diggs_ReferentTypeEnumType.tmp#ReferentTypeEnumType
Type diggs:ReferentTypeEnumType
Properties
content simple
Source

<element name="referentType" type="diggs:ReferentTypeEnumType">
  <annotation>
    <documentation>The kind of referent, which gives the reference point its physical or logical meaning, for example ground surface, kelly bushing, kickoff point, top of core or bottom of core. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation>
  </annotation>
</element>

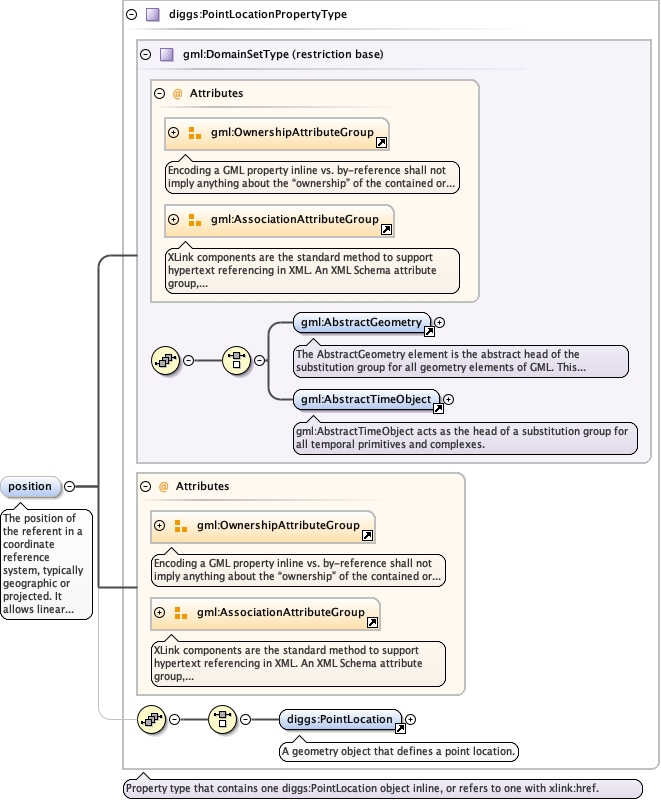

Element diggs:ReferentType / diggs:position
Namespace http://diggsml.org/schemas/3
Annotations

The position of the referent in a coordinate reference system,
typically geographic or projected. It allows linear reference
coordinates to be transformed to geographic coordinates.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCore_xsd_Element_diggs_PointLocation.tmp#PointLocationCore_xsd_Complex_Type_diggs_PointLocationPropertyType.tmp#PointLocationPropertyType
Type diggs:PointLocationPropertyType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Children diggs:PointLocation
Instance

<diggs:position owns="false" xlink:href="" nilReason="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PointLocation>
</diggs:position>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element minOccurs="0" name="position" type="diggs:PointLocationPropertyType">
  <annotation>
    <documentation>The position of the referent in a coordinate reference system, typically geographic or projected. It allows linear reference coordinates to be transformed to geographic coordinates.</documentation>
  </annotation>
</element>

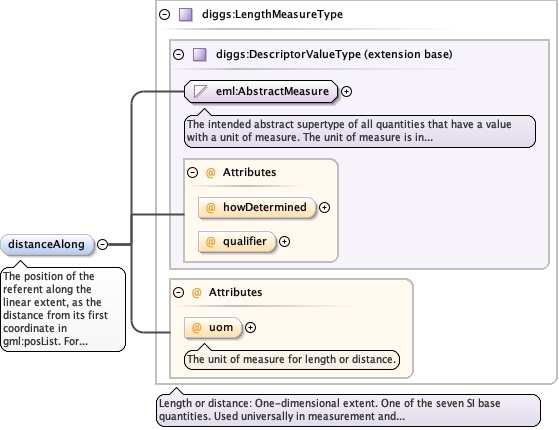

Element diggs:ReferentType / diggs:distanceAlong
Namespace http://diggsml.org/schemas/3
Annotations

The position of the referent along the linear extent, as the
distance from its first coordinate in gml:posList. For example, a
kelly bushing at the first point has a distance of 0, and a ground
surface 5 ft below it has 5 ft.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="distanceAlong" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The position of the referent along the linear extent, as the distance from its first coordinate in gml:posList. For example, a kelly bushing at the first point has a distance of 0, and a ground surface 5 ft below it has 5 ft.</documentation>
  </annotation>
</element>

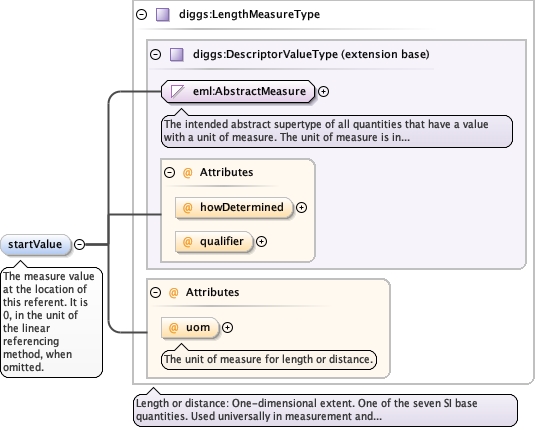

Element diggs:ReferentType / diggs:startValue
Namespace http://diggsml.org/schemas/3
Annotations

The measure value at the location of this referent. It is 0, in the
unit of the linear referencing method, when omitted.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="startValue" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The measure value at the location of this referent. It is 0, in the unit of the linear referencing method, when omitted.</documentation>
  </annotation>
</element>

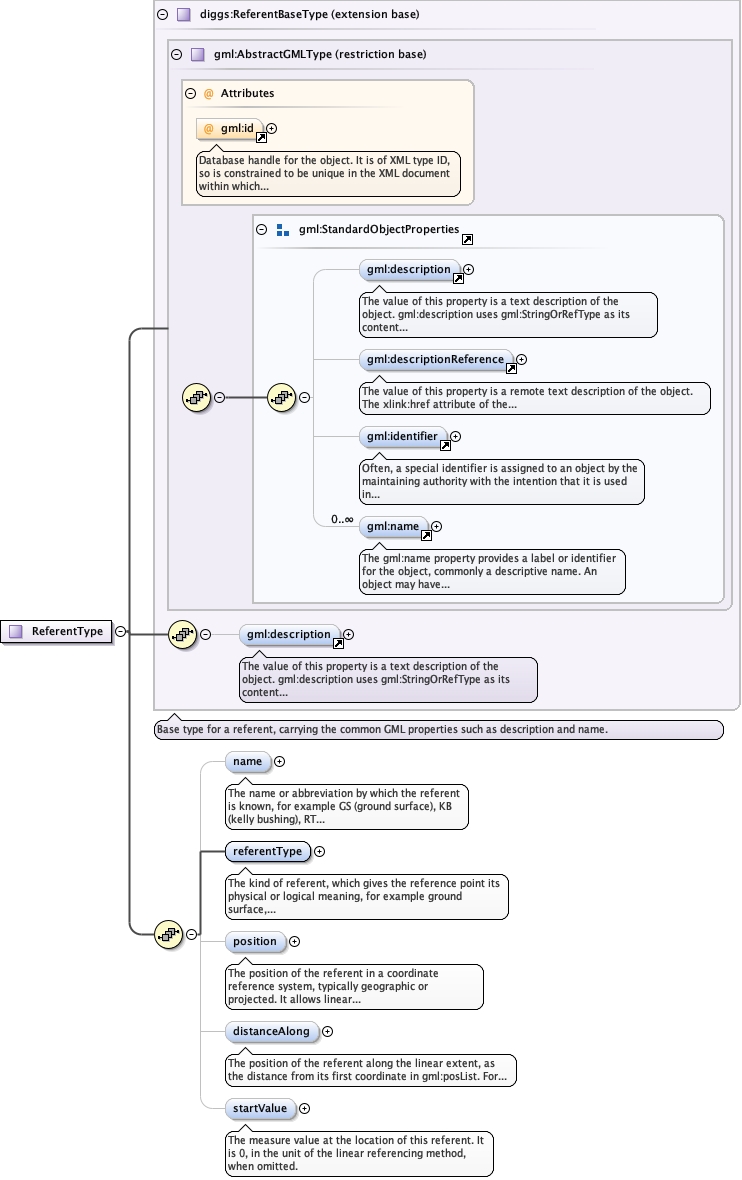

Complex Type diggs:ReferentType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptionLinearReferencing_xsd_Complex_Type_diggs_ReferentBaseType.tmp#ReferentBaseTypeLinearReferencing_xsd_Complex_Type_diggs_ReferentType.tmp#ReferentType_nameLinearReferencing_xsd_Complex_Type_diggs_ReferentType.tmp#ReferentType_referentTypeLinearReferencing_xsd_Complex_Type_diggs_ReferentType.tmp#ReferentType_positionLinearReferencing_xsd_Complex_Type_diggs_ReferentType.tmp#ReferentType_distanceAlongLinearReferencing_xsd_Complex_Type_diggs_ReferentType.tmp#ReferentType_startValue
Type extension of diggs:ReferentBaseType
Type hierarchy
Used by
Element diggs:Referent
Model
Children diggs:distanceAlong, diggs:name, diggs:position, diggs:referentType, diggs:startValue, gml:description
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="ReferentType">
  <complexContent>
    <extension base="diggs:ReferentBaseType">
      <sequence>
        <element maxOccurs="1" minOccurs="0" name="name" type="gml:CodeType">
          <annotation>
            <documentation>The name or abbreviation by which the referent is known, for example GS (ground surface), KB (kelly bushing), RT (rotary table), SF (sea floor) or TOC (top of core, or top of casing). Use the DIGGS dictionary referentName.xml for the list of values; its entries accept either the full name or a common abbreviation as the value. Identify the entry with codeSpace, for example referentName.xml#ground_surface; this also resolves an abbreviation that two entries share.</documentation>
          </annotation>
        </element>
        <element name="referentType" type="diggs:ReferentTypeEnumType">
          <annotation>
            <documentation>The kind of referent, which gives the reference point its physical or logical meaning, for example ground surface, kelly bushing, kickoff point, top of core or bottom of core. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="position" type="diggs:PointLocationPropertyType">
          <annotation>
            <documentation>The position of the referent in a coordinate reference system, typically geographic or projected. It allows linear reference coordinates to be transformed to geographic coordinates.</documentation>
          </annotation>
        </element>
        <element name="distanceAlong" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The position of the referent along the linear extent, as the distance from its first coordinate in gml:posList. For example, a kelly bushing at the first point has a distance of 0, and a ground surface 5 ft below it has 5 ft.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="startValue" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The measure value at the location of this referent. It is 0, in the unit of the linear referencing method, when omitted.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
