Element diggs:TimeIntervalList
Namespace http://diggsml.org/schema-dev
Annotations

A DIGGS time object with a property that contains a list of time
intervals (duration or elapsed time) expressed as xsd:Decimal values. unit attribute
provides the time unit for the list

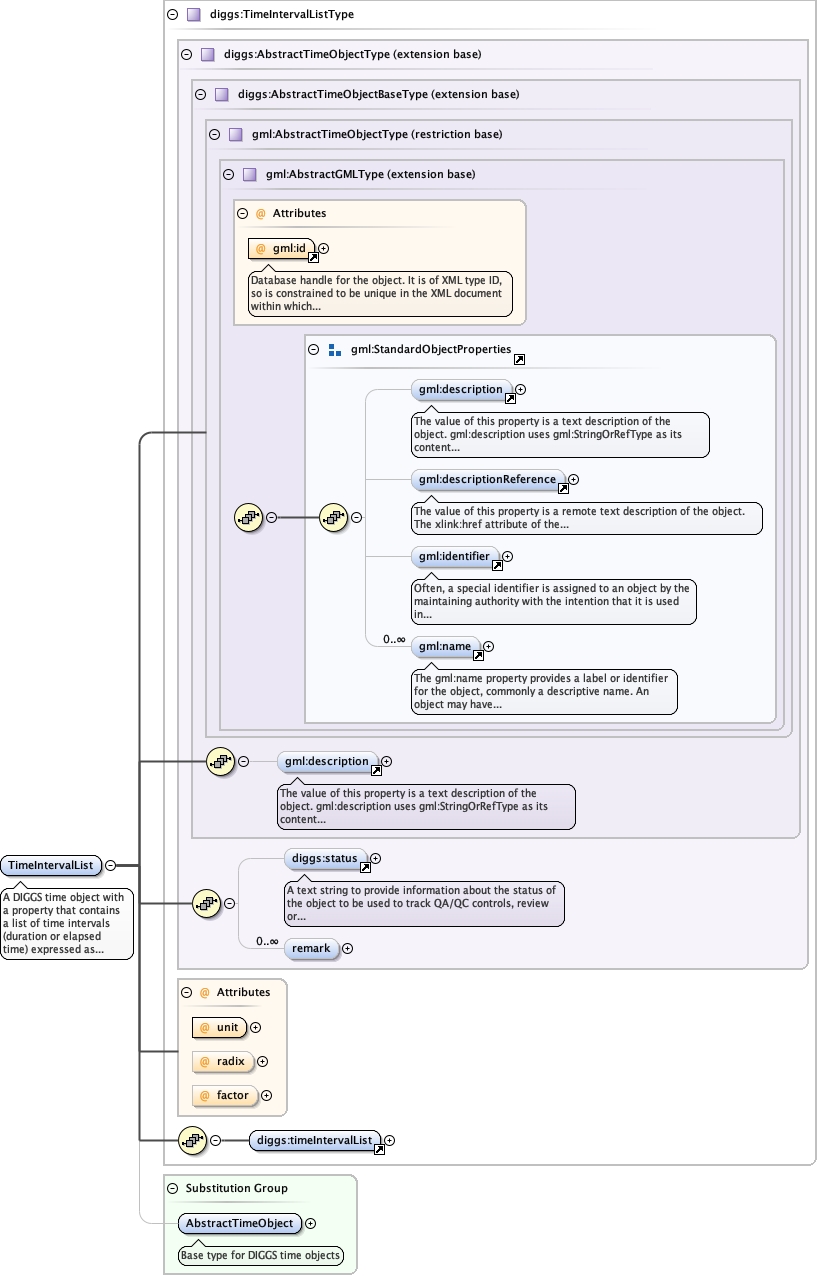

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractTimeObjectType.tmp#AbstractTimeObjectTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptionKernel_xsd_Complex_Type_diggs_AbstractTimeObjectBaseType.tmp#AbstractTimeObjectBaseTypeKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractTimeObjectType.tmp#http___diggsml.org_schema-dev_AbstractTimeObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractTimeObjectType.tmp#http___diggsml.org_schema-dev_AbstractTimeObjectTypeKernel_xsd_Complex_Type_diggs_TimeIntervalListType.tmp#TimeIntervalListType_unitKernel_xsd_Complex_Type_diggs_TimeIntervalListType.tmp#TimeIntervalListType_radixKernel_xsd_Complex_Type_diggs_TimeIntervalListType.tmp#TimeIntervalListType_factorKernel_xsd_Element_diggs_timeIntervalList_1.tmp#http___diggsml.org_schema-dev_timeIntervalListKernel_xsd_Complex_Type_diggs_TimeIntervalListType.tmp#TimeIntervalListTypeKernel_xsd_Element_diggs_AbstractTimeObject.tmp#http___diggsml.org_schema-dev_AbstractTimeObject
Type diggs:TimeIntervalListType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:remark, diggs:status, diggs:timeIntervalList, gml:description
Instance

<diggs:TimeIntervalList factor="" gml:id="" radix="" unit="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:timeIntervalList>{1,1}</diggs:timeIntervalList>
</diggs:TimeIntervalList>
Attributes
QName Type Use Annotation
factor integer optional
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
radix positiveInteger optional
unit gml:TimeUnitType required
Source

<element name="TimeIntervalList" type="diggs:TimeIntervalListType" substitutionGroup="diggs:AbstractTimeObject">
  <annotation>
    <documentation>A DIGGS time object with a property that contains a list of time intervals (duration or elapsed time) expressed as xsd:Decimal values. unit attribute provides the time unit for the list</documentation>
  </annotation>
</element>
