Schema documentation for component diggs:AbstractTimeObject

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:AbstractTimeObject

Namespace

http://diggsml.org/schema-dev

Annotations

Base type for DIGGS time objects

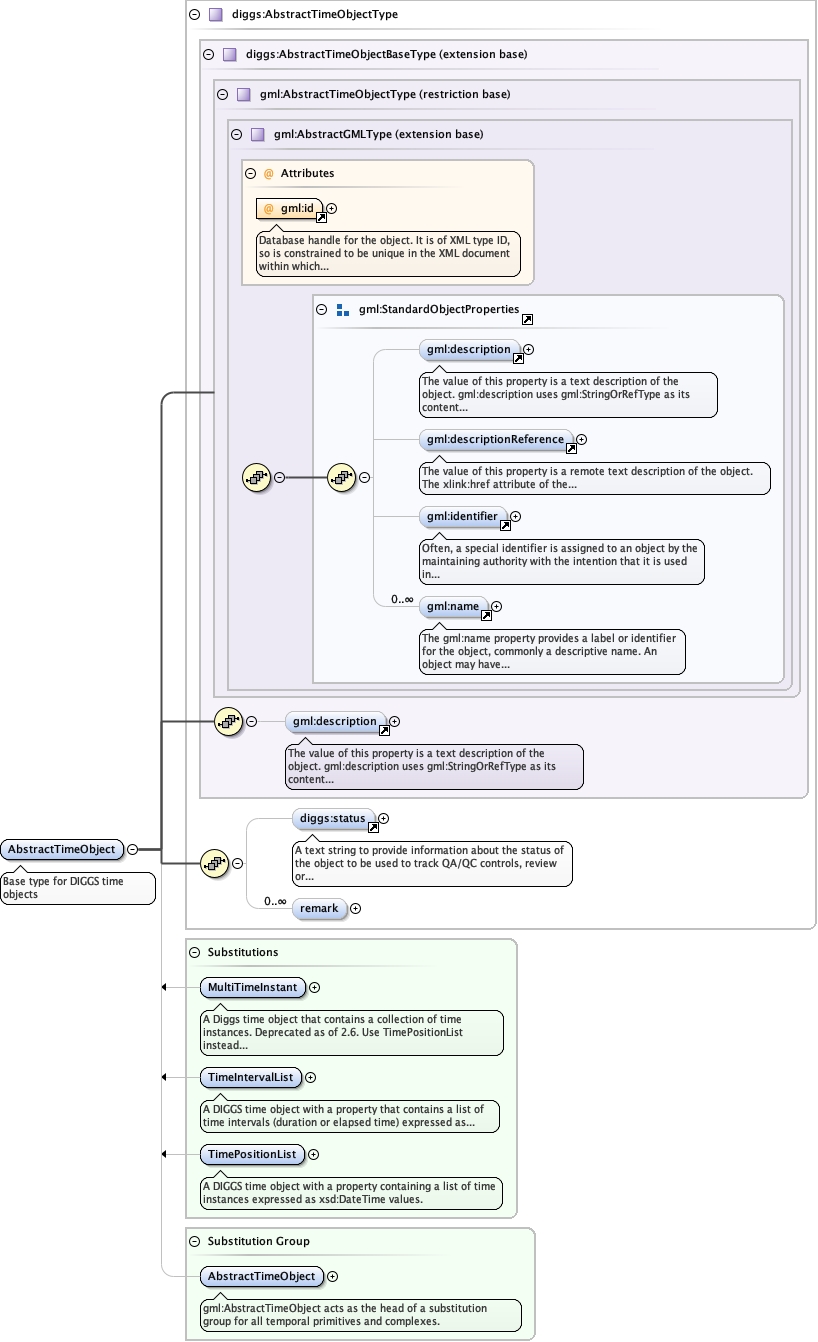

Diagram

Type

diggs:AbstractTimeObjectType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractTimeObjectType
  - diggs:AbstractTimeObjectBaseType
    - diggs:AbstractTimeObjectType

Properties

content

complex

Substitution Group

Substitution Group Affiliation

gml:AbstractTimeObject

Used by

Complex Type

diggs:TimeDomainType

Model

gml:description{0,1} , diggs:status{0,1} , diggs:remark*

Children

diggs:remark, diggs:status, gml:description

Instance

<diggs:AbstractTimeObject gml:id="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
</diggs:AbstractTimeObject>

Attributes

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<element name="AbstractTimeObject" substitutionGroup="gml:AbstractTimeObject" type="diggs:AbstractTimeObjectType">
  <annotation>
    <documentation>Base type for DIGGS time objects</documentation>
  </annotation>
</element>
