Element diggs:AbstractTimeObjectType / diggs:remark
Namespace http://diggsml.org/schema-dev

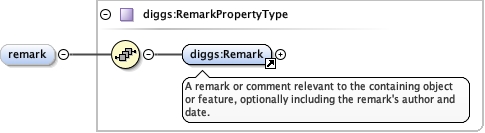

Diagram
DiagramKernel_xsd_Element_diggs_Remark.tmp#RemarkKernel_xsd_Complex_Type_diggs_RemarkPropertyType.tmp#RemarkPropertyType
Type diggs:RemarkPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:Remark
Children diggs:Remark
Instance

<diggs:remark xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Remark owns="false">{1,1}</diggs:Remark>
</diggs:remark>
Source

<element name="remark" type="diggs:RemarkPropertyType" minOccurs="0" maxOccurs="unbounded"/>
Complex Type diggs:AbstractTimeObjectType
Namespace http://diggsml.org/schema-dev

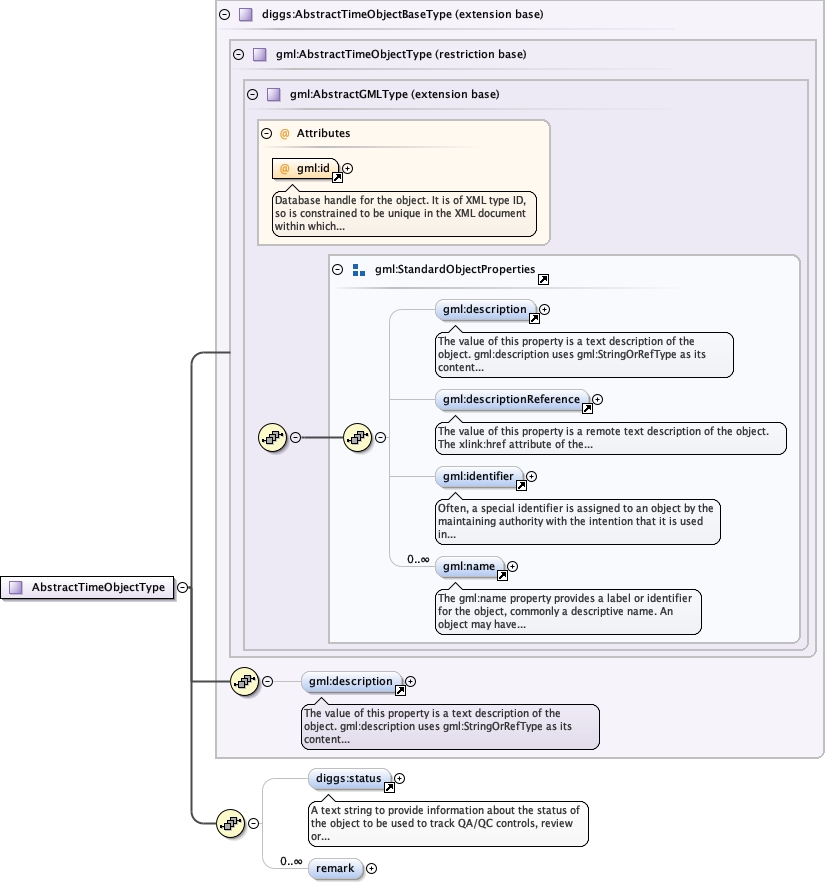

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractTimeObjectType.tmp#AbstractTimeObjectTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptionKernel_xsd_Complex_Type_diggs_AbstractTimeObjectBaseType.tmp#AbstractTimeObjectBaseTypeKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractTimeObjectType.tmp#http___diggsml.org_schema-dev_AbstractTimeObjectType_remark
Type extension of diggs:AbstractTimeObjectBaseType
Type hierarchy
Properties
abstract true
Used by
Element diggs:AbstractTimeObject
Complex Types diggs:MultiTimeInstantType, diggs:TimeIntervalListType, diggs:TimePositionListType
Model
gml:description{0,1} , diggs:status{0,1} , diggs:remark*
Children diggs:remark, diggs:status, gml:description
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType abstract="true" name="AbstractTimeObjectType">
  <complexContent>
    <extension base="diggs:AbstractTimeObjectBaseType">
      <sequence>
        <element minOccurs="0" ref="diggs:status">
          <annotation>
            <documentation>A text string to provide information about the status of the object to be used to track QA/QC controls, review or release status, etc. The values used are intended to come from a controlled list of terms maintained by an organization.</documentation>
          </annotation>
        </element>
        <element name="remark" type="diggs:RemarkPropertyType" minOccurs="0" maxOccurs="unbounded"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
