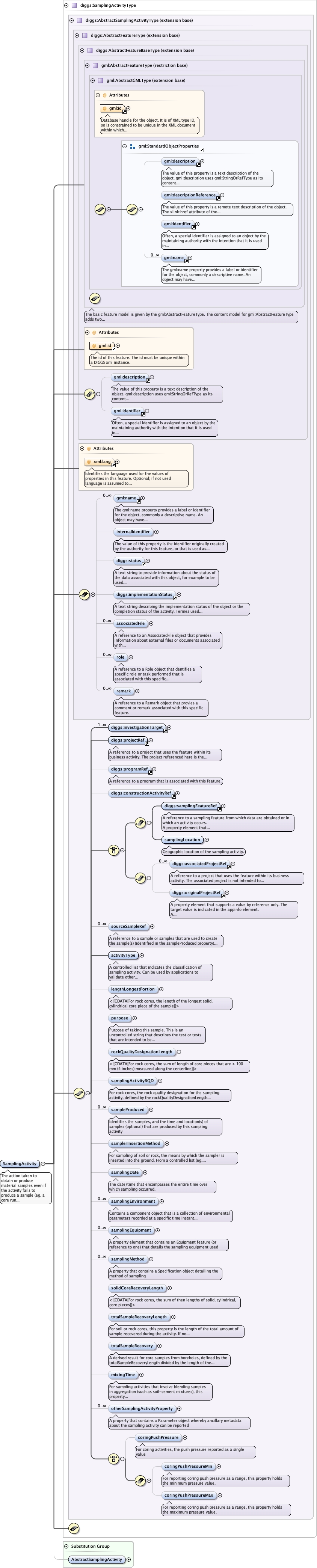

Schema documentation for component diggs:SamplingActivity

The action taken to obtain or produce material samples even if the activity fails to produce a sample (eg. a core run that produces no recovery). The activity type must be specified, and indicates if the produced sample(s) are a result of collection at a sampling feature, sub-sampling, aggregation of two or more samples, or a sample created as a test or blank sample. All samples must refer to a SamplingActivity feature.

<diggs:SamplingActivity gml:id="" xml:lang="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:investigationTarget>{1,unbounded}</diggs:investigationTarget>
  <diggs:projectRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</diggs:projectRef>
  <diggs:programRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:programRef>
  <diggs:constructionActivityRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:constructionActivityRef>
  <diggs:samplingFeatureRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</diggs:samplingFeatureRef>
  <diggs:samplingLocation xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{1,1}</diggs:samplingLocation>
  <diggs:associatedProjectRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedProjectRef>
  <diggs:originalProjectRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:originalProjectRef>
  <diggs:sourceSampleRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" percentage="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:sourceSampleRef>
  <diggs:activityType>{1,1}</diggs:activityType>
  <diggs:lengthLongestPortion uom="">{0,1}</diggs:lengthLongestPortion>
  <diggs:purpose xml:lang="">{0,1}</diggs:purpose>
  <diggs:rockQualityDesignationLength uom="">{0,1}</diggs:rockQualityDesignationLength>
  <diggs:samplingActivityRQD uom="">{0,1}</diggs:samplingActivityRQD>
  <diggs:sampleProduced>{0,unbounded}</diggs:sampleProduced>
  <diggs:samplerInsertionMethod codeSpace="">{0,1}</diggs:samplerInsertionMethod>
  <diggs:samplingDate>{0,1}</diggs:samplingDate>
  <diggs:samplingEnvironment>{0,unbounded}</diggs:samplingEnvironment>
  <diggs:samplingEquipment xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:samplingEquipment>
  <diggs:samplingMethod xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:samplingMethod>
  <diggs:solidCoreRecoveryLength uom="">{0,1}</diggs:solidCoreRecoveryLength>
  <diggs:totalSampleRecoveryLength uom="">{0,1}</diggs:totalSampleRecoveryLength>
  <diggs:totalSampleRecovery uom="">{0,1}</diggs:totalSampleRecovery>
  <diggs:mixingTime uom="">{0,1}</diggs:mixingTime>
  <diggs:otherSamplingActivityProperty>{0,unbounded}</diggs:otherSamplingActivityProperty>
  <diggs:coringPushPressure uom="">{0,1}</diggs:coringPushPressure>
  <diggs:coringPushPressureMin uom="">{0,1}</diggs:coringPushPressureMin>
  <diggs:coringPushPressureMax uom="">{0,1}</diggs:coringPushPressureMax>
</diggs:SamplingActivity>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

<element abstract="false" name="SamplingActivity" substitutionGroup="diggs:AbstractSamplingActivity" type="diggs:SamplingActivityType"> <annotation> <documentation>The action taken to obtain or produce material samples even if the activity fails to produce a sample (eg. a core run that produces no recovery). The activity type must be specified, and indicates if the produced sample(s) are a result of collection at a sampling feature, sub-sampling, aggregation of two or more samples, or a sample created as a test or blank sample. All samples must refer to a SamplingActivity feature.</documentation> </annotation> </element>
