Element diggs:StratigraphySystemType / diggs:stratigraphyType
Namespace http://diggsml.org/schema-dev
Annotations

Selected from an enumerated list, the type of
stratigraphic units described in this system. Where there may be
different strat unit definitions within a system (rare), the
dominant type should be listed here and the unitType property of
each StratigraphyObservation may be instantiated to identify which
observation falls within each type of unit.
Diagram
DiagramKernel_xsd_Simple_Type_diggs_StratUnitExtEnumType.tmp#StratUnitExtEnumType
Type diggs:StratUnitExtEnumType
Properties
content simple
Source

<element name="stratigraphyType" type="diggs:StratUnitExtEnumType">
  <annotation>
    <documentation>Selected from an enumerated list, the type of stratigraphic units described in this system. Where there may be different strat unit definitions within a system (rare), the dominant type should be listed here and the unitType property of each StratigraphyObservation may be instantiated to identify which observation falls within each type of unit.</documentation>
  </annotation>
</element>

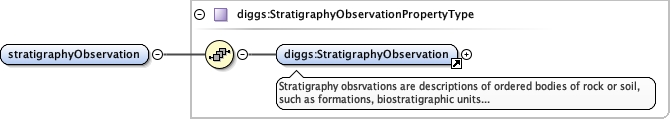

Element diggs:StratigraphySystemType / diggs:stratigraphyObservation
Namespace http://diggsml.org/schema-dev
Diagram
DiagramKernel_xsd_Element_diggs_StratigraphyObservation.tmp#StratigraphyObservationKernel_xsd_Complex_Type_diggs_StratigraphyObservationPropertyType.tmp#StratigraphyObservationPropertyType
Type diggs:StratigraphyObservationPropertyType
Properties
content complex
maxOccurs unbounded
Model
Children diggs:StratigraphyObservation
Instance

<diggs:stratigraphyObservation xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:StratigraphyObservation howDetermined="" gml:id="" xml:lang="" stratumCode="">{1,1}</diggs:StratigraphyObservation>
</diggs:stratigraphyObservation>
Source

<element name="stratigraphyObservation" type="diggs:StratigraphyObservationPropertyType" maxOccurs="unbounded"/>

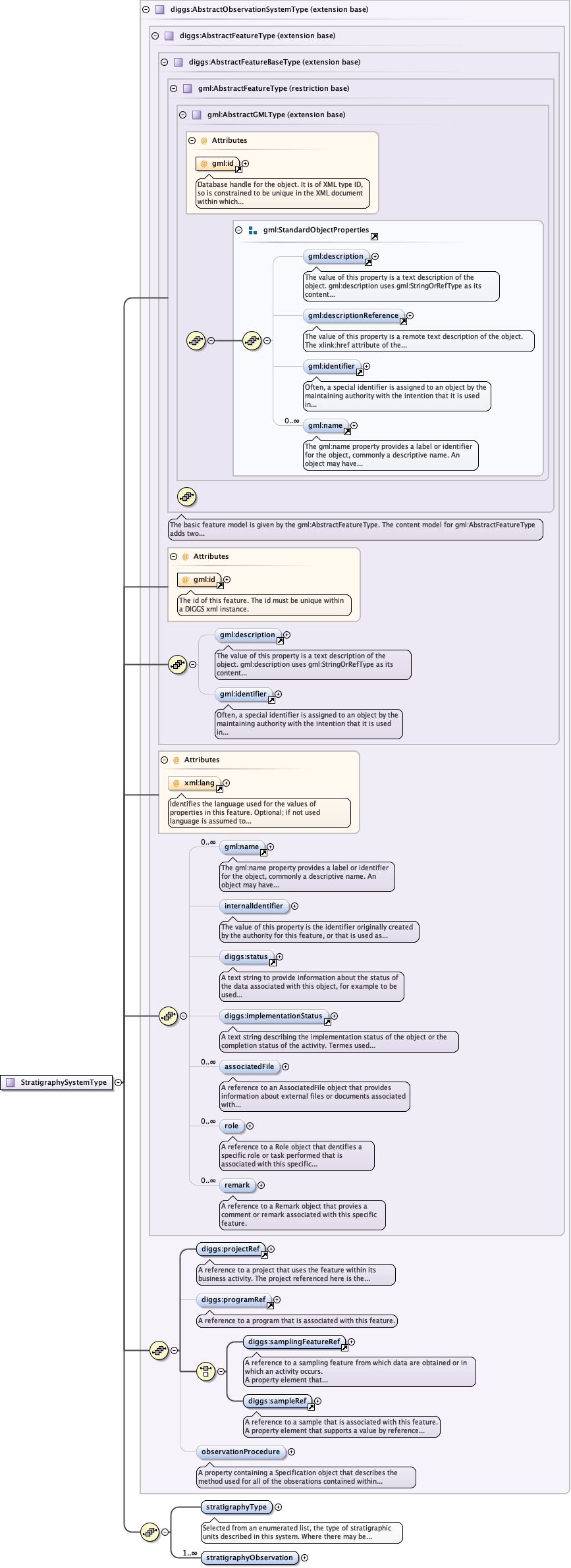

Complex Type diggs:StratigraphySystemType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_internalIdentifierKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Element_diggs_implementationStatus.tmp#implementationStatusKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_associatedFileKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_roleKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureType_remarkKernel_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#AbstractFeatureTypeKernel_xsd_Element_diggs_projectRef.tmp#projectRefKernel_xsd_Element_diggs_programRef.tmp#programRefKernel_xsd_Element_diggs_samplingFeatureRef.tmp#samplingFeatureRefKernel_xsd_Element_diggs_sampleRef.tmp#sampleRefKernel_xsd_Complex_Type_diggs_AbstractObservationSystemType.tmp#AbstractObservationSystemType_observationProcedureKernel_xsd_Complex_Type_diggs_AbstractObservationSystemType.tmp#AbstractObservationSystemTypeKernel_xsd_Complex_Type_diggs_StratigraphySystemType.tmp#StratigraphySystemType_stratigraphyTypeKernel_xsd_Complex_Type_diggs_StratigraphySystemType.tmp#StratigraphySystemType_stratigraphyObservation
Type extension of diggs:AbstractObservationSystemType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:observationProcedure, diggs:programRef, diggs:projectRef, diggs:remark, diggs:role, diggs:sampleRef, diggs:samplingFeatureRef, diggs:status, diggs:stratigraphyObservation, diggs:stratigraphyType, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="StratigraphySystemType">
  <complexContent>
    <extension base="diggs:AbstractObservationSystemType">
      <sequence>
        <element name="stratigraphyType" type="diggs:StratUnitExtEnumType">
          <annotation>
            <documentation>Selected from an enumerated list, the type of stratigraphic units described in this system. Where there may be different strat unit definitions within a system (rare), the dominant type should be listed here and the unitType property of each StratigraphyObservation may be instantiated to identify which observation falls within each type of unit.</documentation>
          </annotation>
        </element>
        <element name="stratigraphyObservation" type="diggs:StratigraphyObservationPropertyType" maxOccurs="unbounded"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
